How to Make a Own Poe Camera A Step by Step Guide

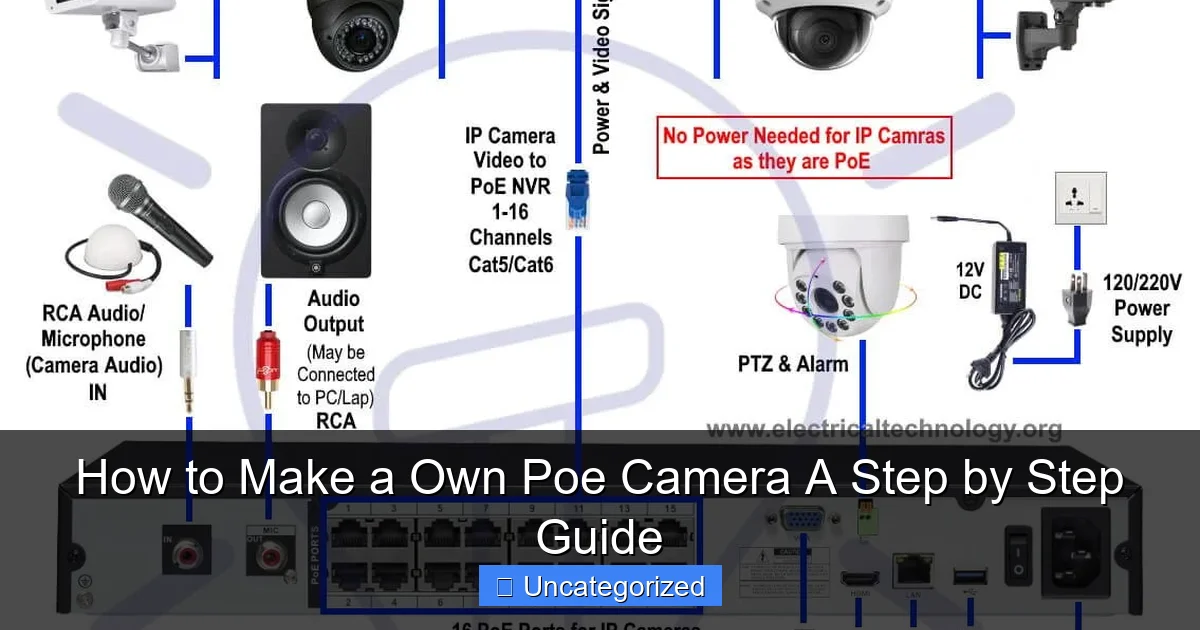

Building your own PoE (Power over Ethernet) camera is easier than you think—with basic tools and a few key components like a compatible camera module, PoE injector, and network cable, you can create a reliable, wire-free surveillance system. This step-by-step guide walks you through wiring, configuration, and setup, empowering DIY enthusiasts to save money and customize their security setup without sacrificing performance.

Key Takeaways

• Choose a compatible camera: Ensure it supports PoE for seamless power and data.
• Gather essential tools: You’ll need a PoE switch, cables, and a housing unit.
• Follow wiring carefully: Connect Ethernet cables to avoid signal or power loss.
• Secure camera placement: Mount firmly to prevent tampering or misalignment.
• Test before finalizing: Verify video feed and power stability early in setup.
• Update firmware regularly: Enhance security and performance with the latest patches.

Understanding the Basics of a PoE Camera

What is a PoE Camera?

Power over Ethernet (PoE) cameras are surveillance devices that receive both electrical power and data connectivity through a single Ethernet cable. This eliminates the need for separate power cables and adapters, simplifying installation and reducing clutter. PoE technology is based on the IEEE 802.3af, 802.3at (PoE+), and 802.3bt (PoE++) standards, which define how power is delivered over Ethernet networks. These standards ensure compatibility between PoE devices and switches or injectors.

PoE cameras are widely used in home security, commercial surveillance, and industrial monitoring due to their reliability, scalability, and cost-effectiveness. They can be integrated into existing network infrastructures, allowing for remote access via mobile apps or web interfaces. For DIY enthusiasts, building your own PoE camera offers a rewarding project that combines electronics, networking, and software skills.

Why Build Your Own PoE Camera?

Creating a custom PoE camera provides several advantages over buying a pre-made unit. First, it allows for complete control over components, enabling you to tailor the camera to your specific needs—whether it’s higher resolution, better night vision, or unique mounting options. Second, it can be more cost-effective, especially if you already have some of the required hardware. Third, the learning experience is invaluable, teaching you about networking, power delivery, and camera firmware.

Additionally, building your own camera ensures you know exactly what’s inside it—no hidden backdoors or data privacy concerns. This is particularly important for security-conscious users who want full transparency over their surveillance system. For example, a homeowner might want a camera with local storage (SD card) instead of cloud-based recording to avoid subscription fees and potential data breaches.

Essential Components and Tools

Core Hardware Components

To build a functional PoE camera, you’ll need the following core components:

• Camera Sensor/Board: Choose a high-quality image sensor (e.g., Raspberry Pi Camera Module V2, Arducam, or a standalone IP camera board). Look for sensors with at least 1080p resolution, H.264/H.265 encoding, and low-light performance (e.g., IR cut filter).
• Single-Board Computer (SBC): A Raspberry Pi 4 or Pi 3B+ is ideal for its GPIO pins, Ethernet port, and community support. Alternatively, consider a Rock Pi or Orange Pi for more processing power.
• PoE Hat or PoE Module: A Raspberry Pi PoE HAT (for Pi 4/3B+) or a third-party PoE module (e.g., Waveshare PoE Board) is required to draw power from the Ethernet cable.
• Enclosure: A weatherproof, IP66-rated housing protects the camera from dust and water. Consider a dome or bullet-style enclosure with a sun shield.
• Ethernet Cable: Use a Cat5e, Cat6, or Cat6a cable (up to 100 meters for PoE). Shielded cables are recommended for outdoor installations.
• Optional Add-ons: IR LEDs for night vision, PIR motion sensors, microphones, or a microSD card for local storage.

Pro Tip: For a budget-friendly build, repurpose an old Raspberry Pi and use a USB camera (ensure it supports PoE power draw). However, a dedicated PoE camera board (e.g., Arducam PoE Camera) simplifies the process.

Tools and Software

You’ll also need these tools and software:

• Soldering Iron and Solder: For connecting wires (e.g., IR LEDs, PIR sensors).
• Heat Shrink Tubing and Electrical Tape: For insulating connections.
• Drill and Hole Saw: To create mounting holes in the enclosure.
• Network Tools: A laptop, router/PoE switch, and Ethernet cable tester.
• Software: Raspberry Pi OS (Raspbian), MotionEyeOS, or custom scripts (e.g., Python for motion detection).

Example Setup: A Raspberry Pi 4 with a PoE HAT, Raspberry Pi Camera Module V2, and a 32GB microSD card running MotionEyeOS can be assembled for under $150.

Step-by-Step Assembly Process

Step 1: Prepare the Enclosure

Start by preparing the camera housing. Most enclosures have a removable backplate and a front lens cover. Use a drill and hole saw to create a hole for the Ethernet cable. If your enclosure lacks a built-in cable gland, install a waterproof one to prevent moisture ingress. For example, a 1/2-inch hole with a rubber grommet works well for Cat6 cables.

Tip: Test-fit the camera board and SBC inside the enclosure before drilling to ensure proper spacing. Leave room for airflow to prevent overheating.

Step 2: Install the PoE Module

Attach the PoE module to the Raspberry Pi. For a Raspberry Pi PoE HAT, align the GPIO pins and secure it with the included screws. For third-party modules, follow the manufacturer’s wiring instructions (e.g., connect V+ and V- to the Pi’s power pins).

Critical Safety Check: Ensure the PoE module’s output voltage (typically 5V) matches the Pi’s requirements. Use a multimeter to verify before powering on.

Step 3: Mount the Camera Sensor

Secure the camera sensor to the enclosure’s front plate. Most Raspberry Pi cameras use a ribbon cable, which can be routed through a small slit in the enclosure. For outdoor builds, apply silicone sealant around the lens to prevent fogging.

Pro Tip: Use a flexible ribbon cable extension (e.g., 20cm) to position the sensor at an optimal angle.

Step 4: Connect Peripherals (Optional)

Add IR LEDs for night vision by wiring them to the Pi’s GPIO pins (use a transistor or relay to handle higher current). For motion detection, connect a PIR sensor to GPIO 4. Test each peripheral individually before final assembly.

Example: A 12V IR LED array can be powered via the PoE HAT’s 12V output (if available) or an external 12V-to-5V converter.

Step 5: Seal and Weatherproof

After all connections are secure, seal the enclosure. Apply silicone sealant around the Ethernet cable entry point and any screw holes. For extreme weather, use an O-ring gasket between the backplate and main housing.

Warning: Avoid over-tightening screws, which can crack plastic enclosures.

Networking and Power Configuration

Setting Up the PoE Switch/Injector

PoE cameras require either a PoE switch or a PoE injector. A PoE switch (e.g., TP-Link TL-SG1008P) powers multiple cameras, while an injector (e.g., Netgear GS108LP) is ideal for single-camera setups. Ensure the switch/injector supports the required PoE standard (802.3af for most Pi builds).

Power Calculation: A Raspberry Pi 4 draws ~3W under load, while a PoE HAT adds ~1W. A standard 802.3af switch (15.4W per port) is sufficient. For high-power setups (e.g., IR LEDs), use PoE+ (30W).

Configuring the Network

Connect the camera to your router via Ethernet. Assign a static IP address to the Pi by editing /etc/dhcpcd.conf (e.g., static ip_address=192.168.1.100/24). Enable SSH for remote access:

sudo raspi-config
# Navigate to "Interfacing Options" > "SSH" > Enable

For remote viewing, configure port forwarding on your router (e.g., forward port 8081 to the camera’s IP). Use a dynamic DNS service (e.g., DuckDNS) if your ISP provides a dynamic IP.

Security Tip: Change the default SSH password and disable root login.

Testing Power and Data

Power on the PoE switch/injector. The Pi should boot automatically. Check the switch’s status lights—a solid green LED indicates power delivery. Use ping 192.168.1.100 to verify network connectivity.

Troubleshooting: If the Pi doesn’t boot, test with a standard USB-C power supply to isolate PoE issues. A flickering power light may indicate insufficient cable quality or distance.

Software Installation and Customization

Choosing the Right OS

For beginners, MotionEyeOS is the easiest option. It’s a lightweight Linux distribution with a web-based interface for camera management. Flash it to a microSD card using Raspberry Pi Imager:

1. Download MotionEyeOS for Raspberry Pi.
2. Flash the image to the microSD card.
3. Insert the card into the Pi and boot.

For advanced users, Raspberry Pi OS with custom scripts (e.g., Python + OpenCV for AI-based motion detection) offers greater flexibility.

Configuring the Camera Software

Access MotionEyeOS via a web browser at http://192.168.1.100:8765. Log in (default: admin/admin) and add a new camera:

• Camera Type: “Raspberry Pi Camera” or “Network Camera” (for USB cameras).
• Resolution: Set to 1920×1080 (or max supported).
• Frame Rate: 15-25 FPS (higher values require more bandwidth).
• Motion Detection: Enable with a sensitivity of 15-20% to avoid false alerts.

Example: A camera overlooking a driveway might use a 1080p resolution at 20 FPS with motion detection enabled.

Advanced Customization

For custom firmware, install FFmpeg for video streaming and Motion for motion detection:

sudo apt-get install ffmpeg motion
sudo nano /etc/motion/motion.conf
# Set "stream_localhost off" for remote access

Add automation via cron jobs (e.g., turn on IR LEDs at sunset) or integrate with Home Assistant for smart home control.

Testing, Troubleshooting, and Optimization

Initial Testing

Verify the camera’s functionality:

• Video Quality: Check for sharpness, color accuracy, and low-light performance.
• Network Stability: Stream video to a remote device (e.g., smartphone) for 30+ minutes to detect lag or disconnections.
• Motion Detection: Test with moving objects at varying distances.

Pro Tip: Use a network analyzer (e.g., Wireshark) to monitor bandwidth usage—1080p streaming typically consumes 1-2 Mbps.

Common Issues and Fixes

Issue	Cause	Solution
Camera not detected	Faulty ribbon cable	Re-seat the camera cable; use a magnifying glass to check for bent pins.
Overheating	Enclosure lacks airflow	Add a small 5V fan (powered via GPIO) or drill ventilation holes.
PoE power drop	Cable too long or low quality	Replace with Cat6a shielded cable; shorten the run to <30m.
Motion detection false alarms	Sensitivity too high	Adjust to 10-15%; mask out moving tree branches in the detection area.

Optimization Tips

To enhance performance:

• Reduce Bandwidth: Lower resolution to 720p or use H.265 encoding.
• Improve Night Vision: Add IR illuminators with a 940nm wavelength (invisible to humans).
• Local Storage: Use a high-endurance microSD card (e.g., SanDisk High Endurance) for 24/7 recording.
• Remote Access: Set up a VPN (e.g., WireGuard) for secure viewing instead of port forwarding.

Conclusion

Building your own PoE camera is a rewarding project that combines hardware, networking, and software skills. By following this guide, you’ve created a customizable, privacy-focused surveillance system tailored to your needs—whether it’s monitoring your backyard, securing a small business, or experimenting with AI-based analytics. The process not only saves money but also empowers you to understand every component of your security setup.

As you refine your camera, consider future upgrades like edge computing (e.g., TensorFlow Lite for object detection), solar power integration, or multi-camera NVR setups. Remember, the key to a successful build lies in meticulous assembly, thorough testing, and continuous optimization. With your DIY PoE camera, you’re not just saving on costs—you’re gaining a deeper appreciation for the technology that keeps your property safe. Now, grab your tools and start building!

Frequently Asked Questions

What is a PoE camera and how does it work?

A PoE (Power over Ethernet) camera receives both power and data through a single Ethernet cable, eliminating the need for separate power sources. This simplifies installation and reduces wiring clutter, making it ideal for DIY security setups.

Can I convert an existing IP camera into a DIY PoE camera?

Yes, you can use a PoE injector or midspan adapter to supply power to your existing IP camera over the Ethernet cable. Ensure the camera supports PoE standards (like 802.3af) or uses passive PoE with compatible voltage.

What tools and materials do I need to make my own PoE camera?

You’ll need a compatible IP camera, PoE switch/injector, Ethernet cable (Cat 5e/6), a network video recorder (NVR), and basic tools like crimpers for custom cabling. Always verify voltage and PoE compatibility before connecting components.

How do I set up a DIY PoE camera system step by step?

First, connect the PoE switch to your router, then link the camera using an Ethernet cable. Configure the camera’s IP address via its software and test the feed. Finally, integrate it with your NVR or cloud storage for remote access.

Are there safety risks when building a homemade PoE camera?

Improper voltage or cabling can damage your camera or network devices. Always use UL-listed PoE equipment, avoid overloading circuits, and follow manufacturer guidelines to prevent overheating or electrical hazards.

What are the benefits of making your own PoE camera system?

Building your own PoE camera system offers cost savings, customization, and flexibility in camera placement. It also allows integration with existing smart home or security systems for a tailored surveillance solution.
