How to Make a Poe Camera Step by Step Guide for Beginners

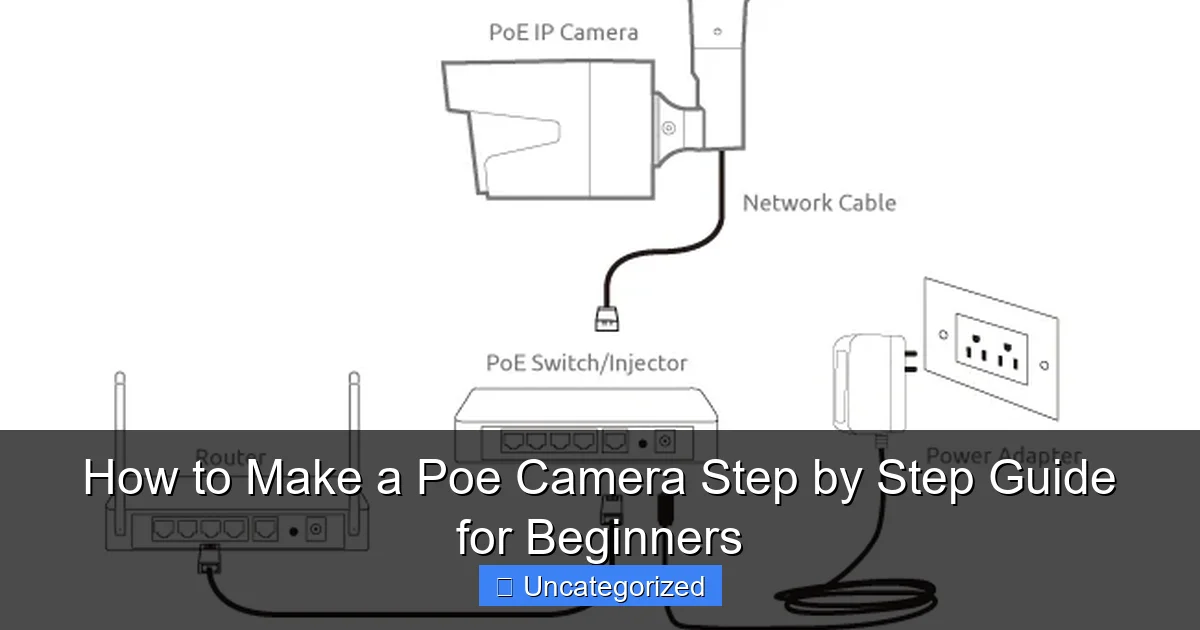

Creating a PoE (Power over Ethernet) camera at home is easier than you think—just gather a compatible camera, a PoE switch or injector, and an Ethernet cable to get started. This step-by-step guide walks beginners through connecting, powering, and configuring the camera using PoE technology, eliminating the need for separate power cables and simplifying installation. Perfect for DIY home security, this setup delivers reliable power and high-quality video over a single cable.

Key Takeaways

• Plan your setup: Choose camera location and verify PoE switch compatibility first.
• Use Cat 5e/6 cables: Ensure stable power and data transmission over long distances.
• Power via PoE switch/injector: Simplify wiring with single-cable power and data delivery.
• Secure network access: Assign static IP and enable encryption for camera feeds.
• Test before mounting: Confirm video feed and motion detection work pre-installation.
• Weatherproof outdoor units: Use IP66-rated enclosures for external camera protection.

Understanding the Basics of PoE Cameras

What is a PoE Camera?

A Power over Ethernet (PoE) camera is a type of IP (Internet Protocol) surveillance camera that receives both power and data through a single Ethernet cable. This technology simplifies installation by eliminating the need for separate power cables, making PoE cameras ideal for both indoor and outdoor security setups. Unlike traditional analog CCTV cameras, PoE cameras transmit high-definition video over a network, offering superior image quality and remote accessibility.

PoE cameras operate using the IEEE 802.3af or 802.3at standards, which define how power is delivered safely over Ethernet cabling. The most common standard, 802.3af, provides up to 15.4 watts per port, while 802.3at (PoE+) delivers up to 30 watts. This makes PoE cameras suitable for a wide range of devices, including PTZ (pan-tilt-zoom) cameras, infrared night vision models, and even smart cameras with AI-based analytics.

Why Build Your Own PoE Camera?

While commercial PoE cameras are readily available, building your own offers several advantages. First, you gain complete control over components, allowing you to customize image quality, field of view, and power requirements. Second, DIY PoE cameras can be more cost-effective for large-scale deployments. Third, understanding the inner workings of your security system enhances troubleshooting and future upgrades.

For beginners, building a PoE camera is an excellent way to learn about networking, embedded systems, and security technology. Whether you’re securing a small business, monitoring a remote property, or experimenting with home automation, a custom PoE camera provides flexibility and scalability. Plus, with open-source software and affordable hardware, the barrier to entry has never been lower.

Essential Components and Tools for Your DIY PoE Camera

Hardware Components You’ll Need

To build a functional PoE camera, you must carefully select compatible components. Below is a list of essential hardware:

• Camera Sensor Module: Choose a high-resolution sensor (e.g., 1080p or 4K) with features like night vision, wide dynamic range (WDR), or motion detection. Popular options include the Raspberry Pi Camera Module 3, Arducam modules, or industrial-grade sensors from brands like Sony or OmniVision.
• Single-Board Computer (SBC): The “brain” of your camera. The Raspberry Pi 4 or Raspberry Pi 5 are excellent choices due to their PoE support (via PoE HAT), GPIO pins, and community support. Alternatives include the Odroid XU4 or NVIDIA Jetson Nano for advanced processing.
• PoE Splitter or PoE HAT: If your SBC doesn’t have built-in PoE, use a PoE HAT (for Raspberry Pi) or a standalone PoE splitter to convert Ethernet power into usable DC voltage.
• Network Cable: Use Cat5e or Cat6 Ethernet cables (shielded for outdoor use) to transmit both power and data. Avoid cables longer than 100 meters to prevent signal degradation.
• Housing and Mount: A weatherproof enclosure protects your camera from rain, dust, and tampering. 3D-printed cases or off-the-shelf IP66-rated housings are ideal.
• Power Source: A PoE switch or PoE injector. Ensure it meets the power requirements of your SBC and camera module.

Software and Tools

Software is just as critical as hardware. Here’s what you’ll need:

• Operating System: Use Raspberry Pi OS (formerly Raspbian) for Raspberry Pi-based builds. For advanced users, consider Ubuntu Server or OpenWrt.
• Camera Software: MotionEyeOS is a beginner-friendly, web-based interface for managing IP cameras. It supports motion detection, video recording, and remote streaming. Alternatives include ZoneMinder or Shinobi.
• Network Tools: Tools like Wireshark or nmap help diagnose network issues. A PoE tester ensures your switch/injector delivers the correct voltage.
• Development Tools: Basic Linux command-line skills and Python (for custom scripts) are helpful for automation.

Tip: Buy components from reputable suppliers like Adafruit, SparkFun, or Amazon. Always check compatibility—for example, not all PoE splitters work with Raspberry Pi’s GPIO power requirements.

Step-by-Step Assembly Guide

Step 1: Assemble the Hardware

Begin by connecting your camera sensor to the SBC. For a Raspberry Pi:

1. Attach the camera ribbon cable to the CSI (Camera Serial Interface) port on the Pi. Ensure the cable’s blue side faces the Ethernet port.
2. If using a PoE HAT, install it on the Pi’s GPIO pins and secure it with screws. For a standalone PoE splitter, connect the splitter’s DC output to the Pi’s micro-USB or USB-C power port.
3. Place the SBC and camera module inside the weatherproof housing. Use adhesive mounts or brackets to prevent vibration.
4. Connect the Ethernet cable from your PoE switch/injector to the Pi’s Ethernet port.

Example: For a 4K outdoor camera, use a Raspberry Pi 5 with a 4K Arducam sensor, a 30W PoE HAT, and a UV-resistant enclosure.

Step 2: Install the Operating System

Flash the OS to a microSD card using Raspberry Pi Imager or Balena Etcher:

1. Download Raspberry Pi OS Lite (headless) from the official website.
2. Use Raspberry Pi Imager to write the OS to a 16GB+ microSD card.
3. Before ejecting the card, create a blank file named ssh (no extension) in the boot partition to enable SSH.
4. Insert the microSD card into the Pi and connect the Ethernet cable.

Note: For remote setups, assign a static IP address to your camera to avoid connectivity issues after reboots.

Step 3: Configure Network and PoE

Power on the Pi via PoE. Once booted:

1. SSH into the Pi using its IP address (find it via your router’s admin panel or a tool like Advanced IP Scanner).
2. Update the system: sudo apt update && sudo apt upgrade -y.
3. Enable the camera interface: Run sudo raspi-config, navigate to Interface Options > Camera, and enable it.
4. Test the camera: Run raspistill -v -o test.jpg to capture a photo. If successful, the camera is ready.

Tip: Use ethtool eth0 to verify PoE power delivery. The output should show “Link detected: yes” and “Speed: 1000Mb/s.”

Installing and Configuring Camera Software

Setting Up MotionEyeOS

MotionEyeOS is the easiest way to turn your Pi into a PoE camera:

1. Download the MotionEyeOS image for Raspberry Pi from GitHub.
2. Flash it to the microSD card using Raspberry Pi Imager.
3. Boot the Pi and wait 5 minutes for initialization.
4. Access the web interface via http://[Pi-IP-Address]:8081 (default credentials: admin/blank password).
5. In the dashboard, click Add Camera > Local Camera and select your camera device (e.g., Raspberry Pi Camera).

Key settings to configure:

• Resolution: Set to 1920×1080 for 1080p or 3840×2160 for 4K.
• Frame Rate: 15-30 FPS (higher values require more bandwidth).
• Motion Detection: Adjust sensitivity and trigger zones.
• Recording: Enable continuous or motion-triggered recording to a USB drive or network storage (NAS).

Advanced: Custom Streaming with FFmpeg

For users needing custom workflows (e.g., AI object detection), install FFmpeg:

1. SSH into the Pi and run: sudo apt install ffmpeg -y.
2. Stream video to an RTMP server (e.g., YouTube, Twitch) with:

   ffmpeg -f v4l2 -i /dev/video0 -c:v h264_omx -b:v 2M -f flv rtmp://your-server-url

3. For local streaming, use:

   ffmpeg -f v4l2 -i /dev/video0 -f mpegts udp://192.168.1.100:1234

Example: Combine FFmpeg with Python scripts to detect faces or license plates using OpenCV.

Optimizing Performance and Security

Network and Bandwidth Optimization

PoE cameras can strain your network. Follow these best practices:

• Use VLANs: Segment camera traffic on a dedicated VLAN to prevent congestion.
• Enable QoS: Prioritize camera traffic in your router settings.
• Adjust Bitrate: Lower bitrates (e.g., 2 Mbps) for 1080p reduce bandwidth usage. Use H.265 (HEVC) encoding if supported.
• Local Storage: Record to a microSD card or USB drive to avoid cloud dependency.

Tip: Use a network monitoring tool like PRTG to track bandwidth usage. A single 1080p camera typically uses 1-3 Mbps.

Securing Your Camera

DIY cameras are vulnerable to hacking. Secure your setup with:

• Strong Passwords: Change default credentials and use a password manager.
• Firewall Rules: Block external access to ports like 8081 unless using a VPN.
• Encryption: Enable HTTPS in MotionEyeOS or use Let’s Encrypt certificates.
• Regular Updates: Patch the OS and firmware monthly.

Warning: Disable SSH password authentication and use SSH keys for remote access.

Data Table: Component Comparison

Component	Model	Power (W)	Resolution	Price (USD)	Best For
Camera Sensor	Arducam 4K	2.5	3840×2160	$59	High-resolution outdoor
SBC	Raspberry Pi 5 (4GB)	7.5 (with PoE HAT)	N/A	$80	Beginners
PoE HAT	Raspberry Pi PoE+ HAT	30 (input)	N/A	$25	Pi 4/5
Housing	IP66 Outdoor Case	N/A	N/A	$35	Weatherproofing
Software	MotionEyeOS	N/A	N/A	Free	User-friendly setup

Conclusion

Building a PoE camera is a rewarding project that combines hardware tinkering, networking, and software configuration. By following this guide, you’ve learned to select compatible components, assemble the hardware, install an OS, configure camera software, and optimize performance. Whether you’re using a Raspberry Pi for a budget-friendly solution or an NVIDIA Jetson for AI-powered analytics, the principles remain the same: simplicity, security, and scalability.

As you expand your setup, consider adding features like two-way audio, solar power, or cloud backup. Remember, the key to a successful DIY project is patience and iteration. Test each component thoroughly, document your steps, and don’t hesitate to ask for help in online forums like Reddit’s r/raspberry_pi or the MotionEyeOS community. With this foundation, you’re well-equipped to create a custom PoE camera that meets your unique security needs.

Final Tip: Always label your Ethernet cables and document your network layout—future you will thank you!

Frequently Asked Questions

What is a PoE camera and how does it work?

A PoE (Power over Ethernet) camera receives both power and data through a single Ethernet cable, eliminating the need for separate power adapters. It connects to a PoE switch or injector, which simplifies installation and reduces cable clutter.

How to make a PoE camera from a regular IP camera?

To make a PoE camera, you’ll need a PoE splitter or injector to deliver power to a standard IP camera via an Ethernet cable. Connect the camera to the splitter’s data+power output, then link the splitter to your network using another Ethernet cable.

Can I convert an existing security camera into a PoE camera?

Yes, by using a PoE splitter or midspan injector, you can convert most 12V DC-powered security cameras into PoE-compatible devices. Ensure the splitter matches your camera’s voltage and power requirements.

What equipment do I need to build a DIY PoE camera system?

You’ll need a PoE-enabled IP camera, a PoE switch/injector, Cat5e/Cat6 Ethernet cables, and an NVR (Network Video Recorder) for storage. For non-PoE cameras, add a PoE splitter to the setup.

How do I power a PoE camera without a PoE switch?

Use a PoE injector or midspan adapter to add power to your Ethernet cable. Plug the injector into a power outlet, then connect one end to your router and the other to the camera.

Is it safe to make a PoE camera at home?

Yes, as long as you use compatible, high-quality components and follow safety guidelines. Ensure cables and injectors are rated for PoE (802.3af/at) to avoid overheating or damaging your camera.
