Building your own PoE (Power over Ethernet) camera is an affordable and customizable way to enhance your home or business security. By combining a compatible IP camera, a PoE injector or switch, and a few essential tools, you can create a reliable, cable-efficient surveillance system that delivers both power and data over a single Ethernet cable. This step-by-step guide walks you through every stage—from selecting components to final setup—ensuring a seamless, professional-grade installation.

How to Make Your Own Poe Camera A Step by Step Guide

Key Takeaways

• Choose a compatible camera: Ensure your camera supports PoE for seamless power and data transfer.
• Use a PoE switch/injector: Simplify setup with a reliable power and data source.
• Verify cable quality: Use Cat5e or higher for stable, long-distance connections.
• Secure your network: Enable encryption to protect camera data from unauthorized access.
• Test before mounting: Confirm functionality prior to permanent installation for troubleshooting ease.
• Optimize placement: Position for best coverage while avoiding obstructions or glare.
• Label all connections: Prevent confusion during maintenance or future upgrades.

Why This Matters / Understanding the Problem

Have you ever needed to monitor your home, office, or workshop but didn’t want to deal with messy power cords or Wi-Fi dropouts? That’s where a Power over Ethernet (PoE) camera comes in handy. Instead of running separate cables for data and electricity, a PoE camera gets both through a single Ethernet cable. This makes installation clean, reliable, and scalable—especially if you’re setting up multiple cameras.

But buying pre-made PoE security cameras can get expensive, especially for larger setups. That’s why many DIY enthusiasts are turning to building their own. With the right parts and a bit of know-how, you can create a custom PoE camera system that’s tailored to your needs and budget. In this How to Make Your Own Poe Camera A Step by Step Guide, we’ll show you exactly how to do it—without breaking the bank or your brain.

Whether you’re securing a backyard shed, monitoring a garage, or building a full smart home network, this guide gives you the tools to take control. You’ll learn how to select components, wire them safely, configure the system, and avoid common pitfalls. Best of all? It’s easier than you think.

What You Need

Before diving into the build, gather all the necessary tools and materials. This ensures a smooth, frustration-free process. Here’s a complete list of what you’ll need to complete your How to Make Your Own Poe Camera A Step by Step Guide project:

Core Components

• PoE-Enabled Camera Module: Look for a compact IP camera board with built-in PoE support (e.g., Raspberry Pi Camera Module 3 with PoE Hat, or a dedicated ONVIF-compliant IP camera with 802.3af/at support).
• PoE Switch or PoE Injector: A PoE switch powers multiple devices at once. For a single camera, a PoE injector (midspan) works fine. Choose one that supports 802.3af (15.4W) or 802.3at (30W) for future-proofing.
• Cat5e or Cat6 Ethernet Cable: Use shielded (STP) cable if running outdoors or near electrical lines. 50–100 ft lengths are common.
• Microcontroller or Single-Board Computer (Optional): If using a Raspberry Pi, you’ll need a PoE HAT or PoE splitter to convert 48V to usable 5V/12V.
• Weatherproof Enclosure (for outdoor use): A sealed NEMA-rated box protects your camera from rain, dust, and heat.
• Power Supply (if using injector): Some PoE injectors require a wall plug; others draw from the network switch.

Tools & Accessories

• Ethernet crimping tool and RJ45 connectors (for custom cable lengths)
• Drill with hole saw bit (for mounting and cable entry)
• Zip ties, mounting brackets, and screws
• Network tester (to verify cable continuity)
• Smartphone or computer for configuration
• MicroSD card (if using Raspberry Pi or local storage)
• Heat shrink tubing or waterproof sealant (for outdoor cable entries)

Software & Network

• Camera firmware (usually auto-downloaded)
• Network Video Recorder (NVR) software (e.g., Blue Iris, Zoneminder, or Milestone XProtect)
• PoE-compatible router or switch (must support VLANs if segmenting traffic)
• Dynamic DNS (DDNS) service (optional, for remote access)

Pro Tip: Buy a PoE test meter ($20–$30) to verify voltage and polarity before connecting sensitive electronics. It saves you from frying a camera with incorrect power.

Step-by-Step Guide to How to Make Your Own Poe Camera A Step by Step Guide

Now that you’ve got everything ready, let’s get building. Follow these steps carefully to create a reliable, high-performance PoE camera system. This How to Make Your Own Poe Camera A Step by Step Guide walks you through each phase—from assembly to activation.

Step 1: Choose Your Camera Platform

The foundation of your DIY PoE camera is the imaging module. You have two main options: a ready-to-use IP camera with PoE support or a modular setup (like Raspberry Pi).

• Ready-Made IP Camera: These are plug-and-play. Look for brands like Hikvision, Reolink, or Amcrest with “PoE” in the model name. They typically support ONVIF, which makes them compatible with most NVR software.
• Raspberry Pi + PoE Hat + Camera Module: More customizable. The Raspberry Pi 4 or 5 with a PoE HAT and Camera Module 3 offers 12MP resolution, night vision, and AI motion detection. It’s perfect for learning and tinkering.

For beginners, we recommend starting with a dedicated PoE IP camera. It’s simpler and less error-prone. Advanced users can explore Pi-based builds for added features like object recognition or custom alerts.

Warning: Avoid “passive PoE” cameras (e.g., 24V systems). They’re cheaper but not standardized and can damage standard 802.3af/at equipment. Stick with IEEE 802.3af/at PoE for safety.

Step 2: Assemble the Hardware

Now, physically connect your components. Safety first: unplug all power sources before working.

1. Mount your camera module inside the enclosure. Use rubber grommets or silicone sealant around the lens and cable entry points to prevent water intrusion.
2. If using a Raspberry Pi, install the PoE HAT onto the GPIO pins. Secure it with standoffs. Attach the Camera Module 3 to the CSI port and lock the connector.
3. Run the Ethernet cable from the PoE switch (or injector) to the camera. If using a pre-made cable, skip to Step 3. For custom lengths:
   • Strip 1 inch of outer jacket.
   • Untwist and arrange the 8 wires in T568B order: Orange-White, Orange, Green-White, Blue, Blue-White, Green, Brown-White, Brown.
   • Crimp an RJ45 connector and test with a cable tester.
4. For outdoor setups, use a drip loop: bend the cable downward before entering the enclosure so water drips off instead of flowing in.

Once assembled, double-check all connections. The camera should be securely mounted, and cables should have strain relief (use zip ties or cable clamps).

Step 3: Connect to the PoE Network

Time to power it up—but don’t plug in just yet. Follow this sequence to avoid surges:

1. Connect the other end of the Ethernet cable to your PoE switch or injector.
2. If using a PoE injector:
   • Plug the “Data + Power” port into the camera.
   • Connect the “Data” port to your router or switch.
   • Plug in the injector’s power adapter.

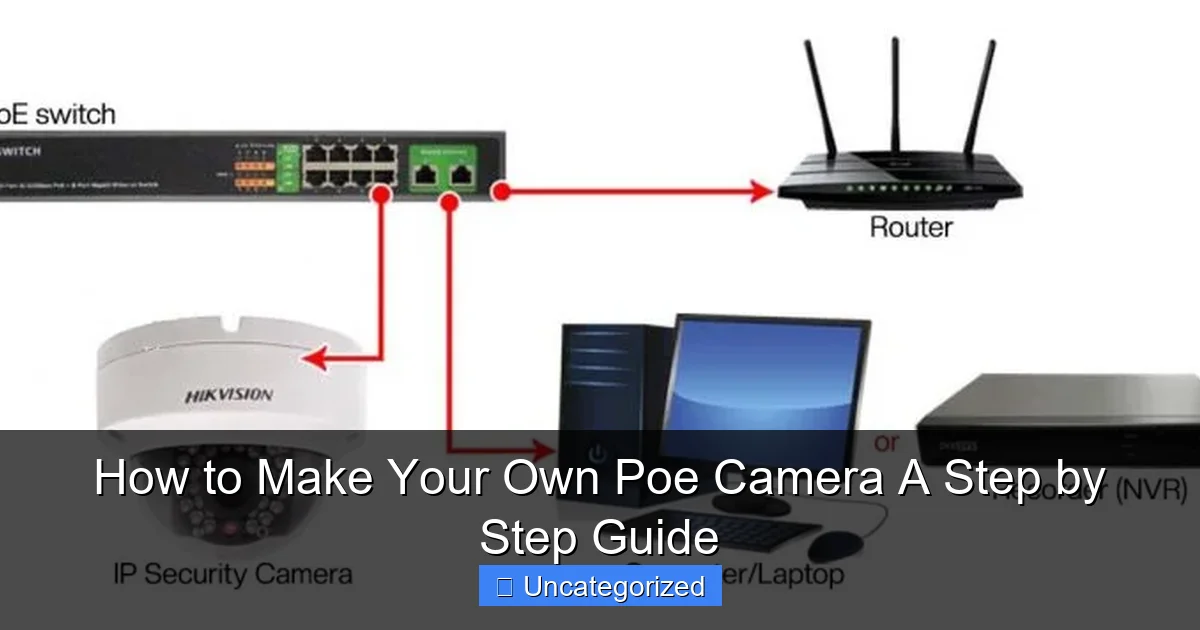

3. For a PoE switch:
   • Connect the switch to your main router via a standard Ethernet cable.
   • Plug the switch into the wall.
   • The camera will power on automatically when connected.

Wait 30–60 seconds for the camera to boot. Most IP cameras have an LED that blinks during startup and turns solid when ready.

Pro Tip: Use VLANs on your router to separate camera traffic from your main network. This improves security and reduces bandwidth congestion.

Step 4: Configure the Camera

Now, access the camera’s settings. This step varies slightly depending on the model, but here’s the general process:

1. Find the camera’s IP address:
   • Check your router’s connected devices list.
   • Use a network scanner app (like Fing or Angry IP Scanner).
   • Some cameras broadcast a setup Wi-Fi hotspot for initial configuration.
2. Open a web browser and enter the IP address (e.g., http://192.168.1.100).
3. Log in with the default credentials (usually admin/admin or admin/password). Change these immediately!
4. Set a static IP address (e.g., 192.168.1.101) so it doesn’t change later.
5. Adjust video settings:
   • Resolution: 1080p or 4K (match your storage and bandwidth limits).
   • Frame rate: 15–25 fps for smooth motion.
   • Bitrate: Lower for Wi-Fi-like networks; higher for wired.
   • Motion detection: Enable and set sensitivity zones.
6. Enable ONVIF if available—this ensures compatibility with third-party NVR software.

For Raspberry Pi cameras, use software like MotionEyeOS or OpenCV for advanced features like AI detection or time-lapse.

Step 5: Set Up Recording and Alerts

A camera is useless without recording. Here’s how to store footage and get alerts:

1. Local Storage (MicroSD):
   • Insert a high-endurance 32GB+ MicroSD card.
   • Format it in the camera’s settings.
   • Set recording mode: continuous, motion-activated, or scheduled.
2. Network Video Recorder (NVR):
   • Install NVR software on a PC or NAS (e.g., Blue Iris, Milestone, or Zoneminder).
   • Add your camera via IP address or ONVIF discovery.
   • Set up recording rules (e.g., record only during motion).
3. Cloud Backup (Optional):
   • Use services like Google Drive, Dropbox, or dedicated security cloud (e.g., Lorex Cloud).
   • Enable FTP upload in camera settings.
4. Alerts & Notifications:
   • Enable email or push notifications for motion events.
   • Use IFTTT or Home Assistant to trigger smart lights or sirens.

Test by walking in front of the camera. You should get an alert within seconds and see the recording in your NVR or SD card.

Step 6: Optimize for Performance and Security

Don’t just set it and forget it. Tweak these settings for long-term reliability:

• Firmware Updates: Check the manufacturer’s website monthly. Outdated firmware is a common security risk.
• Network Bandwidth: Limit each camera to 4–8 Mbps to avoid clogging your network.
• Password Protection: Use a strong, unique password. Enable two-factor authentication if supported.
• Remote Access: For outside viewing:
  • Set up port forwarding (e.g., port 80/443) on your router.
  • Use a DDNS service (e.g., No-IP) if you have a dynamic IP.
  • Or use a secure tunneling service like Tailscale or ZeroTier.
• Night Vision: Adjust IR sensitivity and range. Avoid pointing cameras at reflective surfaces (e.g., glass, mirrors).

Warning: Never expose camera ports (like port 80) directly to the internet without a firewall. Hackers scan for open cameras daily.

Step 7: Expand and Maintain

Once your first camera is working, scale up! Here’s how to add more cameras and keep them running smoothly:

• Add More Cameras: Connect additional PoE cameras to your switch. Most 8-port switches can handle 6–8 cameras at 1080p.
• Centralized Management: Use NVR software to monitor all cameras from one dashboard. Assign names (e.g., “Front Door,” “Backyard”).
• Regular Maintenance:
  • Clean lenses monthly with a microfiber cloth.
  • Check cable connections for corrosion or damage.
  • Back up NVR databases weekly.
• Power Backup: Use a UPS (uninterruptible power supply) for the PoE switch. This keeps cameras running during outages.

With proper care, a DIY PoE camera can last 5+ years—longer than many commercial systems.

Pro Tips & Common Mistakes to Avoid

Even with a solid How to Make Your Own Poe Camera A Step by Step Guide, things can go wrong. Here are insider tips and pitfalls to dodge:

Pro Tips

• Label Everything: Use colored tape or labels on cables. You’ll thank yourself when troubleshooting.
• Use PoE Testers: Before installing outdoors, test voltage and polarity with a PoE meter. A 48V line should read 44–57V.
• Angle for Privacy: Point cameras away from neighbors’ homes or public areas. Avoid recording streets unless legally allowed.
• Enable H.265 Compression: It cuts file sizes by 50% vs. H.264, saving storage and bandwidth.
• Use a UPS for the Switch: A 30-minute backup keeps cameras running during short outages.

Common Mistakes

• Mixing PoE Standards: Never plug an 802.3af camera into a passive 24V injector. It will burn out the board.
• Ignoring Weatherproofing: Even “outdoor” cameras need sealed enclosures. Condensation ruins electronics.
• Forgetting Static IPs: Dynamic IPs change, breaking NVR connections. Always set static addresses.
• Skipping Firmware Updates: Hackers exploit old firmware. Update every 3–6 months.
• Overloading the Network: More than 4 HD cameras on a 100 Mbps network causes lag. Use gigabit switches and cables.

Real-Life Example: One DIYer installed a camera under an eave but forgot a drip loop. Rain seeped in, shorting the board. A $20 waterproof enclosure and $5 sealant would’ve saved it.

FAQs About How to Make Your Own Poe Camera A Step by Step Guide

Got questions? We’ve got answers. Here are the most common queries about building your own PoE camera.

Q1: Can I use a regular Wi-Fi camera with PoE?

No. Wi-Fi cameras don’t have PoE circuitry. You’d need a PoE splitter to convert 48V to 12V/5V and power the camera separately. It works, but defeats the “single cable” advantage. Stick with native PoE cameras.

Q2: How far can I run a PoE cable?

The maximum distance is 100 meters (328 feet) for Cat5e/Cat6. Beyond that, voltage drops and data errors occur. For longer runs, use a mid-span PoE extender or fiber media converter.

Q3: Is PoE dangerous? Can it shock me?

No. PoE uses low-current, high-voltage DC (48V) designed to be safe. It’s like touching a 9V battery—harmless. But always unplug power before handling cables.

Q4: Can I power a Raspberry Pi directly from PoE?

Yes, with a PoE HAT or splitter. The HAT converts 48V to 5V for the Pi. Without it, the 48V will fry the board. Never connect PoE directly to USB or GPIO.

Q5: Do I need a special router for PoE?

Not the router, but you need a PoE switch or injector. Your main router handles internet traffic; the PoE switch powers and connects the cameras. They work together.

Q6: How much does it cost to build one?

A basic setup costs $100–$200: $50 for a PoE camera, $40 for a PoE injector, $20 for cable, $10 for an enclosure. Raspberry Pi builds cost $150+ but offer more customization.

Q7: Can I access my camera remotely?

Yes! Set up port forwarding, DDNS, or a secure tunnel (like Tailscale). Most NVR apps also offer mobile access. Just avoid exposing your network to hackers.

Final Thoughts

Building your own PoE camera isn’t just a money-saver—it’s a smart, empowering project. With this How to Make Your Own Poe Camera A Step by Step Guide, you’ve learned how to choose the right parts, assemble them safely, configure the system, and scale it over time.

You now have a clean, reliable, and customizable security solution that beats many off-the-shelf options. Plus, you understand how it works—so you can troubleshoot, upgrade, or expand with confidence.

So what’s next? Start with one camera. Test it indoors. Then, move it outside. Add a second for your garage. Before you know it, you’ll have a full surveillance network powered by a single switch.

Remember: Security is a journey, not a destination. Keep updating firmware, testing connections, and refining your setup. And most importantly—enjoy the peace of mind that comes from building something yourself.

Ready to get started? Grab your tools, pick a camera, and take the first step today. Your DIY PoE system is just a few hours away.
