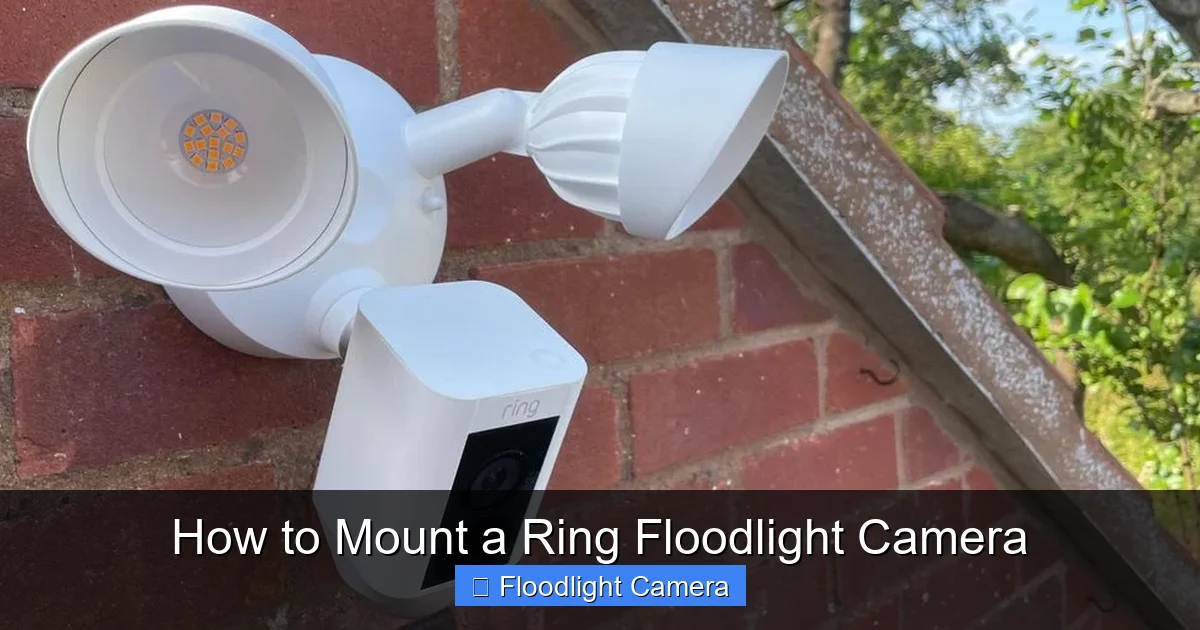

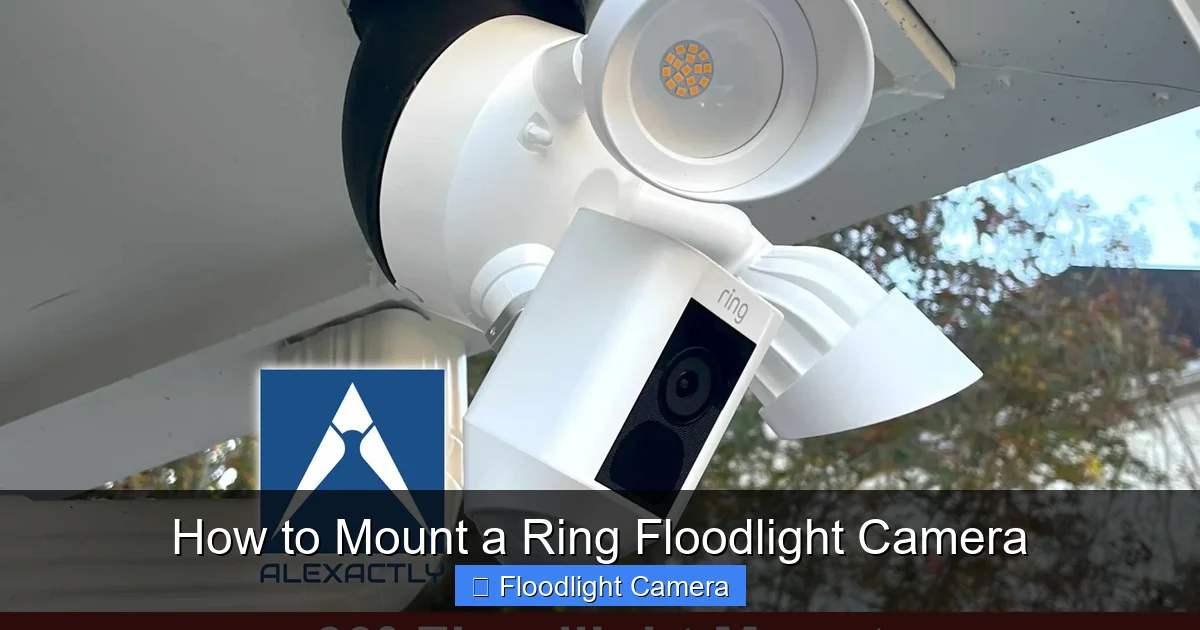

How to Mount a Ring Floodlight Camera

This guide walks you through how to mount a Ring Floodlight Camera safely and correctly. From choosing the right location to final setup and testing, you’ll get clear, beginner-friendly instructions to enhance your home security.

Key Takeaways

• Choose the right location: Mount your camera 8–10 feet high for optimal coverage and minimal blind spots.
• Turn off power before wiring: Always shut off electricity at the breaker to prevent shocks or damage.
• Use the included mounting bracket: Secure it tightly to ensure stability and proper camera alignment.
• Connect wires correctly: Match black (hot), white (neutral), and green (ground) wires to avoid electrical issues.
• Test the system after installation: Use the Ring app to check video quality, motion detection, and light function.
• Adjust settings in the app: Customize motion zones, sensitivity, and light duration for best performance.
• Maintain regularly: Clean the lens and check connections every few months to keep your camera working well.

Introduction: Why Mount a Ring Floodlight Camera?

If you’re serious about home security, a Ring Floodlight Camera is one of the smartest investments you can make. This all-in-one device combines a high-definition security camera with bright LED floodlights and two-way audio, giving you real-time monitoring and deterrence against intruders. Whether you’re protecting your front yard, backyard, or driveway, mounting your Ring Floodlight Camera properly ensures maximum visibility, reliable performance, and peace of mind.

In this comprehensive guide, you’ll learn how to mount a Ring Floodlight Camera from start to finish. We’ll cover everything from planning your installation to wiring, securing the unit, and setting it up in the Ring app. Even if you’ve never installed outdoor lighting or security equipment before, our step-by-step instructions will make the process simple and stress-free. By the end, you’ll have a fully functional, professionally mounted camera that enhances your home’s safety and curb appeal.

What You’ll Need Before You Start

Before you begin, gather all the tools and materials to avoid delays. Most Ring Floodlight Cameras come with the essentials, but you may need a few extras depending on your setup.

Included in the Box

• Ring Floodlight Camera unit
• Mounting bracket and screws
• Wire nuts (for electrical connections)
• Jumper wire (for connecting light and camera circuits)
• User manual and quick start guide

Tools You’ll Need

• Phillips-head screwdriver
• Voltage tester (non-contact)
• Wire strippers
• Ladder (appropriate height for your mounting location)
• Electrical tape
• Drill and drill bits (if mounting to brick, concrete, or hard surfaces)
• Pencil or marker (for marking drill points)

Optional but Helpful

• Assistant (to hold the camera during installation)
• Level (to ensure the camera is straight)
• Weatherproof sealant (for extra protection in harsh climates)

Having everything ready before you start saves time and reduces frustration. Double-check your kit and tools, then move on to planning your installation.

Step 1: Choose the Best Location

The success of your Ring Floodlight Camera starts with choosing the right spot. A poorly placed camera can miss activity, create blind spots, or be easily tampered with. Follow these guidelines to pick the ideal location.

Height Matters

Mount your camera between 8 and 10 feet above the ground. This height provides a wide field of view while making it difficult for someone to reach or disable the unit. Avoid mounting too low (under 7 feet), as it increases the risk of tampering, or too high (over 12 feet), which can reduce image clarity.

Coverage Area

Point the camera toward high-traffic areas like driveways, walkways, or entry points. Aim for a spot that captures both people and vehicles clearly. Use the Ring app’s live view feature (after temporary setup) to test angles and adjust as needed.

Power Source Access

Your camera must be wired to an existing electrical circuit. Choose a location near an outdoor junction box or existing light fixture with access to power. If no wiring exists, you may need to hire an electrician to run new lines—this guide assumes you’re replacing an old floodlight or using an existing box.

Avoid Obstructions

Keep the camera away from trees, shrubs, or overhangs that could block the view or trigger false motion alerts. Also, avoid pointing it directly at the sun or bright lights, which can cause glare or overexposure.

Weather Protection

While the Ring Floodlight Camera is weather-resistant (rated IP65), it’s best to install it under an eave or overhang to protect it from heavy rain, snow, or direct sunlight. This extends the life of the unit and improves performance.

Once you’ve selected the perfect spot, mark it with a pencil and prepare for installation.

Step 2: Turn Off the Power

Safety is critical when working with electricity. Never attempt to wire your camera while the power is on. Follow these steps to ensure a safe installation.

Locate Your Circuit Breaker

Go to your home’s main electrical panel and find the breaker that controls the outdoor light or junction box where you’ll be installing the camera. It’s usually labeled “Outdoor Lights,” “Porch,” or “Floodlights.” If unsure, turn off multiple breakers or the main power.

Turn Off the Breaker

Switch the breaker to the “OFF” position. Use a non-contact voltage tester to confirm that power is off at the junction box. Touch the tester to the wires—if it doesn’t beep or light up, the power is safely off.

Label the Breaker (Optional)

To avoid confusion later, label the breaker with a piece of tape and a note like “Ring Camera – Do Not Turn On.” This prevents someone from accidentally restoring power while you’re working.

Only proceed once you’ve confirmed the power is off. Electrical safety is non-negotiable.

Step 3: Remove the Old Fixture (If Applicable)

If you’re replacing an existing floodlight or outdoor light, you’ll need to remove it first. This step ensures a clean, secure base for your new Ring camera.

Unscrew the Old Unit

Use a screwdriver to remove the mounting screws holding the old fixture to the junction box. Gently lower the fixture and disconnect the wires by unscrewing the wire nuts. Note how the wires are connected—typically black (hot), white (neutral), and green or bare copper (ground).

Inspect the Junction Box

Check that the electrical box is secure and in good condition. If it’s loose, rusted, or damaged, tighten it or replace it before installing the new camera. A stable base is essential for safety and performance.

Prepare the Wires

Strip about ½ inch of insulation from the ends of the black, white, and ground wires if they’re not already prepared. This ensures a solid connection with your new camera.

With the old fixture removed and wires ready, you’re set to install the Ring Floodlight Camera.

Step 4: Install the Mounting Bracket

The mounting bracket is the foundation of your installation. It holds the camera securely and allows for angle adjustments. Follow these steps to attach it properly.

Position the Bracket

Hold the mounting bracket against the junction box. Align it so the camera will face the desired direction. Use a level to ensure it’s straight—crooked cameras look unprofessional and can affect coverage.

Mark Screw Holes

Use a pencil to mark the screw holes on the wall or box. If mounting to wood, you can screw directly into the surface. For brick, concrete, or stucco, you’ll need to drill pilot holes and use wall anchors.

Drill and Secure

Drill pilot holes if needed, then attach the bracket using the provided screws. Tighten them firmly, but don’t over-tighten, which can strip the screws or damage the bracket. The bracket should be snug and immovable.

Check Stability

Give the bracket a gentle shake to ensure it’s secure. If it wobbles, tighten the screws or reinforce the mounting surface. A loose bracket can cause the camera to sag or fall over time.

With the bracket in place, you’re ready to connect the wires.

Step 5: Connect the Wires

Wiring your Ring Floodlight Camera is straightforward if you match the colors correctly. This step powers both the camera and the floodlights.

Identify the Wires

Your camera has three wires:

• Black wire: Hot (connects to black house wire)
• White wire: Neutral (connects to white house wire)
• Green or bare wire: Ground (connects to ground wire or box)

Connect the Wires

Twist the corresponding wires together (black to black, white to white, ground to ground). Use wire nuts to secure each connection. Wrap electrical tape around the wire nuts for extra protection against moisture.

Use the Jumper Wire

The included jumper wire connects the camera’s power to the floodlights. Attach one end to the black wire of the camera and the other to the black wire leading to the lights. This ensures both components receive power from the same circuit.

Tuck Wires Neatly

Carefully fold the connected wires into the junction box. Avoid pinching or bending them sharply, which can damage the insulation. A tidy wire bundle prevents strain and makes future maintenance easier.

Once all wires are connected and tucked in, you can attach the camera to the bracket.

Step 6: Attach the Camera to the Bracket

Now it’s time to mount the Ring Floodlight Camera itself. This step secures the unit and allows for final adjustments.

Align the Camera

Hold the camera up to the mounting bracket. Slide it into place so the screw holes align. The camera should sit flush against the bracket.

Secure with Screws

Use the provided screws to attach the camera to the bracket. Tighten them evenly to avoid warping the housing. Don’t overtighten—snug is sufficient.

Adjust the Angle

Loosen the adjustment knobs (usually on the sides or back) to tilt and swivel the camera. Aim it at your target area, then tighten the knobs to lock the position. Use the level again to ensure it’s straight.

Check the Lights

Make sure the floodlights are angled correctly. They should illuminate the area without shining into neighbors’ windows or causing glare. Adjust the light heads if needed.

With the camera mounted and aimed, it’s time to restore power and test the system.

Step 7: Restore Power and Test

After installation, you’ll want to verify that everything works correctly. Follow these steps to power up and test your Ring Floodlight Camera.

Turn the Power Back On

Return to your circuit breaker and switch it back to the “ON” position. The camera and lights should power up immediately.

Check the Lights

Verify that both floodlights turn on. If they don’t, double-check your wiring and connections. Ensure the jumper wire is properly installed.

Download the Ring App

If you haven’t already, download the Ring app on your smartphone (available for iOS and Android). Create an account or log in if you have one.

Set Up the Camera

Open the app and follow the on-screen instructions to add a new device. Scan the QR code on the camera or enter the serial number manually. The app will guide you through Wi-Fi setup, naming the device, and configuring settings.

Test the Features

• Live View: Check the video feed for clarity and proper angle.
• Motion Detection: Walk in front of the camera to trigger an alert.
• Two-Way Audio: Speak through the app and listen for clear sound.
• Light Control: Use the app to turn the lights on and off manually.

If everything works, your installation is complete. If not, refer to the troubleshooting section below.

Troubleshooting Common Issues

Even with careful installation, you might encounter a few hiccups. Here’s how to resolve the most common problems.

Camera Won’t Power On

Check that the breaker is on and the voltage tester confirms power at the box. Recheck wire connections—loose or reversed wires can prevent power flow. Ensure the jumper wire is connected if your model requires it.

Poor Wi-Fi Signal

Weak signal can cause lag or disconnections. Move your router closer or use a Wi-Fi extender. Avoid mounting the camera behind thick walls or metal surfaces that block signals.

False Motion Alerts

Adjust motion zones in the app to exclude areas like trees or busy streets. Lower sensitivity if alerts are too frequent. Clean the lens to remove dirt or spiderwebs that can trigger false alarms.

Lights Don’t Turn On

Verify the jumper wire is installed and the light circuit is connected. Check the app settings—ensure the lights are set to “Auto” or “On.” Test the bulbs if the issue persists.

Blurry or Dark Video

Clean the camera lens with a soft, dry cloth. Adjust the angle to avoid backlighting. Ensure the camera is mounted securely—vibration can blur footage.

Most issues can be resolved with simple adjustments. If problems continue, contact Ring Support for assistance.

Final Tips for Long-Term Performance

To keep your Ring Floodlight Camera working at its best, follow these maintenance and optimization tips.

Regular Cleaning

Wipe the lens and lights every 1–2 months to remove dust, pollen, or debris. Use a microfiber cloth and avoid harsh chemicals.

Check Connections

Inspect wires and screws every few months, especially after storms or temperature changes. Tighten any loose components.

Update Firmware

The Ring app will notify you of firmware updates. Install them promptly to improve performance and security.

Review Settings

Periodically adjust motion zones, sensitivity, and light duration based on seasonal changes or new activity patterns.

Monitor Battery (If Applicable)

Some models have backup batteries. Check the app for low battery alerts and replace as needed.

With proper care, your Ring Floodlight Camera will provide reliable security for years.

Conclusion

Mounting a Ring Floodlight Camera is a smart, manageable project that significantly boosts your home’s security. By following this guide, you’ve learned how to choose the right location, wire the unit safely, install the mounting bracket, connect the camera, and set it up in the Ring app. You’ve also gained troubleshooting skills and maintenance tips to keep your system running smoothly.

Remember, the key to a successful installation is preparation and attention to detail. Take your time, prioritize safety, and don’t hesitate to ask for help if needed. Once your camera is up and running, you’ll enjoy 24/7 monitoring, bright lighting, and the peace of mind that comes with knowing your home is protected.

Now that you know how to mount a Ring Floodlight Camera, it’s time to take action. Gather your tools, pick your spot, and get started. Your safer, smarter home is just a few steps away.
