This guide walks you through how to pair Swann floodlight camera with your smartphone and Wi-Fi network. You’ll learn setup, troubleshooting, and best practices for reliable performance.
Key Takeaways
- Download the Swann Security app: This is required to pair and control your floodlight camera. It’s available for iOS and Android devices.
- Ensure strong Wi-Fi signal: Place the camera within range of your router to avoid connection drops during pairing and use.
- Use the correct power source: Swann floodlight cameras need a constant 120V power supply. Do not use battery-only setups.
- Follow the LED indicator guide: The camera’s light tells you its status—solid green means ready, blinking means pairing mode.
- Reset if pairing fails: If the camera won’t connect, a factory reset often solves the issue. Hold the reset button for 10 seconds.
- Update firmware regularly: Keep your camera secure and functional by installing updates through the app.
- Test after setup: Always check live view, motion detection, and alerts to confirm everything works correctly.
How to Pair Swann Floodlight Camera: A Complete Step-by-Step Guide
Installing a Swann floodlight camera is one of the smartest moves you can make to boost your home security. These devices combine bright LED lighting with high-definition video surveillance, motion detection, and two-way audio—all controlled from your smartphone. But before you can enjoy these features, you need to know how to pair Swann floodlight camera properly.
Don’t worry—this process is simpler than it sounds. Whether you’re tech-savvy or a beginner, this guide will walk you through every step. We’ll cover everything from unboxing to final testing, including troubleshooting tips and best practices. By the end, your Swann floodlight camera will be connected, configured, and ready to protect your property.
What You’ll Need Before Starting
Visual guide about How to Pair Swann Floodlight Camera
Image source: cdn.swann.com
Before you begin pairing your Swann floodlight camera, gather the following items to ensure a smooth setup:
- Swann floodlight camera (model such as SWWFL-3MP or similar)
- Smartphone or tablet with iOS 11+ or Android 6.0+
- Swann Security app (download from App Store or Google Play)
- Stable Wi-Fi network (2.4 GHz band recommended; 5 GHz not supported on most models)
- Power source – existing outdoor electrical junction box or wiring
- Screwdriver and drill (for mounting, if not already installed)
- Ladder (for safe access to mounting location)
- User manual (included in the box for reference)
Having these ready will save time and prevent interruptions during setup.
Step 1: Install the Floodlight Camera Physically
Before pairing, the camera must be securely mounted and powered. Skipping this step can lead to pairing failures or unstable performance.
Choose the Right Location
Pick a spot that:
- Covers high-traffic areas like driveways, entrances, or backyards
- Is within 30–50 feet of your Wi-Fi router
- Has access to a 120V electrical outlet or wiring
- Is protected from direct rain if possible (most models are weather-resistant but not fully waterproof)
Avoid placing the camera where trees or walls block the signal.
Turn Off Power
Safety first! Turn off the power at the circuit breaker before working with electrical wiring. Use a voltage tester to confirm the power is off.

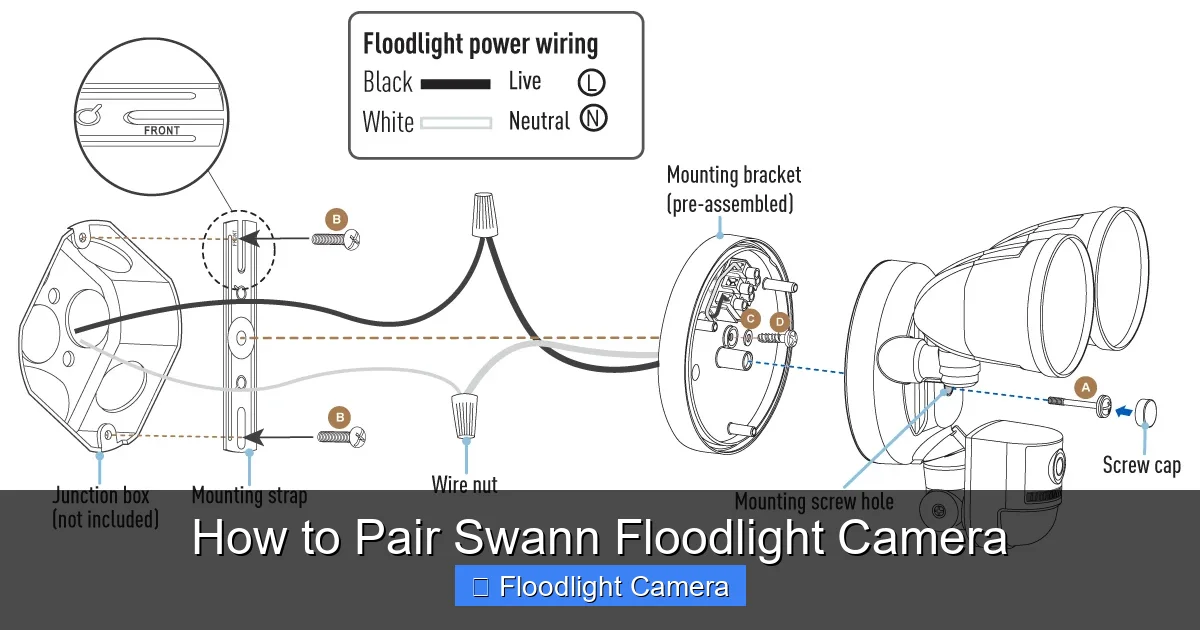

Mount the Camera
Follow these sub-steps:
- Remove the existing light fixture (if replacing one).
- Connect the camera’s wires to your home’s electrical wires:
- Black to black (hot)
- White to white (neutral)
- Green or bare to ground
- Secure the camera to the mounting bracket using the provided screws.
- Tighten all connections and ensure the unit is level.
- Turn the power back on.
Once powered, the camera’s LED light will turn on. This confirms it’s receiving electricity.
Step 2: Download and Set Up the Swann Security App
The Swann Security app is your control center. It’s where you’ll pair the camera, view live footage, adjust settings, and receive alerts.
Download the App
Go to the App Store (iOS) or Google Play Store (Android) and search for “Swann Security.” Download and install the official app. Avoid third-party apps—they won’t work.
Create an Account
Open the app and tap “Sign Up” if you’re new. You’ll need:
- Email address
- Strong password
- Verification code sent to your email
If you already have an account, simply log in.
Grant Permissions
Allow the app to access:
- Camera (for QR code scanning)
- Microphone (for two-way audio)
- Location (to help with setup)
- Notifications (for alerts)
These permissions are essential for full functionality.
Step 3: Put the Camera in Pairing Mode
Now it’s time to connect the camera to your phone and Wi-Fi network.
Locate the Reset Button
On most Swann floodlight cameras, the reset button is a small pinhole on the side or bottom of the unit. You’ll need a paperclip or SIM tool to press it.
Activate Pairing Mode
Follow these steps:
- Press and hold the reset button for 5–10 seconds.
- Release when the LED light starts blinking rapidly (usually blue or green).
- This means the camera is in pairing mode and ready to connect.
If the light doesn’t blink, wait 30 seconds and try again. Sometimes it takes a moment to reset.
Confirm LED Status
Refer to your model’s manual for exact light meanings, but generally:
- Solid green: Powered on, not in pairing mode
- Blinking green/blue: Ready to pair
- Blinking red: Error or connection issue
A blinking light means you’re on the right track.
Step 4: Pair the Camera via the App
Now that the camera is in pairing mode, use the app to complete the connection.
Open the App and Add Device
- Tap the “+” or “Add Device” button on the home screen.
- Select “Floodlight Camera” from the list.
- Choose your camera model if prompted.
Scan the QR Code
Each Swann camera has a unique QR code on the back or in the manual.
- Hold your phone 6–12 inches from the code.
- Make sure the entire code is in the frame.
- The app will automatically detect and read it.
If scanning fails:
- Clean the camera lens and QR code.
- Adjust lighting—avoid glare or shadows.
- Manually enter the serial number if needed (found on the camera or box).
Connect to Wi-Fi
The app will now ask you to select your Wi-Fi network.
- Choose your 2.4 GHz network (most Swann cameras don’t support 5 GHz).
- Enter your Wi-Fi password carefully—case-sensitive.
- Tap “Connect.”
The app will send the network details to the camera. This may take 30–60 seconds.
Wait for Confirmation
The camera will attempt to connect. You’ll see a progress bar in the app. Once successful:
- The LED light will turn solid green.
- The app will show “Device Added” or “Connected.”
- You’ll be prompted to name the camera (e.g., “Front Door” or “Backyard”).
If it fails, don’t panic—we’ll cover troubleshooting next.
Step 5: Configure Camera Settings
Now that your camera is paired, customize it to suit your needs.
Set Motion Detection Zones
- Go to the camera’s settings in the app.
- Tap “Motion Detection” or “Alerts.”
- Draw zones on the live view where you want alerts (e.g., driveway, walkway).
- Ignore areas like trees or busy streets to reduce false alarms.
This helps the camera focus on important activity.
Adjust Sensitivity
Higher sensitivity catches more motion but may trigger false alerts.
- Start with medium sensitivity.
- Test by walking in front of the camera.
- Adjust up or down based on results.
Enable Two-Way Audio
This lets you speak through the camera.
- Go to “Audio Settings.”
- Turn on “Two-Way Talk.”
- Test by tapping the microphone icon in live view.
Speak clearly and listen for a response.
Set Up Night Vision and Lighting
Swann floodlight cameras have built-in LEDs and infrared night vision.
- Choose “Auto” mode so lights turn on with motion.
- Set brightness level (low, medium, high).
- Enable “Night Vision” for clear black-and-white footage after dark.
You can also schedule when the lights turn on (e.g., sunset to sunrise).
Enable Cloud or Local Storage
Decide how you want to save recordings:
- Cloud Storage: Requires a subscription (Swann Secure+). Offers remote access and backup.
- Local Storage: Use a microSD card (up to 256GB, sold separately). No monthly fees.
Insert the SD card into the camera’s slot and format it via the app.
Step 6: Test the Camera
Don’t skip this step! Testing ensures everything works as expected.
Check Live View
- Open the app and tap your camera.
- Verify the video is clear and smooth.
- Pan, tilt, or zoom if your model supports it.
If the image is blurry, clean the lens with a microfiber cloth.
Test Motion Alerts
Walk in front of the camera and check:
- Do you receive a push notification?
- Does the light turn on?
- Is a recording saved?
If not, revisit motion settings.
Test Two-Way Audio
Speak into your phone and listen through the camera. Ask someone to stand near the camera and respond. Clear audio means it’s working.
Check Night Performance
Wait until dark or simulate nighttime by covering the camera’s light sensor. Confirm:
- Night vision activates
- Floodlights turn on with motion
- Video remains clear
Troubleshooting Common Pairing Issues
Even with careful setup, problems can happen. Here’s how to fix the most common ones.
Camera Won’t Enter Pairing Mode
- Ensure the camera is powered on.
- Press the reset button firmly for at least 10 seconds.
- Wait 1–2 minutes between attempts.
- If the LED stays solid, try a factory reset (hold reset for 20+ seconds).
App Can’t Find the Camera
- Make sure your phone is connected to the same Wi-Fi network (2.4 GHz).
- Move closer to the camera—within 10 feet if possible.
- Restart the app and try again.
- Restart your phone and router.
Wi-Fi Connection Fails
- Double-check your Wi-Fi password.
- Ensure your network isn’t full (too many devices).
- Move the router closer or use a Wi-Fi extender.
- Some networks with “Guest” or “Isolated” modes block camera access—use the main network.
QR Code Won’t Scan
- Clean the camera lens and QR code.
- Use good lighting—natural light works best.
- Hold the phone steady and avoid reflections.
- Manually enter the serial number as a backup.
Camera Disconnects Frequently
- Check Wi-Fi signal strength at the camera location.
- Reduce interference from microwaves, cordless phones, or thick walls.
- Update the camera’s firmware via the app.
- Re-pair the camera if needed.
No Video or Poor Quality
- Clean the lens.
- Ensure the camera isn’t pointed at a bright light source.
- Check for obstructions like spider webs or dirt.
- Adjust resolution settings in the app (higher = better quality but uses more bandwidth).
Best Practices for Long-Term Use
Once paired, keep your Swann floodlight camera running smoothly with these tips.
Update Firmware Regularly
Swann releases updates to improve security and performance.
- Open the app and go to “Device Settings.”
- Tap “Firmware Update” and follow prompts.
- Updates happen automatically if enabled.
Clean the Camera Monthly
Dust, pollen, and bugs can block the lens and sensors.
- Use a soft, dry cloth.
- Avoid water or cleaning sprays near electrical components.
- Check the motion sensor and microphone for debris.
Monitor Storage
If using a microSD card:
- Format it every 3–6 months for best performance.
- Check available space in the app.
- Delete old recordings manually or set auto-delete after 7–30 days.
Review Alerts Weekly
Check your notification history to:
- Spot false alarms
- Adjust motion zones
- Identify suspicious activity
This helps you fine-tune the system over time.
Secure Your Account
Protect your camera from unauthorized access:
- Use a strong, unique password.
- Enable two-factor authentication in the app.
- Never share login details.
Conclusion
Pairing your Swann floodlight camera doesn’t have to be complicated. By following this guide, you’ve learned how to pair Swann floodlight camera step by step—from physical installation to app configuration and testing. With the right setup, your camera will provide reliable security, bright lighting, and peace of mind.
Remember to keep your firmware updated, test the system regularly, and adjust settings as needed. If you run into issues, the troubleshooting tips here will help you resolve them quickly.
Investing time in proper setup pays off in the long run. Your Swann floodlight camera is now a smart, connected part of your home security system—ready to protect what matters most.
