How to Power a Poe Camera Easily and Efficiently

Power over Ethernet (PoE) simplifies camera installation by delivering both data and power through a single cable, eliminating the need for separate power sources and reducing clutter. Using a PoE switch, injector, or NVR ensures reliable, efficient power delivery—just verify your camera’s PoE standard (802.3af/at/bt) to match your equipment and avoid compatibility issues.

Key Takeaways

• Use a PoE switch: Simplifies setup by combining power and data in one cable.
• Check power requirements: Match camera wattage with PoE switch or injector output.
• Opt for PoE+ for high-power cameras: Ensures stable performance for demanding models.
• Verify cable quality: Use Cat5e or higher for efficient power and data transfer.
• Centralize power management: Reduce clutter and improve reliability with a single power source.
• Test before installation: Confirm PoE functionality to avoid field failures.

How Power Over Ethernet Works for PoE Cameras

Understanding the Basics of PoE Technology

Power over Ethernet (PoE) has revolutionized how we power and connect devices like security cameras. Instead of requiring separate power cables and electrical outlets, PoE delivers both power and data through a single Ethernet cable. This innovation simplifies installation, reduces clutter, and enhances flexibility, making it a go-to solution for modern surveillance systems.

PoE technology operates by transmitting electrical power alongside data signals over standard Ethernet cabling (typically Cat5e, Cat6, or Cat6a). This is achieved through a process called “phantom power,” where power is sent over unused wire pairs in the cable or modulated alongside data on the same pairs. Devices that support PoE—like IP cameras, wireless access points, and VoIP phones—can draw power directly from the network, eliminating the need for bulky power adapters and outlets.

How PoE Cameras Differ from Traditional Cameras

Traditional security cameras require two separate connections: one for power (via a 12V DC adapter) and another for data (via an Ethernet cable). This dual-cable setup can be cumbersome, especially in hard-to-reach areas or large-scale installations. In contrast, a PoE camera integrates both functions into one cable, streamlining setup and maintenance.

For example, imagine installing a camera on the second floor of a building. With a traditional camera, you’d need to run a power cable from an outlet to the camera location—a task that may require drilling holes, hiring an electrician, or dealing with extension cords. With a PoE camera, you only need a single Ethernet cable, which can often be routed through existing network infrastructure. This not only saves time but also reduces installation costs and potential electrical hazards.

PoE cameras are also more scalable. If you’re expanding your surveillance system, adding a new camera is as simple as connecting it to a PoE-enabled switch or injector, without worrying about nearby power sources.

Types of PoE Standards and Their Power Outputs

IEEE 802.3af (PoE) – Standard Power

The IEEE 802.3af standard, also known as “PoE,” was introduced in 2003 and remains the most widely used. It delivers up to 15.4 watts of DC power per port, with a guaranteed 44V–57V voltage range at the source. At the receiving end (camera), the power is typically reduced to around 12.95 watts due to cable resistance and power loss.

This level of power is sufficient for most basic PoE cameras, including standard-definition models, fixed-lens cameras, and indoor units without heaters or motors. For example, a typical 1080p PoE dome camera with IR night vision and motion detection will consume about 5–10 watts, well within the 802.3af limit.

However, 802.3af may not be enough for advanced cameras with pan-tilt-zoom (PTZ) functionality, built-in heaters for outdoor use, or multiple sensors. In such cases, higher-power standards are required.

IEEE 802.3at (PoE+) – Enhanced Power

Released in 2009, the IEEE 802.3at standard (PoE+) doubles the power output, delivering up to 30 watts per port (with 25.5 watts available at the device). It operates at a voltage range of 50V–57V, ensuring better efficiency over longer cable runs.

PoE+ is ideal for high-performance cameras, such as:

• 4K Ultra HD cameras with multiple sensors
• Outdoor PTZ cameras with motors and heaters
• Cameras with built-in sirens, floodlights, or two-way audio

For instance, a 4K outdoor PTZ camera from a leading brand like Hikvision or Axis may consume 20–25 watts, making PoE+ the minimum requirement. Using a PoE switch that supports 802.3at ensures stable operation and prevents power drops during motorized movements or extreme temperatures.

IEEE 802.3bt (PoE++ and 4PPoE) – High Power

The latest standard, IEEE 802.3bt, comes in two variants: Type 3 (PoE++) and Type 4 (4PPoE). These deliver up to 60 watts and 100 watts per port, respectively, enabling support for even more power-hungry devices.

• Type 3 (60W): Suitable for advanced PTZ cameras, multi-sensor panoramic cameras, and devices with integrated analytics or AI processing.
• Type 4 (100W): Used in industrial-grade cameras, dual-sensor thermal/visible units, and large-scale surveillance systems.

While most consumer and small-business PoE cameras don’t require this level of power, it’s becoming more relevant as camera technology advances. For example, a dual-sensor 4K camera with AI-based facial recognition and a motorized zoom lens may approach 50 watts, making PoE++ a practical choice.

Choosing the Right Standard for Your Camera

To determine the correct PoE standard for your camera, check the manufacturer’s specifications. Look for:

• Power consumption in watts (W)
• PoE compatibility (e.g., “IEEE 802.3af compliant”)
• Voltage requirements (typically 44V–57V)

Tip: If a camera supports PoE but doesn’t specify the standard, assume it requires 802.3af. For future-proofing, consider investing in PoE+ switches, even if your current cameras only need 802.3af.

Equipment Needed to Power a PoE Camera

PoE Switches: The Heart of the System

A PoE switch is the most reliable and scalable way to power multiple PoE cameras. It’s a network switch with built-in PoE ports that automatically detect and deliver power to connected devices. PoE switches come in various sizes (8, 16, 24, or 48 ports) and support different standards (802.3af, 802.3at, or 802.3bt).

When selecting a PoE switch, consider:

• Total PoE budget: The sum of all power outputs across ports. For example, a 16-port 802.3af switch may have a 150W budget, allowing you to power up to 10 cameras (15W each).
• Switch type: Unmanaged (plug-and-play) vs. managed (configurable via software). Managed switches offer VLAN support, QoS, and remote monitoring—ideal for large installations.
• Uplink ports: For connecting to a router or NVR. Gigabit uplinks ensure high-speed data transfer.

Example: A 24-port managed PoE+ switch (802.3at) with 370W total budget can power 12 PTZ cameras (25W each) and 12 standard cameras (10W each) simultaneously.

PoE Injectors: Simple and Cost-Effective

If you only have one or two PoE cameras and don’t want to invest in a full switch, a PoE injector is a great alternative. It’s a small device that plugs into a power outlet and a standard network switch, adding PoE capability to a single Ethernet port.

• Pros: Affordable, easy to install, no configuration required.
• Cons: Limited to one camera per injector, not scalable.

For instance, a 30W PoE+ injector can power a single 4K PTZ camera connected to a non-PoE switch. Simply connect the injector to the switch with a patch cable, then run the PoE cable to the camera.

PoE Extenders and Midspans for Long Distances

Standard Ethernet cables have a maximum reach of 100 meters (328 feet). Beyond this, signal degradation and power loss can cause camera instability or failure. To overcome this, use:

• PoE extenders: Repeat the signal and power over additional 100-meter segments. Some models support daisy-chaining for multi-hop setups.
• PoE midspans: Insert between the switch and camera to boost power and extend range.

Tip: For outdoor installations over 100 meters, consider fiber-optic cables with media converters. Fiber can transmit data (and power, with specialized PoE fiber extenders) over kilometers without loss.

Ethernet Cabling: Choosing the Right Cable

Not all Ethernet cables are created equal. For PoE, use:

• Cat5e: Suitable for 802.3af and short runs (<50m).
• Cat6 or Cat6a: Recommended for PoE+ and PoE++. Better shielding reduces interference and power loss.

Pro tip: Use solid copper cables (not CCA—copper-clad aluminum) for reliable power delivery. CCA cables have higher resistance, leading to voltage drops.

Step-by-Step Guide to Powering a PoE Camera

Planning and Pre-Installation Checks

Before installing a PoE camera, conduct a site survey to:

• Determine camera locations and required cable lengths.
• Identify the nearest PoE source (switch or injector).
• Check for potential interference (e.g., electrical wiring, metal structures).

Tools you’ll need:

• Ethernet cable (Cat6 recommended)
• PoE switch or injector
• Network tester (to verify cable integrity)
• Cable clips or conduits (for outdoor installations)

Connecting the Camera to a PoE Switch

Step 1: Power off the PoE switch. Connect the switch to your router or network using an uplink cable.

Step 2: Route the Ethernet cable from the camera location to the switch. Use a cable tester to ensure all eight wires are properly terminated (T568A or T568B standard).

Step 3: Connect one end of the cable to a PoE port on the switch and the other end to the camera. The camera will automatically power on and begin transmitting data.

Step 4: Power on the switch. Wait 30–60 seconds for the camera to boot. Most PoE switches have LED indicators showing power delivery and link status.

Step 5: Access the camera’s web interface or NVR to complete setup (e.g., IP address, video settings).

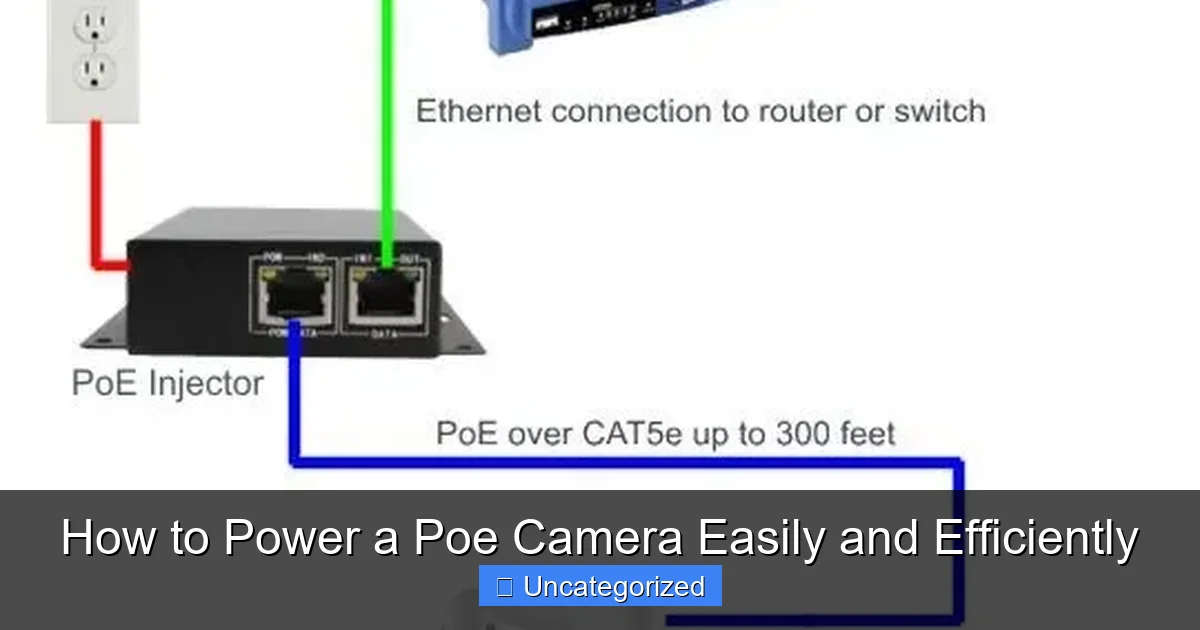

Using a PoE Injector for Single Cameras

Step 1: Plug the PoE injector into a power outlet near the network switch.

Step 2: Connect the injector’s “Data In” port to the switch using a standard patch cable.

Step 3: Connect the injector’s “PoE Out” port to the camera using an Ethernet cable.

Step 4: The camera will power on automatically. No configuration is needed on the injector.

Note: Ensure the injector’s power output matches the camera’s requirements (e.g., 802.3af vs. PoE+).

Troubleshooting Common Power Issues

• Camera not powering on: Check cable connections, test with a different port, or use a PoE tester to verify voltage.
• Intermittent power: Replace low-quality cables or use a higher-gauge (thicker) cable to reduce resistance.
• Switch overload: Calculate the total power draw. If exceeding the switch’s budget, add a second switch or upgrade to a higher-power model.

Advanced Tips for Efficient PoE Camera Power Management

Power Budgeting and Load Distribution

Efficient power management starts with calculating your total PoE load. Use this formula:

Total Power Draw = (Number of Cameras × Average Wattage) + 20% Buffer

For example, 10 cameras averaging 12W each require 120W, plus 24W buffer = 144W. Choose a switch with a 150W or higher PoE budget.

Distribute high-power cameras (e.g., PTZ) across multiple switches to avoid overloading a single unit.

Using VLANs and QoS for Network Stability

On managed switches, enable:

• VLANs: Isolate camera traffic from other devices to reduce congestion.
• QoS (Quality of Service): Prioritize video streams to prevent buffering during network spikes.

This is especially important in large installations with 20+ cameras.

Remote Power Monitoring and Alerts

Modern PoE switches support SNMP (Simple Network Management Protocol) and cloud-based monitoring. Set up alerts for:

• Power failures
• Overload conditions
• Camera disconnections

Tools like PRTG Network Monitor or Ubiquiti’s UniFi Controller provide real-time dashboards and email notifications.

Data Table: PoE Standards Comparison

Standard	Max Power (Source)	Max Power (Device)	Voltage Range	Typical Use Cases
802.3af (PoE)	15.4W	12.95W	44V–57V	Standard IP cameras, VoIP phones
802.3at (PoE+)	30W	25.5W	50V–57V	4K cameras, PTZ units, outdoor cameras
802.3bt Type 3 (PoE++)	60W	51W	52V–57V	Multi-sensor cameras, AI analytics, heaters
802.3bt Type 4 (4PPoE)	100W	71W	52V–57V	Industrial cameras, dual-sensor systems

Conclusion: Simplifying Surveillance with PoE

Powering a PoE camera is not just about connecting a cable—it’s about leveraging smart technology to create a seamless, scalable, and efficient surveillance system. By understanding PoE standards, choosing the right equipment, and following best practices for installation and power management, you can ensure your cameras operate reliably in any environment.

Whether you’re securing a small business, a large campus, or your home, PoE offers unmatched convenience. No more tangled cords, no more searching for outlets, and no more compromising on camera placement. With a single Ethernet cable, you gain power, data, and peace of mind—all in one.

As camera technology evolves, PoE will continue to play a central role. From AI-powered analytics to 8K resolution, the demand for higher power and faster data will only grow. By investing in future-proof PoE infrastructure today, you’ll be ready to adapt to whatever tomorrow brings. So, embrace the simplicity and efficiency of Power over Ethernet—and let your cameras see the world, without the wires holding them back.

Frequently Asked Questions

What is the easiest way to power a PoE camera?

The easiest way to power a PoE camera is using a PoE switch or injector, which sends both data and power over a single Ethernet cable. This eliminates the need for separate power adapters and simplifies installation.

Can I use a non-PoE switch to power a PoE camera?

Yes, but you’ll need a PoE injector placed between the non-PoE switch and the camera to supply power. The injector converts standard network data into PoE-compatible output.

How does a PoE switch work with IP cameras?

A PoE switch detects the camera’s power requirements and delivers the correct voltage (typically 48V) alongside data over the Ethernet cable. This ensures seamless operation without extra wiring.

What’s the maximum distance for powering a PoE camera?

PoE cameras can be powered up to 100 meters (328 feet) from the switch or injector using Cat5e/Cat6 cables. Beyond this, signal and power degradation may occur.

Do I need a PoE camera to use PoE power?

Yes, the camera must be PoE-enabled to accept power via Ethernet. Non-PoE cameras require an adapter or separate power source, even if connected to a PoE switch.

Can I power multiple PoE cameras from one switch?

Yes, as long as the PoE switch has enough ports and total power budget to support all cameras. Check the camera’s wattage and the switch’s PoE power output before connecting.
