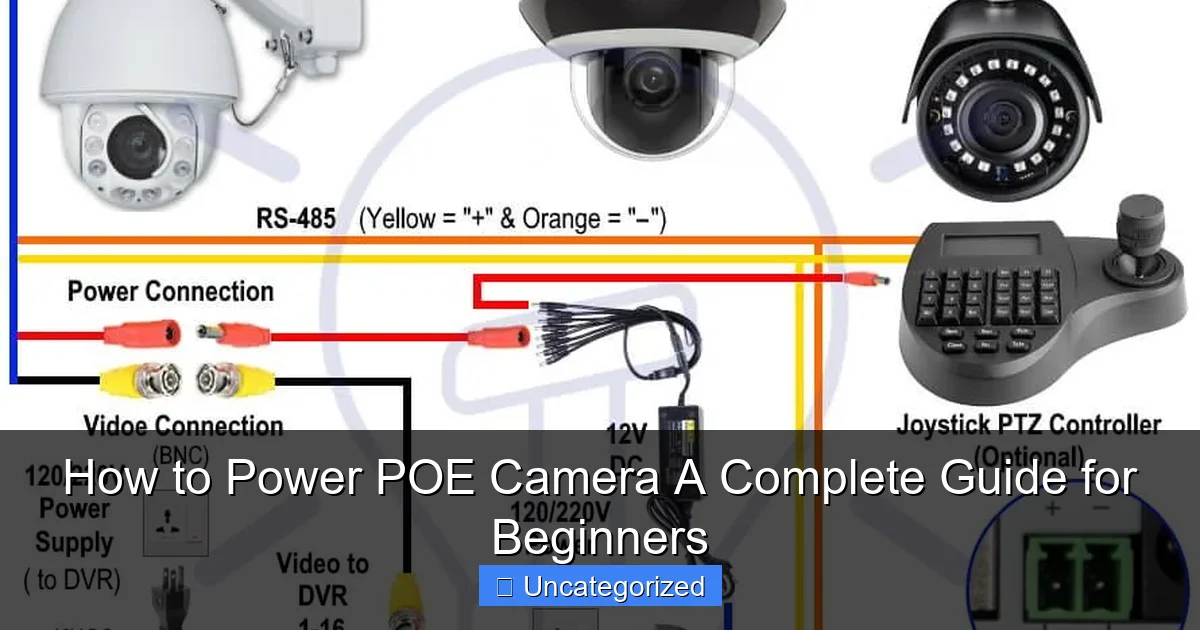

How to Power POE Camera A Complete Guide for Beginners

Powering a PoE camera is simple and efficient using a PoE switch or injector, which delivers both data and power over a single Ethernet cable. This eliminates the need for separate power adapters and reduces clutter, making installation ideal for home or business security systems. Ensure your camera and network equipment support PoE standards (like 802.3af/at) for safe, reliable operation.

Key Takeaways

• Use a PoE switch: Simplifies power and data delivery in one cable.
• Check camera wattage: Ensure your PoE source meets power requirements.
• Cat5e/Cat6 cables: Always use quality Ethernet for reliable performance.
• PoE injectors work: Ideal for single cameras without PoE switches.
• Test connections first: Verify power and signal before final installation.
• Avoid daisy-chaining: Use dedicated ports to prevent power loss.

The Rise of POE Cameras: A Game-Changer in Surveillance

In today’s world, security is a top priority for homes, businesses, and public spaces. Among the many technological advancements in surveillance, Power over Ethernet (POE) cameras have emerged as a reliable and efficient solution. Unlike traditional security cameras that require separate power and data cables, POE cameras combine both into a single Ethernet cable, simplifying installation and reducing clutter. This innovation has made them a favorite among DIY enthusiasts, small businesses, and even large-scale security operations.

But how do you power a POE camera effectively? Whether you’re setting up a home security system or managing a commercial installation, understanding the nuances of POE power delivery is crucial. This guide will walk you through everything you need to know—from the basics of POE technology to troubleshooting common issues—ensuring your cameras are always online and capturing crystal-clear footage. With over 60% of new surveillance systems now opting for POE technology, it’s time to dive into the world of seamless, scalable, and smart security.

Understanding Power over Ethernet (POE) Technology

Before powering a POE camera, it’s essential to grasp how POE technology works. At its core, POE is a system that transmits both electrical power and data over a single twisted-pair Ethernet cable, typically using Cat5e or Cat6 cabling. This eliminates the need for separate power adapters or electrical outlets near the camera, making installations cleaner and more flexible.

How POE Works: The Basics

POE operates by sending low-voltage DC power (usually 48V) alongside data signals through the same cable. The process involves three key components:

• POE Source: This can be a POE-enabled network switch, a POE injector, or a dedicated POE NVR (Network Video Recorder). The source “detects” the connected device (like a camera) and negotiates the required power.
• Ethernet Cable: The cable carries both power and data. For optimal performance, use Cat5e or higher-grade cables, as they support higher power levels and longer distances (up to 100 meters).
• Powered Device (PD): The POE camera acts as the PD, receiving power and data from the cable. Most cameras have built-in POE circuitry to convert the incoming 48V into usable voltage for internal components.

Example: A POE-enabled switch with 8 ports can power 8 cameras simultaneously without additional power supplies, reducing hardware costs and complexity.

POE Standards and Compatibility

Not all POE systems are created equal. The Institute of Electrical and Electronics Engineers (IEEE) has established several POE standards to ensure compatibility and safety:

• IEEE 802.3af (POE): Delivers up to 15.4W of power per port (12.95W usable). Ideal for standard-resolution cameras and basic accessories.
• IEEE 802.3at (POE+): Provides up to 30W per port (25.5W usable). Suitable for high-resolution cameras, PTZ (pan-tilt-zoom) models, and cameras with IR illuminators.
• IEEE 802.3bt (POE++): Offers up to 60W (Type 3) or 100W (Type 4) per port. Used for advanced cameras with heaters, pan/tilt motors, or integrated spotlights.

Tip: Always check your camera’s power requirements (listed in watts or volts) and ensure your POE source meets or exceeds those specs. For instance, a 4K PTZ camera might require POE+ to handle its motorized movements and high-resolution sensor.

Choosing the Right POE Power Source

Selecting the appropriate POE power source is critical for reliable camera operation. The choice depends on your system size, budget, and future scalability needs. Here are the three primary options:

1. POE-Enabled Network Switches

A POE switch is the most common and scalable solution. These switches have built-in POE ports that deliver power and data to connected cameras. They’re ideal for medium to large installations (e.g., 4+ cameras) and offer features like VLANs, QoS, and remote management.

• Pros: Centralized power management, scalability, and advanced networking features.
• Cons: Higher upfront cost compared to injectors.
• Example: A 16-port POE+ switch (e.g., TP-Link TL-SG1016PE) can power 16 cameras at 30W each, with 200W total budget for future expansions.

Tip: Calculate your total power budget: (Number of cameras × Power per camera) + 20% overhead. For 10 cameras at 12W each, you’d need a switch with at least 144W capacity (120W + 20%).

2. POE Injectors

POE injectors are standalone devices that add POE capability to non-POE switches. They have an “input” port (for the switch) and an “output” port (for the camera). Best for small setups (1–3 cameras) or temporary installations.

• Pros: Low cost, easy to install, and portable.
• Cons: Limited scalability; each camera needs a separate injector.
• Example: A single-port POE+ injector (e.g., Ubiquiti ETH-SP-G2) costs ~$30 and delivers 30W to one camera.

3. POE NVRs (Network Video Recorders)

POE NVRs combine recording, storage, and power delivery in one unit. They have built-in POE ports, eliminating the need for a separate switch. Perfect for small to medium systems (e.g., 4–8 cameras).

• Pros: Simplified setup, reduced hardware clutter, and often include free software.
• Cons: Less flexible for network expansion; limited to the NVR’s port count.
• Example: The Lorex 8-Channel POE NVR (LNR6800) powers 8 cameras and includes a 4TB hard drive for storage.

Cabling and Distance Considerations

Proper cabling ensures stable power delivery and data transmission. POE systems are sensitive to cable quality, length, and environmental factors.

Cable Types and Specifications

Use Cat5e or higher-grade cables for POE installations. Here’s a comparison:

Cable Type	Max Distance (POE)	Max Power (POE+)	Best For
Cat5e	100 meters	30W	Standard cameras, indoor use
Cat6	100 meters	60W (POE++)	4K cameras, outdoor installations
Cat6a	100 meters	100W (POE++)	PTZ cameras, high-power devices

Key Tip: Avoid using Cat5 cables (older than Cat5e) or “CCA” (copper-clad aluminum) cables, as they overheat and cause voltage drop.

Voltage Drop and Long-Distance Installations

Voltage drop occurs when power weakens over distance, leading to camera instability. For runs over 80 meters:

• Use thicker cables: Cat6/6a has lower resistance than Cat5e.
• Add a POE extender: Devices like the Netgear ProSAFE GSE105 extend POE up to 200 meters.
• Calculate voltage drop: For a 90-meter run with a 12W camera, use a calculator like POE Texas’s Voltage Drop Tool to ensure the camera receives at least 37V (minimum for most POE cameras).

Example: A 100-meter Cat5e cable with a 12W camera experiences ~5V drop. If the source delivers 48V, the camera receives 43V—still within the 37–57V POE range. But for a 25W camera, the drop might exceed 7V, risking instability.

Step-by-Step Installation Guide

Now that you’ve chosen your components, let’s walk through a typical POE camera installation.

1. Plan Your Layout

• Map camera locations and cable routes.
• Ensure all cameras are within 100 meters of the POE source.
• Account for obstacles (walls, trees) that might require conduit or wireless bridges.

Pro Tip: Use a cable tester (e.g., Klein Tools VDV501-825) to check for continuity and shorts before installing.

2. Run the Ethernet Cables

• Use weatherproof cables (e.g., UV-resistant jackets) for outdoor runs.
• Secure cables with clips or conduit to prevent damage.
• Label both ends for easy identification.

3. Connect the POE Source

• For a POE switch: Plug the switch into a surge-protected outlet.
• For a POE injector: Connect it between the non-POE switch and camera.
• For a POE NVR: Power on the NVR and ensure it recognizes the cameras.

4. Power On and Configure

• Turn on the POE source. Cameras should power on within 1–2 minutes.
• Check the NVR or switch interface for camera detection.
• Use the manufacturer’s app or web interface to adjust settings (e.g., resolution, motion detection).

Example: After connecting a POE camera to a UniFi switch, log into the UniFi Protect app to name the camera and set recording schedules.

Troubleshooting Common POE Issues

Even with careful planning, issues can arise. Here’s how to diagnose and fix common problems:

1. Camera Not Powering On

• Check connections: Ensure the Ethernet cable is fully seated in both the camera and POE source.
• Verify power budget: If using a switch, confirm it has enough power for all connected devices.
• Test with a POE checker: Devices like the Fluke MicroScanner2 confirm if power is reaching the camera.

2. Intermittent Power or Rebooting

• Inspect for voltage drop: Use a multimeter to measure voltage at the camera end (should be 37–57V).
• Replace damaged cables: Frayed or water-damaged cables cause resistance spikes.
• Upgrade to higher-grade POE: If a camera requires 20W but the source delivers only 15W (802.3af), switch to POE+.

3. Data Connection Issues

• Check for cable faults: A cable tester can identify broken wires or miswired connectors.
• Update firmware: Outdated camera or switch firmware can cause compatibility issues.
• Reduce interference: Keep POE cables away from high-voltage power lines or motors.

Pro Tip: For outdoor installations, use POE surge protectors (e.g., Ubiquiti ETH-SP) to guard against lightning strikes.

Conclusion: Mastering POE Camera Power

Powering a POE camera might seem daunting at first, but with the right knowledge and tools, it’s a straightforward process. By understanding POE standards, selecting the appropriate power source, using quality cabling, and following a systematic installation approach, you can create a robust surveillance system that’s both efficient and scalable. Whether you’re securing a single-family home or a sprawling office complex, POE technology offers unmatched convenience and reliability.

Remember, the key to success lies in planning and compatibility. Always match your camera’s power needs with a POE source that exceeds them, and never compromise on cable quality. With these principles in mind, your POE cameras will deliver years of uninterrupted performance—keeping your property safe and your mind at ease. As surveillance technology evolves, POE will continue to lead the charge, making it the go-to choice for modern security solutions. Now, go ahead and build your system with confidence!

Frequently Asked Questions

How do you power a POE camera without a POE switch?

You can use a POE injector to power your camera by connecting it between the camera and a non-POE router or switch. The injector converts standard power into POE-compatible output, delivering both data and power over a single Ethernet cable.

Can I use a regular power adapter to power a POE camera?

While some POE cameras support alternative power inputs (like DC power), using a standard power adapter bypasses the benefits of POE (simplified cabling and centralized control). Always check your camera’s manual to confirm compatibility.

What type of cable is needed to power a POE camera?

Use a Cat5e, Cat6, or higher Ethernet cable to power a POE camera—these support data and power delivery up to 100 meters. Lower-grade cables may cause voltage drops or unstable connections.

How to power multiple POE cameras efficiently?

A POE switch or POE NVR (Network Video Recorder) is the best option, as it can power and connect multiple cameras simultaneously. These devices simplify setup and reduce cable clutter.

Is there a limit to how far you can power a POE camera?

Yes, standard POE (802.3af/at) works up to 100 meters (328 feet). For longer distances, use a midspan POE extender or fiber optic converters with POE support.

Can solar power be used to power a POE camera?

Yes, with a solar POE system: pair a solar panel, charge controller, and POE-compatible battery pack. This setup is ideal for remote locations but requires careful sizing to match power needs.
