How to Protect Poe Cameras from Lightning and Ensure Safety

Install a high-quality surge protector on the PoE switch or injector to shield your cameras from lightning-induced power surges—this is the most critical step in preventing costly damage. Combine this with proper grounding and shielded Ethernet cables to create a complete defense system that ensures both camera safety and reliable operation during storms.

Key Takeaways

• Install surge protectors: Use high-quality surge protectors on all POE camera power lines.
• Ground your system: Ensure all cameras and NVRs are properly grounded to prevent damage.
• Use shielded Ethernet cables: Reduce lightning-induced surges with shielded Cat6 or higher cables.
• Elevate camera placement: Avoid mounting cameras in high-risk lightning strike areas.
• Disconnect during storms: Unplug POE cameras during severe thunderstorms for added safety.
• Check weatherproofing: Ensure all enclosures and seals are intact to prevent moisture damage.

How to Protect Poe Cameras from Lightning and Ensure Safety

Power over Ethernet (PoE) cameras have revolutionized modern surveillance systems, offering seamless installation, high-quality video, and centralized power management. However, their outdoor deployment—especially in regions prone to thunderstorms—makes them vulnerable to lightning strikes. A single direct or indirect lightning hit can fry sensitive electronics, damage network infrastructure, and lead to costly downtime. For homeowners, businesses, and security professionals, protecting PoE cameras from lightning isn’t just about equipment preservation—it’s about ensuring uninterrupted security and long-term system reliability.

Lightning-induced surges can travel through power lines, Ethernet cables, and even grounding systems, making PoE cameras a prime target. Unlike traditional analog cameras, PoE systems rely on data and power delivered over a single cable, which means any surge can simultaneously damage both the camera and the connected network switch or NVR (Network Video Recorder). This article dives deep into proven strategies, best practices, and technical solutions to safeguard your PoE camera system from lightning. From surge protection devices to grounding techniques and installation tips, we’ll equip you with the knowledge to build a resilient, lightning-resistant surveillance setup.

Understanding the Risks: How Lightning Affects PoE Cameras

Before implementing protection measures, it’s crucial to understand the mechanisms by which lightning poses a threat to PoE camera systems. Lightning doesn’t need to strike the camera directly to cause damage. In fact, most lightning-related failures occur due to induced surges and ground potential rise.

Types of Lightning Damage to PoE Systems

• Direct Strike: A lightning bolt hits the camera, pole, or nearby structure, transferring immense energy directly into the camera housing. This typically results in catastrophic, irreparable damage.
• Induced Surge: The electromagnetic field from a nearby lightning strike induces high-voltage surges in conductive materials like Ethernet cables and power lines. Even a strike 100 meters away can generate thousands of volts.
• Ground Potential Rise (GPR): When lightning strikes the ground, it creates a voltage difference between grounding points. If your camera and NVR are grounded separately, this voltage difference can surge through the Ethernet cable, damaging both ends.
• Power Line Coupling: Lightning-induced surges travel along utility power lines, entering PoE switches and injectors through the AC mains, then propagating to connected cameras.

Why PoE Cameras Are Especially Vulnerable

PoE systems use a single Cat5e/Cat6 cable to deliver both data (via Ethernet) and power (typically 48V DC). This dual-purpose design creates multiple entry points for surges:

• Ethernet Ports: Data lines (pins 1,2,3,6) are highly sensitive to voltage spikes. Even a 100V surge can destroy the camera’s PHY (physical layer) chip.
• Power Lines: PoE power (pins 4,5,7,8) can carry surges from the switch or injector, especially if the switch lacks surge protection.
• Shielded vs. Unshielded Cables: Unshielded (UTP) cables offer minimal protection against electromagnetic interference (EMI), increasing surge risk.

Real-World Example: In Florida, a business lost 12 PoE cameras during a single storm. Post-mortem analysis revealed that the NVR and switch were undamaged, but every camera had fried Ethernet ports. The root cause? Induced surges traveling through unshielded Ethernet cables from a lightning strike 200 feet away.

Surge Protection Devices (SPDs) for PoE Camera Systems

Surge protection devices (SPDs) are the cornerstone of lightning protection. For PoE cameras, SPDs must address both power and data lines while maintaining PoE compatibility.

Types of SPDs for PoE Cameras

• PoE-Specific Surge Protectors: These devices are designed to handle 48V PoE power and 10/100/1000 Mbps data signals. They typically use gas discharge tubes (GDTs) and transient voltage suppression (TVS) diodes to clamp surges.
• Network Surge Protectors (Data-Only): Installed at the NVR/switch end, these protect data lines but don’t handle PoE power. Use them with a PoE injector that has built-in surge protection.
• Whole-House SPDs: Installed at the main electrical panel, these protect against power line surges entering the building. While not PoE-specific, they reduce the risk of surges reaching PoE switches.

Key Features to Look for in PoE SPDs

• Clamping Voltage: Aim for < 50V (data) and < 60V (PoE power). Lower clamping = faster response.
• Response Time: < 1 nanosecond (ns) is ideal.
• PoE Compatibility: Must support PoE standards (802.3af, 802.3at, 802.3bt) and not degrade signal quality.
• Joule Rating: ≥ 500 joules for PoE-specific SPDs; ≥ 1000 joules for whole-house units.
• Weatherproofing: Outdoor-rated (IP65 or higher) for exterior installations.

Installation Best Practices

• Install SPDs at Both Ends: Place one SPD at the camera (near the camera housing) and another at the NVR/switch end. This creates a “surge sandwich” that protects both devices.
• Use Short Grounding Wires: Keep SPD grounding wires under 6 inches (15 cm) to minimize inductance, which can reduce surge diversion efficiency.
• Bond to Common Ground: Connect all SPD grounds to a single, low-resistance grounding point (e.g., main service panel ground).
• Example Setup: For a 100-foot outdoor run: Camera → PoE SPD (outdoor-rated) → Ethernet cable → PoE SPD (indoor) → NVR. Add a whole-house SPD at the main panel.

Proper Grounding and Bonding Techniques

Grounding is the unsung hero of lightning protection. A well-designed grounding system provides a safe, low-resistance path for lightning currents, preventing dangerous voltage differences.

Grounding Requirements for PoE Cameras

• Camera Mounting Structure: If the camera is mounted on a metal pole or structure, the structure must be grounded to the earth (typically using a 5/8″ copper-clad ground rod driven 8 feet deep).
• Ethernet Cable Shielding: Use shielded (STP/FTP) cables and bond the shield to the camera’s ground terminal. This diverts EMI and induced surges away from internal electronics.
• Grounding the NVR/Switch: Ensure the NVR and PoE switch are grounded through the AC power outlet. Avoid “floating” grounds.

Bonding: Eliminating Ground Loops

Bonding connects all conductive components (camera, pole, SPDs, NVR) to the same grounding system. This prevents ground loops, where voltage differences between grounds cause surges through Ethernet cables.

• Single-Point Grounding: All grounds (camera, pole, SPDs) should terminate at a single grounding busbar, which connects to the main earth ground.
• Use Grounding Straps: For metal poles, use 2-inch-wide copper straps (not thin wire) to bond the pole to the ground rod.
• Ground Resistance: Test the system with a ground resistance tester. Aim for < 5 ohms. If higher, add more ground rods or use conductive concrete.

Common Grounding Mistakes

• Separate Grounds: Camera grounded to one rod, NVR to another—creates dangerous voltage differences.
• Long Ground Wires: Inductance in long wires reduces surge diversion efficiency.
• Unbonded Shields: Shielded cables with unconnected shields act as antennas, attracting surges.

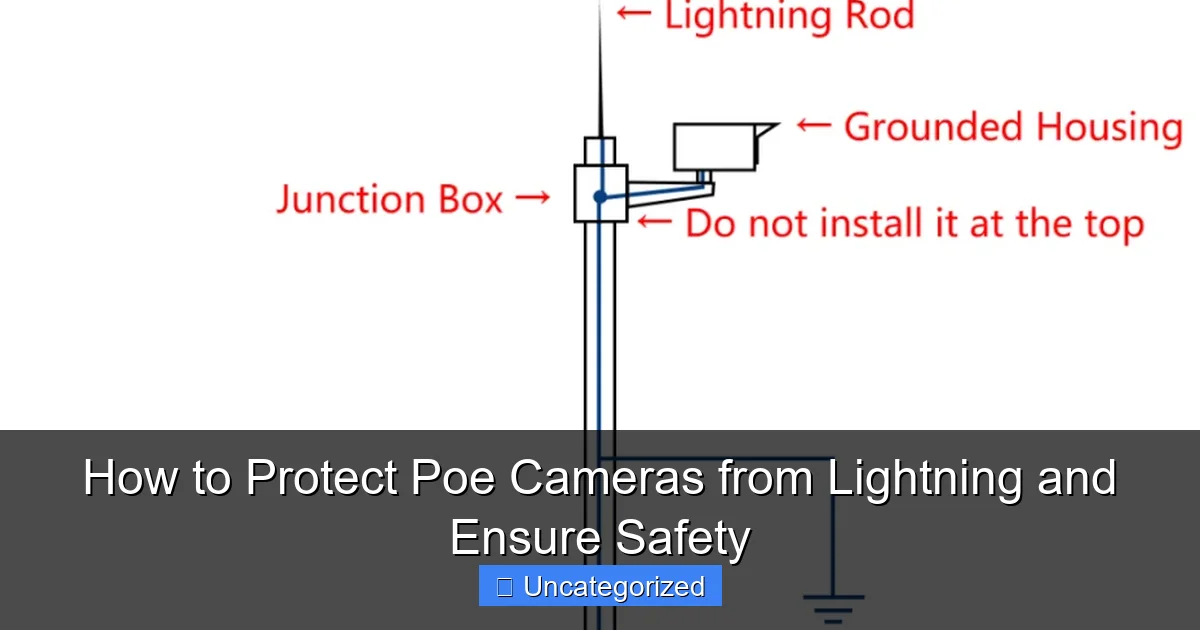

Pro Tip: For pole-mounted cameras, install a “down conductor” (heavy copper wire) from the camera to the ground rod, running alongside the Ethernet cable. This provides a direct path for lightning currents.

Strategic Installation and Physical Protection

How and where you install PoE cameras significantly impacts their lightning vulnerability. Smart placement and physical shielding can reduce risk without additional equipment.

Camera Placement Tips

• Avoid Lightning Rods: Never install cameras on or near lightning rods. The rod’s grounding system can create high ground potential rise.
• Use Natural Shielding: Place cameras under roof eaves, awnings, or trees (but not too close—falling branches are a hazard). These structures absorb direct strikes.
• Height Matters: Taller cameras are more likely to be struck. For high-risk areas, use shorter poles or install cameras under taller structures.
• Distance from Power Lines: Keep cameras at least 10 feet from overhead power lines to reduce induced surges.

Cable Management Best Practices

• Buried Cables: Bury Ethernet cables at least 18 inches deep. Use conduit (PVC or metal) to protect against physical damage and reduce EMI.
• Aerial Cables: If overhead installation is unavoidable, use fiber-optic cables (immune to surges) or armored Ethernet cables with bonded shields.
• Minimize Cable Length: Shorter cables have lower inductance, reducing surge vulnerability. For runs over 300 feet, consider fiber converters.
• Loop Avoidance: Avoid forming large loops with cables. Loops act as antennas for induced surges.

Weatherproofing and Enclosures

• Use IP66/67 Cameras: These are dust-tight and protected against powerful water jets, which often accompany thunderstorms.
• Surge-Protected Enclosures: For critical cameras, use NEMA 4X-rated enclosures with built-in SPDs and thermal management.
• Conduit Sealing: Seal conduit entries with silicone or conduit sealant to prevent water ingress, which can corrode grounds.

Advanced Solutions: Fiber Optics, Isolation, and Monitoring

For high-risk environments (e.g., industrial sites, remote towers), standard SPDs and grounding may not suffice. Advanced solutions offer additional layers of protection.

Fiber Optic Conversion

Fiber optic cables are immune to lightning-induced surges because they transmit data via light, not electricity. Use media converters to transition from Ethernet to fiber at the camera and NVR ends.

• Advantages: No surge risk, no ground loops, longer distances (up to 10 km).
• Disadvantages: Higher cost, requires power at the camera (unless using PoE-to-fiber converters).
• Use Case: A solar-powered camera on a remote mountain ridge uses fiber to transmit data to a base station 5 km away.

Isolated PoE Systems

Isolation transformers or optically isolated PoE extenders break the electrical connection between the camera and NVR, preventing surges from traveling through data lines.

• How It Works: Data is converted to light (via fiber) or magnetically isolated, while power is delivered through isolated DC-DC converters.
• Example: A hospital uses isolated PoE extenders to connect outdoor cameras to the central monitoring system, eliminating ground loop risks.

Surge Monitoring and Alerts

• Smart SPDs: Some SPDs (e.g., Phoenix Contact, Eaton) have status LEDs and dry contacts to trigger alarms when surges occur.
• Network Monitoring: Use SNMP-enabled NVRs to detect camera outages and correlate them with weather data (e.g., lightning strike maps).
• Preventive Maintenance: Replace SPDs every 3–5 years or after a major surge (check for blown fuses or melted components).

Data Table: Comparing Protection Methods

Protection Method	Cost	Effectiveness	Best For
PoE Surge Protectors	$50–$150 per unit	High (for induced surges)	Standard outdoor installations
Fiber Optic Conversion	$200–$500 per camera	Very High	High-risk/remote areas
Isolated PoE Extenders	$300–$800 per pair	Very High	Critical infrastructure
Whole-House SPD	$150–$400	Medium (reduces power-line surges)	All PoE systems
Shielded Cables + Bonding	$0.50–$1.00 per foot	Medium	All installations

Conclusion: Building a Lightning-Resistant PoE System

Protecting PoE cameras from lightning is a multi-layered process that requires attention to surge protection, grounding, installation practices, and advanced technologies. There’s no single “silver bullet”—instead, a defense-in-depth strategy is essential. Start with PoE-specific surge protectors at both camera and NVR ends, ensure all components share a single, low-resistance ground, and use shielded cables with proper bonding. For high-risk scenarios, consider fiber optics or isolated PoE systems.

Remember, lightning protection isn’t a one-time setup. Regularly inspect SPDs, test ground resistance, and monitor camera health. The cost of protection is always lower than the cost of replacement—not just for equipment, but for the security gaps that downtime creates. By implementing these measures, you’ll ensure your PoE camera system remains operational, reliable, and ready to capture critical footage—rain or shine, lightning or thunder.

As technology evolves, so do the threats. Stay informed about new standards (e.g., IEEE 1100 for grounding) and emerging solutions. Your vigilance today safeguards your security tomorrow.

Frequently Asked Questions

How can I protect PoE cameras from lightning strikes?

To protect PoE cameras from lightning, install surge protectors specifically designed for PoE systems and ensure proper grounding. Use shielded Ethernet cables (STP) and route them away from tall structures to minimize exposure.

Do I need a PoE surge protector for lightning protection?

Yes, a PoE surge protector is essential for lightning protection, as it diverts excess voltage caused by surges to the ground. Standard surge protectors won’t safeguard PoE cameras from both power and data line surges.

Can lightning damage PoE cameras even if they’re indoors?

Yes, lightning can travel through power lines, Ethernet cables, or phone lines, potentially damaging indoor PoE cameras. Always use surge protection on all connected lines and consider a UPS for added safety.

What’s the best grounding method for PoE cameras to prevent lightning damage?

Bond the camera’s metal housing, PoE switch, and surge protector to a single grounding point using thick copper wire. This equalizes potential differences and safely redirects lightning-induced surges.

Are outdoor PoE cameras more vulnerable to lightning? How to protect them?

Outdoor PoE cameras are at higher risk due to exposed locations. Install lightning rods nearby, use fiber optic converters for long cable runs, and ensure all connections are weatherproofed and grounded.

Can I use a UPS to protect PoE cameras from lightning?

A UPS with surge protection can help, but it’s not enough alone—pair it with dedicated PoE surge protectors and proper grounding. UPS systems primarily guard against power fluctuations, not direct lightning strikes.
