This guide walks you through how to review a camera recording on Zosi DVR using the built-in interface or mobile app. You’ll learn to navigate playback, search by time or event, and export footage with ease.
Key Takeaways
- Access playback mode: Use the DVR’s main menu to enter playback and select your camera channels.
- Search by date and time: Narrow down recordings using the calendar and timeline tools for faster results.
- Use event-based search: Filter recordings by motion detection or alarm triggers to find important clips quickly.
- Export recordings: Save video clips to a USB drive or external storage for backup or sharing.
- Adjust playback settings: Control playback speed, zoom in on details, and switch between camera views.
- Troubleshoot common issues: Resolve problems like missing footage or playback errors with simple fixes.
- Use the Zosi app: Review recordings remotely on your smartphone or tablet for convenience.
Quick Answers to Common Questions
Tip/Question?
How do I find footage from last week?
Use the calendar in playback mode to select the correct date. Only dates with recordings will be highlighted.
Tip/Question?
Can I watch multiple cameras at once during playback?
Yes, select “All Channels” in playback mode to view up to 16 cameras in split-screen.
Tip/Question?
Why is my exported video not playing on my computer?
The file may be in a format your media player doesn’t support. Try VLC Media Player or convert the file to MP4.
Tip/Question?
How do I speed up playback to find an event faster?
Use the speed control buttons to play at 2x or 4x speed, then slow down when you see activity.
Tip/Question?
Can I review recordings without a mouse?
Yes, use the front panel buttons or remote control, but a mouse makes navigation much easier.
Introduction: Why Reviewing Camera Recordings Matters
Whether you’re monitoring your home, business, or property, reviewing camera recordings is a crucial part of using a Zosi DVR system. These digital video recorders are designed to store footage from multiple security cameras, giving you peace of mind and valuable evidence when needed. But knowing how to review a camera recording on Zosi DVR isn’t always obvious—especially if you’re new to the system or haven’t used it in a while.
In this comprehensive guide, you’ll learn everything you need to know about accessing, searching, and managing your recorded footage. We’ll cover both the physical DVR interface and the Zosi mobile app, so you can review recordings whether you’re at home or on the go. By the end, you’ll be able to quickly find the footage you need, export important clips, and troubleshoot common playback issues.
This guide is perfect for homeowners, small business owners, or anyone using a Zosi surveillance system. No technical expertise is required—just follow the steps, and you’ll be reviewing your camera recordings like a pro.
Understanding Your Zosi DVR System
Before diving into playback, it’s helpful to understand how your Zosi DVR works. Zosi DVRs are standalone devices that connect to analog or HD-TVI cameras via coaxial cables. They record video footage and store it on an internal hard drive. Most models support 4, 8, or 16 channels, meaning you can connect up to that many cameras.

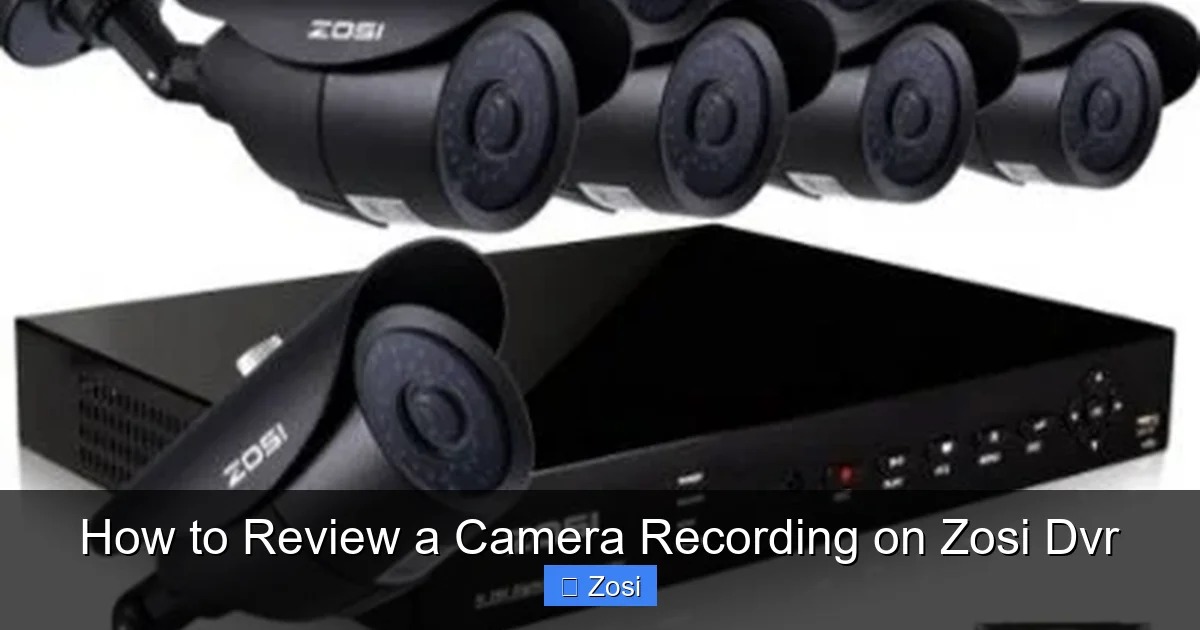

Visual guide about How to Review a Camera Recording on Zosi Dvr
Image source: 1.bp.blogspot.com
The DVR connects to a monitor or TV using an HDMI or VGA cable. It also has USB ports for connecting a mouse, keyboard, or external storage device. Some models include built-in Wi-Fi or Ethernet ports for remote access via the Zosi app or web browser.
Recordings are typically saved in segments—usually 5 to 10 minutes long—and stored chronologically. The system uses motion detection, continuous recording, or scheduled recording modes, depending on your settings. This means footage is organized by time and camera channel, making it easier to locate specific events.
Now that you know the basics, let’s get started with reviewing your recordings.
Step 1: Power On and Access the Main Menu
The first step in reviewing a camera recording is turning on your Zosi DVR and accessing the main menu. Here’s how:
Turn On the DVR and Monitor
Make sure your DVR is plugged into a power source and connected to a monitor or TV. Press the power button on the front or back of the DVR. Wait a few seconds for the system to boot up. You should see the live camera feeds displayed on the screen.
Connect a Mouse (If Needed)
Most Zosi DVRs are controlled using a USB mouse. Plug the mouse into one of the USB ports on the DVR. If you don’t have a mouse, some models allow navigation using the front panel buttons, but a mouse is much easier for menu navigation.
Open the Main Menu
Right-click anywhere on the live view screen. A context menu will appear. Select Main Menu from the options. Alternatively, you can press the Menu button on the remote control or front panel.
The main menu will open, showing options like Playback, Record, Network, System, and Info. We’re interested in Playback, so click on it to proceed.
Step 2: Enter Playback Mode
Once you’re in the main menu, selecting Playback will take you to the playback interface. This is where you can review recorded footage from any of your connected cameras.
Select the Camera Channel
On the playback screen, you’ll see a grid or list of camera channels (e.g., Camera 1, Camera 2, etc.). Click on the channel you want to review. You can select one camera at a time, or choose All Channels to view multiple feeds simultaneously in split-screen mode.
Choose the Date
Use the calendar tool to select the date you want to review. Click on the date field, and a calendar will pop up. Navigate to the correct month and day, then click to confirm. Only dates with recorded footage will be highlighted, so if a date is grayed out, there’s no data for that day.
Set the Time Range
After selecting the date, you’ll see a timeline at the bottom of the screen. This shows the recorded segments for that day. You can drag the timeline slider to jump to a specific time, or use the Start Time and End Time
For example, if you’re looking for footage from yesterday afternoon, set the date to yesterday and the time to 2:00 PM to 4:00 PM. This narrows down your search and makes playback faster.
Step 3: Search and Play Recordings
Now that you’ve selected your camera and time range, it’s time to play the recording. Here’s how to do it efficiently.
Start Playback
Click the Play button (usually a triangle icon) to begin playback. The video will start from the beginning of your selected time range. You’ll see the footage playing in real-time, with a timeline showing your progress.
Use Playback Controls
The playback interface includes standard controls:
- Play/Pause: Start or stop playback.
- Stop: Return to the beginning of the recording.
- Fast Forward/Rewind: Skip ahead or go back in 10-second, 30-second, or 1-minute increments.
- Step Forward/Back: Move frame by frame for detailed review.
- Speed Control: Adjust playback speed (0.5x, 1x, 2x, 4x, etc.).
Use these tools to quickly scan through footage. For example, if you’re looking for a person walking by, you can fast-forward until you see movement, then slow down to watch the details.
Switch Between Cameras
If you selected multiple channels, you can switch between them during playback. Click on a different camera feed in the grid to jump to that channel’s recording for the same time period. This is useful if you want to see what happened from different angles.
Step 4: Use Event-Based Search (Motion Detection)
One of the most powerful features of Zosi DVRs is event-based search. Instead of manually scrubbing through hours of footage, you can filter recordings by motion detection or alarm events.
Enable Motion Detection (If Not Already On)
Before using event search, make sure motion detection is enabled. Go to Main Menu > Record > Motion, and ensure that motion detection is turned on for the cameras you want to monitor. You can also adjust sensitivity and set detection zones.
Access Event Search
In the playback menu, look for an option like Event Search or Motion Search. Click on it. The system will scan the selected date and time range for any motion-triggered recordings.
Review Event Clips
The DVR will display a list of events with timestamps. Click on any event to jump directly to that moment in the recording. This saves time and helps you focus on important activity.
For example, if someone triggered motion at 3:15 PM, you can click that event and immediately see the footage without watching the entire hour.
Step 5: Export Recordings to USB
If you find important footage—like a break-in or suspicious activity—you’ll want to save it. Here’s how to export recordings from your Zosi DVR.
Insert a USB Drive
Plug a USB flash drive or external hard drive into one of the USB ports on the DVR. Make sure the drive is formatted to FAT32 or NTFS and has enough free space (at least 1 GB for short clips).
Select the Footage to Export
While in playback mode, pause the video at the start of the clip you want to save. Click the Export or Backup button (usually a disk icon). A new window will open.
Set Export Parameters
In the export window:
- Choose the camera channel.
- Set the start and end time of the clip.
- Select the file format (usually AVI or MP4).
- Choose the USB drive as the destination.
Click Start to begin the export. The process may take a few minutes, depending on the clip length. Once complete, you’ll see a confirmation message.
Safely Remove the USB Drive
After exporting, don’t unplug the USB drive immediately. Click the Safely Remove Hardware icon (if available) or wait for the system to finish writing data. Then unplug the drive and store it securely.
You can now view the exported video on any computer or share it with authorities if needed.
Step 6: Review Recordings Remotely Using the Zosi App
One of the biggest advantages of Zosi DVRs is remote access. You can review recordings from anywhere using the Zosi app on your smartphone or tablet.
Download the Zosi App
Search for “Zosi” in the App Store (iOS) or Google Play Store (Android). Download and install the official Zosi app.
Connect Your DVR to the Internet
Make sure your DVR is connected to your home network via Ethernet or Wi-Fi. Go to Main Menu > Network > TCP/IP and ensure the IP address is set correctly. You may need to enable P2P (peer-to-peer) for easier setup.
Add Your DVR to the App
Open the Zosi app and tap Add Device. Choose Scan QR Code or Manual Input. If scanning, point your phone at the QR code on the DVR’s info screen. If manual, enter the DVR’s serial number and verification code (found in Main Menu > Info).
Log In and Access Playback
Once added, log in with your DVR’s username and password (default is often admin/123456). Tap on the device to view live feeds. To review recordings, tap the Playback icon (usually a clock or calendar).
Search and Play Footage
Select the camera, date, and time range just like on the DVR. The app will load the recording. Use touch gestures to play, pause, or scrub through the video. You can also export clips directly to your phone.
This feature is perfect for checking on your property while traveling or receiving alerts when motion is detected.
Troubleshooting Common Playback Issues
Even with a reliable system, you might run into problems when reviewing recordings. Here are some common issues and how to fix them.
No Footage Found for a Specific Date
If a date is grayed out or no recordings appear, check the following:
- Recording schedule: Go to Main Menu > Record > Schedule and ensure recording is enabled for that day and time.
- Hard drive status: Check if the hard drive is full or damaged. Go to Main Menu > Storage > HDD Info to see usage and health.
- Power outage: If the DVR lost power, recordings may be missing for that period.
Playback Freezes or Skips
If the video stutters or jumps, try these fixes:
- Lower playback speed: High-speed playback can cause lag. Reduce to 1x or 0.5x.
- Check network connection: For remote playback, a weak Wi-Fi signal can cause buffering. Move closer to the router or use Ethernet.
- Restart the DVR: Power cycle the system to clear temporary glitches.
Can’t Export to USB
If the export fails, try these steps:
- Format the USB drive: Use FAT32 for compatibility. Avoid exFAT or other formats.
- Try a different USB port: Some ports may not support data transfer.
- Reduce clip length: Very long exports may time out. Break the footage into smaller segments.
Motion Events Not Showing Up
If event search returns no results:
- Verify motion detection is on: Check settings in Main Menu > Record > Motion.
- Adjust sensitivity: If set too low, minor movements won’t trigger recording.
- Check detection zones: Make sure the area you’re monitoring is included in the active zone.
Tips for Efficient Recording Review
To make the most of your Zosi DVR, follow these best practices:
- Label your cameras: Rename channels (e.g., “Front Door,” “Backyard”) in the settings for easier identification.
- Use scheduled recording: Set the DVR to record only during high-risk hours (e.g., nighttime) to save storage space.
- Regularly back up footage: Export important clips monthly to avoid losing them if the hard drive fails.
- Update firmware: Check for firmware updates in Main Menu > System > Upgrade to improve performance and security.
- Keep the DVR cool: Ensure proper ventilation to prevent overheating, which can affect recording quality.
Conclusion: Mastering Your Zosi DVR Playback
Reviewing camera recordings on a Zosi DVR doesn’t have to be complicated. With the right steps, you can quickly access, search, and export footage—whether you’re at home or on the go. From using the built-in playback menu to leveraging motion detection and remote access, this guide has covered all the tools you need.
Remember to keep your system updated, back up important clips, and troubleshoot issues promptly. By mastering these skills, you’ll get the most out of your security investment and ensure your property stays protected.
Now that you know how to review a camera recording on Zosi DVR, you can confidently monitor your space and respond to events with clarity and speed. Stay safe, stay informed, and enjoy the peace of mind that comes with a well-managed surveillance system.
