Rotating your camera angle on a Zosi DVR is simple once you know where to look. This guide walks you through adjusting camera orientation using the DVR menu, remote control, or mobile app to fix upside-down or sideways views.
Key Takeaways
- Access the DVR Menu: Use the remote or mouse to open the main menu and navigate to camera settings.
- <Use Image Flip Options: Look for “Flip,” “Mirror,” or “Rotate” settings under individual camera configurations.
- Adjust Per Camera: Each camera can be rotated independently—don’t assume all are set the same.
- Mobile App Support: The Zosi Smart app allows remote rotation adjustments from your phone or tablet.
- Reboot After Changes: Always restart the DVR after making changes to ensure settings take effect.
- Troubleshoot Common Issues: If rotation doesn’t work, check firmware, cables, or try resetting the camera channel.
- Prevent Future Problems: Mount cameras correctly during installation to minimize the need for software rotation.
Quick Answers to Common Questions
Tip/Question?
Can I rotate all cameras at once on my Zosi DVR?
No, Zosi DVRs require you to adjust each camera individually. There is no “rotate all” function, so you’ll need to go into each channel’s settings separately.
Tip/Question?
What if my Zosi DVR doesn’t have a rotation option?
Check your firmware version and update it via the System menu. Older models may not support rotation until updated.
Tip/Question?
Does rotating the image affect video quality?
No, digital rotation doesn’t reduce resolution or quality. It simply reorients the existing image data.
Tip/Question?
Can I rotate the camera angle using the Zosi app?
Yes, if your DVR model supports it. Open the camera settings in the Zosi Smart app and look for flip or rotate options.
Tip/Question?
Why does my camera still look wrong after rotation?
You may need to combine flip and mirror settings, or try a different rotation angle (like 180° instead of 90°). Test each option and reboot.
How to Rotate Camera Angle on Zosi DVR: A Complete Step-by-Step Guide
If you’ve ever looked at your Zosi security camera feed and noticed the image is upside down, sideways, or flipped, you’re not alone. It’s a common issue—especially if cameras were mounted in tight spaces or on ceilings. The good news? You can easily rotate the camera angle on your Zosi DVR without physically moving the camera. Whether you’re using a Zosi 4-channel, 8-channel, or 16-channel DVR system, this guide will walk you through every step to fix your camera orientation quickly and correctly.
In this comprehensive how-to guide, you’ll learn how to access your Zosi DVR’s menu, locate the image rotation settings, and apply changes to individual cameras. We’ll also cover how to use the Zosi mobile app for remote adjustments, troubleshoot common problems, and share pro tips to avoid future issues. By the end, your camera feeds will be perfectly aligned—no matter how they’re mounted.
Let’s get started!
Why Rotate Your Zosi Camera Angle?

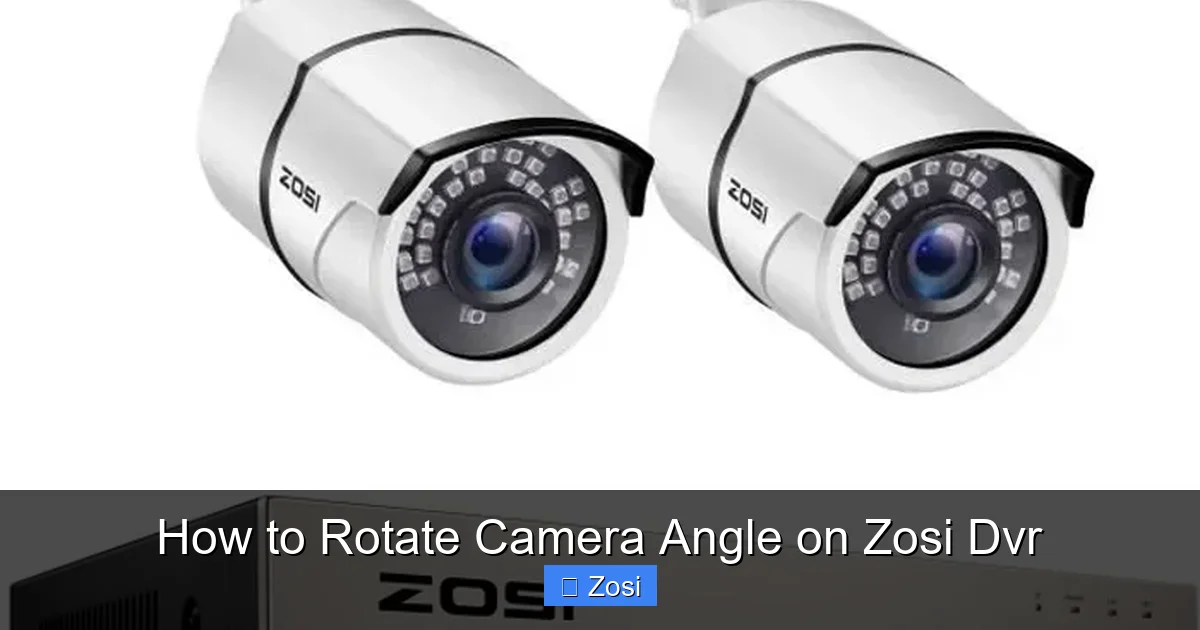

Visual guide about How to Rotate Camera Angle on Zosi Dvr
Image source: cdiscount.com
Before diving into the steps, it’s helpful to understand why camera rotation might be necessary. Most Zosi cameras are designed to be mounted right-side up on a wall or ceiling. But in real-world setups, installers sometimes mount cameras upside down (for example, under eaves or in drop ceilings) to maximize coverage or hide wiring.
When a camera is physically inverted, the video feed appears flipped on your monitor or phone. This can be confusing—especially when trying to identify people, read signs, or monitor activity. Rotating the image digitally corrects this without needing to remount the hardware.
Additionally, some users prefer mirrored views for specific monitoring purposes, such as watching a doorway from inside a room. The Zosi DVR system supports image flipping and rotation to accommodate these needs.
What You’ll Need
Before beginning, make sure you have the following:
- A working Zosi DVR system (connected to power and monitors)
- The DVR remote control (or a USB mouse if your model supports it)
- Access to the camera feeds (via monitor or mobile app)
- Basic familiarity with navigating the DVR menu
Most modern Zosi DVRs (like the Zosi C88, C89, or H.265+ series) support image rotation. If you’re unsure about your model, check the label on the DVR or refer to the user manual.
Step 1: Access the DVR Main Menu
The first step to rotating your camera angle is accessing the DVR’s main menu. Here’s how:
Using the Remote Control
- Point the Zosi remote at the DVR.
- Press the Menu button (usually labeled “MENU” or has a grid icon).
- The main menu screen will appear on your monitor.
Using a USB Mouse
- Plug a USB mouse into one of the DVR’s USB ports.
- Move the cursor to the top of the screen to reveal the menu bar.
- Click Menu or Settings to open the main interface.
Tip: If the menu doesn’t appear, ensure your monitor is connected to the correct video output (HDMI or VGA) and that the DVR is powered on.
Step 2: Navigate to Camera Settings
Once inside the main menu, you’ll need to find the camera configuration options.
Find the “Camera” or “Channel” Menu
- Use the arrow keys (or mouse) to navigate to the Camera tab.
- Select Camera Settings or Channel Configuration.
- You’ll see a list of all connected cameras (e.g., Channel 1, Channel 2, etc.).
Select the Camera to Adjust
- Highlight the camera channel you want to rotate (e.g., Channel 3).
- Press Enter or click Edit to open its settings.
Note: You must adjust each camera individually. There’s no “rotate all” option, so repeat these steps for every camera that needs correction.
Step 3: Locate Image Rotation or Flip Settings
Now comes the key part: finding the rotation controls.
Look for “Image” or “Display” Options
- Inside the camera settings, scroll down to find Image Settings, Video Settings, or Display Options.
- Look for one or more of the following options:
- Flip (Vertical Flip)
- Mirror (Horizontal Flip)
- Rotate (90°, 180°, 270°)
- Invert (Combination of flip and mirror)
Enable the Correct Rotation
- Select the appropriate option based on your camera’s orientation:
- If the image is upside down, enable Flip (vertical flip).
- If the image is sideways, try Rotate 90° or 270°.
- If the image is mirrored (left and right reversed), enable Mirror.
- Toggle the setting to On or select the desired angle.
Example: If your camera is mounted upside down on a ceiling, enabling Flip will correct the image so it appears right-side up on your screen.
Save Your Changes
- After selecting the rotation, press Save or Apply.
- Exit the menu by pressing Back or Exit.
Pro Tip: Some Zosi models allow you to preview the change in real time. If available, use the live view to confirm the rotation looks correct before saving.
Step 4: Repeat for Other Cameras
Since each camera is configured separately, you’ll need to repeat Steps 2 and 3 for every channel that requires adjustment.
Efficient Workflow
- Go back to the Camera Settings menu.
- Select the next channel (e.g., Channel 4).
- Adjust the rotation as needed.
- Save and move to the next one.
Time-Saver: If multiple cameras are mounted the same way (e.g., all upside down), apply the same rotation setting to each to speed up the process.
Step 5: Reboot the DVR (Recommended)
After making changes, it’s a good practice to restart your DVR to ensure the new settings take effect properly.
How to Reboot
- Return to the main menu.
- Navigate to System > Shutdown.
- Select Reboot and confirm.
- Wait for the DVR to restart (usually takes 1–2 minutes).
Why Reboot? Some Zosi firmware versions require a restart to apply image rotation changes. Skipping this step may result in the old orientation still displaying.
Using the Zosi Mobile App to Rotate Camera Angle
If you prefer managing your system remotely, the Zosi Smart app (available for iOS and Android) lets you adjust camera orientation from your smartphone or tablet.
Download and Set Up the App
- Download Zosi Smart from the App Store or Google Play.
- Create an account or log in.
- Add your DVR by scanning the QR code on the device or entering the UID manually.
Access Camera Settings in the App
- Open the app and select your DVR system.
- Tap on the camera feed you want to adjust.
- Tap the Settings (gear) icon in the top-right corner.
- Look for Image Settings or Display Options.
Apply Rotation Remotely
- Toggle Flip, Mirror, or Rotate as needed.
- Tap Save or Apply.
- Return to the live view to confirm the change.
Note: Not all Zosi DVR models support remote rotation via the app. If you don’t see the option, use the DVR menu instead.
Troubleshooting Common Rotation Issues
Sometimes, rotating the camera angle doesn’t work as expected. Here’s how to fix common problems.
Issue: Rotation Settings Don’t Save
- Cause: Firmware bug or incomplete save process.
- Fix: Re-enter the settings, ensure you press Save, then reboot the DVR.
Issue: Image Still Upside Down After Flip
- Cause: The camera may need both flip and mirror enabled, or the rotation angle is incorrect.
- Fix: Try enabling Mirror in addition to Flip, or test different rotation angles (90°, 180°, 270°).
Issue: No Rotation Option in Menu
- Cause: Older firmware or incompatible model.
- Fix: Check your DVR model and update the firmware via the System > Upgrade menu. Visit the Zosi website for the latest firmware.
Issue: App Doesn’t Show Rotation Settings
- Cause: App version or DVR compatibility.
- Fix: Update the Zosi Smart app and ensure your DVR supports remote configuration. Contact Zosi support if needed.
Issue: Camera Feed Disappears After Rotation
- Cause: Signal interference or loose cable.
- Fix: Check the BNC or Ethernet cable connection. Re-seat the cable and reboot the DVR.
Pro Tips for Better Camera Orientation
To minimize the need for software rotation, follow these best practices during installation:
- Mount Cameras Right-Side Up: Whenever possible, install cameras in their intended orientation to avoid digital flipping.
- Use Ceiling Mounts with Adjustable Angles: Some Zosi cameras come with swivel mounts that allow you to angle the lens without inverting the housing.
- Label Channels: Label each camera (e.g., “Front Door,” “Backyard”) so you know which one to adjust.
- Test Before Finalizing: After mounting, check the live feed and adjust rotation before securing the camera permanently.
- Keep Firmware Updated: Regular updates improve functionality and fix bugs related to image settings.
Conclusion
Rotating the camera angle on your Zosi DVR is a straightforward process that can dramatically improve your surveillance experience. Whether your cameras are mounted upside down, sideways, or simply need a mirror effect, the built-in image settings give you full control over how the video appears.
By following this guide, you’ve learned how to access the DVR menu, locate rotation options, apply changes per camera, and use the mobile app for remote adjustments. You’ve also gained troubleshooting skills and pro tips to keep your system running smoothly.
Remember: Always save your changes and reboot the DVR to ensure the new orientation takes effect. And if you run into issues, don’t hesitate to check your firmware or reach out to Zosi customer support.
With your cameras now properly aligned, you can enjoy clear, intuitive footage that makes monitoring your home or business easier and more effective.
