How to Run a Poe Camera to RS-485 Connections – Easy Guide

Key Takeaways

• Use PoE switches: Power and connect cameras via Ethernet cables effortlessly.
• Check compatibility: Ensure cameras and RS-485 devices support same protocols.
• Terminate RS-485 lines: Prevent signal reflections with proper 120Ω resistors.
• Limit cable length: Keep RS-485 runs under 4,000 ft for best performance.
• Ground properly: Avoid noise by grounding shields at one end only.
• Test connections: Verify voltage levels and signal integrity before deployment.

Why This Matters / Understanding the Problem

Running a PoE (Power over Ethernet) camera to an RS-485 connection might sound like a job for an electrical engineer, but it’s actually a practical setup for many surveillance and automation systems. Whether you’re installing security cameras in a warehouse, monitoring equipment in a factory, or setting up access control in a smart building, combining PoE with RS-485 lets you power your camera and send data over long distances—without extra wiring.

The challenge? Most people assume PoE and RS-485 can’t work together. But with the right tools and a clear How to Run a Poe Camera to RS-485 Connections – Easy Guide, you can merge these two powerful technologies safely and efficiently. RS-485 is perfect for serial communication over long runs (up to 4,000 feet!), while PoE powers your camera using a single Ethernet cable. Together, they reduce clutter, save money, and boost reliability.

Without a proper setup, you risk data loss, signal interference, or even damaging your camera. That’s why understanding how to integrate them—without overcomplicating things—is essential for DIYers and pros alike.

What You Need

Before diving in, gather the right tools and materials. This isn’t a “make do with what’s in your garage” kind of project—precision matters when dealing with data and power signals. Here’s your checklist:

• PoE camera (supports 802.3af or 802.3at standard)
• PoE switch or injector (to power the camera)
• RS-485 to Ethernet converter (also called a serial server or gateway) – This is the bridge between your camera’s data and the RS-485 network
• Cat5e or Cat6 Ethernet cable (for PoE and data to the camera)
• RS-485 cable (twisted pair, ideally shielded) – Use 18–24 AWG, low-capacitance cable (e.g., Belden 3106A)
• RJ45 crimper and connectors (for custom Ethernet runs)
• Wire strippers and screwdrivers
• Multimeter (to test voltage and continuity)
• Terminal block or screw terminals (for secure RS-485 wiring)
• RS-485 termination resistor (120Ω) – Prevents signal reflections at the end of long lines
• Network cable tester (optional but recommended)

Bonus: If your camera supports ONVIF or RTSP, it’ll be easier to integrate with the RS-485 gateway. Always check compatibility before buying.

This setup works best in environments like parking lots, industrial sites, or large campuses—anywhere you need both power and long-distance data control. The How to Run a Poe Camera to RS-485 Connections – Easy Guide below will help you get it right the first time.

Step-by-Step Guide to How to Run a Poe Camera to RS-485 Connections – Easy Guide

Step 1: Plan Your Network Layout

Start with a clear diagram. Sketch where your camera, PoE switch, RS-485 gateway, and control system (like a DVR or PLC) will go. Measure distances—especially the RS-485 run, which shouldn’t exceed 4,000 feet (1,200 meters) without signal boosters.

Label cable paths, power sources, and grounding points. If you’re running cables through walls or underground, plan conduit or cable trays. Remember: PoE uses Ethernet, but RS-485 uses a separate twisted pair. Don’t bundle them tightly—keep them at least 6 inches apart to avoid interference.

Tip: Use different colored cables for PoE and RS-485 to avoid confusion during troubleshooting.

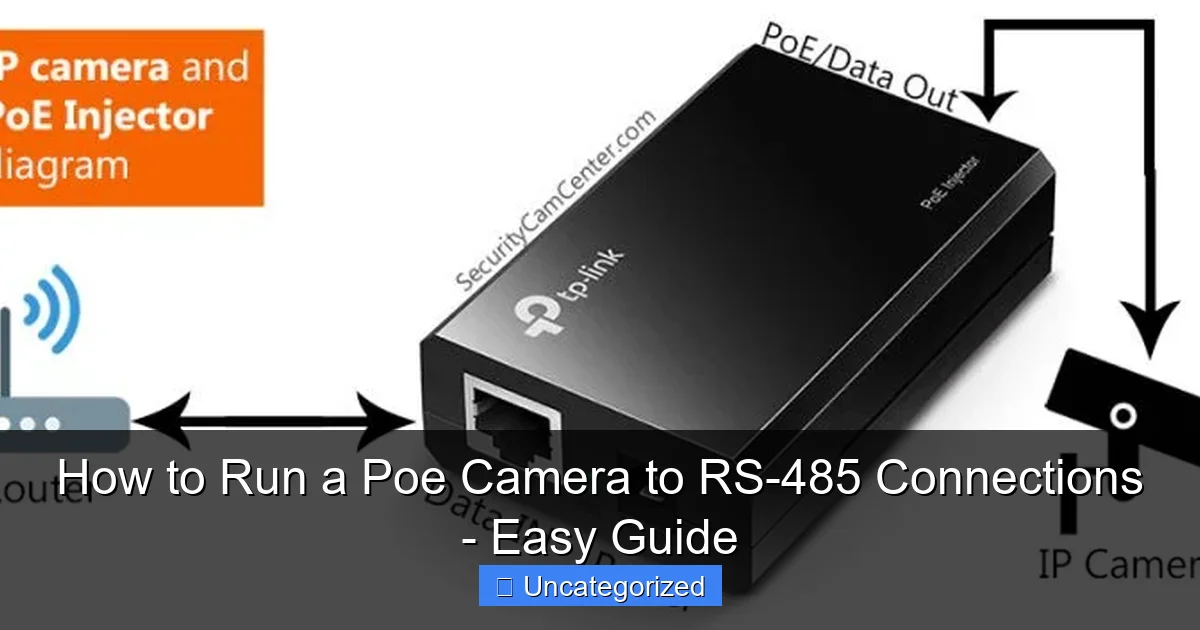

Step 2: Set Up the PoE Side

Connect your PoE camera to the PoE switch or injector using a Cat5e/6 cable. If your switch is far away, use a PoE extender or midspan injector. Plug the camera in and verify it powers up—check the LED or use the camera’s web interface to confirm it’s online.

Test the camera feed on your phone or computer. Make sure it streams video properly. This confirms your PoE connection is solid before adding RS-485 complexity.

Pro tip: Use a PoE tester to check voltage (should be 44–57V for 802.3af/at). Low voltage can cause camera reboots.

Step 3: Configure the RS-485 to Ethernet Gateway

This is the brain of your setup. The gateway converts the camera’s Ethernet data into RS-485 signals (and vice versa). Popular models include Moxa NPort, Advantech, or generic brands like USR-TCP232.

Connect the gateway to the same network as your camera (via Ethernet). Power it with a 12V/24V DC adapter or PoE (if supported). Then, access its web interface—usually by typing its IP address into a browser.

In the settings, configure:

• Serial port mode: Set to RS-485 (not RS-232)
• Baud rate: Match your camera’s serial speed (common: 9600, 19200, 38400 bps)
• Data bits, parity, stop bits: Usually 8-N-1 (8 data, no parity, 1 stop)
• IP address and subnet: Must be on the same network as your camera
• Protocol mode: Use TCP Server or UDP for most camera setups

Warning: Never set two devices to the same IP address—it causes network conflicts.

Step 4: Wire the RS-485 Connection

Now, connect the gateway to your RS-485 network. The gateway has two terminals: A (positive) and B (negative). Use a shielded twisted pair cable—strip about 1/2 inch of insulation at both ends.

At the gateway side:

• Connect the positive wire (usually white with orange stripe) to A
• Connect the negative wire (usually orange) to B
• Ground the shield to the gateway’s ground terminal (if available)

At the far end (e.g., DVR, PLC, or another camera):

• Repeat the same A/B connections
• Add a 120Ω termination resistor across A and B (only at the last device in the line)
• Ground the shield here too

Tip: Use screw terminals or a terminal block—don’t just twist wires. Loose connections cause signal noise.

Step 5: Test the RS-485 Communication

Before relying on the system, test the serial link. Use a serial terminal app (like Tera Term or PuTTY) on a computer connected to the same network as the gateway.

Set the terminal to match the gateway’s serial settings (baud rate, etc.). Send a simple command—like a PTZ (pan-tilt-zoom) signal or a status request. If your camera responds, the RS-485 path is working.

If nothing happens:

• Check A/B polarity (swap if needed)
• Verify termination resistor is only at the end
• Use a multimeter to test continuity
• Ensure no voltage leaks between A/B and ground

For long runs, a RS-485 repeater can boost weak signals.

Step 6: Integrate with Your Control System

Now, link the RS-485 network to your DVR, NVR, or PLC. Most modern systems support RS-485 via a COM port or USB-to-RS485 adapter.

In your software (e.g., Milestone, Genetec, or custom SCADA), add the camera as an IP device. But for PTZ or alarm functions, configure it to use the RS-485 port. Input the correct baud rate and camera address (often set via DIP switches on the camera).

Example: A Pelco PTZ camera might use address 1, baud 2400, 8-N-1. Match these in your control software.

Test PTZ controls, alarms, and sensor inputs. If everything responds, you’ve successfully merged PoE power and RS-485 data.

Step 7: Secure and Weatherproof (If Outdoor)

For outdoor installations, protect all connections. Use:

• Weatherproof junction boxes for gateway and terminals
• Heat shrink tubing on wire splices
• Conduit for underground or exposed cable runs
• Silicone sealant around entry points

Ground all shields and metal enclosures to prevent lightning-induced surges. A surge protector on the RS-485 line adds extra safety.

Tip: Label every cable and terminal—future you will thank you.

Pro Tips & Common Mistakes to Avoid

Even with a solid How to Run a Poe Camera to RS-485 Connections – Easy Guide, things can go sideways. Here’s what the pros know—but often don’t tell you.

• Use shielded cable for RS-485: Unshielded wires act like antennas, picking up noise from motors or power lines. Always ground the shield at one end only (usually the gateway side) to avoid ground loops.
• Terminate only at the end: Multiple 120Ω resistors in parallel reduce impedance and kill signal strength. Only the last device on the line needs termination.
• Keep PoE and RS-485 cables separate: Run them in parallel, but never twist them together. Cross them at 90° if they must intersect.
• Don’t exceed 4,000 feet: Beyond that, signal degradation happens. Use repeaters or fiber converters for longer runs.
• Match baud rates exactly: A 9600 bps camera won’t talk to a 19200 bps gateway. Double-check settings on all devices.
• Label everything: “Camera 1 RS-485” or “Gateway A” saves hours of troubleshooting later.
• Test incrementally: Don’t connect everything at once. Power the camera first, then the gateway, then the RS-485 line.

Warning: Never power the RS-485 line with PoE voltage. RS-485 uses low-voltage signals (typically ±6V). High voltage will fry the gateway or camera.

Common mistake: Forgetting to disable DHCP on the gateway. If it grabs a dynamic IP, your camera might become unreachable after a reboot. Assign a static IP instead.

Another: Using cheap, non-twisted cable for RS-485. It’s false economy—you’ll get signal errors and data loss.

Pro tip: For large networks, use a RS-485 hub to connect multiple cameras to one gateway. It keeps the network clean and reduces cabling.

FAQs About How to Run a Poe Camera to RS-485 Connections – Easy Guide

1. Can I use a regular Ethernet cable for RS-485?

Technically, yes—but not recommended. Ethernet has four twisted pairs, and you can use one pair for A/B signals. However, unshielded Cat5e can pick up interference in noisy environments. For reliability, especially outdoors or near machinery, use shielded RS-485 cable. It’s designed to reject noise and handle long runs.

2. Do I need a separate power source for the RS-485 gateway?

It depends. Some gateways support PoE (look for 802.3af/at compliance). Others need a 12V/24V DC adapter. Check the specs. If your gateway has PoE, you can power it from the same switch as your camera—just use a PoE splitter if needed.

3. What if my camera doesn’t have a serial port?

Many modern PoE cameras lack physical serial ports. But they often support ONVIF or RTSP over IP. In this case, the RS-485 gateway can act as a bridge: it listens to the camera’s IP stream and translates PTZ commands via RS-485. Just ensure your control software can send serial commands over IP.

Example:

A Bosch IP camera might not have RS-485, but its firmware can accept PTZ commands via HTTP or RTSP. The gateway receives these and converts them to RS-485 signals for older dome cameras.

4. How do I know if my RS-485 connection is working?

Use a multimeter to check voltage between A and B. A healthy RS-485 line shows 1–6V when active. No voltage? Check connections. Also, use a serial terminal to send a “ping” command. If you get a response, the link is good. For advanced testing, an oscilloscope shows signal shape—look for clean, square waves.

5. Can I daisy-chain multiple cameras on one RS-485 line?

Yes—but with limits. RS-485 supports up to 32 devices on a single bus. Each camera needs a unique address (set via DIP switches or software). Keep total cable length under 4,000 feet. For more than 32 devices, use repeaters or multiple buses.

Pro tip: Use a RS-485 hub to split the bus into segments—it reduces load and improves reliability.

6. Why is my camera not responding to PTZ commands?

Check these in order:

• Is the camera powered? (Check PoE LED)
• Is the gateway online? (Ping its IP)
• Are A/B wires swapped? (Try reversing them)
• Is the baud rate correct? (Must match camera and gateway)
• Is the camera address set? (DIP switches or web interface)
• Is the termination resistor in place? (Only at the last device)

7. Can I use Wi-Fi instead of RS-485?

For short-range, yes—but Wi-Fi isn’t ideal for long-distance, high-reliability control. RS-485 works in rain, snow, and near metal structures. Wi-Fi can drop in harsh environments. Use RS-485 for critical PTZ or alarm systems. Save Wi-Fi for monitoring only.

Final Thoughts

Running a PoE camera to an RS-485 connection isn’t magic—it’s smart wiring. With the right tools and a clear How to Run a Poe Camera to RS-485 Connections – Easy Guide, you can build a robust, long-distance surveillance system that’s both powerful and efficient.

Remember: plan your layout, test each step, and never skip the basics—like grounding and labeling. Whether you’re securing a warehouse or automating a farm, this combo gives you the best of both worlds: PoE for power, RS-485 for control.

Now that you’ve got the know-how, grab your tools and start building. And if you hit a snag? Revisit the steps, check your connections, and don’t rush. A little patience now saves hours of headaches later.

Ready to upgrade? Try adding a second camera or integrating with an access control system. The possibilities are endless—once you master the fundamentals.

Stay safe, stay wired, and keep watching.

“`
