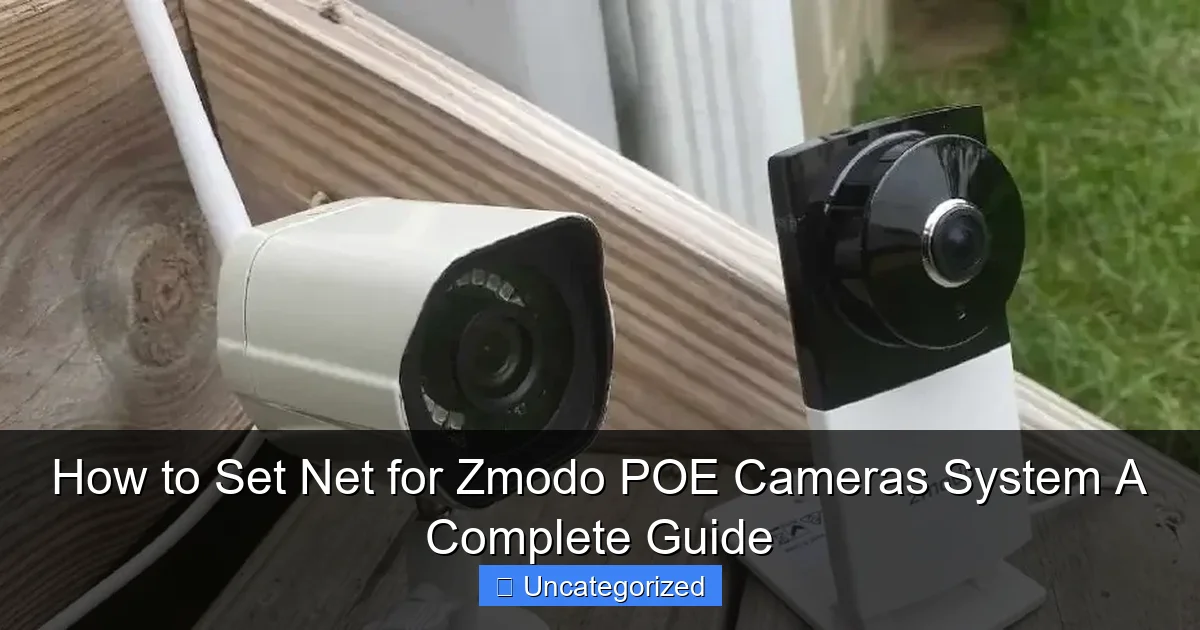

Featured image for how to set net for zmodo poe cameras system
Image source: safetywish.com
Setting up your Zmodo POE camera system is simple and fast with a direct Power over Ethernet connection—just plug the camera into your POE switch or NVR using an Ethernet cable to enable both power and data transmission. Ensure your network is properly configured with a compatible router and reserved IP addresses to avoid conflicts and enable seamless remote access. Follow the Zmodo app’s guided setup to complete the network configuration, including Wi-Fi sync and motion alerts, for a fully functional, secure surveillance system.
“`html
How to Set Net for Zmodo POE Cameras System: A Complete Guide
Key Takeaways
- Plan your layout: Map camera locations before installation to optimize coverage and avoid blind spots.
- Use PoE switches: Connect cameras via PoE switches for stable power and data over a single cable.
- Secure network access: Enable encryption (WPA2/WPA3) to prevent unauthorized access to your camera feed.
- Update firmware regularly: Keep Zmodo cameras updated for performance fixes and security patches.
- Test connectivity early: Verify each camera’s network connection before finalizing installation.
- Optimize router settings: Assign static IPs to cameras for reliable remote viewing and port forwarding.
Why This Matters / Understanding the Problem
Setting up a home or business security system shouldn’t feel like decoding rocket science. Yet, many users struggle when trying to set net for Zmodo POE cameras system—especially when connecting multiple cameras, ensuring stable power, and getting them online reliably.
POE (Power over Ethernet) cameras from Zmodo offer a clean, professional setup—no extra power cables, just one Cat5e or Cat6 Ethernet cable per camera. But without the right network configuration, you might face issues like dropped feeds, slow motion detection, or cameras going offline.
Whether you’re a DIY homeowner or a small business owner, mastering how to set net for Zmodo POE cameras system ensures your surveillance runs smoothly, 24/7. This guide walks you through every step, from unboxing to remote viewing, with real-world tips to avoid common pitfalls.
What You Need
Before you begin, gather these tools and components. Skipping any of these could delay your setup or cause connectivity problems later.
Visual guide about how to set net for zmodo poe cameras system
Image source: i.ytimg.com
- Zmodo POE camera(s) (e.g., Zmodo ZP-NE14-S, ZP-NE18-S, or ZP-NE22-S)
- POE NVR (Network Video Recorder) or POE switch (8-port or higher recommended)
- Cat5e or Cat6 Ethernet cables (shielded preferred for outdoor runs)
- Router with DHCP enabled (most home routers work fine)
- Computer or smartphone (for initial setup and app access)
- Zmodo app (iOS/Android) – download from the App Store or Google Play
- Network cable tester (optional but highly recommended)
- Drill, screws, and mounting hardware (for camera installation)
- Power outlet near the NVR/switch
Pro Tip: Use at least Cat5e cables—even if your cameras are indoors. Cat6 is better for longer runs (over 100 ft) and reduces interference, especially if you’re setting up a large system.
Step-by-Step Guide to How to Set Net for Zmodo POE Cameras System: A Complete Guide
Step 1: Plan Your Camera Locations and Network Layout
Start by mapping out where you want each camera. Think about entry points, blind spots, and areas with high foot traffic. Avoid pointing cameras at bright lights or reflective surfaces (like glass doors) to reduce glare.
For the network side, decide whether you’re using a POE NVR (all-in-one recorder) or a standalone POE switch connected to your existing router. The NVR is simpler for beginners—it powers cameras, records video, and connects to your network all in one box.
Measure cable runs. If any cable is longer than 300 feet, consider using a midspan POE extender or fiber media converter to avoid power drop.
Warning: Never daisy-chain POE cables. Each camera must connect directly to the NVR or switch. This is a critical rule when learning how to set net for Zmodo POE cameras system.
Step 2: Mount the Cameras (Before Wiring)
Mounting cameras first makes wiring easier and helps you test placement before running permanent cables.
- Use the included mounting template to mark drill holes.
- For outdoor cameras, ensure the housing is sealed and the lens is protected from rain.
- Angle cameras slightly downward (10–15 degrees) to capture faces, not just the tops of heads.
- For indoor cameras, avoid pointing them at windows at night (infrared can reflect).
Once mounted, leave the camera unplugged until you’re ready to test the network connection.
Pro Tip: Use weatherproof junction boxes for outdoor camera connections. They protect splices and prevent water damage—especially important if you’re not using pre-terminated cables.
Step 3: Run and Terminate Ethernet Cables
Run Cat5e/Cat6 cables from each camera location to the NVR or POE switch. Use fish tape for walls, and conduit for outdoor runs to protect against rodents and weather.
If you’re using pre-terminated cables, skip termination. Otherwise, crimp RJ45 connectors using a punch-down tool or crimper. Follow the T568B standard (most common in the US):
- Orange-White
- Orange
- Green-White
- Blue
- Blue-White
- Green
- Brown-White
- Brown
Use a network cable tester to verify all 8 wires are connected properly. A single broken wire can cause intermittent POE power or no video feed.
Common Mistake: Over-tightening zip ties on cables. This can crush the wires and cause signal loss. Use velcro straps or cable clips instead.
Step 4: Connect Cameras to POE NVR or Switch
Now it’s time to plug in the cables. Connect one end of each Ethernet cable to a camera, and the other end to a POE port on your NVR or POE switch.
- If using a Zmodo NVR, plug the Ethernet cable into any of the POE ports (usually labeled 1–8).
- If using a third-party POE switch, connect the switch to your router via a standard Ethernet cable.
- Power on the NVR or switch. You should see activity lights on the POE ports.
Wait 1–2 minutes. The cameras should power on automatically. You’ll hear a click (if they have audio) and see the IR LEDs light up (in low light).
Pro Tip: Label each cable at both ends (e.g., “Front Door,” “Backyard”). This makes troubleshooting easier later when setting up motion zones or reviewing footage.
Step 5: Connect the NVR to Your Router
Using a standard Ethernet cable, connect the NVR’s LAN port to your home router. This gives the system internet access for remote viewing and cloud features.
Power on the NVR if you haven’t already. Wait for the boot-up process (usually 1–2 minutes). You’ll see a splash screen and then the live view of your cameras.
On the NVR’s main menu, go to Network Settings > TCP/IP. Most users should leave it on DHCP—your router will assign an IP automatically.
If you’re in a complex network (e.g., business with VLANs), you may need to set a static IP. But for home use, DHCP is simpler and recommended.
Warning: Avoid placing the NVR in a closet or behind metal cabinets. Poor ventilation can cause overheating, and signal interference can disrupt Wi-Fi if you’re using a hybrid system.
Step 6: Access the NVR Interface (Local Setup)
Connect a monitor to the NVR using HDMI or VGA. Power on the monitor and select the correct input.
On the live view screen, right-click and select Main Menu > System > Network. Verify the NVR has an IP address (e.g., 192.168.1.100).
Go to Camera Management > Add Camera. The NVR should auto-detect all connected POE cameras. If a camera doesn’t appear:
- Check the cable connection
- Test the cable with a tester
- Try a different POE port
Once all cameras are detected, click Apply to save settings.
Pro Tip: Use camera naming (e.g., “Front Gate – West”) in the NVR interface. This makes it easier to identify feeds when reviewing footage or setting alerts.
Step 7: Configure Motion Detection and Alerts
Go to Camera > Motion Detection on the NVR menu. Select each camera and define motion zones.
Draw boxes around areas you want to monitor (e.g., driveway, porch). Avoid including moving trees or street traffic—these cause false alerts.
Set sensitivity (Medium or High for most homes). Enable Record on Motion and Send Alert.
For email alerts, go to Network > Email and enter your Gmail or Outlook SMTP settings. Test the email to confirm it works.
Common Mistake: Setting motion detection too high. This leads to hundreds of alerts per day. Start with Medium sensitivity and adjust based on real-world performance.
Step 8: Set Up Remote Access with the Zmodo App
Download the Zmodo app on your smartphone. Create an account if you don’t have one.
On the app, tap + > Add Device > NVR. Choose Wired (Ethernet) and scan the QR code on the NVR (usually on the side or back).
Enter your Wi-Fi password if prompted. The app will connect to your NVR over the internet.
Once connected, you’ll see live feeds from all cameras. You can:
- View in full screen
- Switch between cameras
- Enable two-way audio (if supported)
- Take snapshots or record clips
For security, enable Two-Factor Authentication (2FA) in the app settings.
Pro Tip: Use port forwarding only if the app fails to connect. But avoid it—it’s a security risk. The Zmodo app uses P2P (peer-to-peer) connection, which is safer and easier.
Step 9: Test the System and Adjust Settings
Walk in front of each camera and verify motion detection triggers a recording and alert.
Check the NVR’s storage. Go to Storage > HDD to see how much space is used. A 1TB drive stores ~7 days of 1080p footage (with motion recording).
Adjust camera angles if needed. Use the app’s Digital Zoom to fine-tune framing.
Test night vision. Turn off lights and confirm IR LEDs activate and image is clear.
Warning: Don’t forget to test remote access from outside your home—use mobile data, not Wi-Fi. This confirms your system is truly online.
Step 10: Optimize Network for Stability (Advanced)
If you have multiple cameras or high-resolution models (4K), your network may slow down.
- Use a dedicated VLAN for cameras (if your router supports it).
- Set the NVR’s bandwidth limit to 80% of your internet upload speed (check via Speedtest).
- Enable QoS (Quality of Service) on your router—prioritize the NVR’s IP address.
- Use a managed POE switch with VLAN and IGMP snooping for large systems.
For Wi-Fi cameras (if hybrid), avoid placing them near the NVR to reduce interference.
Pro Tip: Schedule a nightly reboot of the NVR and router (via smart plug). This clears memory leaks and keeps the system responsive—especially useful when learning how to set net for Zmodo POE cameras system long-term.
Pro Tips & Common Mistakes to Avoid
- Use shielded cables outdoors. Regular Cat5e can pick up interference from power lines or motors, causing video noise.
- Don’t mix POE standards. Zmodo uses 802.3af/at. Don’t use passive 24V POE injectors—they can fry your cameras.
- Label everything. Future you (or a technician) will thank you when troubleshooting.
- Update firmware. Check Zmodo’s website or app for updates. New firmware often fixes bugs and improves network stability.
- Secure your network. Change the default NVR password. Disable UPnP on your router to prevent unauthorized access.
Common Mistake: Ignoring the NVR’s fan. Dust buildup causes overheating. Clean it every 3–6 months with compressed air.
Pro Tip: Use Zmodo’s “Smart Search” feature in the app. It lets you search footage by time, date, or motion event—no more scrubbing through hours of video.
FAQs About How to Set Net for Zmodo POE Cameras System: A Complete Guide
Q1: Can I use a regular switch with Zmodo POE cameras?
No. Regular switches don’t provide power. You must use a POE switch or POE NVR. Without POE, the cameras won’t turn on.
Q2: Why isn’t my camera showing up on the NVR?
First, check the cable with a tester. Then, verify the POE port is working (try a different port). If still no signal, the camera or cable may be faulty. Also, ensure the NVR’s firmware is up to date.
Q3: How far can I run an Ethernet cable to a Zmodo camera?
Max distance is 300 feet (90 meters) for Cat5e/Cat6. Beyond that, use a POE extender or fiber media converter. Signal degrades with distance.
Q4: Can I set up Zmodo POE cameras without an NVR?
Yes, but only if you use a POE switch and a third-party NVR (like Blue Iris or Milestone). You’ll lose Zmodo’s app integration and cloud features unless you use ONVIF.
Q5: Why are my remote alerts delayed?
This is usually due to slow upload speed or router congestion. Upgrade to a gigabit router, set QoS, or reduce camera resolution. Also, avoid peak internet hours for testing.
Q6: Do Zmodo POE cameras work in cold weather?
Yes, most Zmodo POE cameras are rated for -22°F to 140°F. But ensure cables are rated for outdoor use. Avoid exposing connectors to snow or ice.
Q7: Can I access my cameras when the internet is down?
Yes. The NVR records locally to the hard drive. You can still view feeds via HDMI monitor or local network (if your phone is on the same Wi-Fi).
Final Thoughts
Learning how to set net for Zmodo POE cameras system doesn’t have to be overwhelming. With the right tools, a clear plan, and attention to detail, you can build a reliable, high-performance surveillance network in a weekend.
Remember: start simple. Mount cameras, run cables, connect to the NVR, and test locally before diving into remote access or advanced settings. Use the Zmodo app for easy mobile viewing, and don’t skip firmware updates.
Most importantly, test your system regularly. A security camera only works if it’s online and recording. Set a monthly reminder to check feeds, verify motion detection, and review storage.
By following this complete guide, you’re not just setting up cameras—you’re building peace of mind. Now go secure your space, one cable at a time.
“`
