How to Set Up a Ftp Server on Foscam Camera

This guide walks you through setting up an FTP server on your Foscam camera to automatically upload recordings and snapshots. You’ll learn how to configure both the camera and your FTP server for seamless, secure remote storage.

Key Takeaways

• FTP enables automatic file uploads: Once configured, your Foscam camera can send motion-triggered recordings and snapshots directly to a remote FTP server.
• Choose a reliable FTP hosting service: Options like FileZilla Server (self-hosted), vsftpd on Linux, or cloud-based services like FTP Today ensure stable storage.
• Use strong login credentials: Always create a dedicated FTP user with a strong password to prevent unauthorized access.
• Test connectivity before finalizing: Use tools like FileZilla Client or command-line FTP to verify your server is reachable from the camera’s network.
• Enable passive mode for better compatibility: Most Foscam cameras work best with passive FTP mode, especially behind routers or firewalls.
• Schedule regular backups: Even with FTP, maintain local backups to protect against data loss during network outages.
• Update firmware regularly: Keep your Foscam camera’s firmware current to ensure FTP features work smoothly and securely.

Introduction: Why Set Up FTP on Your Foscam Camera?

So, you’ve got a Foscam security camera—great choice! These cameras are known for their reliability, night vision, and smart features like motion detection. But what happens when motion is detected? By default, your camera might save clips locally or send alerts to your phone. That’s helpful, but it’s not enough if you want long-term, secure storage.

That’s where FTP (File Transfer Protocol) comes in. Setting up an FTP server allows your Foscam camera to automatically upload videos and photos to a remote location—like your home computer, a NAS device, or a cloud FTP service. This means even if your camera is damaged, stolen, or tampered with, your footage remains safe and accessible.

In this guide, we’ll walk you through the entire process of setting up an FTP server for your Foscam camera. Whether you’re using a Foscam FI9805P, FI9900P, C1, or any other model with FTP support, these steps will work. You’ll learn how to choose an FTP server, configure it, connect your camera, and troubleshoot common issues—all in plain, easy-to-follow language.

By the end, you’ll have a secure, automated system that backs up your camera footage without you lifting a finger. Let’s get started!

What Is FTP and Why Use It with Foscam Cameras?

FTP stands for File Transfer Protocol. It’s a standard network protocol used to transfer files between a client (your Foscam camera) and a server (your storage location) over the internet or a local network.

When you enable FTP on your Foscam camera, it can automatically send files—like motion-triggered video clips or time-lapse snapshots—to a designated folder on your FTP server. This is especially useful for:

– Offsite backup: Protects footage from physical damage or theft.
– Long-term storage: Saves space on your camera’s microSD card.
– Remote access: View recordings from anywhere using an FTP client.
– Automated archiving: No need to manually download files.

Most modern Foscam cameras support FTP uploads, but the setup varies slightly by model. The good news? Once it’s running, it’s hands-off. Your camera does all the work.

Prerequisites: What You’ll Need Before Starting

Before diving into the setup, make sure you have the following:

1. A Compatible Foscam Camera

Not all Foscam models support FTP. Check your camera’s specifications or user manual. Popular models with FTP support include:
– Foscam FI9805P
– Foscam FI9900P
– Foscam C1 / C2
– Foscam R4 / R5
– Foscam V1 / V2

If you’re unsure, visit the Foscam support page and search for your model.

2. A Working Internet Connection

Your camera must be connected to the internet (via Wi-Fi or Ethernet) to reach the FTP server. Ensure your router is stable and your camera has a strong signal.

3. An FTP Server

You’ll need a server to receive the files. You have three main options:
– Self-hosted (recommended for tech-savvy users): Set up FileZilla Server on a Windows PC or vsftpd on a Linux machine.
– Network Attached Storage (NAS): Devices like Synology or QNAP have built-in FTP servers.
– Cloud FTP service: Services like FTP Today, DriveHQ, or pCloud offer secure, managed FTP hosting.

We’ll cover setup for all three in this guide.

4. FTP Client Software (Optional but Helpful)

Tools like FileZilla Client (free) let you test your FTP server and manage files. Download it from [filezilla-project.org](https://filezilla-project.org).

5. Admin Access to Your Camera

You’ll need to log in to your Foscam camera’s web interface. Make sure you know the IP address, username, and password.

Step 1: Choose and Set Up Your FTP Server

The first step is getting your FTP server ready. Let’s explore your options.

Option A: Set Up FileZilla Server on Windows

FileZilla Server is free, easy to use, and perfect for home setups.

Step 1: Download and Install
Go to [filezilla-project.org](https://filezilla-project.org) and download the FileZilla Server installer. Run it and follow the prompts. Choose “Install as service” so it runs automatically.

Step 2: Launch the Admin Interface
After installation, open the FileZilla Server Interface. You’ll be prompted to connect to the server—just click OK.

Step 3: Create a User Account
– Go to Edit > Users.
– Click Add under the “Users” section and enter a username (e.g., “foscam”).
– Check “Password” and enter a strong password.
– Under “Shared folders,” click Add and select a folder where files will be saved (e.g., C:\FoscamFTP).
– Set permissions: Check “Write” and “Read” so the camera can upload and you can access files.

Step 4: Configure Passive Mode Settings
Foscam cameras often require passive mode to work behind routers.
– Go to Edit > Settings.
– Under “Passive mode settings,” check “Use custom port range.”
– Set a range like 50000–50100.
– Click “OK.”

Step 5: Open Ports on Your Router
To allow external access:
– Log in to your router (usually 192.168.1.1).
– Go to Port Forwarding or Virtual Servers.
– Forward port 21 (FTP control) and the passive range (50000–50100) to your server’s local IP (e.g., 192.168.1.100).
– Save settings.

Option B: Set Up vsftpd on Linux (Ubuntu/Debian)

If you’re comfortable with Linux, vsftpd is a secure, lightweight option.

Step 1: Install vsftpd
Open a terminal and run:

sudo apt update && sudo apt install vsftpd

Step 2: Configure vsftpd
Edit the config file:

sudo nano /etc/vsftpd.conf

Make these changes:
– Set anonymous_enable=NO
– Set local_enable=YES
– Set write_enable=YES
– Set chroot_local_user=YES
– Add: pasv_enable=YES
– Add: pasv_min_port=50000
– Add: pasv_max_port=50100

Save and exit (Ctrl+X, Y, Enter).

Step 3: Create a User

sudo adduser foscam

Set a strong password and fill in the details.

Step 4: Restart vsftpd

sudo systemctl restart vsftpd

Step 5: Open Ports in Firewall

sudo ufw allow 20:21/tcp
sudo ufw allow 50000:50100/tcp

Step 6: Port Forward on Router
Same as Windows—forward port 21 and 50000–50100 to your Linux machine’s IP.

Option C: Use a Cloud FTP Service

If you don’t want to manage your own server, cloud services are hassle-free.

Step 1: Sign Up
Choose a provider like FTP Today, DriveHQ, or pCloud. Most offer free trials.

Step 2: Create an FTP Account
Log in to your dashboard and create a new FTP user. Note the:
– FTP server address (e.g., ftp.ftptoday.com)
– Username
– Password
– Port (usually 21)

Step 3: Note Passive Mode Settings
Cloud services typically support passive mode by default. Check their help docs if needed.

Step 2: Find Your Public IP Address

Your Foscam camera needs to connect to your FTP server over the internet. To do this, it must know your public IP address.

Step 1: Check Your Public IP
Visit [whatismyip.com](https://whatismyip.com) from a device on the same network. Note the IP (e.g., 203.0.113.45).

Important: Most home internet connections use dynamic IPs, which change periodically. For a permanent address, consider:
– Dynamic DNS (DDNS): Services like No-IP or DynDNS give you a domain name (e.g., myhome.ddns.net) that updates when your IP changes.
– Static IP from ISP: More expensive, but reliable.

We recommend DDNS for most users. Many Foscam cameras support DDNS setup directly in the interface.

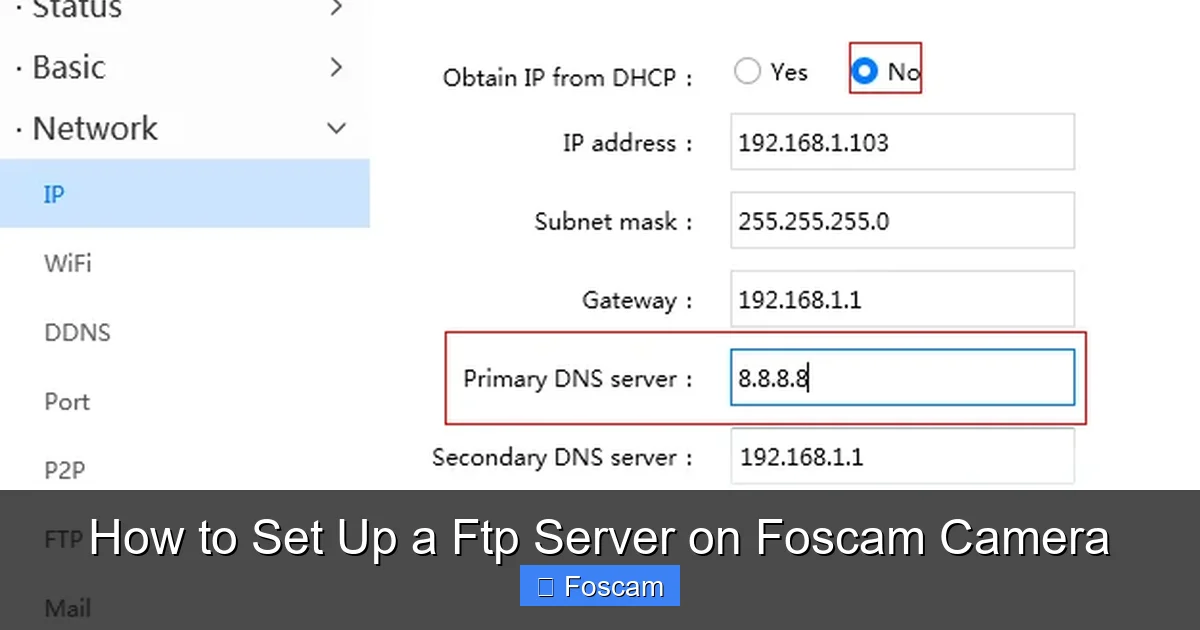

Step 3: Access Your Foscam Camera’s Web Interface

Now it’s time to configure the camera.

Step 1: Find Your Camera’s IP Address
– Use the Foscam app (iOS/Android) to scan for the camera.
– Or, log in to your router and look for connected devices.
– Default IP is often 192.168.1.108.

Step 2: Open the Web Interface
In a browser, go to http://[camera-ip] (e.g., http://192.168.1.108).
Log in with your admin username and password (default is often “admin” with no password).

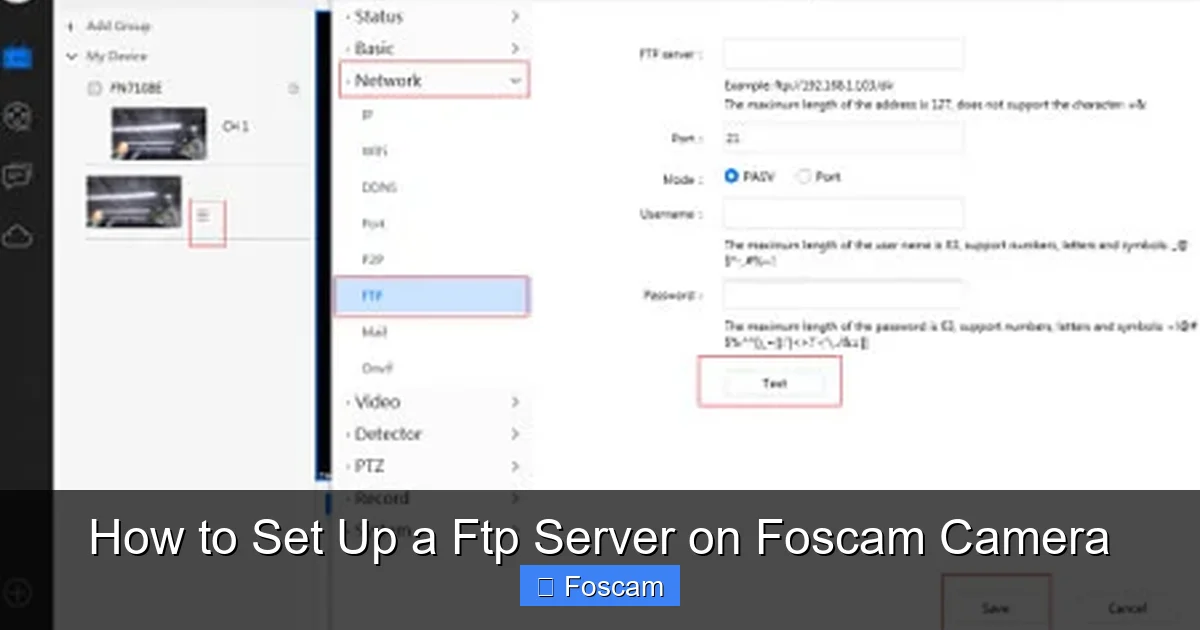

Step 4: Configure FTP Settings on Your Foscam Camera

This is where the magic happens.

Step 1: Navigate to FTP Settings
Go to Settings > Network > FTP (exact path may vary by model).

Step 2: Enable FTP Upload
Check the box for “Enable FTP Upload.”

Step 3: Enter FTP Server Details
Fill in the following fields:
– FTP Server: Your public IP or DDNS domain (e.g., 203.0.113.45 or myhome.ddns.net)
– Port: 21 (default)
– Username: The FTP user you created (e.g., foscam)
– Password: The password for that user
– Remote Directory: Optional. Enter a folder name like “/recordings” to organize files.
– Upload Type: Choose “Motion Detection” or “Scheduled” based on your needs.

Step 4: Set Upload Interval (Optional)
Some models let you set how often files are uploaded (e.g., every 5 minutes). Keep it reasonable to avoid overloading the server.

Step 5: Enable Passive Mode
This is critical! Check the “Passive Mode” box. Without it, uploads may fail due to firewall or NAT issues.

Step 6: Save Settings
Click “Save” or “Apply.” The camera may reboot.

Step 5: Test the FTP Connection

Don’t assume it’s working—test it!

Step 1: Trigger Motion Detection
Walk in front of the camera or wave your hand. This should trigger a recording.

Step 2: Check the FTP Server
– If using FileZilla Server: Open the interface and check the log for upload activity.
– If using a cloud service: Log in to your dashboard and look for new files.
– If using Linux: Check the upload folder:

ls /home/foscam/recordings

Step 3: Use FileZilla Client to Verify
Download FileZilla Client and connect to your FTP server using the same credentials. You should see uploaded files in the remote directory.

Step 6: Optimize and Secure Your Setup

Now that it’s working, let’s make it better.

Use a Dedicated FTP User

Never use your main system account. Create a separate user with limited permissions.

Enable Encryption (FTPS)

Standard FTP is not encrypted. For better security, use FTPS (FTP over SSL). Some Foscam models support this—check your firmware. If not, consider using SFTP (SSH File Transfer Protocol) with a compatible camera or middleware.

Set Up Email Alerts

In the Foscam interface, go to Alarm Settings > Email and configure alerts. You’ll get notified when motion is detected and files are uploaded.

Schedule Regular Maintenance

– Check logs monthly.
– Clean up old files to free space.
– Update camera firmware when available.

Troubleshooting Common FTP Issues

Even with careful setup, problems can happen. Here’s how to fix the most common ones.

Problem: FTP Upload Fails

Possible Causes:
– Incorrect IP or domain
– Wrong username/password
– Firewall blocking port 21 or passive ports
– Passive mode not enabled

Solutions:
– Double-check all credentials.
– Test FTP connection using FileZilla Client.
– Ensure ports 21 and 50000–50100 are forwarded.
– Enable passive mode on both server and camera.

Problem: Files Upload but Are Corrupted

Possible Causes:
– Network instability
– Camera firmware bug

Solutions:
– Improve Wi-Fi signal or use Ethernet.
– Update camera firmware via the web interface.

Problem: Camera Can’t Connect to FTP Server

Possible Causes:
– Dynamic IP changed
– DDNS not updating
– Server offline

Solutions:
– Check your public IP and update if needed.
– Verify DDNS service is running.
– Ensure the FTP server is powered on and connected.

Problem: Slow Upload Speeds

Possible Causes:
– High-resolution video
– Limited upload bandwidth

Solutions:
– Lower video resolution in camera settings.
– Schedule uploads during off-peak hours.

Conclusion: Enjoy Secure, Automated Backup

Setting up an FTP server for your Foscam camera might seem technical at first, but it’s one of the best ways to protect your security footage. By following this guide, you’ve created a reliable system that automatically backs up motion-triggered recordings to a remote location—keeping your data safe from theft, damage, or tampering.

Whether you chose a self-hosted server, a NAS, or a cloud service, you now have peace of mind knowing your camera is doing more than just watching—it’s protecting.

Remember to test regularly, keep your firmware updated, and monitor your storage. With FTP enabled, your Foscam camera becomes not just a surveillance tool, but a smart, automated security partner.

Now go enjoy that extra layer of protection—you’ve earned it!
