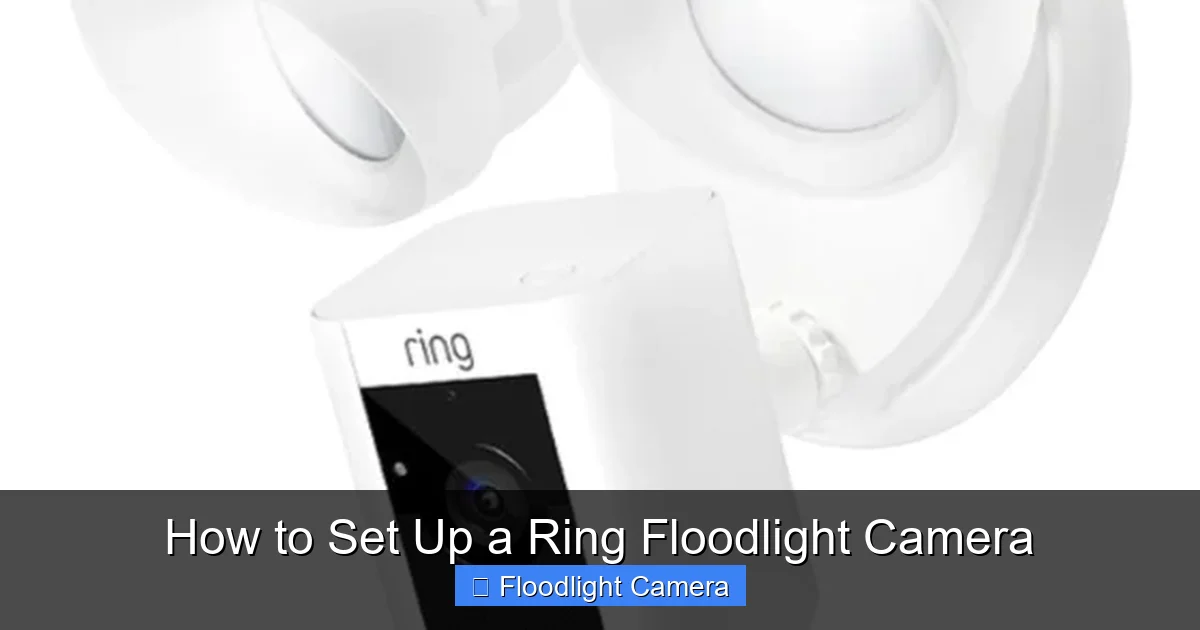

How to Set Up a Ring Floodlight Camera

Setting up a Ring Floodlight Camera is simple with the right guidance. This guide walks you through mounting, wiring, app configuration, and testing your new security system. Stay safe and monitor your property with confidence.

Key Takeaways

• Choose the right location: Install your Ring Floodlight Camera at least 7 feet high for optimal coverage and motion detection.
• Turn off power before wiring: Always shut off electricity at the breaker to avoid electrical shock during installation.
• Use the Ring app for setup: Download the free Ring app on your smartphone to connect, configure, and manage your camera.
• Ensure strong Wi-Fi signal: Place the camera within range of your Wi-Fi router or use a Wi-Fi extender for reliable connectivity.
• Test motion and lighting features: After setup, walk through the detection zone to confirm alerts and floodlights activate properly.
• Enable smart alerts and notifications: Customize motion zones and notification settings to reduce false alarms.
• Maintain your camera regularly: Clean the lens and check connections periodically to ensure peak performance.

How to Set Up a Ring Floodlight Camera

Installing a Ring Floodlight Camera is one of the smartest upgrades you can make to your home security. This powerful device combines a high-definition security camera with bright LED floodlights and motion detection, giving you 24/7 surveillance and peace of mind. Whether you’re a DIY enthusiast or a first-time installer, this step-by-step guide will walk you through the entire process—from choosing the perfect spot to testing your new system.

In this guide, you’ll learn how to safely mount your Ring Floodlight Camera, connect it to your home’s electrical wiring, pair it with the Ring app, and customize settings for maximum effectiveness. We’ll also cover troubleshooting tips and maintenance advice to keep your camera running smoothly. By the end, you’ll have a fully functional outdoor security system that deters intruders and keeps your property safe.

What You’ll Need Before You Begin

Before you start the installation, gather all the necessary tools and materials. Having everything ready will save you time and prevent frustration. Here’s a checklist of what you’ll need:

• Ring Floodlight Camera (model of your choice)
• Screwdriver (Phillips and flathead)
• Wire strippers
• Electrical tape
• Voltage tester (optional but recommended)
• Ladder (for safe access to mounting area)
• Smartphone with the Ring app installed
• Wi-Fi network with strong signal
• Existing outdoor electrical junction box (or new one if needed)

It’s also important to check your local building codes. Some areas require a licensed electrician to perform electrical work. If you’re unsure, consult a professional to ensure safety and compliance.

Step 1: Choose the Right Location

The location of your Ring Floodlight Camera plays a crucial role in its effectiveness. A poorly placed camera can miss important activity or trigger too many false alarms. Here’s how to pick the best spot:

Height and Angle

Mount the camera at least 7 feet above the ground. This height helps avoid tampering and provides a wide field of view. Aim the camera slightly downward to capture faces and movement clearly. Avoid pointing it directly at the sun or bright lights, which can cause glare.

Coverage Area

Position the camera to cover high-traffic areas like driveways, front doors, backyards, or side gates. Make sure the motion detection zone includes paths where people are likely to walk. You can adjust detection zones later in the app, but a good initial placement reduces the need for major tweaks.

Wi-Fi Signal Strength

Your camera needs a stable Wi-Fi connection to stream video and send alerts. Use your smartphone to check signal strength at the installation site. If the signal is weak, consider installing a Wi-Fi extender or choosing a different location closer to your router.

Electrical Access

The Ring Floodlight Camera must be hardwired to your home’s electrical system. Choose a location near an existing outdoor electrical box or junction box. If you don’t have one, you may need to install one—this might require professional help.

Step 2: Turn Off the Power

Safety is the top priority when working with electricity. Before touching any wires, turn off the power to the existing light or junction box.

Locate the Circuit Breaker

Go to your home’s main electrical panel and find the breaker that controls the outdoor light or outlet near your installation site. Turn it off. Use a voltage tester to confirm the power is off before proceeding. This simple step can prevent serious injury.

Label the Breaker (Optional)

If the breaker isn’t clearly labeled, use a label maker or tape to mark it. This helps you and others identify it quickly in the future.

Step 3: Remove the Old Fixture (If Applicable)

If you’re replacing an existing outdoor light, you’ll need to remove it first. Here’s how:

Unscrew the Mounting Bracket

Use a screwdriver to remove the screws holding the old light fixture to the wall or junction box. Carefully lower the fixture and disconnect the wires. Note how the wires are connected—typically black (hot), white (neutral), and green or bare copper (ground).

Cap the Wires

Twist wire nuts onto the exposed ends of the wires to prevent accidental contact. Tuck them safely into the junction box. This ensures no live wires are exposed while you work.

Step 4: Prepare the Ring Floodlight Camera

Now it’s time to get your Ring Floodlight Camera ready for installation. Follow these steps:

Unbox and Inspect

Open the package and check that all components are included: the camera unit, mounting bracket, screws, wire connectors, and instruction manual. Make sure nothing is damaged.

Attach the Mounting Bracket

Hold the mounting bracket against the wall or junction box where you plan to install the camera. Use a pencil to mark the screw holes. Drill pilot holes if needed, then secure the bracket with screws.

Strip the Wires

Use wire strippers to remove about ½ inch of insulation from the ends of the camera’s wires. You should see three wires: black (hot), white (neutral), and green (ground). Be careful not to cut the wires themselves.

Step 5: Connect the Wires

This is the most technical part of the installation. Take your time and double-check each connection.

Match the Wires

Connect the camera’s wires to your home’s electrical wires using wire nuts:

• Black to black (hot)
• White to white (neutral)
• Green or bare copper to ground

Twist the wires together tightly, then screw on the wire nuts. Wrap each connection with electrical tape for extra security.

Tuck Wires into the Junction Box

Gently push the connected wires back into the junction box. Make sure nothing is pinched or strained. The camera should sit flush against the wall.

Step 6: Mount the Camera

With the wiring complete, it’s time to attach the camera to the mounting bracket.

Align and Secure

Slide the camera onto the bracket and align the screw holes. Use the provided screws to fasten the camera in place. Don’t overtighten—this could crack the housing.

Adjust the Angle

Loosen the adjustment knobs to tilt and rotate the camera. Aim it at your desired coverage area. Tighten the knobs once you’re satisfied with the angle.

Step 7: Restore Power and Test

Now that everything is connected, it’s time to turn the power back on and test the system.

Turn On the Breaker

Go back to your electrical panel and flip the breaker back on. The floodlights should turn on briefly, indicating power is flowing.

Check the Camera

Look at the camera’s status light. A solid blue light means it’s powered and ready to connect. If the light is off or flashing red, there may be a wiring issue—double-check your connections.

Step 8: Set Up the Ring App

The Ring app is your control center for the camera. Download it from the App Store (iOS) or Google Play (Android) if you haven’t already.

Create or Log In to Your Account

Open the app and sign in with your Ring account. If you don’t have one, tap “Create Account” and follow the prompts. You’ll need a valid email address and phone number.

Add a New Device

Tap the menu icon (three lines) and select “Set Up a Device.” Choose “Security Cameras” and then “Floodlight Cam.” The app will guide you through the setup process.

Scan the QR Code

Use your phone’s camera to scan the QR code on the back of the Ring Floodlight Camera. This links the device to your account. If the code is damaged, you can enter the serial number manually.

Connect to Wi-Fi

Select your home Wi-Fi network and enter the password. The camera will attempt to connect. This may take a minute or two. Make sure your phone is on the same network.

Name Your Camera

Give your camera a name, like “Front Porch” or “Backyard.” This helps you identify it if you have multiple Ring devices.

Step 9: Customize Settings

Once connected, you can personalize your camera’s behavior to suit your needs.

Motion Zones

Go to “Device Settings” > “Motion Settings” > “Motion Zones.” Draw zones on the camera’s view where you want to detect motion. Avoid areas like busy streets or tree branches that could cause false alerts.

Alert Frequency

Choose how often you want to receive notifications: immediate, every 5 minutes, or every 15 minutes. Frequent alerts can drain your phone’s battery, so find a balance.

Lighting Schedule

Set the floodlights to turn on automatically at dusk and off at dawn. You can also set custom schedules or disable them entirely if you prefer.

Video Quality

Adjust video resolution and night vision settings. Higher quality uses more data and storage, so consider your internet plan and Ring Protect subscription.

Step 10: Test the System

Before considering the job done, test all features to ensure everything works correctly.

Trigger Motion Detection

Walk through the detection zone and check if you receive a notification on your phone. Open the app to view the live feed and recorded clip.

Test the Floodlights

At night, walk in front of the camera to see if the floodlights turn on. Adjust sensitivity if they’re too dim or too bright.

Check Audio

Speak near the camera and listen for audio in the app. Test two-way talk by pressing the talk button in the live view.

Troubleshooting Common Issues

Even with careful installation, you might run into problems. Here are solutions to common issues:

Camera Won’t Connect to Wi-Fi

Make sure you’re within range of your router. Restart your Wi-Fi and the camera. If the problem persists, try moving the camera closer to the router during setup.

Floodlights Don’t Turn On

Check the wiring connections and ensure the breaker is on. Also, verify the lighting schedule in the app. The lights may be set to “Off” or a time that hasn’t arrived yet.

False Motion Alerts

Adjust motion zones to exclude moving trees, cars, or animals. Lower the motion sensitivity in the app if needed.

Poor Video Quality

Clean the camera lens with a soft cloth. Check your internet speed—slow connections can cause lag or low resolution. Consider upgrading your Wi-Fi plan.

Battery Drain (for Ring models with backup battery)

If your model has a backup battery, ensure it’s fully charged. Avoid extreme temperatures, which can affect battery life.

Maintenance Tips

To keep your Ring Floodlight Camera in top condition, perform regular maintenance:

• Clean the lens and floodlights monthly with a microfiber cloth.
• Check for loose screws or wiring every few months.
• Update the Ring app and camera firmware regularly.
• Trim nearby bushes or trees that could obstruct the view.
• Review recorded clips periodically to ensure motion detection is accurate.

Conclusion

Setting up a Ring Floodlight Camera is a straightforward process that greatly enhances your home security. By following this guide, you’ve learned how to safely install the camera, connect it to your home’s wiring, pair it with the Ring app, and customize settings for optimal performance. With features like HD video, motion-activated floodlights, and real-time alerts, your property is now better protected than ever.

Remember to test your system after installation and perform regular maintenance to ensure long-term reliability. Whether you’re monitoring your front yard, driveway, or backyard, your Ring Floodlight Camera gives you peace of mind and a powerful deterrent against intruders. Stay safe, stay connected, and enjoy the confidence that comes with smart home security.
