How to Set Up a Zmodo Repeater and POE Cameras Easily

Setting up your Zmodo repeater and POE cameras is a seamless process when you follow the right steps—start by connecting the POE cameras to the network switch using Cat5e or Cat6 cables for reliable power and data transmission. Position the Zmodo repeater within range of your router to extend Wi-Fi coverage and ensure strong signal strength for remote viewing and real-time alerts. Use the Zmodo app to sync all devices, configure settings, and activate cloud or local storage with just a few taps.

Key Takeaways

• Plan your layout: Map camera and repeater locations for optimal coverage and signal strength.
• Use POE switches: Simplify power and data delivery with a single cable for each camera.
• Secure connections: Ensure Ethernet cables are tightly plugged into cameras and NVR or switch.
• Position the repeater: Place it centrally to extend Wi-Fi range and reduce dead zones.
• Update firmware: Always install the latest firmware for improved performance and security.
• Test the system: Verify live feeds and motion alerts before finalizing installation.

Why a Reliable Security System Starts with Proper Setup

When it comes to home or business security, few investments deliver the peace of mind that a well-configured surveillance system provides. Among the many brands on the market, Zmodo has emerged as a trusted name, offering a range of POE (Power over Ethernet) cameras and network repeaters designed for clarity, reliability, and ease of use. Whether you’re protecting your family, monitoring your property, or securing a small business, setting up your Zmodo system correctly is the first step toward a truly effective security solution.

However, many users—especially first-time installers—overlook the importance of proper configuration. A poorly placed camera, a weak signal due to network interference, or an improperly set up repeater can leave blind spots, cause lag, or even result in total system failure. This guide walks you through the entire process of setting up your Zmodo repeater and POE cameras with confidence, ensuring optimal performance, seamless connectivity, and long-term reliability. From unboxing to remote monitoring, we’ll cover every step with clear instructions, practical tips, and real-world examples to help you avoid common pitfalls and get the most out of your investment.

Understanding Your Zmodo System: Components and Requirements

Before diving into the setup process, it’s essential to understand the core components of your Zmodo system and the technical requirements for a successful installation. A typical Zmodo POE surveillance kit includes POE cameras, a POE NVR (Network Video Recorder), Ethernet cables, a power adapter (for the NVR), and optionally, a Zmodo Wi-Fi repeater or extender. Let’s break down each component and its role.

Core Components of a Zmodo POE System

• POE Cameras: These cameras receive both power and data through a single Ethernet cable (typically Cat5e or Cat6). This eliminates the need for separate power outlets, making installation cleaner and more flexible.
• POE NVR (Network Video Recorder): The central hub that records and stores video footage from all connected cameras. It also manages the network and allows remote access via the Zmodo app.
• Ethernet Cables: Used to connect each camera to the NVR. Zmodo systems usually support up to 8, 16, or 32 cameras, depending on the NVR model.
• Zmodo Repeater (Wi-Fi Extender): Designed to boost the Wi-Fi signal between your router and the NVR, ensuring stable remote access and smooth live streaming, especially in larger homes or buildings with thick walls.
• Power Adapter: Supplies power to the NVR unit. Some NVRs have built-in POE ports, while others require an external POE switch.

Technical Requirements for Optimal Performance

To ensure your Zmodo system functions smoothly, you’ll need to meet the following requirements:

• Stable Internet Connection: A minimum of 5 Mbps upload speed is recommended for remote viewing and cloud recording. For multiple cameras or 4K resolution, 10+ Mbps is ideal.
• Ethernet Cable Quality: Use Cat5e or Cat6 cables for POE transmission. Avoid using old or damaged cables, as they can cause signal loss or power delivery issues.
• Router with DHCP Enabled: Your router must assign IP addresses automatically so the NVR and cameras can connect to the network.
• Available LAN Ports: Ensure your router has enough open Ethernet ports to connect the NVR. If not, use a network switch.
• Smartphone or Tablet: Required to download and use the Zmodo app (iOS/Android) for setup and remote access.

Pro Tip: Before installation, sketch out a rough layout of your property and plan camera locations. Identify areas with weak Wi-Fi signals (e.g., backyards, basements) where a Zmodo repeater may be necessary.

Step-by-Step Guide to Installing Zmodo POE Cameras

Installing Zmodo POE cameras is straightforward, but attention to detail ensures a professional-grade setup. Follow these steps carefully to avoid common mistakes and achieve optimal coverage.

1. Mounting the Cameras

Start by selecting the right locations for your cameras. Ideal spots include:

• Front and back doors
• Driveways and garages
• Side entrances and windows
• Backyard or patio areas
• Interior hallways (for indoor models)

When mounting, use the included brackets and screws. For outdoor installations, ensure the cameras are:

• At least 8–10 feet above ground to prevent tampering
• Angled slightly downward to capture faces and license plates
• Protected from direct sunlight and heavy rain (use weatherproof models like Zmodo ZP-NC14-S or ZP-NE16-S)

Example: For a two-story home, place one camera above the front door, another on the side of the garage, and a third in the backyard near the sliding door. Avoid pointing cameras directly into streetlights or bright windows to prevent glare.

2. Running Ethernet Cables

Use Cat5e or Cat6 cables to connect each camera to the NVR. Here’s how:

1. Measure the distance from each camera to the NVR location (usually a central room or closet).
2. Cut the cable to length, leaving a few extra feet for slack.
3. Route cables through walls, ceilings, or conduit to keep them hidden and protected.
4. Use cable clips or adhesive mounts to secure cables along baseboards or under eaves.
5. Label each cable at both ends (e.g., “Front Door,” “Backyard”) for easy identification.

Tip: If running cables through walls, use a fish tape or flexible drill bit. For outdoor runs, use UV-resistant cable or conduit to prevent sun damage.

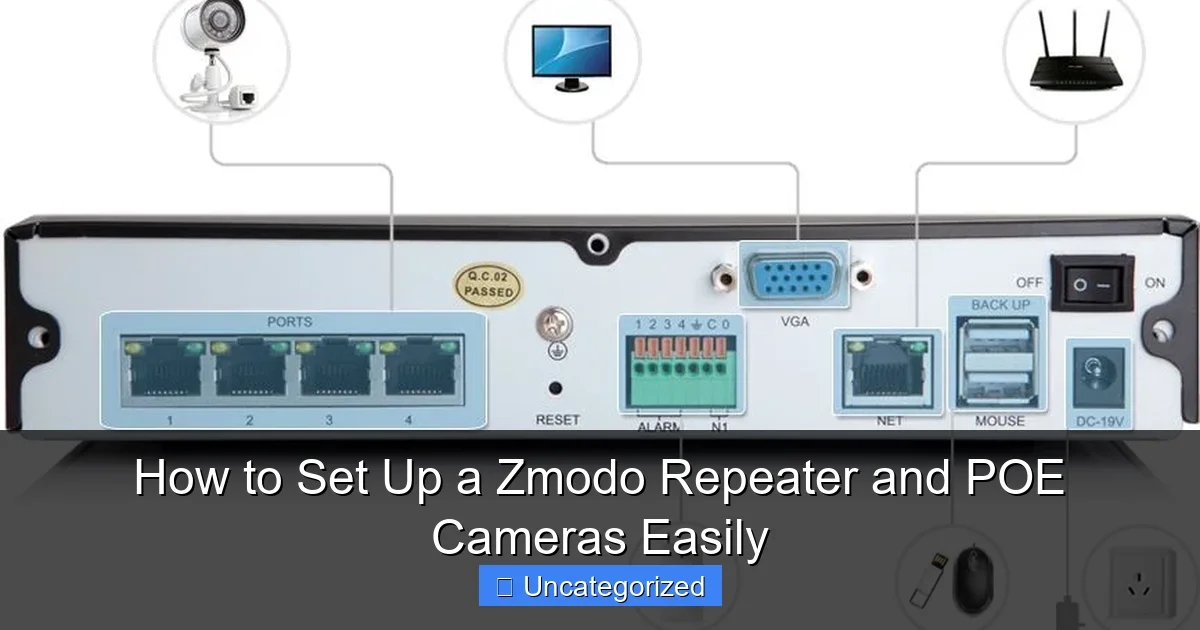

3. Connecting Cameras to the NVR

1. Plug one end of each Ethernet cable into a camera.
2. Connect the other end to a POE port on the NVR (usually labeled “POE1,” “POE2,” etc.).
3. Power on the NVR using the included adapter.
4. Wait 1–2 minutes for the NVR to detect all cameras. The status lights on each camera should turn solid green or blue.

If a camera doesn’t power on, check the cable connection and try a different POE port. Avoid daisy-chaining cameras—each must connect directly to the NVR.

4. Initial NVR Setup

1. Connect the NVR to your TV or monitor using an HDMI or VGA cable.
2. Connect a mouse to the NVR (USB port) for navigation.
3. Follow the on-screen prompts to set the date, time, and language.
4. Choose “Auto Detect” to scan for connected cameras.
5. Assign names to each camera (e.g., “Front Door”) for easy identification.

The NVR will automatically configure recording settings. For 24/7 recording, set the schedule to “Always On.” For motion-based recording, enable “Smart Detection” and adjust sensitivity.

Setting Up the Zmodo Repeater for Seamless Connectivity

Even the best POE cameras can suffer from connectivity issues if the NVR loses Wi-Fi signal. The Zmodo repeater (also called a Wi-Fi extender) bridges the gap between your router and the NVR, ensuring stable remote access and smooth live streaming. Here’s how to set it up effectively.

When Do You Need a Zmodo Repeater?

A repeater is essential if:

• Your NVR is located far from the router (e.g., in a basement or detached garage).
• You have thick walls, metal structures, or concrete that block Wi-Fi signals.
• You experience frequent disconnections or buffering during remote viewing.
• You have a large property (over 2,000 sq. ft.) with multiple floors.

Example: A homeowner with an NVR in the basement and a router on the second floor may lose signal during live streaming. A Zmodo repeater placed on the first floor can extend coverage to the basement.

Step-by-Step Repeater Setup

1. Plug in the Repeater: Place it halfway between your router and the NVR (e.g., on a shelf or table). Avoid metal objects or appliances that cause interference.
2. Power On: Wait for the LED light to blink slowly (indicating it’s ready to pair).

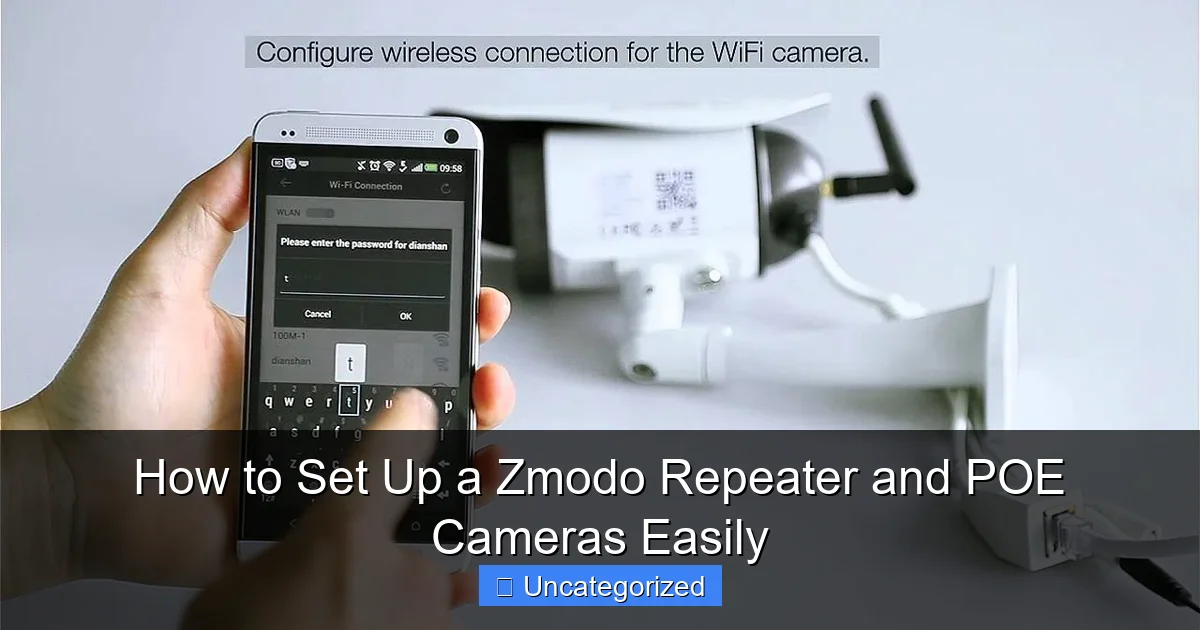

3. Connect to the Zmodo App:
   • Open the Zmodo app on your smartphone.
   • Go to “Devices” > “Add Device” > “Wi-Fi Repeater.”
   • Follow the in-app instructions to connect the repeater to your home Wi-Fi network.
4. Confirm Signal Strength: Use the app’s signal strength indicator to verify the repeater is receiving a strong signal from the router.
5. Connect NVR to Repeater: In the NVR settings, go to “Network” > “Wi-Fi” and select the repeater’s network (e.g., “Zmodo_Extender”).

Pro Tip: For best performance, connect the NVR to the repeater using an Ethernet cable if possible. This provides a faster, more stable connection than Wi-Fi.

Optimizing Repeater Placement

• Avoid Obstructions: Keep the repeater away from microwaves, cordless phones, and metal cabinets.
• Use 5 GHz Band (if supported): The 5 GHz band offers faster speeds and less interference than 2.4 GHz. Enable it in your router settings if your repeater supports dual-band.
• Test Signal Strength: Use the Zmodo app or a Wi-Fi analyzer app (e.g., NetSpot) to check signal strength at the NVR location.

If the signal is weak, try relocating the repeater closer to the router or adding a second repeater for larger areas.

Configuring the Zmodo App for Remote Access and Alerts

The Zmodo app is your gateway to real-time monitoring, playback, and smart alerts. Proper configuration ensures you never miss a critical event, even when you’re away.

Installing and Pairing the App

1. Download the Zmodo app from the Google Play Store or Apple App Store.
2. Create a Zmodo account (or log in if you already have one).
3. Tap “+” to add your NVR. Choose “Scan QR Code” (found on the NVR box or settings menu) or “Manual Add.”
4. Enter the NVR’s serial number and password (default is often “123456”—change it immediately).
5. Wait for the app to connect. All cameras should appear in the live view.

Customizing Alerts and Notifications

To receive timely alerts:

• Go to “Settings” > “Alerts” in the app.
• Enable Motion Detection Alerts for each camera.
• Adjust Detection Zones to ignore areas like trees or busy streets.
• Set Sensitivity Levels (e.g., “High” for doors, “Medium” for yards).
• Enable Push Notifications and Email Alerts for critical events.

Example: A homeowner sets up motion zones only on the front porch and driveway. This prevents false alarms from passing cars or animals in the yard.

Using Advanced Features

• Two-Way Audio: Talk to visitors or deter intruders via the camera’s built-in speaker and mic.
• Cloud Storage: Subscribe to Zmodo’s cloud plan for off-site backup (optional but recommended).
• Smart Home Integration: Connect to Alexa or Google Assistant for voice commands (e.g., “Show me the front door”).
• Playback and Export: Search recorded footage by time, date, or motion events. Export clips to your phone for evidence.

Tip: Enable Auto-Record to save footage to the NVR’s hard drive. For 24/7 recording, ensure the hard drive has enough capacity (e.g., 1TB for 8 cameras over 30 days).

Troubleshooting Common Issues and Maintenance Tips

Even with careful setup, issues can arise. Here’s how to diagnose and fix common problems, plus tips for long-term maintenance.

Common Problems and Solutions

Issue	Possible Cause	Solution
Camera not powering on	Loose Ethernet cable, faulty port, or damaged cable	Check connections, try a different POE port, replace cable
No video feed in NVR	IP conflict or incorrect network settings	Reboot NVR, reset camera to factory settings
Weak Wi-Fi signal at NVR	Repeater too far or obstructed	Reposition repeater, use Ethernet cable instead
App disconnects frequently	Slow internet or router issues	Restart router, check upload speed, use wired connection
False motion alerts	High sensitivity or poor zone settings	Adjust detection zones, lower sensitivity, enable AI filtering

Regular Maintenance Checklist

• Monthly: Clean camera lenses with a microfiber cloth to remove dust, bugs, or rain streaks.
• Quarterly: Check cable connections and inspect for wear or rodent damage.
• Annually: Update NVR and camera firmware via the app to fix bugs and improve performance.
• As Needed: Trim vegetation blocking camera views or adjust angles due to seasonal changes.

Example: After a storm, a homeowner notices a camera is fogged up. They clean the lens and check the seal to prevent future moisture issues.

Upgrading Your System

As your needs grow, consider:

• Adding more cameras (check NVR capacity)
• Upgrading to 4K cameras for sharper detail
• Installing a second repeater for multi-story homes
• Switching to a hybrid NVR for both POE and Wi-Fi cameras

Conclusion: A Secure System Built on Smart Setup

Setting up a Zmodo repeater and POE camera system doesn’t have to be intimidating. With the right planning, tools, and attention to detail, you can create a robust, reliable security network that protects what matters most. From choosing optimal camera locations and running clean Ethernet cables to configuring the Zmodo app and optimizing Wi-Fi with a repeater, every step contributes to a seamless user experience.

Remember, a security system is only as good as its weakest link—whether that’s a poorly placed camera, a weak signal, or outdated firmware. By following this guide, you’re not just installing hardware; you’re building a proactive defense against threats, with real-time alerts, crystal-clear footage, and remote access at your fingertips. Take the time to test your system thoroughly, educate family members or staff on its use, and perform regular maintenance. In return, you’ll gain peace of mind, knowing your property is under constant, intelligent surveillance. With Zmodo’s intuitive design and your careful setup, safety is always within reach.

Frequently Asked Questions

How do I set up a Zmodo repeater to extend my POE camera’s range?

To set up a Zmodo repeater, first plug it into a power source near your router and connect it via Ethernet. Then, use the Zmodo app to sync the repeater with your network, ensuring your POE cameras stay connected even at long distances.

Can I use a Zmodo repeater with non-Zmodo POE cameras?

No, the Zmodo repeater is designed to work seamlessly only with Zmodo POE cameras and systems. Using it with other brands may cause compatibility or performance issues.

What’s the best way to position my Zmodo repeater for optimal coverage?

Place the repeater halfway between your router and the farthest POE camera, avoiding obstructions like thick walls. This ensures strong signal strength and stable video transmission.

How do I connect my Zmodo POE cameras to the network using a repeater?

After setting up the repeater, connect your POE cameras to the repeater’s LAN port using Ethernet cables. The Zmodo app will automatically detect and add them to your system.

Do I need a Zmodo repeater if my POE cameras are close to the router?

If all cameras are within 300 feet of the router and have a strong signal, a repeater isn’t necessary. However, it’s useful for expanding coverage in large properties or areas with weak signals.

Why isn’t my Zmodo repeater connecting to the cameras during setup?

Check that the repeater is within range of the router and that all cables are securely plugged in. Restart the repeater and router, then retry the setup process in the Zmodo app.
