Setting up a PoE IP camera system is simple and efficient when you use Power over Ethernet (PoE) switches or injectors to deliver both data and power through a single cable. This eliminates complex wiring and ensures reliable, high-quality surveillance with easy scalability. Follow a step-by-step approach—plan camera placement, connect via Cat5e/Cat6 cables, configure through a PoE NVR, and fine-tune settings via a web interface or mobile app for optimal security coverage.

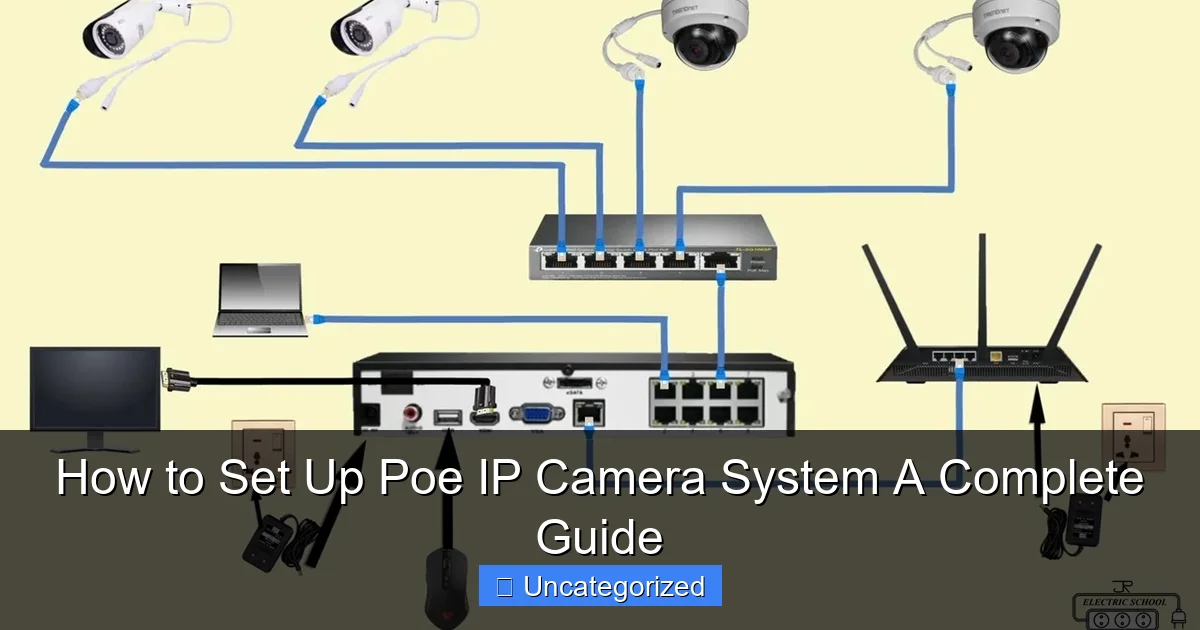

How to Set Up Poe IP Camera System: A Complete Guide

Key Takeaways

• Plan camera placement first: Identify optimal locations for coverage and minimal blind spots.
• Use a PoE switch: Ensures stable power and data over a single cable.
• Verify cable quality: Use Cat6 or higher for reliable long-distance transmission.
• Configure via NVR: Centralize camera settings, storage, and remote access in one interface.
• Secure your network: Change default passwords and enable encryption to prevent breaches.
• Test before finalizing: Check live feeds, motion detection, and night vision performance.

Why This Matters / Understanding the Problem

Imagine this: you’ve just moved into a new house, or you’re running a small business, and you want to keep an eye on your property 24/7. You’ve heard about security cameras, but the options feel overwhelming—wired, wireless, Wi-Fi, cloud storage, battery-powered… the list goes on.

That’s where a PoE IP camera system comes in. It’s one of the most reliable, scalable, and future-proof ways to monitor your home or business. Unlike wireless cameras that rely on Wi-Fi (which can be spotty), PoE (Power over Ethernet) cameras get both power and data through a single Ethernet cable. No more dead batteries, weak signals, or tangled cords.

If you’ve been searching for a How to Set Up Poe IP Camera System A Complete Guide, you’re in the right place. This guide will walk you through every step—from choosing the right gear to getting your system up and running smoothly—without the tech jargon or confusing manuals.

Whether you’re protecting your family, keeping an eye on deliveries, or securing your storefront, a well-installed PoE system gives you peace of mind with crisp video, remote access, and minimal maintenance. And the best part? You don’t need to be a tech expert to make it work.

Real-life example: Sarah, a small café owner in Austin, installed a 4-camera PoE system after a break-in. Within a week, she caught a delivery driver stealing packages using the system’s night vision and motion alerts—all viewable from her phone while she was on vacation.

What You Need

Before we dive into the setup, let’s make sure you have everything you need. A PoE IP camera system is a modular setup, so you can scale it up or down depending on your space.

Here’s your shopping list:

• PoE IP Cameras (4–8 recommended for homes, more for businesses): Look for 1080p or 4K resolution, night vision, motion detection, and weatherproof ratings (IP66 or higher for outdoor use).
• PoE Network Video Recorder (NVR): This is the brain of your system. It stores video, connects to your cameras, and lets you view footage remotely. Make sure it supports your number of cameras and has enough storage (4TB–12TB HDD recommended).
• Ethernet Cables (Cat 5e or Cat 6, 100ft+ rolls): These carry both power and data. Cat 6 is better for longer runs and future-proofing.
• PoE Switch or PoE Injector (if your NVR doesn’t have built-in PoE ports): Most NVRs have built-in PoE ports, but if you’re adding more cameras than ports, you’ll need a PoE switch. A PoE injector is a single-camera solution for small setups.
• Router or Wi-Fi Access Point: Your NVR needs internet to enable remote viewing via apps. Even if you don’t use Wi-Fi for the cameras, you’ll need internet for mobile access.
• Mounting Hardware (screws, wall anchors, drill): Most kits include these, but double-check.
• Cable Management Supplies (zip ties, conduit, wall clips): Keeps your installation clean and safe.
• Computer or smartphone: For initial setup and app configuration.

Optional but helpful:

• Surge protector: Protects your NVR and cameras from power spikes.
• UPS (Uninterruptible Power Supply): Keeps your system running during outages.
• Label maker: Helps identify which cable goes to which camera.

Pro tip: Buy a complete PoE security kit (cameras + NVR + cables) from a trusted brand like Hikvision, Lorex, or Reolink. It ensures compatibility and often includes everything you need—saving time and frustration. This How to Set Up Poe IP Camera System A Complete Guide assumes you’re using a matched kit, but the steps work for custom setups too.

Step-by-Step Guide to How to Set Up Poe IP Camera System A Complete Guide

Step 1: Plan Your Camera Locations

Before drilling a single hole, take a walk around your property and decide where you want coverage. Think like a thief: where would someone hide? Where are entry points? Where do deliveries happen?

Common camera spots:

• Front and back doors
• Driveway and garage
• Side gates and backyard
• Inside hallways (if using indoor cameras)
• Storefront or cash register (for businesses)

Measure the distance from each camera location to where your NVR will be installed (usually a basement, closet, or utility room). This helps you buy the right length of Ethernet cable.

Tip: Avoid pointing cameras directly at the sun or bright lights. Glare can wash out the image. Angle them slightly downward for best results.

Also, consider:

• Will the cable run through walls, ceilings, or along the baseboard?
• Do you need outdoor-rated cameras for exterior spots?
• Are there any obstacles (trees, gutters) that might block the view?

Sketch a simple floor plan or take photos with notes. This planning step is crucial—once cables are in, changing locations gets messy.

Step 2: Install the NVR and Connect to Power and Internet

Now it’s time to set up the brain of your system: the NVR.

Choose a dry, well-ventilated spot—like a closet, basement, or server rack. Avoid damp areas like garages or crawl spaces unless the NVR is specifically rated for it.

Here’s how:

1. Plug the NVR into a power outlet using the included power adapter.
2. Insert the hard drive (if not pre-installed). Most NVRs have a removable tray—just slide it in and secure it.
3. Connect the NVR to your router using an Ethernet cable (usually included). This gives it internet access.
4. Turn on the NVR. Wait 1–2 minutes for it to boot up.

Most NVRs have a built-in screen (HDMI port), but you don’t need one to set it up. You can use a laptop or phone via the app later.

Warning: Don’t skip grounding your NVR if you’re in an area with lightning. Use a surge protector and consider a UPS to avoid data loss during outages.

Once powered, the NVR will start searching for connected cameras. But since none are plugged in yet, that’s expected.

Step 3: Mount the Cameras (Indoor and Outdoor)

Now, install your cameras. This is the most physical part, but don’t rush it.

For outdoor cameras:

1. Use the included mounting template (a paper guide) to mark drill holes.
2. Drill pilot holes and insert wall anchors.
3. Secure the camera base with screws. Don’t over-tighten.
4. Attach the camera to the base. Adjust the angle to cover the desired area.
5. Seal the mounting area with silicone caulk (especially around cable entry) to prevent water damage.

For indoor cameras:

• Use the template or just eyeball it. Most have swivel mounts.
• Mount near a ceiling corner for wide coverage.
• Keep them out of direct sunlight and away from vents (to avoid false motion alerts).

Pro tip: Test the camera angle before final tightening. Use a ladder and have someone watch the NVR screen (or use the app) to see the live view.

Label each camera with tape or a tag (e.g., “Front Door,” “Backyard”) so you know which cable goes where when you connect them.

Step 4: Run and Connect the Ethernet Cables

This step takes patience, but it’s worth it. PoE cables do double duty—power and data—so you only need one run per camera.

For indoor runs:

• Use baseboard channels or drill through walls to hide cables.
• Run cables behind furniture or under carpets if needed (but avoid high-traffic areas).
• Use cable clips or conduit for neatness and protection.

For outdoor runs:

• Use weatherproof conduit or run cables through soffits, eaves, or under siding.
• Don’t staple cables to wood—it can damage the insulation. Use cable staples with rubber padding.
• Keep cables away from power lines (at least 12 inches) to avoid interference.

Once the cable is run, connect one end to the camera and the other end to a PoE port on your NVR (or to a PoE switch/injector).

Warning: Don’t exceed 328 feet (100 meters) per cable run. Beyond that, voltage drops and data loss can occur. If you need longer runs, use a PoE extender or mid-span injector.

As you connect each camera, the NVR should detect it automatically within 30–60 seconds. You’ll see the camera appear on the screen or in the app.

Step 5: Configure the NVR and Cameras

Now it’s time to set up your system’s brains. This is where you customize motion detection, recording, and remote access.

Connect a monitor to the NVR’s HDMI port (or use the app—we’ll cover that in Step 6). Follow the on-screen wizard:

1. Set the date, time, and time zone: Critical for accurate timestamps.
2. Create a strong admin password: Don’t use “12345” or “admin.” Use a mix of letters, numbers, and symbols.
3. Format the hard drive: This erases any old data and prepares it for recording. Takes 5–10 minutes.
4. Enable recording: Choose continuous, motion-activated, or scheduled recording. Motion-based saves storage and makes footage easier to review.
5. Set motion detection zones: On each camera, draw boxes over areas you want to monitor (e.g., front porch). Exclude areas with constant movement (trees, roads) to reduce false alerts.
6. Adjust video quality: Higher resolution (4K) uses more storage. For 24/7 recording, 1080p at 15–20 fps is a good balance.

Most NVRs let you customize:

• Motion sensitivity (low, medium, high)
• Email or push notifications when motion is detected
• Night vision mode (auto, color, or infrared)
• Audio recording (if cameras have microphones)

Tip: Test motion detection by walking through the zone. Adjust the sensitivity until you get reliable alerts without false positives.

Step 6: Connect to Your Smartphone or Tablet

This is the fun part: accessing your cameras from anywhere.

Download the NVR manufacturer’s app (e.g., Hik-Connect, Lorex Home, Reolink) from the App Store or Google Play.

Here’s how to connect:

1. Open the app and create an account (if required).
2. Tap “Add Device” and scan the QR code on the NVR or camera.
3. Enter the NVR’s IP address (found in the network settings) or use P2P (plug-and-play) if supported.
4. Enter the admin password you set earlier.

Once connected, you can:

• View live streams from all cameras
• Play back recorded footage
• Receive motion alerts
• Talk through two-way audio (if supported)
• Take screenshots or record clips

Enable push notifications so you get alerts when motion is detected—even if you’re not watching.

Pro tip: Use a strong Wi-Fi password and enable two-factor authentication (2FA) on your NVR account to prevent hacking.

Step 7: Test, Adjust, and Optimize

Don’t assume everything’s perfect just because the cameras are on. Spend a day testing and tweaking.

Do this:

• Walk through each camera’s field of view at different times (day, night, dusk).
• Check night vision quality. Adjust the IR cut filter if the image is too dark or washed out.
• Verify motion detection: trigger it and confirm you get alerts.
• Test remote access from outside your home (e.g., at a coffee shop or friend’s house).
• Review recorded footage to ensure clarity and coverage.

Common adjustments:

• Reposition a camera if it’s missing a key area.
• Lower motion sensitivity if you get too many alerts from pets or leaves.
• Increase recording duration per event (e.g., from 10 sec to 30 sec).
• Add a second camera for blind spots.

Keep a log of changes so you remember what worked (and what didn’t).

Pro Tips & Common Mistakes to Avoid

Even with a How to Set Up Poe IP Camera System A Complete Guide, things can go wrong. Here are the top tips and pitfalls to watch for:

Pro Tip 1: Label Everything Use colored tape or labels on cables and NVR ports. When a camera stops working, you’ll know exactly which one to check.

Pro Tip 2: Use a PoE Tester A $20 PoE tester can verify if a cable is delivering power and data correctly. It’s a lifesaver when troubleshooting.

Pro Tip 3: Secure Your Network Change the default router password, enable WPA3 encryption, and use a guest network for visitors. A hacked router means hacked cameras.

Common Mistake 1: Skipping the Hard Drive Format Never skip formatting the NVR’s hard drive. It ensures the drive is compatible and prevents recording errors.

Common Mistake 2: Ignoring Weatherproofing Even “weatherproof” cameras need protection. Use conduit, seal entry points, and avoid direct exposure to rain or snow.

Common Mistake 3: Poor Cable Management Loose cables are tripping hazards and attract pests. Use zip ties, clips, or conduit to keep them tidy.

Common Mistake 4: Forgetting Firmware Updates Check for NVR and camera firmware updates monthly. Updates often fix bugs, improve security, and add features.

Common Mistake 5: Not Testing at Night Daytime footage looks great, but night vision is where many systems fail. Test in low light to ensure clear, usable images.

Bonus: For businesses, consider adding a secondary backup NVR or cloud storage for critical footage. Local storage can fail—cloud is extra insurance.

FAQs About How to Set Up Poe IP Camera System A Complete Guide

Q1: Can I use existing Cat 5e cables from my old internet setup?

Yes, as long as they’re in good condition and under 328 feet. PoE works on Cat 5e and Cat 6. Just make sure the cables aren’t damaged or spliced.

Q2: Do I need Wi-Fi for PoE cameras?

No. PoE cameras use Ethernet for power and data. But you need internet on the NVR to access footage remotely via apps. So yes, your router needs Wi-Fi or a wired connection.

Q3: How much storage do I need?

It depends. A 4TB drive can store about 30 days of 1080p footage from 4 cameras (continuous recording). For motion-based recording, it could last 3–6 months. Use a storage calculator from your NVR brand to estimate.

Q4: Can I mix brands of cameras and NVRs?

Sometimes. Look for ONVIF compatibility. Most modern PoE cameras and NVRs support it, but not all. Check the specs before buying. Mismatched systems can cause headaches.

Q5: What if a camera stops working?

Check: (1) Is the cable loose? (2) Is the PoE port on? (3) Is the camera getting power? (4) Is the NVR detecting it? Use the NVR’s network tools to “ping” the camera. If it doesn’t respond, the cable or camera may be faulty.

Q6: Are PoE cameras safe from hackers?

They’re safer than Wi-Fi cameras, but not immune. Always: (1) Change default passwords, (2) Enable 2FA, (3) Keep firmware updated, (4) Use a firewall. Never expose your NVR directly to the internet without protection.

Q7: Can I add more cameras later?

Yes! Most NVRs support expansion. Just add more PoE ports (with a switch) or upgrade to a higher-capacity NVR. The How to Set Up Poe IP Camera System A Complete Guide scales with your needs.

Final Thoughts

Setting up a PoE IP camera system might seem daunting, but once you break it down—plan, install, configure, test—it’s totally doable. And the payoff is huge: 24/7 surveillance, remote access, and a safer space for your family or business.

Remember, this How to Set Up Poe IP Camera System A Complete Guide isn’t just about connecting wires. It’s about creating a system that works for you. Whether you’re monitoring a single room or an entire property, the key is thoughtful planning and attention to detail.

Start small if you’re unsure. Install one or two cameras first, get comfortable with the app and settings, then expand. And don’t forget the small things: label cables, test at night, and keep your system updated.

Your peace of mind is worth the effort. With a solid PoE setup, you’ll know what’s happening—anytime, anywhere. Now go secure your space, one cable at a time.

Action Step: Pick a weekend, grab your toolkit, and start with Step 1. You’ve got this.
