Setting up a Ring Floodlight Camera is simple with the right tools and guidance. This guide walks you through mounting, wiring, app configuration, and testing to ensure your outdoor security system works perfectly from day one.
Key Takeaways
- Choose the right location: Install your Ring Floodlight Camera at least 7 feet high for optimal coverage and minimal blind spots.
- Turn off power before wiring: Always shut off electricity at the breaker to prevent shocks or damage during installation.
- Use the Ring app for setup: The app guides you through Wi-Fi connection, device pairing, and motion zone customization.
- Test lights and camera after install: Confirm both the floodlights and video feed are working before finishing the job.
- Adjust motion settings for fewer false alerts: Fine-tune sensitivity and zones to avoid unnecessary notifications from trees or passing cars.
- Keep firmware updated: Regular updates improve performance, security, and add new features automatically.
- Use a stable Wi-Fi signal: Place the camera within range of your router or use a Wi-Fi extender for reliable connectivity.
How to Setup a Ring Floodlight Camera: A Complete Step-by-Step Guide
Whether you’re looking to boost your home security or just want peace of mind when you’re away, the Ring Floodlight Camera is a smart, reliable choice. This all-in-one outdoor security device combines bright LED floodlights with a high-definition camera, motion detection, two-way audio, and real-time alerts—all controllable from your smartphone. But before you can enjoy these features, you need to set it up correctly.
In this comprehensive guide, we’ll walk you through every step of setting up your Ring Floodlight Camera—from choosing the perfect location to final testing. You’ll learn how to safely mount the camera, connect it to power and Wi-Fi, configure settings in the Ring app, and troubleshoot common issues. By the end, your camera will be fully operational and ready to protect your home day and night.
What You’ll Need Before Starting
Before you begin, gather all the necessary tools and materials. Having everything ready will make the installation process smoother and faster.

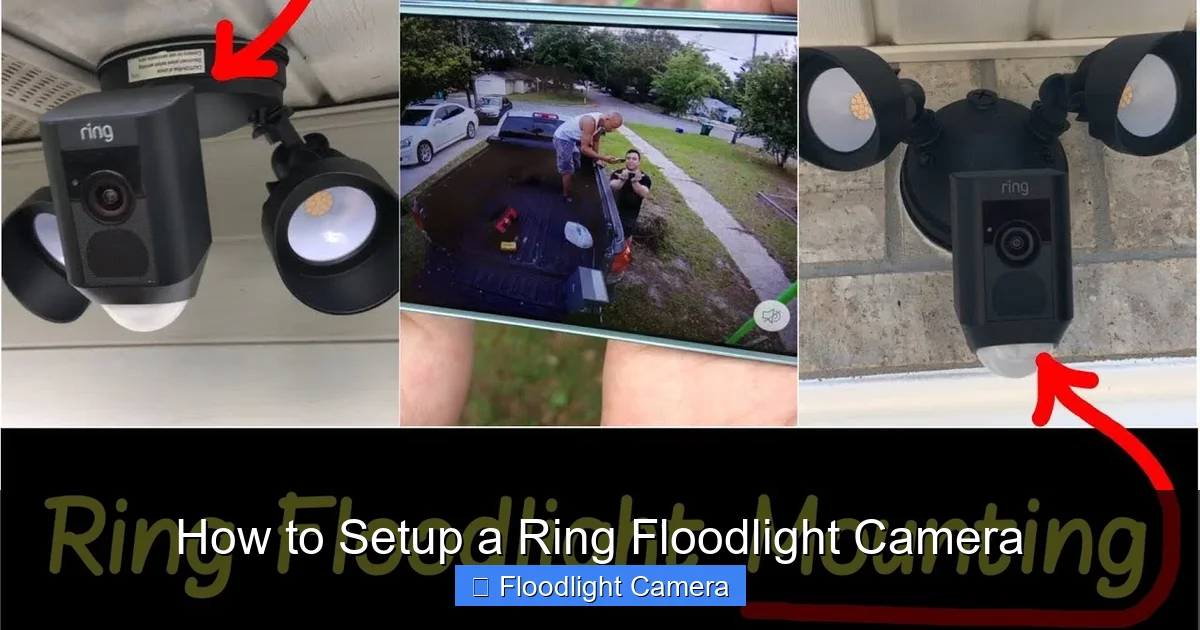

Visual guide about How to Setup a Ring Floodlight Camera
Image source: i.ytimg.com
Tools and Materials
- Ring Floodlight Camera (model: Ring Floodlight Cam Wired or Wired Plus)
- Phillips-head screwdriver
- Wire strippers
- Voltage tester (non-contact)
- Ladder (stable and tall enough to reach the mounting location)
- Electrical tape
- Wire nuts (usually included with the camera)
- Smartphone or tablet with the Ring app installed
- Wi-Fi network with 2.4 GHz or 5 GHz band (2.4 GHz recommended for better range)
- Access to your home’s electrical breaker panel
Optional but Helpful
- Drill and drill bits (if mounting to brick or concrete)
- Wall anchors (for drywall or masonry)
- Assistant (to help hold the camera during wiring)
- Zip ties (for cable management)
Pro Tip: If you’re not comfortable working with electrical wiring, consider hiring a licensed electrician. Safety always comes first.
Step 1: Choose the Right Location
The success of your Ring Floodlight Camera starts with where you install it. A poor location can lead to weak Wi-Fi, blind spots, or frequent false alarms.
Ideal Placement Tips
- Height: Mount the camera at least 7 feet above the ground. This height provides a wide field of view and reduces the risk of tampering.
- Angle: Tilt the camera slightly downward so it covers the area you want to monitor—like a driveway, backyard, or front entrance.
- Coverage: Aim for areas with high foot traffic or where break-ins are more likely, such as side gates, garages, or dark pathways.
- Wi-Fi Signal: Ensure the location has a strong Wi-Fi signal. Use a Wi-Fi analyzer app to check signal strength before mounting.
- Avoid Obstructions: Keep the camera away from trees, shrubs, or walls that could block the view or trigger false motion alerts.
Example: If you’re installing the camera above your garage door, position it so it overlooks the driveway and the side yard. Avoid pointing it directly at a busy street unless you want alerts every time a car passes.
What to Avoid
- Areas with direct sunlight that could cause glare or overheating.
- Near air conditioners, heaters, or vents that emit heat or steam.
- Locations where the camera might be easily reached or vandalized.
Step 2: Turn Off Power and Prepare the Wiring
Safety is critical when working with electricity. Never skip this step.
Turn Off the Power
- Go to your home’s electrical breaker panel.
- Locate the circuit that powers the existing light fixture or junction box where you’ll install the Ring camera.
- Switch the breaker to the “OFF” position.
- Use a non-contact voltage tester to confirm that power is off at the wires. Touch the tester to each wire—if it beeps or lights up, power is still on. Wait and recheck.
Important: Even if you think the power is off, always test the wires. Mistakes can be dangerous.
Remove the Old Fixture (If Applicable)
- Unscrew and carefully lower the existing light fixture.
- Disconnect the wires by unscrewing the wire nuts.
- Set the old fixture aside.
Inspect the Wiring
- You should see three wires: black (hot), white (neutral), and green or bare copper (ground).
- If your junction box has only two wires (black and white), you may need to add a ground wire or consult an electrician.
- Ensure the wires are long enough to reach the Ring camera’s wiring compartment (about 6–8 inches).
Note: The Ring Floodlight Camera requires a standard 120V AC power supply. It does not work with low-voltage systems like doorbell transformers.
Step 3: Mount the Ring Floodlight Camera
Now it’s time to secure the camera to the wall or ceiling.
Attach the Mounting Bracket
- Hold the mounting bracket against the wall or junction box.
- Use a pencil to mark the screw holes.
- If mounting to drywall, drill pilot holes and insert wall anchors.
- Secure the bracket with the provided screws using a Phillips-head screwdriver or drill.
Tip: Make sure the bracket is level. Use a spirit level to check before tightening the screws.
Connect the Wires
- Feed the house wires through the back of the camera’s mounting plate.
- Strip about 1/2 inch of insulation from the ends of the black, white, and ground wires if needed.
- Connect the wires as follows:
- Black (camera) to Black (house) – Hot
- White (camera) to White (house) – Neutral
- Green or bare (camera) to Green or bare (house) – Ground
- Twist the matching wires together and secure them with wire nuts. Wrap the connections with electrical tape for extra safety.
Double-Check: Ensure no bare wire is exposed and all connections are tight.
Attach the Camera to the Bracket
- Align the camera with the mounting bracket.
- Slide it into place until it clicks or locks.
- Tighten the security screw (usually located on the bottom or side) to prevent tampering.
Pro Tip: Have a friend hold the camera while you connect the wires to avoid dropping it.
Step 4: Restore Power and Test the Lights
Once the camera is mounted and wired, it’s time to turn the power back on and see if the lights work.
Turn Power Back On
- Go back to the breaker panel.
- Switch the circuit breaker to the “ON” position.
- Return to the camera and check if the floodlights turn on.
If the lights don’t turn on:
- Turn the power off again.
- Double-check all wire connections.
- Ensure the wire nuts are tight and no wires are loose.
- Test the voltage again to confirm power is reaching the junction box.
Note: The camera’s lights may not turn on immediately if the camera is still in setup mode. But you should see a small LED light on the camera itself blink or glow.

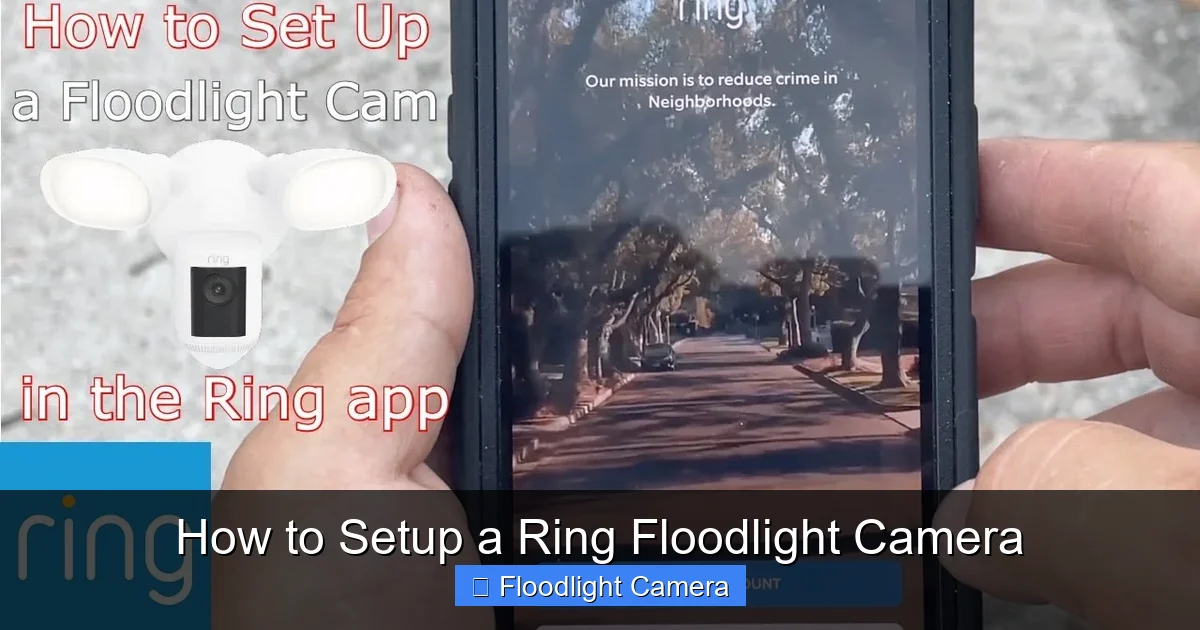

Step 5: Download and Set Up the Ring App
The Ring app is your control center for the camera. It’s available for free on iOS and Android.
Download the App
- Open the App Store (iPhone) or Google Play Store (Android).
- Search for “Ring” and download the official Ring app.
- Open the app and create a Ring account if you don’t already have one.
- Use a valid email and strong password.
Log In or Sign Up
- If you’re new to Ring, tap “Create Account” and follow the prompts.
- If you already have a Ring account (e.g., for a doorbell), log in with your existing credentials.
Add Your Device
- Tap the three-line menu icon (☰) in the top-left corner.
- Select “Set Up a Device.”
- Choose “Security Cameras” and then “Floodlight Cam.”
- Scan the QR code on the back of your camera or enter the serial number manually.
Tip: Keep the camera close to your phone during setup so the QR code is easy to scan.
Step 6: Connect to Wi-Fi
The camera needs a stable Wi-Fi connection to send alerts and stream video.
Select Your Network
- The app will search for nearby Wi-Fi networks.
- Choose your home network from the list.
- Enter your Wi-Fi password when prompted.
Important: Ring cameras work best on 2.4 GHz networks. If your router broadcasts both 2.4 GHz and 5 GHz under the same name, temporarily rename the 5 GHz network or disable it during setup to avoid confusion.
Wait for Connection
- The camera will attempt to connect to Wi-Fi.
- This may take 1–2 minutes.
- You’ll see a progress bar in the app.
If the connection fails:
- Move closer to your router.
- Restart your router and try again.
- Ensure your Wi-Fi password is correct.
- Check that your network isn’t using advanced security settings like WPA3 (some older Ring models don’t support it).
Step 7: Configure Camera Settings
Once connected, customize your camera to suit your needs.
Name Your Camera
- Give your camera a descriptive name like “Front Yard” or “Back Garage.”
- This helps if you have multiple Ring devices.
Set Up Motion Zones
- Tap “Motion Settings” in the app.
- Use your finger to draw zones where you want motion detection.
- Exclude areas like busy streets or swaying trees to reduce false alerts.
Example: Draw a zone covering your driveway but exclude the sidewalk where neighbors walk their dogs.
Adjust Motion Sensitivity
- Choose from Low, Medium, or High sensitivity.
- Start with Medium and adjust based on how many alerts you receive.
Enable Smart Alerts (Optional)
- Ring’s Smart Alerts use AI to distinguish between people, vehicles, and animals.
- Enable this feature to get more relevant notifications.
- Note: Smart Alerts require a Ring Protect subscription.
Set Up Two-Way Talk
- Test the microphone and speaker by tapping the talk button in the app.
- Speak and listen to ensure audio is clear.
Schedule Light Automation
- Go to “Light Settings” and choose when the floodlights turn on.
- Options include “Always On,” “Motion Activated,” or “Scheduled.”
- You can also set the brightness level.
Step 8: Test the Camera and Final Checks
Before considering the job done, run a few tests to ensure everything works.
Test the Camera Feed
- Open the Ring app and tap on your camera.
- Check the live view for clarity, color, and field of view.
- Make sure there’s no glare or distortion.
Test Motion Detection
- Walk through the motion zones.
- Check if you receive a notification on your phone.
- Open the alert to see if the video clip captured the motion clearly.
Test the Floodlights
- Trigger motion or manually turn on the lights via the app.
- Ensure both lights are bright and evenly lit.
- Check that they turn off automatically after the set duration.
Check Night Vision
- Turn off nearby lights and view the camera feed at night.
- Look for clear black-and-white footage with good detail.
Troubleshooting Common Issues
Even with careful setup, you might run into problems. Here’s how to fix the most common ones.
Camera Won’t Connect to Wi-Fi
- Ensure you’re using the 2.4 GHz band.
- Move the camera closer to the router during setup.
- Restart the camera by turning the power off for 10 seconds, then back on.
- Forget the network in the app and reconnect.
Floodlights Don’t Turn On
- Check that the light setting isn’t set to “Off” in the app.
- Verify the motion zones include the area you’re testing.
- Ensure the camera isn’t in “Do Not Disturb” mode.
- Test with manual light control in the app.
Blurry or Grainy Video
- Clean the camera lens with a soft, dry cloth.
- Check for condensation inside the lens (rare, but possible in humid climates).
- Ensure the camera isn’t pointed at a reflective surface like glass or metal.
Frequent False Alerts
- Adjust motion zones to exclude moving objects like trees or flags.
- Lower motion sensitivity.
- Enable Smart Alerts to filter out non-human motion.
Two-Way Audio Not Working
- Check that your phone’s volume is up.
- Ensure the microphone isn’t blocked by dirt or debris.
- Test in a quiet environment to rule out background noise.
Maintaining Your Ring Floodlight Camera
To keep your camera performing well, follow these maintenance tips.
Clean the Lens Regularly
- Wipe the lens with a microfiber cloth every few weeks.
- Use a mild glass cleaner if needed, but avoid spraying directly on the camera.
Check for Firmware Updates
- Ring automatically updates firmware, but you can check in the app under “Device Health.”
- Ensure your camera is online and charged (if battery-powered).
Inspect Wiring and Mounting
- Every 6 months, check that the camera is securely mounted.
- Look for loose wires or signs of wear.
Review Activity Logs
- Use the app to review motion events and recordings.
- This helps you spot patterns and adjust settings as needed.
Conclusion
Setting up a Ring Floodlight Camera might seem daunting at first, but with this guide, you’ve learned how to do it safely and effectively. From choosing the right spot and wiring the camera to configuring the app and testing features, every step is designed to help you get the most out of your investment.
Remember, the key to a successful setup is preparation, patience, and attention to detail. Always prioritize safety when working with electricity, and don’t hesitate to seek professional help if needed. Once installed, your Ring Floodlight Camera will provide 24/7 surveillance, bright lighting, and peace of mind—whether you’re home or away.
Now that your camera is up and running, take time to explore advanced features like linked devices, shared users, and Ring Protect plans. With the right setup, your home will be safer, smarter, and more secure.
