This guide walks you through how to setup Foscam F19821p wireless from unboxing to live streaming. You’ll learn network configuration, app pairing, and troubleshooting tips for a smooth experience.
Key Takeaways
- Unbox and inspect all components: Ensure the camera, power adapter, mounting hardware, and Ethernet cable are included before starting.
- Use the Foscam app for setup: Download the official Foscam app (iOS or Android) to guide you through wireless configuration.
- Connect via Ethernet first for stability: Initial setup over wired connection reduces errors and improves Wi-Fi pairing success.
- Ensure strong Wi-Fi signal: Place the camera within range of your router to avoid disconnections and poor video quality.
- Set up motion detection and alerts: Customize sensitivity and notification settings to get real-time alerts on your phone.
- Secure your camera with a strong password: Change default login credentials to prevent unauthorized access.
- Test and troubleshoot if needed: Use the app’s diagnostic tools and check network settings if the camera fails to connect.
Introduction: Why the Foscam F19821p Is a Great Choice
The Foscam F19821p is a popular wireless security camera known for its high-definition video, night vision, two-way audio, and easy remote access. Whether you’re monitoring your home, office, or baby’s room, this camera offers reliable performance and smart features. But like any tech device, getting it up and running smoothly requires a bit of setup.
In this guide, you’ll learn how to setup Foscam F19821p wireless step by step. We’ll cover everything from unboxing and initial power-up to connecting to your Wi-Fi network, configuring the app, and customizing settings like motion detection and alerts. By the end, you’ll have a fully functional security camera that you can monitor from anywhere using your smartphone or tablet.
No technical expertise? No problem. We’ve written this guide in simple, everyday language so anyone can follow along. Let’s get started!
What’s in the Box?

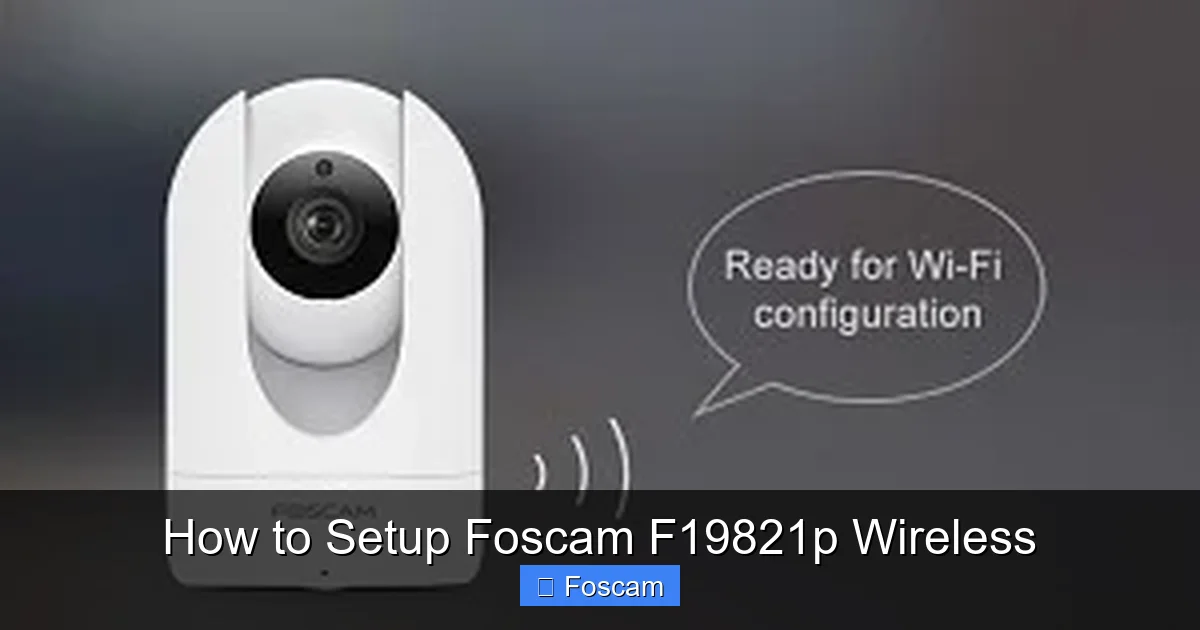

Visual guide about How to Setup Foscam F19821p Wireless
Image source: foscam.com
Before you begin, make sure you have all the necessary components. Here’s what should be included in your Foscam F19821p package:
- Foscam F19821p IP camera
- Power adapter (12V/1A)
- Ethernet cable (for initial setup)
- Mounting bracket and screws
- Quick start guide
- Reset pin (small metal tool)
Take a moment to inspect each item. If anything is missing or damaged, contact the seller or Foscam support immediately. Having all parts ready will save you time and frustration during setup.
Step 1: Charge and Power On the Camera
The Foscam F19821p doesn’t have a built-in battery, so it needs to be plugged into a power source. Here’s how to power it up correctly:
Connect the Power Adapter
Plug the power adapter into a nearby electrical outlet. Then, connect the other end to the camera’s power port (located on the side or back). The camera will start up automatically.
Wait for the LED Indicator
Once powered, the camera’s LED light will begin to flash. A solid green light means the camera is ready for setup. If it’s blinking red or orange, it may be in pairing mode or experiencing an issue—don’t worry, we’ll cover troubleshooting later.
Tip: Use a surge protector or UPS to protect your camera from power surges, especially if you live in an area with frequent electrical fluctuations.
Step 2: Download the Foscam App
The Foscam app is essential for configuring your camera and accessing it remotely. It’s available for both iOS and Android devices.
Search and Install the App
Open your device’s app store (Google Play or Apple App Store) and search for “Foscam” or “Foscam VMS.” Download the official app—make sure it’s from Foscam International Co., Ltd.
Create an Account
Open the app and tap “Register” to create a new account. You’ll need to provide a valid email address and create a secure password. Confirm your email if required.
Tip: Use a strong password with a mix of letters, numbers, and symbols. Avoid common passwords like “123456” or “password.”
Step 3: Connect the Camera to Your Network (Wired First)
For the most reliable setup, we recommend connecting the camera to your router using the Ethernet cable first. This ensures a stable connection during configuration.
Plug in the Ethernet Cable
Connect one end of the Ethernet cable to the camera’s LAN port and the other end to an available port on your router.
Wait for Network Detection
The camera will automatically detect the network. The LED should turn solid green within 1–2 minutes, indicating a successful connection.
Open the App and Add the Camera
Launch the Foscam app and tap the “+” or “Add Device” button. The app will scan your network for connected Foscam devices. Select your F19821p from the list.
If the camera doesn’t appear, make sure it’s powered on and connected to the same network as your phone. You may need to restart the app or router.
Step 4: Configure Wireless (Wi-Fi) Settings
Now it’s time to switch from wired to wireless mode. This allows you to place the camera anywhere within Wi-Fi range.
Enter Wi-Fi Credentials
In the app, select your Wi-Fi network from the list of available networks. Enter your Wi-Fi password carefully—typos are a common cause of connection failure.
Wait for Connection
The camera will attempt to connect to your Wi-Fi network. This may take 30–60 seconds. The LED will blink during this process.
Confirm Wireless Success
Once connected, the LED should turn solid green again. You can now unplug the Ethernet cable. The camera will continue to operate over Wi-Fi.
Tip: If the camera fails to connect, double-check your Wi-Fi password and ensure your network is 2.4GHz (the F19821p does not support 5GHz). Also, avoid using special characters in your Wi-Fi password if possible.
Step 5: Position and Mount the Camera
Now that your camera is online, it’s time to find the perfect spot.
Choose the Right Location
Pick a location that offers a clear view of the area you want to monitor. Ideal spots include entryways, hallways, or living rooms. Avoid placing it in direct sunlight or near heat sources.
Mount the Camera
Use the included mounting bracket and screws to secure the camera to a wall or ceiling. The F19821p has a flexible base, so you can adjust the angle for the best view.
Tip: Test the camera’s field of view using the app before finalizing the mount. You can pan and tilt the camera remotely to fine-tune the angle.
Step 6: Customize Camera Settings
The Foscam app lets you personalize your camera’s behavior. Here are the most important settings to adjust:
Set Up Motion Detection
Go to the camera’s settings in the app and enable “Motion Detection.” Adjust the sensitivity level—higher sensitivity means more alerts, but also more false alarms.
You can also set detection zones. For example, ignore motion in a busy street but alert you if someone approaches your front door.
Enable Push Notifications
Turn on “Push Notifications” so you receive alerts on your phone when motion is detected. You can customize when alerts are sent (e.g., only during nighttime).
Configure Recording Options
Choose whether to record continuously or only when motion is detected. If you have a microSD card inserted, recordings will be saved locally. Otherwise, you can use cloud storage (subscription may be required).
Adjust Video Quality
Set the video resolution to 1080p for the best clarity. Lower it to 720p if you’re experiencing lag or bandwidth issues.
Enable Two-Way Audio
The F19821p has a built-in microphone and speaker. Enable two-way audio in the app so you can talk to people near the camera—great for greeting visitors or calming pets.
Step 7: Secure Your Camera
Security is crucial when setting up any internet-connected device. Follow these steps to protect your Foscam camera:
Change the Default Password
The camera comes with a default username (usually “admin”) and password. Change this immediately in the app under “User Management.” Use a strong, unique password.
Enable HTTPS and Encryption
In the camera’s web interface (accessible via browser), enable HTTPS and data encryption to protect your video stream from hackers.
Disable UPnP if Not Needed
Universal Plug and Play (UPnP) can expose your camera to the internet. Disable it unless you specifically need remote access without a password.
Tip: Regularly check for firmware updates in the app. Foscam releases updates to fix bugs and improve security.
Step 8: Test the Camera
Before considering the setup complete, test all features to ensure everything works.
Check Live Video
Open the app and view the live feed. Make sure the image is clear and the camera responds to pan/tilt commands.
Test Motion Alerts
Walk in front of the camera to trigger motion detection. You should receive a push notification within a few seconds.
Try Two-Way Audio
Speak into your phone’s microphone and listen for audio from the camera. Also, test listening to sounds from the camera’s location.
Review Recordings
If you’ve set up recording, check the playback feature in the app to ensure videos are being saved correctly.
Troubleshooting Common Issues
Even with careful setup, you might run into problems. Here’s how to fix the most common issues:
Camera Won’t Connect to Wi-Fi
- Ensure your Wi-Fi network is 2.4GHz (not 5GHz).
- Move the camera closer to the router during setup.
- Restart the camera and router.
- Reset the camera using the reset pin (press and hold for 10 seconds).
No Video or Poor Image Quality
- Check the camera lens for dirt or smudges.
- Adjust the focus ring on the camera.
- Lower the resolution if bandwidth is limited.
- Ensure the camera is not pointed at a bright light source.
Motion Alerts Not Working
- Verify motion detection is enabled in the app.
- Increase sensitivity or expand detection zones.
- Check that push notifications are allowed in your phone’s settings.
App Can’t Find the Camera
- Make sure the camera and phone are on the same network.
- Restart the app and try again.
- Manually add the camera using its IP address (found in your router’s device list).
Camera Keeps Disconnecting
- Check Wi-Fi signal strength at the camera’s location.
- Reduce interference from other devices (microwaves, cordless phones).
- Update the camera’s firmware.
Advanced Tips for Better Performance
Want to get the most out of your Foscam F19821p? Try these expert tips:
Use a Wi-Fi Extender
If your camera is far from the router, a Wi-Fi extender can boost the signal and prevent dropouts.
Schedule Recording Times
Set the camera to record only during specific hours (e.g., 10 PM to 6 AM) to save storage and reduce false alerts.
Integrate with Smart Home Systems
While the F19821p doesn’t support Alexa or Google Assistant natively, you can use third-party tools like Home Assistant for automation.
Use a MicroSD Card
Insert a microSD card (up to 128GB) for local storage. This ensures recordings are saved even if your internet goes down.
Regularly Clean the Lens
Dust and fingerprints can blur the image. Wipe the lens gently with a microfiber cloth every few weeks.
Conclusion: Enjoy Peace of Mind with Your Foscam F19821p
Setting up your Foscam F19821p wireless camera might seem daunting at first, but with this guide, you’ve learned how to do it quickly and confidently. From unboxing and powering up to configuring Wi-Fi, customizing settings, and troubleshooting issues, you now have a fully functional security system at your fingertips.
Remember, the key to a successful setup is patience and attention to detail. Use the wired connection first, secure your camera with strong passwords, and test all features before finalizing the installation. With motion alerts, two-way audio, and remote viewing, your Foscam F19821p will give you peace of mind whether you’re at home or away.
If you run into any problems, don’t hesitate to consult the troubleshooting section or reach out to Foscam support. And don’t forget to check for firmware updates regularly to keep your camera running smoothly.
Now that you know how to setup Foscam F19821p wireless, you’re ready to enjoy 24/7 monitoring, instant alerts, and crystal-clear video—all from your smartphone. Stay safe, stay connected!
