How to Setup Foscam Fi9828p

This guide walks you through how to setup Foscam Fi9828p from unboxing to live streaming. You’ll learn to connect the camera, access its interface, configure motion detection, and troubleshoot setup problems with clear, beginner-friendly steps.

Key Takeaways

• Unbox and inspect your Foscam Fi9828p: Ensure all components like the camera, power adapter, mounting kit, and Ethernet cable are included before starting.
• Connect via Ethernet for initial setup: Use a wired connection to your router for stable access during configuration—Wi-Fi can be set up later.
• Access the camera’s web interface: Use the default IP address or Foscam’s IP Camera Tool software to log in and begin setup.
• Change default login credentials immediately: For security, update the default username and password to prevent unauthorized access.
• Configure motion detection and alerts: Set up zones, sensitivity, and email or push notifications to stay informed of activity.
• Enable remote viewing via Foscam app: Install the Foscam VMS or Foscam Cloud app on your smartphone for live monitoring from anywhere.
• Troubleshoot common issues: Resolve problems like no video, login errors, or Wi-Fi drops with proven fixes.

Introduction: Why the Foscam Fi9828p Is Worth Setting Up

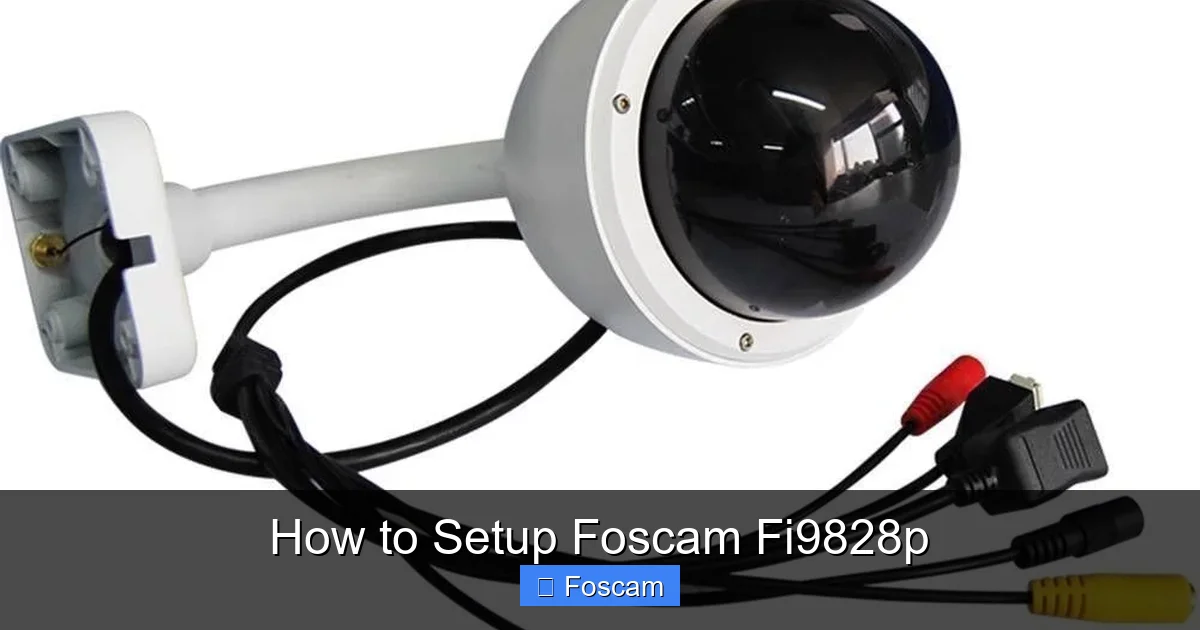

The Foscam Fi9828p is a powerful outdoor IP camera designed for home and small business security. With 1080p HD video, night vision, two-way audio, and weatherproof housing, it delivers reliable monitoring in all conditions. Whether you’re watching your front yard, monitoring a driveway, or keeping an eye on a commercial space, this camera offers excellent value.

But like any smart device, getting it up and running smoothly requires a bit of setup. Don’t worry—this guide will walk you through every step of how to setup Foscam Fi9828p with clarity and confidence. By the end, you’ll have your camera online, configured for motion alerts, and accessible remotely from your phone or computer.

We’ll cover everything from unboxing to advanced settings, including troubleshooting tips to save you time and frustration. No technical jargon—just simple, actionable steps anyone can follow.

What’s in the Box?

Before you begin, make sure you have all the components. Here’s what should be included with your Foscam Fi9828p:

• Foscam Fi9828p IP camera
• Power adapter (12V/2A)
• Ethernet cable (typically 6 feet)
• Mounting bracket and screws
• Quick start guide
• Waterproof rubber grommet (for outdoor cable protection)

If anything is missing or damaged, contact Foscam support or your retailer immediately. Having all parts ensures a smooth setup process.

Step 1: Choose the Right Location

Picking the perfect spot for your camera is crucial. The Fi9828p is weatherproof (IP66 rated), so it can handle rain, snow, and dust. But placement affects performance.

Consider These Factors

• Field of view: Aim for a wide angle that covers entry points like doors, driveways, or yards. Avoid pointing it directly at the sun or bright lights.
• Power source: The camera needs constant power. Place it within reach of an outdoor outlet or use an extension cord rated for outdoor use.
• Wi-Fi signal strength: Even if you plan to use Ethernet initially, check Wi-Fi coverage. Weak signals cause dropouts. Use a Wi-Fi extender if needed.
• Privacy and legality: Avoid pointing the camera at neighbors’ properties or public sidewalks unless permitted by local laws.

Mounting Tips

Use the included bracket to secure the camera to a wall, eave, or pole. Drill pilot holes for screws to prevent cracking. For added weather protection, route the power and Ethernet cables through the rubber grommet and seal any gaps with silicone caulk.

Step 2: Connect the Camera to Power and Network

Now it’s time to power up and connect your Foscam Fi9828p.

Wired Connection (Recommended for Setup)

1. Plug the Ethernet cable into the camera’s LAN port.
2. Connect the other end to an available port on your router or switch.
3. Plug the power adapter into the camera and then into a power outlet.
4. Wait 1–2 minutes for the camera to boot up. You’ll see indicator lights:
– Green light: Power on
– Orange light: Network activity

Using Ethernet during setup ensures a stable connection, especially when accessing the camera for the first time.

Wireless Setup (Optional Later)

You can switch to Wi-Fi after initial configuration. We’ll cover that in Step 5. For now, stick with wired to avoid connection issues.

Step 3: Find the Camera’s IP Address

To access the camera’s settings, you need its IP address—a unique number assigned by your router.

Method 1: Use Foscam IP Camera Tool

1. Download the Foscam IP Camera Tool from the official Foscam website (foscam.com).
2. Install and open the software on a Windows PC connected to the same network.
3. Click “Search” to scan for Foscam devices.
4. The Fi9828p should appear with its IP address, MAC address, and model.

Method 2: Check Your Router’s Admin Page

1. Log in to your router (usually via 192.168.1.1 or 192.168.0.1 in a browser).
2. Look for “Connected Devices,” “DHCP Clients,” or “Attached Devices.”
3. Find the device named “Foscam” or with a MAC address matching the one on your camera.
4. Note the IP address (e.g., 192.168.1.105).

Method 3: Use Default IP (If Applicable)

Some Foscam models use a default IP like 192.168.1.10. Try entering this in your browser. If it doesn’t work, use the IP Camera Tool.

Step 4: Access the Camera’s Web Interface

Now that you have the IP address, it’s time to log in.

Open a Web Browser

1. Launch Chrome, Firefox, or Edge.
2. Type the camera’s IP address into the address bar (e.g., http://192.168.1.105).
3. Press Enter.

Log In with Default Credentials

The login screen will appear. Use these default credentials:

• Username: admin
• Password: (leave blank or enter “admin”)

Note: Some newer models may prompt you to create a password on first login. Follow the on-screen instructions.

Troubleshooting Login Issues

• “Page not found”: Double-check the IP address. Try the IP Camera Tool again.
• “Invalid login”: Reset the camera (see Step 7) or ensure Caps Lock is off.
• Browser compatibility: Use Chrome or Firefox. Internet Explorer may not work well.

Step 5: Configure Basic Settings

Once logged in, you’ll see the camera’s live feed and menu options. Let’s configure the essentials.

Change the Default Password

Security is critical. Never leave the default password.
1. Go to Setup > System > User Account.
2. Enter the current password (admin or blank).
3. Create a strong new password (8+ characters, mix of letters, numbers, symbols).
4. Confirm and save.

Set the Date and Time

Accurate timestamps help with recordings and alerts.
1. Navigate to Setup > System > Date & Time.
2. Choose “NTP Server” to sync automatically.
3. Select your time zone.
4. Click “Save.”

Configure Wi-Fi (Optional)

If you want wireless access:
1. Go to Setup > Network > Wireless.
2. Click “Scan” to find your Wi-Fi network.
3. Select your SSID and enter the password.
4. Click “Connect.”
5. Wait for the camera to reconnect. The orange light should blink, then stay solid.

Tip: After switching to Wi-Fi, you may need to find the new IP address using the IP Camera Tool.

Step 6: Set Up Motion Detection and Alerts

Motion detection is one of the Fi9828p’s best features. Here’s how to enable it.

Enable Motion Detection

1. Go to Setup > Alarm > Motion Detection.
2. Check “Enable Motion Detection.”
3. Adjust sensitivity (1–100). Start with 50 and fine-tune based on false alerts.
4. Set the detection area:
– Click “Draw Area” to select zones (e.g., front walkway).
– Avoid areas with moving trees or shadows.
5. Choose trigger actions:
– Email Alert: Enter your email and SMTP settings (Gmail, Outlook, etc.).
– Push Notification: Requires Foscam app (see Step 7).
– Record to SD Card: If you have a microSD card inserted.

Test the Alerts

Walk in front of the camera. You should receive an email or app notification within 10–30 seconds. If not, check your settings and internet connection.

Step 7: Enable Remote Viewing with the Foscam App

Want to check your camera from your phone? The Foscam app makes it easy.

Download the App

Install Foscam VMS (for local viewing) or Foscam Cloud (for remote access) from the App Store or Google Play.

Add Your Camera

1. Open the app and create a Foscam Cloud account (free).
2. Tap “Add Device” and select “Scan QR Code” or “Manual Add.”
3. If scanning, point your phone at the QR code on the camera or packaging.
4. If manual, enter the camera’s IP, username, and password.
5. Follow prompts to complete setup.

Enable P2P (Plug-and-Play)

P2P lets you view the camera without port forwarding.
1. In the web interface, go to Setup > Network > P2P.
2. Enable P2P and note the UID (a long string of numbers/letters).
3. In the app, use the UID to add the camera.

Now you can view live video, receive alerts, and even talk through the camera using two-way audio.

Step 8: Insert a microSD Card (Optional)

For local recording, insert a microSD card (up to 128GB, Class 10 recommended).

Format the Card

1. Go to Setup > Storage > SD Card.
2. Click “Format” to prepare the card.
3. Set recording mode:
– Continuous: Records 24/7 (uses more space).
– Motion Only: Saves space by recording only when motion is detected.

Access Recorded Videos

Recorded clips are stored on the SD card. You can view them via the web interface or remove the card and insert it into a computer.

Step 9: Fine-Tune Video and Audio Settings

Optimize your camera’s performance with these adjustments.

Adjust Video Quality

1. Go to Setup > Video > Main Stream.
2. Set resolution to 1920×1080 (Full HD).
3. Choose bitrate (higher = better quality but more bandwidth).
4. Set frame rate to 15–25 fps for smooth video.

Enable Two-Way Audio

1. In Setup > Audio, enable “Audio Input” and “Audio Output.”
2. Test by speaking into the camera’s microphone and listening through the speaker.

Configure Night Vision

The Fi9828p has IR LEDs for night vision.
1. Go to Setup > Image > Night Vision.
2. Choose “Auto” for automatic switching.
3. Adjust IR intensity if needed (higher for longer range).

Step 10: Mount the Camera Permanently

Once everything is working, secure the camera in its final location.

Final Checks

• Ensure cables are neatly routed and protected from weather.
• Tighten all screws on the mounting bracket.
• Test the live feed and motion alerts one last time.

Troubleshooting Common Setup Issues

Even with careful setup, problems can happen. Here’s how to fix them.

No Video Feed

• Check power and Ethernet connections.
• Verify the IP address is correct.
• Try a different browser or device.
• Restart the camera and router.

Can’t Log In

• Reset the camera: Press and hold the reset button for 10 seconds.
• Use the default credentials after reset.
• Ensure you’re on the same network.

Wi-Fi Drops Frequently

• Move the camera closer to the router.
• Use a Wi-Fi extender.
• Switch to 2.4GHz band (Fi9828p doesn’t support 5GHz).
• Avoid interference from microwaves or cordless phones.

Motion Alerts Not Working

• Check motion detection settings and sensitivity.
• Verify email SMTP settings (use app notifications as backup).
• Ensure the camera has internet access.

App Can’t Find Camera

• Confirm P2P is enabled.
• Re-scan the QR code or re-enter the UID.
• Update the app and camera firmware.

Conclusion: Enjoy Your Secure, Smart Surveillance

Congratulations! You’ve successfully completed the how to setup Foscam Fi9828p process. From unboxing to remote viewing, your camera is now a reliable part of your security system.

Remember to:

• Keep your firmware updated for security and performance.
• Regularly check the SD card and clean the lens.
• Review motion alerts to reduce false triggers.

With the Fi9828p, you gain peace of mind knowing your property is protected 24/7. Whether you’re at home or halfway around the world, you can always stay connected.

If you run into issues, revisit this guide or contact Foscam support. Happy monitoring!
