Setting up your Ring Floodlight Camera is easier than you think. This guide walks you through every step—from choosing the right location to syncing with the Ring app—so you can secure your home in under an hour.
Key Takeaways
- Choose the right location: Mount your camera 9–10 feet high with a clear view of entry points and minimal obstructions.
- Turn off power before installation: Always shut off electricity at the breaker to avoid electrical hazards.
- Use the Ring app for setup: The app guides you through Wi-Fi connection, device pairing, and motion zone customization.
- Test lights and camera after setup: Ensure both the floodlights and video feed work properly before finalizing installation.
- Enable smart alerts and recording: Activate motion detection, notifications, and Ring Protect for cloud storage.
- Maintain your camera regularly: Clean the lens and check connections every few months for optimal performance.
- Troubleshoot common issues: If the camera won’t connect, try resetting it or moving closer to your Wi-Fi router.
How to Setup My Ring Floodlight Camera: A Complete Step-by-Step Guide
So, you’ve just unboxed your new Ring Floodlight Camera—congratulations! You’re one step closer to boosting your home’s security with smart technology that combines bright LED floodlights, HD video, two-way audio, and real-time alerts. Whether you’re installing it above your front door, garage, or backyard, this guide will walk you through the entire process of setting up your Ring Floodlight Camera—safely, efficiently, and correctly.
By the end of this guide, you’ll know exactly how to mount the camera, connect it to your Wi-Fi, configure settings in the Ring app, and troubleshoot any hiccups along the way. No prior tech experience? No problem. We’ll keep things simple, clear, and jargon-free. Let’s get started!
What You’ll Need Before You Begin

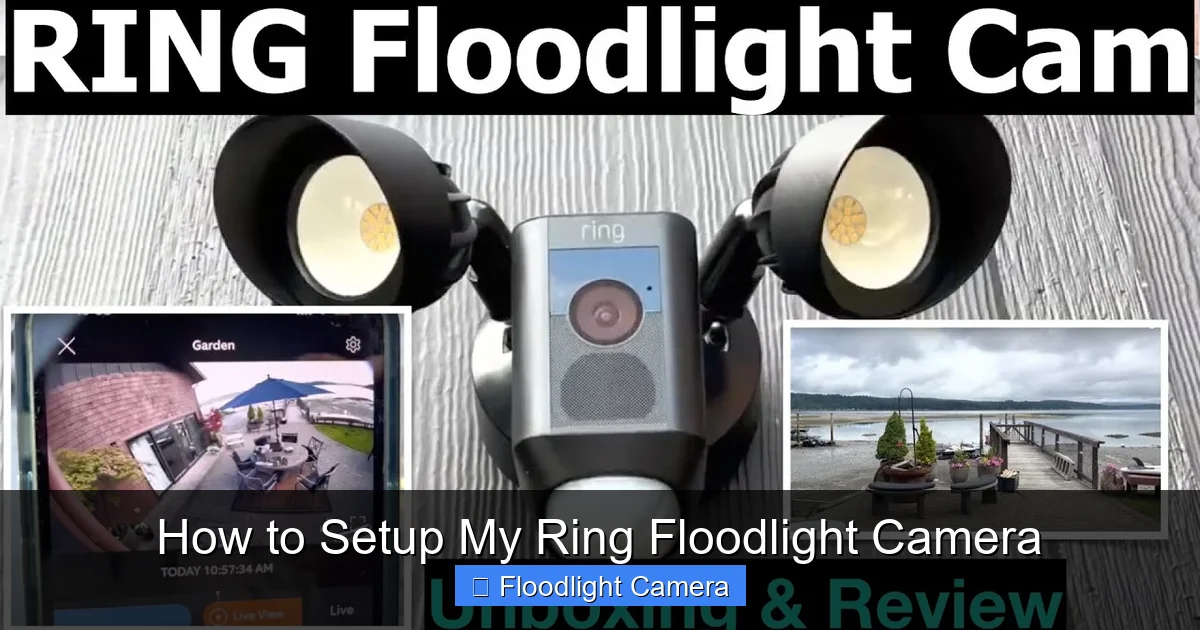

Visual guide about How to Setup My Ring Floodlight Camera
Image source: i.ytimg.com
Before you grab your drill and ladder, make sure you have everything you need. Rushing into installation without the right tools or prep can lead to frustration—or worse, damage to your camera or home.
Here’s your checklist:
- Ring Floodlight Camera (wired or battery version) – Make sure it’s the correct model for your needs. The wired version requires electrical wiring, while the battery version is easier to install but needs recharging.
- Screwdriver (Phillips head) – For securing the mounting bracket and camera.
- Drill and drill bits – To create pilot holes for mounting screws.
- Wire strippers (for wired models only) – To expose the ends of your existing floodlight wires.
- Voltage tester – To confirm the power is off before touching wires.
- Ladder – Safe access to your mounting location is essential.
- Smartphone or tablet with the Ring app installed – Available for iOS and Android.
- Wi-Fi network name and password – Your camera needs a strong 2.4 GHz Wi-Fi signal (5 GHz is not supported).
- Optional: Wire nuts, electrical tape, and a junction box cover – For secure and safe wiring connections.
Pro tip: If you’re installing the wired version, check your local building codes. Some areas require a licensed electrician for outdoor electrical work. When in doubt, hire a pro—safety first!
Step 1: Choose the Best Location for Your Ring Floodlight Camera
Where you mount your camera makes a huge difference in its effectiveness. A poorly placed camera might miss motion, get false alerts, or have a weak Wi-Fi signal.
Here’s how to pick the perfect spot:
Ideal Height and Angle
Mount your camera between 9 and 10 feet above the ground. This height gives you a wide field of view while reducing the chance of tampering. Aim the camera slightly downward—about 15 to 30 degrees—so it captures people’s faces and not just the tops of their heads.
Cover Key Entry Points
Focus on areas like:
- Front and back doors
- Driveways and walkways
- Garage entrances
- Backyards or patios with limited visibility
Avoid pointing the camera directly at a busy street or neighbor’s property to prevent false alerts and privacy concerns.
Ensure Strong Wi-Fi Signal
Your camera needs a stable internet connection. Use a Wi-Fi analyzer app (like NetSpot or Wi-Fi Analyzer) to check signal strength at your chosen location. If the signal is weak, consider:
- Moving your router closer
- Using a Wi-Fi extender
- Choosing a different mounting spot
Avoid Obstructions
Keep the camera away from:
- Trees or bushes that sway in the wind (can trigger false motion alerts)
- Bright lights or reflective surfaces (can cause glare or overexposure)
- Areas with heavy rain or snow accumulation (may block the lens)
Check Local Privacy Laws
Some regions have rules about recording audio or video in public spaces. Make sure your camera complies with local regulations—especially if it faces a sidewalk or street.
Step 2: Turn Off Power and Prepare the Mounting Area
Safety is critical when working with electricity. Even if you’re installing the battery-powered model, it’s good practice to turn off nearby power sources to avoid accidents.
For Wired Ring Floodlight Cameras
Step 1: Locate your home’s electrical breaker panel.
Step 2: Find the circuit that powers your existing floodlight or outdoor outlet. Turn it OFF.
Step 3: Use a voltage tester to double-check that the power is off. Touch the tester to the wires—if it doesn’t beep or light up, you’re safe to proceed.
Step 4: Remove the old floodlight fixture (if applicable). Unscrew it and disconnect the wires. Label them if needed (black = hot, white = neutral, green or bare = ground).
Step 5: If your existing wiring doesn’t reach the mounting bracket, you may need to extend it using wire nuts and additional electrical wire. Make sure all connections are secure and insulated.
For Battery-Powered Ring Floodlight Cameras
No wiring? Great! But you still need to prepare the mounting surface.
Step 1: Clean the area where you’ll mount the camera. Remove dirt, debris, or old paint.
Step 2: Hold the mounting bracket against the wall or eave. Use a level to make sure it’s straight.
Step 3: Mark the screw holes with a pencil.
Step 4: Drill pilot holes slightly smaller than your screws to prevent cracking.
Step 3: Mount the Ring Floodlight Camera
Now it’s time to secure your camera in place. Follow these steps carefully to ensure a sturdy, weather-resistant installation.
Attach the Mounting Bracket
Step 1: Hold the mounting bracket against the wall, aligning it with your pilot holes.
Step 2: Insert the screws and tighten them with a screwdriver. Don’t over-tighten—this can crack the bracket or wall material.
Step 3: For extra stability on brick or concrete, use wall anchors.
Connect the Wires (Wired Models Only)
Step 1: Feed the wires from your house through the center hole of the mounting bracket.
Step 2: Match the wires:
- Black (camera) to Black (house) – Hot
- White (camera) to White (house) – Neutral
- Green or Bare (camera) to Green or Bare (house) – Ground
Step 3: Twist the wires together and secure them with wire nuts. Wrap each connection with electrical tape for added protection.
Step 4: Tuck the wires neatly into the electrical box. Avoid pinching or bending them sharply.
Secure the Camera to the Bracket
Step 1: Align the camera with the mounting bracket. The Ring logo should be upright.
Step 2: Slide the camera into place until it clicks or locks.
Step 3: Use the provided security screw to prevent tampering. Insert it into the bottom of the camera and tighten with a screwdriver.
Adjust the Camera and Lights
Step 1: Loosen the adjustment knobs on the camera and floodlights.
Step 2: Tilt and swivel the camera to your desired angle. Aim it at the area you want to monitor.
Step 3: Adjust the floodlights so they illuminate the target zone without blinding passersby.
Step 4: Tighten all knobs to lock the position.
Step 4: Power On and Connect to Wi-Fi
With the camera mounted, it’s time to bring it to life.
For Wired Models
Step 1: Turn the power back on at the breaker.
Step 2: Wait 30–60 seconds for the camera to power up. You should see the LED light on the front blink white.
For Battery Models
Step 1: Insert the charged battery into the camera. Make sure it clicks into place.
Step 2: The LED should blink white, indicating it’s ready to connect.
Download and Open the Ring App
If you haven’t already, download the Ring app from the Apple App Store or Google Play. Create a Ring account or log in if you have one.
Add Your Device
Step 1: Tap the three-line menu (☰) in the top-left corner.
Step 2: Select “Set up a device.”
Step 3: Choose “Security Cameras” and then “Floodlight Cam.”
Step 4: Follow the on-screen prompts. The app will ask you to scan the QR code on the camera or enter the serial number manually.
Step 5: When prompted, press and hold the setup button on the camera (usually on the side or bottom) until the LED blinks white rapidly.
Connect to Wi-Fi
Step 1: Select your home Wi-Fi network from the list.
Step 2: Enter your Wi-Fi password. Make sure it’s correct—typos are a common cause of connection failures.
Step 3: Wait while the camera connects. This can take 1–2 minutes.
Step 4: Once connected, the LED will turn solid white, and the app will confirm success.
Step 5: Configure Settings in the Ring App
Your camera is online—now let’s customize it to fit your needs.
Name Your Camera
Give it a descriptive name like “Front Door Floodlight” or “Backyard Camera” so you can easily identify it in the app.
Set Up Motion Zones
Step 1: Go to the camera’s settings in the app.
Step 2: Tap “Motion Settings” > “Motion Zones.”
Step 3: Draw zones on the camera’s field of view. Only motion within these zones will trigger alerts.
Tip: Exclude areas like busy sidewalks or swaying trees to reduce false alarms.
Adjust Motion Sensitivity
Choose from Low, Medium, or High. Start with Medium and adjust based on how many alerts you receive.
Enable Smart Alerts
Turn on “People Only Mode” to filter out animals, cars, or shadows. This reduces unnecessary notifications.
Set Up Light Schedules
You can program the floodlights to turn on at sunset and off at sunrise, or customize specific times.
Enable Two-Way Talk
Test the microphone and speaker by tapping the talk button in the app. Speak and listen—adjust volume if needed.
Subscribe to Ring Protect (Optional)
For cloud video recording, subscribe to Ring Protect ($3.99/month per device or $19.99/month for unlimited devices). This lets you save and review footage.
Step 6: Test Your Ring Floodlight Camera
Before calling it a day, make sure everything works.
Test the Camera Feed
Open the Ring app and view the live video. Check for:
- Clear, sharp image quality
- Proper lighting (day and night)
- No obstructions in the frame
Test the Floodlights
Walk into the motion zone at night. The lights should turn on automatically. Adjust sensitivity if they don’t trigger or come on too often.
Test Motion Alerts
Have someone walk through the detection zone. You should receive a push notification on your phone within 10–15 seconds.
Test Two-Way Audio
Speak through the app and listen for clear sound. Ask someone outside to respond—make sure they can hear you.
Check Night Vision
View the camera feed in the dark. The infrared LEDs should provide a clear black-and-white image up to 30 feet away.
Troubleshooting Common Setup Issues
Even with careful setup, problems can happen. Here’s how to fix the most common ones.
Camera Won’t Connect to Wi-Fi
- Solution: Make sure you’re using a 2.4 GHz network (not 5 GHz). Move closer to the router during setup. Restart your router and camera. Reset the camera by holding the setup button for 20 seconds.
Weak or No Wi-Fi Signal
- Solution: Use a Wi-Fi extender or mesh system. Reposition the camera closer to the router. Avoid mounting near metal surfaces or thick walls.
Floodlights Don’t Turn On
- Solution: Check the light schedule in the app. Ensure motion detection is enabled. For wired models, verify the power is on and wires are connected correctly.
False Motion Alerts
- Solution: Adjust motion zones to exclude trees or busy areas. Lower sensitivity. Enable “People Only” mode.
Blurry or Glared Video
- Solution: Clean the camera lens with a microfiber cloth. Reposition the camera to avoid direct sunlight or bright lights at night.
App Shows “Offline”
- Solution: Check your internet connection. Restart the camera. For battery models, ensure the battery is charged. Reconnect via the app if needed.
Maintenance Tips to Keep Your Camera Working Perfectly
Your Ring Floodlight Camera is built to last, but a little upkeep goes a long way.
Clean the Lens Monthly
Use a soft, dry cloth to wipe away dust, dirt, or spiderwebs. Avoid harsh chemicals.
Check the Battery (Battery Models)
Charge the battery every 3–6 months, depending on usage. The app will notify you when it’s low.
Inspect Wiring (Wired Models)
Every few months, check that wires are secure and not damaged by weather or pests.
Update Firmware
The Ring app automatically updates your camera’s software. Make sure your app is up to date.
Review Settings Seasonally
Adjust motion zones and light schedules as seasons change—leaves in fall, snow in winter, etc.
Final Thoughts: Enjoy Peace of Mind with Your Ring Floodlight Camera
Setting up your Ring Floodlight Camera might seem like a big task, but with this guide, you’ve done it safely and correctly. From choosing the perfect spot to configuring smart alerts, you’ve turned your home into a smarter, safer place.
Remember, the key to a successful setup is patience and attention to detail. Don’t rush the wiring or skip the testing phase. A well-installed camera not only works better but also lasts longer.
Now that you’re all set, enjoy the benefits: bright lights that deter intruders, clear video footage, instant alerts, and the ability to talk to visitors from anywhere. Whether you’re at work, on vacation, or just relaxing on the couch, your Ring Floodlight Camera has your back.
Welcome to the future of home security—you’ve earned it.
