How to Setup Poe Camera A Complete Step by Step Guide

Setting up a PoE camera is simple and efficient when you follow a clear, step-by-step process—start by connecting the camera to a PoE switch or injector using an Ethernet cable to deliver both power and data over a single line. Ensure your network supports PoE standards (802.3af/at) and access the camera’s interface via a web browser or mobile app to complete configuration and secure your property with high-quality surveillance.

Key Takeaways

• Plan camera placement first: Ensure optimal coverage and minimal blind spots.
• Use a PoE switch/injector: Simplifies power and data delivery in one cable.
• Verify cable length limits: Stay under 100m for reliable signal and power.
• Configure IP settings properly: Assign static IPs to avoid connection issues.
• Secure your network: Enable encryption and strong passwords for camera access.
• Update firmware immediately: Ensures latest features and critical security patches.

Why Setting Up a PoE Camera Is a Game-Changer for Your Security

In today’s world, where safety and surveillance are paramount, Power over Ethernet (PoE) cameras have emerged as a revolutionary solution for both residential and commercial security needs. Unlike traditional analog or Wi-Fi cameras, PoE cameras combine power and data transmission through a single Ethernet cable, simplifying installation, reducing clutter, and enhancing reliability. Whether you’re a homeowner wanting to monitor your property or a business owner safeguarding your premises, PoE technology offers a seamless, scalable, and future-proof approach to video surveillance.

The appeal of PoE cameras lies in their simplicity and efficiency. With just one cable to handle both power and high-definition video streaming, you eliminate the need for separate power outlets, reduce potential failure points, and gain access to advanced features like remote viewing, motion detection, and cloud storage. However, setting up a PoE camera system can feel intimidating for beginners. This comprehensive guide walks you through every step—from planning your layout to configuring advanced settings—ensuring your system is up and running efficiently, securely, and with minimal hassle.

Understanding PoE Cameras: How They Work and What You Need

What Is Power over Ethernet (PoE)?

Power over Ethernet (PoE) is a technology that allows electrical power and data to be transmitted simultaneously over a standard Ethernet cable (typically Cat5e or Cat6). This eliminates the need for separate power cables, making installations cleaner and more efficient. PoE is governed by IEEE standards such as 802.3af, 802.3at (PoE+), and 802.3bt (PoE++), which define the amount of power that can be delivered—up to 15.4W, 30W, and 90W respectively. Most PoE security cameras use 802.3af or 802.3at, providing more than enough power for HD video streaming, night vision, and pan-tilt-zoom (PTZ) functionality.

Key Components of a PoE Camera System

Before diving into setup, it’s essential to understand the core components of a PoE surveillance system:

• PoE Cameras: The main units that capture video. Available in bullet, dome, PTZ, and turret styles, with features like 4K resolution, infrared night vision, and AI-powered analytics.
• PoE Network Video Recorder (NVR): A dedicated device that records and manages video from your cameras. It connects to your network and often includes built-in PoE ports for direct camera connection.
• Ethernet Cables: Use Cat5e or Cat6 cables (preferably shielded for outdoor use) to ensure stable data and power delivery. Avoid cables longer than 100 meters (328 feet) without a PoE extender.
• PoE Switch or Injector: If your NVR doesn’t have enough PoE ports, a PoE switch adds more ports. A PoE injector is used when connecting a non-PoE switch or router.
• Router and Internet Connection: Required for remote access, cloud backups, and firmware updates.
• Storage (HDD): Most NVRs require an internal hard drive to store video footage. Choose a surveillance-grade HDD (e.g., Western Digital Purple) for reliability.

Tip: Always check the camera’s power requirements (in watts) and ensure your PoE switch or NVR can support it. For example, a 4K PTZ camera may need PoE+ (30W), while a basic dome camera may only need standard PoE (15.4W).

PoE vs. Traditional and Wi-Fi Cameras

Compared to traditional analog (CCTV) cameras, PoE systems offer superior image quality, easier scalability, and remote access. Unlike Wi-Fi cameras, PoE cameras are immune to signal interference, bandwidth congestion, and Wi-Fi dropouts. They also provide a more stable connection, making them ideal for continuous 24/7 recording. Additionally, PoE systems are more secure—since the data travels over a wired network, it’s less vulnerable to hacking than wireless signals.

Step 1: Planning Your PoE Camera Layout and Installation

Assess Your Surveillance Needs

Start by identifying the areas you want to monitor. Consider:

• Entry and Exit Points: Front door, back door, garage, side gates.
• High-Traffic Zones: Driveways, hallways, lobbies, parking lots.
• Valuable Assets: Safes, server rooms, inventory storage.
• Blind Spots: Corners, alleys, rooftops.

For a home, 4–6 cameras are typically sufficient. For a medium-sized business, 8–16 cameras may be needed. Always prioritize coverage over quantity—fewer well-placed cameras are more effective than many poorly positioned ones.

Choose the Right Camera Types and Locations

Select cameras based on their purpose:

• Bullet Cameras: Long-range, visible deterrent. Ideal for driveways and outdoor perimeters.
• Dome Cameras: Discreet, vandal-resistant. Great for indoor use or covered outdoor areas.
• PTZ (Pan-Tilt-Zoom) Cameras: Remote-controlled, with zoom and tracking. Best for large open areas.
• Fisheye or 360° Cameras: Provide panoramic views with minimal blind spots. Useful for lobbies and warehouses.

Pro Tip: Mount cameras 8–10 feet high to prevent tampering and ensure a clear view of faces. Avoid pointing them directly at bright lights or reflective surfaces to reduce glare.

Map Your Cable Routes and Power Supply

Before drilling, plan where each cable will run. Use existing conduit, attic spaces, or wall cavities to hide cables. For outdoor installations:

• Use weatherproof conduits or direct burial-rated cables.
• Ensure all outdoor connections are sealed with waterproof gel or silicone.
• Use cable clips or staples every 3–4 feet to secure cables and prevent sagging.

Calculate total cable length for each run. Remember: the maximum distance for a single Ethernet cable without signal degradation is 100 meters. If a camera is farther, use a PoE extender or mid-span PoE switch.

Step 2: Installing Hardware and Running Cables

Gather Your Tools and Materials

Before starting, ensure you have:

• Drill with masonry bits (for outdoor walls)
• Ethernet cable (Cat6 recommended)
• RJ45 crimping tool and connectors
• Cable tester
• Fish tape (for running cables through walls)
• Weatherproof junction boxes (for outdoor connections)
• Ladder and safety gear

Always turn off power at the breaker when working near electrical lines.

Mount the Cameras

Follow these steps:

1. Use the camera’s mounting template to mark drill holes.
2. Drill pilot holes and insert wall anchors.
3. Secure the mounting bracket with screws.
4. Attach the camera and adjust the angle.
5. For outdoor cameras, apply silicone sealant around the mounting area to prevent water ingress.

Example: For a front porch camera, aim slightly downward to capture faces and license plates without overexposing the sky.

Run and Terminate Ethernet Cables

Running cables is the most labor-intensive part. Here’s how to do it right:

• Indoor Runs: Use fish tape to pull cables through walls or attics. Label each end.
• Outdoor Runs: Use conduit or direct burial cable. Avoid sharp bends (keep radius > 4x cable diameter).
• Termination: Strip the cable, untwist pairs, and insert into RJ45 connectors. Crimp firmly. Use a cable tester to verify continuity.

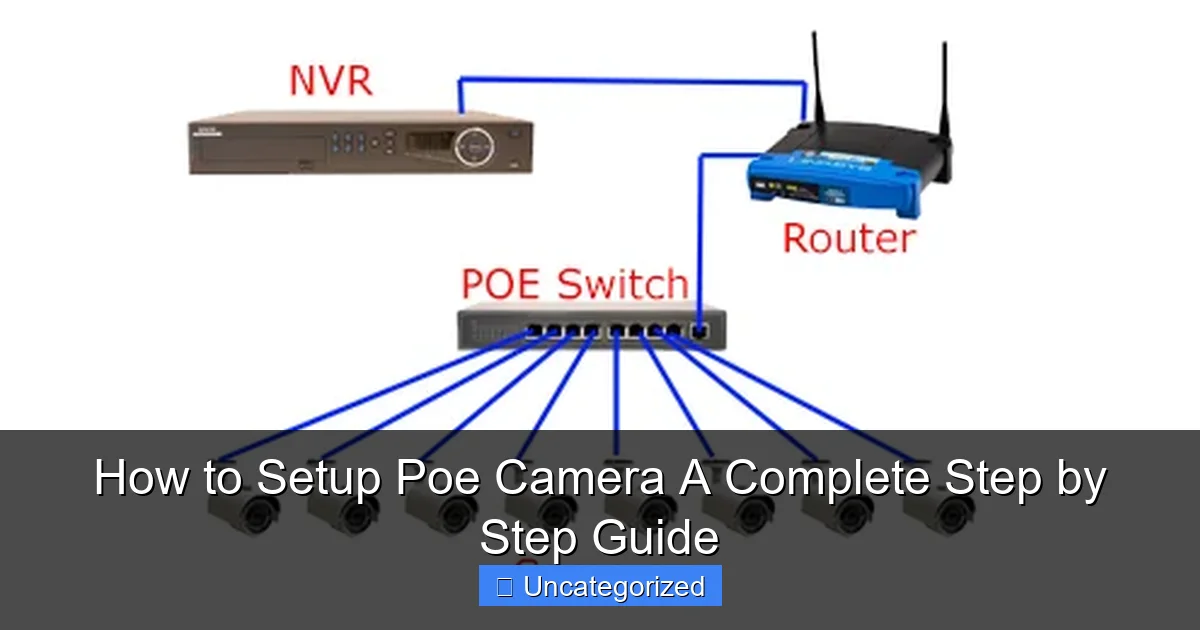

Connect one end to the camera and the other to the NVR or PoE switch. If using a PoE injector, connect the injector between the camera and the non-PoE switch.

Step 3: Configuring the NVR and Camera Settings

Connect and Power On the NVR

Once all cameras are connected:

1. Insert the surveillance HDD into the NVR (if not pre-installed).
2. Connect the NVR to your router using an Ethernet cable.
3. Power on the NVR and monitor (via HDMI or VGA).
4. The NVR will automatically detect connected PoE cameras.

Most NVRs come with a quick setup wizard. Follow the on-screen prompts to:

• Set the date and time (enable NTP for automatic sync).
• Format the hard drive (this erases all data).
• Set recording mode (continuous, motion-activated, or scheduled).

Access the NVR Interface and Configure Cameras

Log in to the NVR using the default credentials (usually admin/admin—change this immediately for security). Navigate to the camera management section to:

• Name each camera (e.g., “Front Door,” “Backyard”).
• Adjust resolution and frame rate (1080p at 15–20 FPS is ideal for balance).
• Set motion detection zones and sensitivity.
• Enable smart features like line crossing, intrusion detection, or facial recognition (if supported).
• Configure night vision mode (auto, manual, or schedule).

Pro Tip: Use the “Privacy Mask” feature to block sensitive areas (e.g., a neighbor’s window) from being recorded.

Optimize Recording and Storage

To maximize storage efficiency:

• Enable motion-activated recording to save space.
• Set pre- and post-event recording (e.g., 5 seconds before and after motion).
• Use H.265+ video compression to reduce file size without losing quality.
• Schedule regular backups to an external drive or cloud service.

Calculate storage needs: A 4MP camera at 15 FPS uses ~20 GB/day. A 1TB HDD can store ~50 days of continuous footage.

Step 4: Connecting to the Network and Enabling Remote Access

Set Up Port Forwarding (For Direct Access)

To view your cameras remotely via a web browser or app:

1. Log in to your router’s admin panel (usually 192.168.1.1).
2. Find the “Port Forwarding” section.
3. Forward external ports (e.g., 80, 443, 554) to the NVR’s internal IP address.
4. Note: This exposes your NVR to the internet—use strong passwords and consider a VPN instead.

Alternative: Use the manufacturer’s cloud service (e.g., Hik-Connect, Reolink Cloud) for secure, no-port-forwarding access.

Configure Mobile App and Cloud Services

Download the NVR manufacturer’s app (e.g., Hik-Connect, Lorex Cloud). Steps:

1. Create an account and log in.
2. Scan the NVR’s QR code or enter the device serial number.
3. Follow prompts to add cameras.
4. Enable push notifications for motion alerts.

For cloud storage, subscribe to a plan (e.g., 7-day rolling for $5/month). This provides off-site backup and protects against theft or damage to the NVR.

Troubleshoot Network Issues

Common problems and fixes:

• Cameras not detected: Check PoE power, cable integrity, and NVR settings.
• Lag or freezing: Reduce resolution or frame rate; ensure your network can handle the bandwidth.
• No remote access: Verify port forwarding, firewall settings, and internet connection.
• Firmware update failed: Download the update from the manufacturer’s website and install manually.

Advanced Tips and Best Practices for Long-Term Success

Regular Maintenance and Upgrades

To keep your system running smoothly:

• Clean camera lenses monthly with a microfiber cloth.
• Check HDD health in the NVR menu (replace if SMART errors appear).
• Update firmware quarterly to fix bugs and improve security.
• Test backup and recovery procedures annually.

Enhance Security and Privacy

Protect your system from cyber threats:

• Change default usernames and passwords.
• Enable two-factor authentication (2FA) if available.
• Disable UPnP on your router to prevent automatic port forwarding.
• Use a dedicated VLAN for your cameras to isolate them from personal devices.

Expand and Scale Your System

As your needs grow:

• Add more cameras (check NVR port limits).
• Integrate with smart home systems (e.g., Alexa, Google Home).
• Use AI-powered cameras for license plate or face recognition.
• Install a UPS (uninterruptible power supply) to keep the system running during outages.

Component	Recommended Specs	Notes
PoE Camera	4MP resolution, IR night vision, IP67 weatherproof	Choose dome or bullet based on location
NVR	8/16-channel, H.265+, 4K output, 2–4TB HDD	Ensure PoE ports match camera count
Ethernet Cable	Cat6, shielded (STP), 24 AWG	Use direct burial for underground runs
PoE Switch	8/16-port, 802.3at (PoE+), 100W total power	Choose managed switches for advanced control
Storage (HDD)	Surveillance-grade, 4TB, 24/7 operation	WD Purple or Seagate SkyHawk recommended

Final Thoughts: Enjoying a Secure, Reliable Surveillance System

Setting up a PoE camera system is a smart investment that pays off in peace of mind, property protection, and operational efficiency. By following this step-by-step guide—planning your layout, installing hardware, configuring settings, and enabling remote access—you’ve created a robust surveillance solution that’s scalable, secure, and easy to manage. The beauty of PoE lies in its simplicity: one cable, one system, endless possibilities.

Remember, the key to long-term success is regular maintenance and staying updated with firmware and security practices. Whether you’re monitoring your home, office, or warehouse, your PoE cameras will deliver crystal-clear footage, real-time alerts, and remote access from anywhere in the world. Embrace the power of wired surveillance, and rest easy knowing your property is under watchful, reliable eyes.

Frequently Asked Questions

What is a PoE camera and how does it work?

A PoE (Power over Ethernet) camera receives both power and data through a single Ethernet cable, eliminating the need for separate power sources. This setup simplifies installation and reduces clutter, making it ideal for both indoor and outdoor surveillance.

How do I choose the right PoE switch for my PoE camera setup?

Ensure your PoE switch supports the IEEE 802.3af/at standard and provides enough power (watts) for all connected cameras. Check the camera’s power requirements and opt for a managed switch if you need features like VLANs or remote monitoring.

Can I set up a PoE camera without a PoE switch?

Yes, you can use a PoE injector, which converts standard network cables into PoE-compatible ones. Simply connect the injector between your router and camera to deliver power and data over the same cable.

How do I connect and configure a PoE camera for remote viewing?

After physically connecting the camera to your network, access its web interface via the manufacturer’s software or app. Follow the prompts to set up port forwarding or use cloud services for remote access on smartphones or tablets.

What are common issues when setting up a PoE camera and how do I fix them?

Common problems include no power, blurry video, or connection drops. Verify cable integrity, ensure the PoE switch/injector is functional, and check for IP conflicts or firmware updates to resolve most issues.

How long can the Ethernet cable be for a reliable PoE camera setup?

The maximum recommended Ethernet cable length is 100 meters (328 feet) for stable power and data transmission. Exceeding this may cause voltage drops or signal degradation, especially in high-resolution camera setups.
