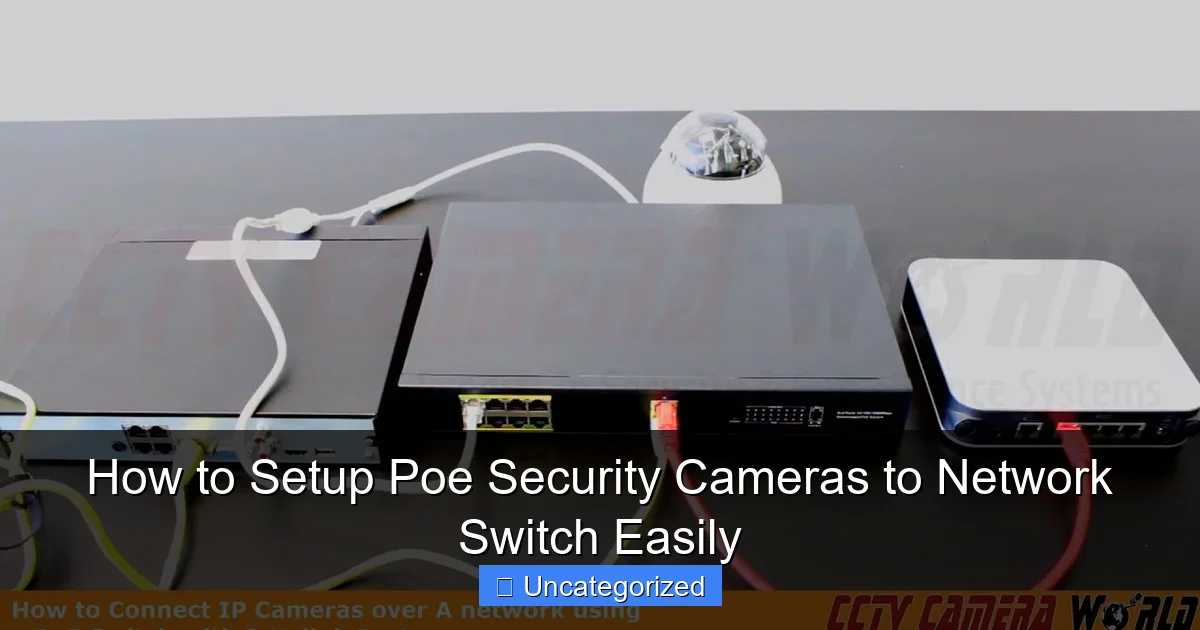

How to Setup Poe Security Cameras to Network Switch Easily

Setting up PoE security cameras to a network switch is a seamless, plug-and-play process when using a PoE-compatible switch. Simply connect each camera to the switch using Cat5e or Cat6 Ethernet cables, ensuring the switch delivers adequate power (check for 802.3af/at compliance). This eliminates the need for separate power supplies and enables centralized management, saving time and simplifying installation.

Key Takeaways

• Verify PoE compatibility: Ensure cameras and switch support the same PoE standard (e.g., 802.3af/at).
• Use quality Ethernet cables: Always install Cat 5e or higher for reliable power and data delivery.
• Connect directly first: Test each camera-to-switch link before running long cable runs.
• Label all connections: Mark switch ports and cables to simplify troubleshooting and future upgrades.
• Monitor power budgets: Check switch capacity to avoid overloading with multiple high-power cameras.
• Secure the network: Enable VLANs or password protection to prevent unauthorized camera access.

Why Setting Up PoE Security Cameras to a Network Switch Matters

Imagine a world where your security system operates with zero lag, uninterrupted live feeds, and no need for messy power cables running through your walls. This is the promise of Power over Ethernet (PoE) technology, a game-changer in modern surveillance. By integrating PoE security cameras with a network switch, you unlock a streamlined, scalable, and professional-grade setup that’s perfect for homes, offices, and large facilities alike. Whether you’re a tech-savvy DIYer or a business owner looking to upgrade, this guide will walk you through the process step by step—making it easier than ever to achieve a reliable, high-performance security network.

PoE technology simplifies installation by combining data and power delivery over a single Ethernet cable (Cat 5e/Cat 6). No more juggling power outlets or dealing with voltage converters. But the real magic happens when you connect multiple PoE cameras to a network switch, creating a centralized, manageable system. From choosing the right equipment to troubleshooting common pitfalls, we’ll cover everything you need to know to set up your PoE security cameras like a pro. Let’s dive in!

Understanding PoE Technology and Compatibility

What Is PoE and How Does It Work?

Power over Ethernet (PoE) is a technology that allows electrical power and data to be transmitted simultaneously over standard Ethernet cables (typically Cat 5e or higher). The IEEE 802.3af (PoE) and 802.3at (PoE+) standards govern this process, delivering up to 15.4W (PoE) or 30W (PoE+) per port. For example, a 4K PoE camera with a motorized zoom lens might require PoE+ to function optimally, while a basic indoor camera may work fine with standard PoE.

• Key Components: PoE switch, PoE cameras, Ethernet cables, and a router/NVR (Network Video Recorder).
• Voltage Range: PoE delivers 44–57V DC, which is converted to the camera’s required voltage (e.g., 12V) by its internal circuitry.

Compatibility: Matching Cameras, Switches, and Standards

Not all PoE devices are created equal. Here’s how to ensure compatibility:

• Camera Power Needs: Check the camera’s manual for its PoE class (e.g., Class 0–4) and power consumption (e.g., 12W). For instance, a Dahua IPC-HFW5849T1-ASE-LED requires PoE+ (25.5W).
• Switch Specifications: Ensure the switch supports the required PoE standard (af/at) and has enough power budget. A 16-port PoE+ switch with 120W total power can support 4–5 high-wattage cameras.
• Passive vs. Active PoE: Most modern devices use active PoE (negotiates power needs), but older cameras may require a passive PoE injector (fixed voltage). Mismatched types can damage equipment!

Pro Tip: Use the 802.3bt (PoE++) standard (up to 60W/port) for future-proofing. It’s ideal for PTZ (pan-tilt-zoom) cameras or cameras with IR illuminators.

Step-by-Step Setup Guide: Connecting PoE Cameras to a Network Switch

1. Gather and Inspect Your Equipment

Before starting, ensure you have:

• PoE switch: Managed or unmanaged (managed offers VLANs, QoS, and remote monitoring).
• PoE cameras: Verify their PoE class and IP address range (e.g., 192.168.1.x).
• Ethernet cables: Use shielded Cat 6 for outdoor installations to reduce interference.
• Router/NVR: For centralized storage and remote access.
• Tools: Cable tester, crimper (if terminating cables), and a laptop for configuration.

Example: For a 4-camera setup, you’ll need a 5-port PoE+ switch (4 for cameras + 1 for router/NVR).

2. Plan Your Network Topology

Sketch a layout showing:

• Camera locations (indoor/outdoor, coverage zones).
• Switch placement (central, accessible, ventilated).
• Cable routes (avoid power lines, sharp bends, or water exposure).

Tip: Label cables at both ends to avoid confusion. Use a cable management tray for a clean installation.

3. Connect Hardware and Power On

1. Mount cameras and run Ethernet cables to the switch.
2. Connect the switch to your router/NVR using a standard Ethernet cable.
3. Plug the switch into a power outlet. The switch will automatically power on and begin detecting PoE devices.
4. Wait 1–2 minutes for cameras to boot up (LED indicators will show status).

Warning: Avoid daisy-chaining switches. If expanding, use a higher-capacity switch or add a second switch connected to the router.

4. Configure IP Addresses and Network Settings

Most PoE cameras use DHCP by default. Here’s how to set them up:

• DHCP (Automatic): Connect to your router’s network. Cameras will get IP addresses from the router’s DHCP pool.
• Static IPs (Manual): Assign fixed IPs via the camera’s web interface or NVR. Example: 192.168.1.101–104 for cameras, 192.168.1.100 for the NVR.

Pro Tip: Use a PoE switch with port isolation to prevent cameras from accessing each other’s feeds for security.

Optimizing Network Performance and Camera Settings

Bandwidth Management and VLANs

Multiple cameras can strain your network. To optimize:

• Bandwidth Calculation: A 4K camera uses ~8–10 Mbps at 30 FPS. For 4 cameras, you need 32–40 Mbps dedicated bandwidth.
• VLAN Segmentation: Use a managed switch to create a dedicated VLAN for cameras, isolating them from other traffic (e.g., laptops, smart TVs).
• QoS (Quality of Service): Prioritize camera traffic to prevent lag during high network usage.

Example: On a Cisco SG350 switch, enable VLAN 10 for cameras and set QoS to “high” for their ports.

Camera Configuration: Resolution, FPS, and Motion Detection

Fine-tune camera settings for optimal performance:

• Resolution: Balance quality and storage. Use 1080p for general surveillance, 4K for critical areas (e.g., entry points).
• FPS (Frames Per Second): 15 FPS is sufficient for most scenarios; 30 FPS for fast-moving objects.
• Motion Detection: Set sensitivity zones to reduce false alerts (e.g., ignore tree branches but flag human movement).
• Storage: Use H.265 compression to save 50% storage vs. H.264. A 4TB NVR can store ~30 days of 1080p footage from 4 cameras.

Pro Tip: Enable smart encoding (e.g., Hikvision’s AcuSense) to record only when humans/vehicles are detected.

Troubleshooting Common Issues and Maintenance

Diagnosing and Fixing Connectivity Problems

Even with proper setup, issues can arise. Here’s how to fix them:

• No Power/No Signal:
  • Test the cable with a PoE tester or multimeter (should show 44–57V).
  • Check if the switch port is enabled (LED should be green).
  • Replace damaged cables or use a PoE injector as a temporary fix.
• Blurry or Intermittent Video:**
  • Ensure cables are under 100 meters (328 ft) for Cat 6.
  • Check for EMI (electromagnetic interference) from power lines or motors.
  • Reduce resolution/FPS if bandwidth is saturated.
• IP Conflicts:**
  • Use a network scanner (e.g., Angry IP Scanner) to detect duplicates.
  • Assign static IPs outside the router’s DHCP range (e.g., 192.168.1.200–250).

Regular Maintenance and Upgrades

Keep your system running smoothly:

• Firmware Updates: Update switch, NVR, and camera firmware quarterly to patch security flaws.
• Clean Cameras: Wipe lenses monthly with a microfiber cloth to prevent dust buildup.
• Test Backups: Verify NVR backups weekly. Use cloud storage for offsite redundancy.
• Expand Capacity: Add more PoE ports or a secondary switch if adding cameras.

Example: A firmware update on a Ubiquiti UniFi Switch might fix PoE negotiation bugs with newer cameras.

Data Table: Recommended PoE Switches and Cameras

Device Type	Model	Key Features	Best For	Price Range
PoE Switch	Ubiquiti UniFi Switch 8-150W	8x PoE+ ports, 150W budget, VLAN support	Small businesses, advanced home setups	$200–$250
PoE Switch	Netgear GS308LP	8x PoE+ ports, 60W budget, unmanaged	Basic home installations	$100–$130
PoE Camera	Hikvision DS-2CD2143G0-I	4MP, PoE+, 30m IR, IP67	Outdoor surveillance	$150–$180
PoE Camera	Reolink RLC-811A	4K, PoE+, AI motion detection	High-resolution indoor/outdoor	$120–$150
PoE Switch (High-End)	Cisco CBS250-16PP-D	16x PoE+ ports, 240W budget, managed	Large facilities, enterprise use	$500–$600

Note: Prices are approximate and vary by region. Always check compatibility with your existing network.

Conclusion: A Smarter, Safer Future with PoE

Setting up PoE security cameras with a network switch isn’t just about connecting cables—it’s about building a robust, future-ready surveillance system that adapts to your needs. From eliminating power clutter to enabling centralized management, PoE technology transforms how we think about security. By following this guide, you’ve learned to:

• Choose compatible PoE devices and avoid costly mismatches.
• Install and configure your system with precision.
• Optimize network performance for crystal-clear footage.
• Troubleshoot issues like a seasoned professional.

Remember, the key to success lies in planning, compatibility, and maintenance. Whether you’re securing a single-family home or a 100-room hotel, PoE scales effortlessly. So grab your toolkit, trust your skills, and take control of your security—one PoE connection at a time. Your peace of mind is worth the effort!

Frequently Asked Questions

How do I connect a PoE security camera to a network switch?

To connect a PoE security camera to a network switch, simply use a Cat5e or Cat6 Ethernet cable to link the camera directly to a PoE-enabled switch port. The switch will automatically supply power and data to the camera without needing separate cables.

Can I use a non-PoE network switch with PoE security cameras?

If your switch doesn’t support PoE, you’ll need a PoE injector or midspan adapter between the switch and camera to deliver power. This setup ensures your PoE security cameras receive both power and data over one cable.

What type of network switch do I need for PoE security cameras?

Choose an 802.3af/at-compliant PoE switch with enough ports and wattage to support all your cameras. For example, a 4-port PoE switch (65W total) can typically power four 10W cameras simultaneously.

How do I troubleshoot if my PoE camera isn’t powering on?

First, check the Ethernet cable integrity and ensure the switch port is PoE-enabled (look for a lightning bolt icon). If the issue persists, test the camera with another port or a PoE tester to isolate the problem.

Do PoE security cameras require special network configurations?

Most PoE security cameras work plug-and-play, but you may need to assign static IPs or enable VLANs for larger systems. Check your camera and switch manuals for advanced settings like QoS or IGMP snooping.

What’s the maximum distance between a PoE camera and the network switch?

The maximum distance is 100 meters (328 feet) using standard Cat5e/6 cables. For longer distances, use a PoE extender or fiber converter to maintain power and data integrity.
