Setting up your Ring Floodlight Camera is easier than you think—with the right tools and guidance, you can enhance your home security in under an hour. This guide walks you through every step, from mounting to app configuration, ensuring a smooth and successful installation.
Key Takeaways
- Choose the right location: Install the camera 8–10 feet high with a clear view of entry points and motion zones.
- Turn off power before wiring: Always shut off electricity at the breaker to prevent shocks or damage.
- Use the Ring app for setup: The app guides you through Wi-Fi connection, device pairing, and feature customization.
- Test lighting and motion detection: After installation, verify the floodlights and motion alerts work correctly.
- Adjust settings for optimal performance: Customize motion zones, sensitivity, and notification preferences in the app.
- Keep firmware updated: Regular updates improve security and add new features automatically.
- Contact support if needed: Ring offers live help for installation or connectivity issues.
How to Setup Ring Floodlight Camera: A Complete Step-by-Step Guide
So, you’ve decided to upgrade your home security with a Ring Floodlight Camera—smart move! This powerful device combines bright LED floodlights, HD video recording, two-way audio, and motion detection into one sleek outdoor unit. Whether you’re replacing an old floodlight or installing a brand-new system, setting up your Ring Floodlight Camera doesn’t have to be intimidating. In fact, with the right preparation and a little patience, most homeowners can complete the installation in under an hour.
In this comprehensive guide, we’ll walk you through everything you need to know to setup Ring Floodlight Camera like a pro. From choosing the perfect location and gathering your tools, to wiring the unit and configuring it in the Ring app, we’ve got you covered. We’ll also share practical tips, troubleshooting advice, and answers to common questions so you can enjoy peace of mind knowing your property is protected—day and night.
By the end of this guide, you’ll not only have a fully functional Ring Floodlight Camera, but you’ll also understand how to customize its settings for maximum effectiveness. Let’s get started!
What’s in the Box?
Before you begin, it’s important to know what comes with your Ring Floodlight Camera. Unboxing is simple, but double-checking ensures you have all the parts needed for a smooth installation. Here’s what you should find inside:

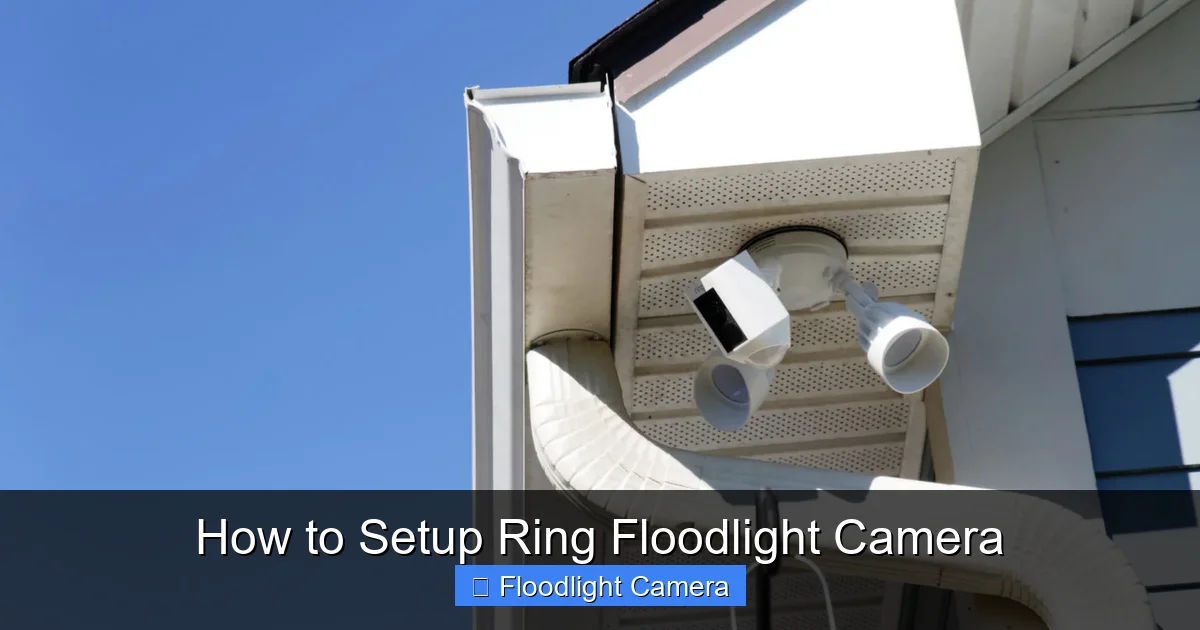

Visual guide about How to Setup Ring Floodlight Camera
Image source: i0.wp.com
- 1x Ring Floodlight Camera (available in wired or battery-powered models)
- 1x Mounting bracket
- 1x Weatherproof cover
- 1x Set of mounting screws and anchors
- 1x Wire nuts (for electrical connections)
- 1x User manual and quick start guide
- 1x Screwdriver (small, for terminal screws)
If you purchased a wired model (like the Ring Floodlight Cam Wired Plus or Wired Pro), you’ll also need access to existing electrical wiring. Battery-powered models are easier to install but require periodic recharging. For this guide, we’ll focus on the wired version, as it’s the most common and offers continuous power without maintenance.
Tools and Materials You’ll Need
Having the right tools on hand makes the installation process faster and safer. Here’s a checklist of what you’ll need:
- Voltage tester (non-contact)
- Screwdriver (Phillips and flathead)
- Wire strippers
- Ladder (stable, tall enough to reach mounting height)
- Electrical tape
- Drill and drill bits (if mounting to brick or concrete)
- Safety gloves and goggles
- Smartphone or tablet with the Ring app installed
- Wi-Fi network name and password
Pro tip: If you’re not comfortable working with electrical wiring, consider hiring a licensed electrician. Safety always comes first!
Step 1: Choose the Best Location
Where you install your Ring Floodlight Camera makes a big difference in its effectiveness. The ideal spot should:
- Be 8–10 feet above the ground
- Have a clear view of driveways, walkways, or entry points
- Be within range of your Wi-Fi signal
- Have access to existing electrical wiring (for wired models)
- Avoid direct sunlight or heat sources that could cause false alerts
For example, mounting the camera above your front door or garage entrance gives you a wide-angle view of anyone approaching. Avoid placing it too close to trees or bushes that might trigger motion alerts from wind-blown branches.
Use the Ring app’s “Device Health” feature after installation to check Wi-Fi strength. If the signal is weak, consider using a Wi-Fi extender or moving the camera slightly.
Step 2: Turn Off the Power
Safety is critical when working with electricity. Before touching any wires, follow these steps:
Locate Your Electrical Panel
Find the circuit breaker that controls the existing floodlight or outdoor outlet. It’s usually labeled “outdoor,” “porch,” or “floodlight.” If not, turn off the main breaker to be safe.
Turn Off the Breaker
Switch the breaker to the “OFF” position. Use a non-contact voltage tester to confirm the power is off. Touch the tester to the wires—if it doesn’t beep or light up, you’re good to go.
Label the Breaker (Optional)
If you turned off the main breaker, label it so others know not to turn it back on until you’re done.
Never skip this step! Even low-voltage shocks can be dangerous, and working on live wires can damage your camera or cause a fire.
Step 3: Remove the Old Floodlight (If Applicable)
If you’re replacing an existing floodlight, you’ll need to remove it first. Here’s how:
Unscrew the Mounting Bracket
Use a screwdriver to remove the screws holding the old light fixture to the wall or ceiling. Support the fixture with one hand as you loosen the last screw to prevent it from falling.
Disconnect the Wires
Carefully pull the fixture away from the wall to expose the wires. You’ll typically see three wires: black (hot), white (neutral), and green or bare copper (ground). Unscrew the wire nuts and separate the wires.
Cap the Wires Temporarily
Twist wire nuts onto each exposed wire to prevent them from touching or shorting out. This keeps things safe while you prepare the new camera.
If there’s no existing wiring, you’ll need to run new electrical cable from your breaker panel—this is a job for a licensed electrician.
Step 4: Install the Mounting Bracket
Now it’s time to prepare the Ring Floodlight Camera for mounting. Follow these steps:
Attach the Bracket to the Camera
Slide the mounting bracket onto the back of the camera until it clicks into place. Make sure it’s secure—this bracket will hold the entire unit.
Position the Bracket on the Wall
Hold the bracket against the wall where you want to install the camera. Use a level to ensure it’s straight. Mark the screw holes with a pencil.
Drill Pilot Holes (If Needed)
If you’re mounting into wood, you can screw directly into the surface. For brick, concrete, or siding, drill pilot holes and insert wall anchors for a secure fit.
Secure the Bracket
Align the bracket with the holes and screw it into place using the provided screws. Don’t overtighten—this could crack the bracket or damage the wall.
Once the bracket is mounted, you’re ready to connect the wires.
Step 5: Connect the Wires
This is the most technical part of the installation, but don’t worry—it’s straightforward if you follow the steps carefully.
Match the Wire Colors
Your Ring Floodlight Camera has three wires:
- Black (hot)
- White (neutral)
- Green or bare copper (ground)
Match these to the corresponding wires from your wall:
- Black to black
- White to white
- Green/bare to green/bare
Strip the Wire Ends
Use wire strippers to remove about ½ inch of insulation from each wire end. This exposes the copper for a solid connection.
Twist the Wires Together
Hold the matching wires side by side and twist them clockwise with pliers. This creates a tight, secure connection.
Secure with Wire Nuts
Screw a wire nut over each twisted pair. Give each wire a gentle tug to make sure it’s snug. Wrap electrical tape around the base of the wire nut for extra protection.
Tuck Wires into the Electrical Box
Carefully push the connected wires back into the electrical box or junction box. Avoid pinching or bending them too sharply.
Double-check all connections before moving on. Loose wires can cause power issues or damage the camera.
Step 6: Attach the Camera to the Bracket
With the wires connected, it’s time to mount the camera:
Align the Camera with the Bracket
Hold the camera up to the mounted bracket. The bracket should slide into the slot on the back of the camera.
Secure with the Locking Screw
Once the camera is in place, use the provided screw to lock it to the bracket. This prevents tampering and ensures stability.
Attach the Weatherproof Cover
Snap the weatherproof cover over the camera and bracket. This protects the wiring and keeps out rain, snow, and dust.
Give the camera a gentle shake to make sure it’s firmly attached. It shouldn’t wobble or move.
Step 7: Restore Power and Test
Now that everything is connected, it’s time to turn the power back on:
Turn On the Breaker
Go back to your electrical panel and flip the breaker to the “ON” position.
Check for Power
The floodlights should turn on automatically, and the camera should power up. You’ll hear a chime or see a light indicator confirming it’s on.
Test the Lights
Wave your hand in front of the camera to trigger the motion sensor. The floodlights should illuminate brightly. If they don’t, double-check your wiring and breaker.
If the camera doesn’t power on, turn the breaker off again and recheck all connections. Never troubleshoot with the power on.
Step 8: Download and Set Up the Ring App
The Ring app is your control center for the camera. Here’s how to get started:
Download the App
Search for “Ring” in the App Store (iOS) or Google Play (Android). Download and install the free app.
Create or Log In to Your Account
If you’re new to Ring, tap “Create Account” and follow the prompts. Existing users can log in with their email and password.
Add a New Device
Tap the “+” icon in the top right corner and select “Set up a device.” Choose “Security Cameras” and then “Floodlight Cam.”
Scan the QR Code
Use your phone’s camera to scan the QR code on the back of the camera or in the user manual. This pairs the device with your account.
Connect to Wi-Fi
Select your home Wi-Fi network and enter the password. The app will send the network info to the camera. Wait for the confirmation message.
Name Your Camera
Give your camera a descriptive name, like “Front Door” or “Backyard Floodlight.” This helps you identify it in the app.
Once setup is complete, you’ll see a live video feed from your camera. Congratulations—you’re almost done!
Step 9: Customize Your Settings
Now that your camera is online, take a few minutes to personalize its features:
Adjust Motion Zones
Go to “Device Settings” > “Motion Settings” > “Motion Zones.” Draw custom zones to focus on areas like your driveway or porch. Ignore zones with trees or busy streets to reduce false alerts.
Set Motion Sensitivity
Choose between low, medium, or high sensitivity. Start with medium and adjust based on how often you get alerts.
Enable Smart Alerts
Turn on “People Only” mode to receive notifications only when a person is detected—not cars or animals.
Schedule Floodlight Activation
Set the floodlights to turn on only at night or during specific hours. This saves energy and reduces light pollution.
Enable Two-Way Talk
Test the microphone and speaker by tapping the talk button in the app. You can now speak to visitors or deter intruders remotely.
Set Up Linked Devices
Link your camera to other Ring devices, like doorbells or alarms, for a complete security system.
These settings help you get the most out of your Ring Floodlight Camera while minimizing unnecessary alerts.
Step 10: Test and Troubleshoot
Before calling the job complete, run a few tests to ensure everything works:
Check Video Quality
Watch the live feed in the app. The image should be clear, even at night (thanks to infrared night vision).
Test Motion Detection
Walk through the motion zones and verify that alerts appear in the app. Check your phone for push notifications.
Verify Two-Way Audio
Speak through the app and listen for sound from the camera. Ask someone to speak near the camera and listen in the app.
Review Recordings
If you have a Ring Protect plan, check the event history to see recorded clips. Make sure they’re saving correctly.
If something isn’t working, try these troubleshooting tips:
- No power: Check the breaker and wire connections.
- Weak Wi-Fi: Move the camera closer to your router or use a Wi-Fi extender.
- False alerts: Adjust motion zones and sensitivity.
- Blurry video: Clean the camera lens with a soft cloth.
- App issues: Restart the app or reinstall it.
For persistent problems, contact Ring Support through the app or visit support.ring.com.
Maintenance Tips for Long-Term Performance
To keep your Ring Floodlight Camera working smoothly:
- Clean the lens and sensors every few months.
- Check for firmware updates in the app (they install automatically).
- Trim nearby plants that might block the view or trigger motion.
- Test the floodlights and alerts monthly.
- Replace the backup battery (if applicable) every 6–12 months.
Regular maintenance ensures your camera stays reliable year-round.
Conclusion
Setting up your Ring Floodlight Camera is a smart investment in home security—and now you know exactly how to do it. From choosing the right location and safely wiring the unit, to configuring it in the app and customizing alerts, this guide covers every step you need for a successful installation.
With bright floodlights, HD video, and real-time alerts, your Ring Floodlight Camera will help protect your home day and night. Whether you’re watching for package thieves, monitoring your driveway, or simply feeling safer at night, this device delivers peace of mind with minimal effort.
So grab your tools, follow these steps, and enjoy the confidence that comes with a well-protected home. And remember—if you ever run into issues, Ring’s support team is just a tap away in the app. Stay safe!
