How to Splice Two Cat5 Cables Together for Poe Camera Success

Key Takeaways

• Use quality connectors: Ensure reliable PoE delivery with shielded, high-grade couplers or splices.
• Maintain wire order: Match T568A or T568B pinouts to avoid signal loss or shorts.
• Secure connections tightly: Solder or crimp firmly to prevent intermittent power or data issues.
• Test continuity first: Verify all pairs are correctly connected before powering the camera.
• Seal outdoor splices: Use waterproof enclosures or heat-shrink tubing for weatherproofing.
• Avoid excessive length: Minimize splices to reduce signal degradation and PoE voltage drop.

Why This Matters / Understanding the Problem

Running a long cable for your PoE (Power over Ethernet) camera can be tricky. Maybe your existing Cat5 cable is too short, or you’re extending a run across a large yard, warehouse, or multi-floor home. Instead of buying a new 200-foot cable, you can splice two shorter Cat5 cables together—saving money and reducing waste.

But here’s the catch: a bad splice can cause signal loss, power drops, or camera failure. That’s why learning how to splice two Cat5 cables together for PoE camera success is essential. A proper splice maintains both data and power delivery, ensuring your security camera stays online and powered—even over long distances.

Whether you’re setting up a backyard surveillance system, monitoring a construction site, or securing a remote garage, a reliable cable connection is non-negotiable. And with the right technique, splicing isn’t just possible—it’s practical, durable, and professional-grade.

What You Need

Before you start, gather these tools and materials. Having everything ready makes the process smooth and prevents mistakes.

• Two Cat5 (or Cat5e/Cat6) cables – Ensure they’re the same type and gauge (24 AWG is standard). Mismatched cables can cause resistance and power loss.
• Wire strippers – For cleanly removing the outer jacket without damaging inner wires.
• RJ45 crimp tool – To terminate the connection with a coupler or inline connector.
• RJ45 couplers (female-to-female) – The easiest way to join two cables. Look for shielded, PoE-rated models.
• Heat-shrink tubing or electrical tape – For sealing and protecting the splice from moisture and strain.
• Multimeter or cable tester – To verify continuity and PoE compatibility after splicing.
• Scissors or utility knife – For trimming insulation.
• Heat gun or lighter – If using heat-shrink tubing (a hair dryer works in a pinch).

Optional but helpful: Cat5 cable identifier tags to label which cable is which, especially in complex setups.

Pro tip: Always use PoE-rated couplers. Regular couplers may not handle the 48V DC used in PoE systems, leading to overheating or failure.

Step-by-Step Guide to How to Splice Two Cat5 Cables Together for Poe Camera Success

Splicing two Cat5 cables for PoE cameras requires attention to detail, but it’s simpler than it sounds. Follow these steps to ensure a strong, reliable connection that supports both data and power.

Step 1: Cut and Prepare the Cable Ends

Start by cutting both Cat5 cables cleanly with wire cutters. You want straight, even ends—no frayed edges or jagged cuts.

Use your wire strippers to remove about 1.5 inches (3.8 cm) of the outer jacket from each cable end. Be careful not to nick or cut the inner twisted pairs. The goal is to expose the 8 color-coded wires (orange, green, blue, brown, and their white-striped counterparts) without damaging them.

Once the jacket is off, gently untwist each pair just enough to separate the wires. You’ll need about 1 inch of exposed wire for crimping. Keep the twists as close to the jacket as possible—untwisting too much increases crosstalk and signal loss.

⚠️ Warning: Never strip more than 1.5 inches of jacket. Exposing too much wire increases the risk of shorts, especially in outdoor or humid environments.

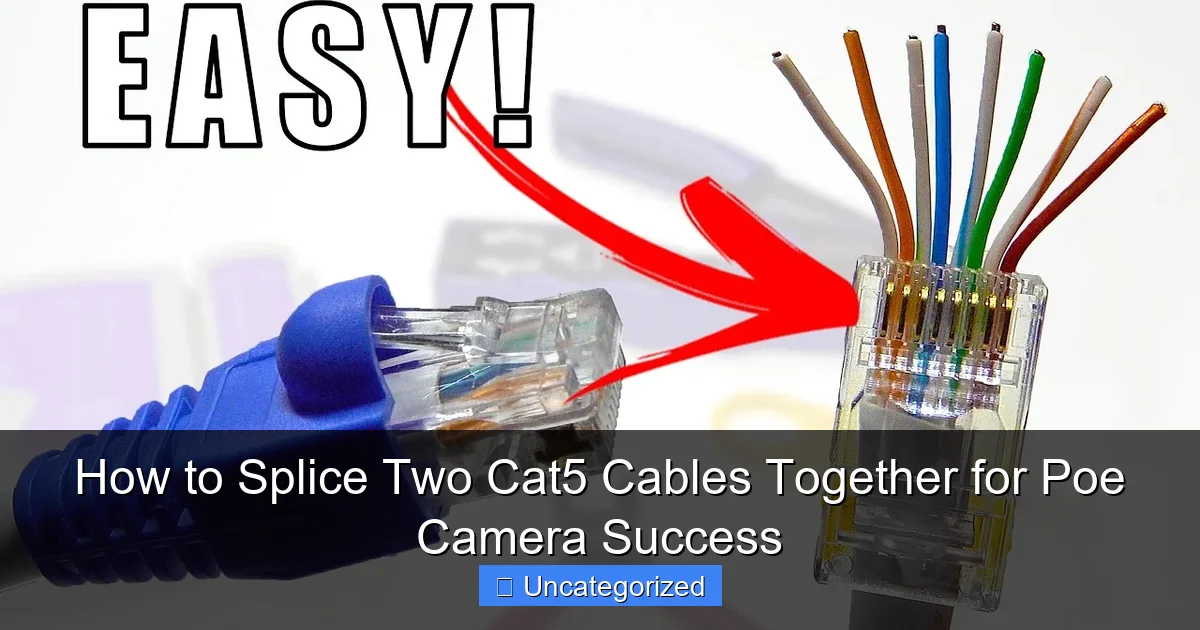

Step 2: Insert Wires into an RJ45 Connector (If Using Crimp-On Coupler)

If you’re using a pass-through RJ45 coupler that requires crimping (rather than a simple snap-in), you’ll need to terminate each cable end with an RJ45 plug first.

Arrange the 8 wires in the correct order using the T568B standard (most common for PoE cameras):

• Pin 1: White/Orange
• Pin 2: Orange
• Pin 3: White/Green
• Pin 4: Blue
• Pin 5: White/Blue
• Pin 6: Green
• Pin 7: White/Brown
• Pin 8: Brown

Line up the wires in order and trim them evenly so they reach just past the connector’s metal contacts. Push them firmly into the RJ45 plug until the jacket is inside the strain relief boot.

Use your crimp tool to secure the plug. Squeeze hard—there should be a satisfying “click.” Repeat for the second cable.

💡 Pro Tip: Double-check the wiring order before crimping. Miswiring one pin (especially pins 1/2 or 3/6) can break data or PoE delivery.

Step 3: Connect the Two Cables Using an RJ45 Coupler

Now it’s time to join the cables. Take your PoE-rated RJ45 coupler (female-to-female) and plug in both terminated cable ends—one from each side.

Push each plug in until you hear a click. The coupler should hold both connectors securely. If it feels loose, the crimp may not be tight enough—re-crimp or use a different coupler.

Ensure the coupler is rated for PoE (up to 60W) and Cat5e or higher. Look for labels like “IEEE 802.3af/at/bt compatible” or “PoE++ ready.” Cheap couplers may not handle the current, causing voltage drops or overheating.

For extra durability, especially outdoors, consider using a weatherproof coupler with rubber seals or a silicone boot.

🌧️ Outdoor Note: If the splice is exposed to rain, snow, or UV light, skip the basic coupler. Use a weatherproof inline enclosure or a gel-filled splice kit instead.

Step 4: Protect the Splice (Crucial for Long-Term Reliability)

Even the best coupler won’t last if the splice isn’t protected. This step is often overlooked but is critical for how to splice two Cat5 cables together for PoE camera success.

Slide a piece of heat-shrink tubing (1.5–2 inches long) over one cable before crimping. After connecting the coupler, slide the tubing over the entire splice.

Use a heat gun or lighter to shrink the tubing evenly. It should form a tight, waterproof seal around the coupler and cable jackets. Avoid overheating—too much heat can melt the coupler.

If you don’t have heat-shrink, wrap the splice with electrical tape in a spiral pattern, overlapping each layer by 50%. Then add a second layer in the opposite direction. Finish with a final wrap of self-fusing tape (also called “liquid tape”) for better moisture resistance.

🔧 Pro Tip: For outdoor or underground runs, use conduit or bury the cable in a PVC pipe. The splice should still be sealed, but extra physical protection prevents damage from rodents, digging, or weather.

Step 5: Test the Connection

Never skip this step. A faulty splice can damage your PoE camera, switch, or power source.

Use a PoE cable tester or multimeter to check:

• Continuity – All 8 wires should show a connection from end to end.
• PoE delivery – Use a tester that detects 48V DC on pins 4/5 and 7/8 (or 1/2 and 3/6, depending on PoE type).
• Shorts or miswires – No crossed pairs or grounded wires.

Plug one end into a PoE switch or injector, and connect the other end to your camera. Power it on and check if the camera boots up and streams video.

If the camera doesn’t power on, test each segment separately. If the first cable works alone but fails after splicing, the issue is in the splice or coupler.

🛠️ Troubleshooting: If PoE isn’t detected, check for loose crimps, reversed wires, or a non-PoE coupler. A multimeter can verify voltage at the coupler pins.

Step 6: Secure and Conceal the Splice (Optional but Recommended)

Once tested, secure the splice to prevent strain. Use cable ties or clips to anchor the cables on either side of the coupler, so pulling on the cable won’t stress the connection.

If running through walls or ceilings, use fish tape or conduit to guide the cable. Avoid sharp bends—keep the radius at least 4 times the cable’s diameter (about 2 inches for Cat5).

For aesthetic or safety reasons, consider hiding the splice in a junction box or outdoor-rated enclosure. Label the box “PoE Splice” for future maintenance.

This final step ensures your splice lasts for years, even in demanding environments.

Pro Tips & Common Mistakes to Avoid

Even small errors can ruin an otherwise perfect splice. Here are the most common pitfalls—and how to avoid them.

🚫 Mistake 1: Using non-PoE couplers
Many standard couplers are designed for data only. PoE systems carry up to 60W of power, and cheap couplers can overheat or fail. Always use PoE-rated couplers with gold-plated contacts and high-current capacity.

🚫 Mistake 2: Poor wire alignment
If the wires aren’t fully seated in the RJ45 plug, the crimp won’t make contact. This causes intermittent signal loss. Always double-check that all wires reach the end of the connector before crimping.

🚫 Mistake 3: Skipping the seal
Moisture is the #1 enemy of outdoor splices. A splice without heat-shrink or tape will corrode within months. Even indoor splices in basements or garages need protection from humidity.

🚫 Mistake 4: Mixing cable types
Don’t splice a Cat5 cable with a Cat6 or a 26 AWG with a 24 AWG. Different gauges and materials affect resistance and power delivery. Stick to the same type and length.

💡 Pro Tip: Use a “splice box” for complex setups
If you’re splicing multiple cables or running a network in a large area, consider a weatherproof splice enclosure. It protects all connections, allows for future upgrades, and keeps things organized.

💡 Pro Tip: Label both ends
Use cable tags or colored tape to mark which cable is which. This saves time during troubleshooting or future extensions.

Bonus: If you’re splicing frequently, invest in a professional-grade cable splicer tool that crimps and seals in one step. It’s faster, more reliable, and worth it for contractors or DIYers with multiple cameras.

FAQs About How to Splice Two Cat5 Cables Together for Poe Camera Success

Got questions? Here are the most common ones—answered with real-world insights.

Can I splice Cat5 cables and still get full PoE power?

Yes—if done correctly. PoE uses the same 8 wires as data, so a proper splice maintains both. The key is using PoE-rated couplers and ensuring no resistance in the connection. A bad splice can drop voltage, causing the camera to reboot or fail.

Is it better to use a coupler or solder the wires directly?

For most people, a PoE-rated coupler is the best choice. It’s faster, safer, and more reliable than soldering. Soldering requires skill, insulation, and heat management—and mistakes can short the circuit. Couplers are also easier to troubleshoot and replace.

However, for permanent outdoor installations, some professionals prefer soldering + heat-shrink for a seamless connection. But only attempt this if you have experience.

How long can a spliced Cat5 cable be for PoE?

The total length (including both cables) should not exceed 328 feet (100 meters)—the maximum for Ethernet. Beyond that, signal degradation and power loss occur. For example, two 50-foot cables = 100 feet (safe). But two 60-foot cables = 120 feet (risky).

Use PoE extenders or midspan injectors for longer runs instead of adding more splices.

Can I use a regular RJ45 coupler for outdoor splices?

No. Regular couplers aren’t weatherproof. Moisture will corrode the contacts and cause failure. Use a weatherproof coupler or seal a standard coupler with heat-shrink tubing and conduit.

For extreme conditions (direct sunlight, freezing temps, flooding), use a gel-filled splice kit or IP67-rated enclosure.

What if my camera powers on but the video is choppy?

This usually means data signal loss, not power issues. Check for:

• Miswired pairs (pins 1/2 and 3/6 are critical for data)
• Excessive untwisting of pairs (keep twists close to the plug)
• Loose crimp or poor coupler connection

Use a cable tester to identify which wire is failing. Re-crimp or replace the coupler if needed.

Can I splice Cat5 to Cat6?

Technically yes, but it’s not ideal. Cat6 has stricter crosstalk and shielding requirements. A splice between Cat5 and Cat6 can reduce performance and cause PoE issues. For best results, match cable types.

If you must mix, use Cat6-rated couplers and keep the total run under 75 feet.

How do I know if my coupler is PoE-rated?

Check the product label or packaging. Look for phrases like:

• “PoE compatible”
• “IEEE 802.3af/at”
• “60W PoE”
• “Gold-plated contacts”

Avoid couplers with no specs or labeled “data only.” When in doubt, buy from a reputable brand like Tripp Lite, Cable Matters, or Ubiquiti.

Final Thoughts

Splicing two Cat5 cables for PoE cameras isn’t just possible—it’s a smart, cost-effective solution for extending your security system. By following this guide on how to splice two Cat5 cables together for PoE camera success, you’ll create a connection that’s durable, reliable, and fully functional.

Remember: the key is quality materials, proper technique, and thorough testing. Don’t rush the process. A 10-minute test can save hours of troubleshooting later.

Whether you’re protecting your home, business, or remote property, a well-spliced cable ensures your cameras stay online—rain or shine.

Now grab your tools, follow the steps, and get that extra reach your setup needs. Your PoE camera will thank you.

“`
