This guide walks you through how to stop video matrix in Dahua DVR systems using the local interface, web browser, or mobile app. Whether you’re managing a single camera or a complex multi-channel setup, you’ll find clear, practical steps to disable or reconfigure the matrix display for better control and clarity.
Key Takeaways
- Step-by-step: Easy to follow instructions
Introduction: Why You Might Want to Stop the Video Matrix in Your Dahua DVR
If you’re managing a Dahua DVR system, you’ve likely encountered the video matrix—a feature that displays multiple camera feeds at once on a single monitor. While this can be helpful for surveillance overview, it’s not always ideal. Sometimes, you need a clearer, full-screen view of a single camera, especially during investigations, troubleshooting, or when presenting footage. That’s where knowing how to stop video matrix in Dahua DVR becomes essential.
In this comprehensive guide, we’ll walk you through every method to disable or exit the video matrix mode on your Dahua DVR. Whether you’re using the local interface, accessing the system remotely via a web browser, or controlling it through the Dahua Mobile Surveillance app (DMSS), we’ve got you covered. You’ll learn not only how to stop the matrix but also how to customize your display settings for optimal performance and usability.
By the end of this guide, you’ll be able to confidently manage your Dahua DVR’s display output, switch between single and multi-camera views, and troubleshoot any issues that arise. Let’s dive in.
What Is a Video Matrix in Dahua DVR?
Before we get into the steps, it’s important to understand what the video matrix actually is. In Dahua DVR systems, the video matrix refers to the way camera feeds are displayed on your monitor. Instead of showing one camera at a time, the DVR can split the screen into multiple sections—like a 2×2 grid (4 cameras), 3×3 (9 cameras), or even 4×4 (16 cameras). This is useful for monitoring multiple areas simultaneously.
However, this multi-screen view can make it hard to see details, especially if you’re trying to identify a person, read a license plate, or analyze an event. The video matrix can also slow down older DVRs due to increased processing demands. That’s why many users prefer to disable the matrix and switch to a single-channel view when needed.
The good news? Dahua DVRs are highly configurable. You can easily stop the video matrix and return to a clean, full-screen display. The process varies slightly depending on how you access your DVR—locally, remotely, or via mobile—but the core principles remain the same.
Method 1: Stopping Video Matrix via Local Monitor (On-Site Access)
If you’re standing in front of your Dahua DVR with a connected monitor and mouse, this is the most direct way to stop the video matrix. Follow these steps:
Step 1: Access the Main Menu
Using your mouse, right-click anywhere on the live view screen. A context menu will appear. Select Main Menu from the options. If you don’t see this option, try clicking the menu button on your DVR’s remote control or front panel.

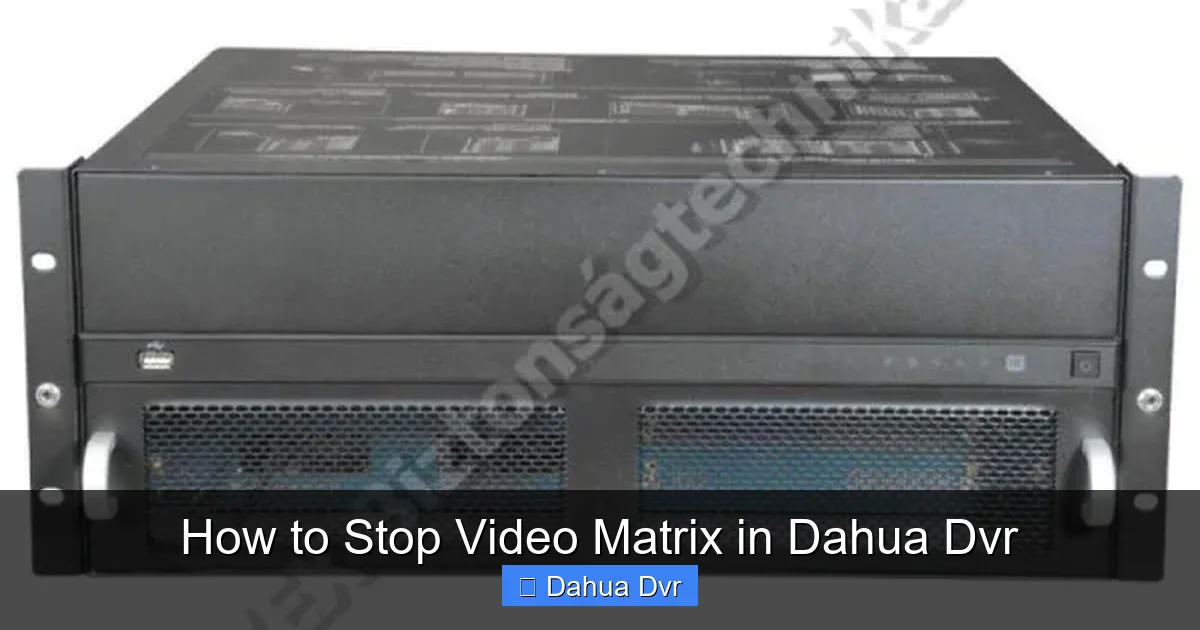

Visual guide about How to Stop Video Matrix in Dahua Dvr
Image source: webshop.novex.hu
Step 2: Navigate to Display Settings
In the Main Menu, look for a tab or icon labeled Display, Live View, or Monitor. Click on it. This section controls how video feeds are shown on your screen.
Step 3: Find the Screen Split or View Layout Option
Inside the Display or Live View menu, you’ll see options like Screen Split, View Layout, or Matrix Mode. This is where the video matrix is configured. You might see preset layouts such as 1-screen, 4-screen, 9-screen, etc.
Step 4: Change to Single-Channel View
Select the 1-screen or Single Channel option. This will disable the matrix and show only one camera feed at a time. You can then use the channel number buttons or mouse to switch between cameras manually.
Step 5: Save and Exit
Click Apply or Save to confirm your changes. Some DVRs may prompt you to restart the system. If so, allow it to reboot. Once done, your monitor should display a single camera feed instead of the split-screen matrix.
Pro Tip: If you frequently switch between matrix and single view, consider setting up a hotkey or shortcut. Some Dahua models allow you to assign a button on the remote or keyboard to toggle between views instantly.
Method 2: Stopping Video Matrix via Web Browser (Remote Access)
If you’re managing your Dahua DVR from a computer over the network, you can stop the video matrix using the web interface. Here’s how:
Step 1: Open Your Web Browser
Launch Chrome, Firefox, Edge, or any modern browser. In the address bar, type the IP address of your Dahua DVR (e.g., 192.168.1.108) and press Enter. You’ll be prompted to log in.
Step 2: Log In to the DVR
Enter your username and password. If you haven’t changed them, the default is often admin for both. For security, always change default credentials after setup.
Step 3: Go to Live View or Display Settings
Once logged in, you’ll see the live view interface. Look for a menu bar or sidebar. Click on Configuration or Settings, then navigate to Display or Live View.
Step 4: Adjust the View Layout
Find the Screen Split or View Mode setting. Change it from a multi-screen layout (like 4×4) to Single Channel or 1-screen. Some interfaces may use dropdown menus or radio buttons for this.
Step 5: Apply and Refresh
Click Save or Apply. The page may refresh automatically. If not, manually refresh your browser. You should now see a single camera feed instead of the matrix.
Note: Some older Dahua firmware versions may not support full remote display customization. If you can’t find the option, check for a firmware update or use the local interface instead.
Method 3: Stopping Video Matrix via Dahua Mobile App (DMSS)
For users on the go, the Dahua Mobile Surveillance app (DMSS) offers a convenient way to manage your DVR. Here’s how to stop the video matrix from your smartphone or tablet:
Step 1: Open the DMSS App
Launch the DMSS app on your iOS or Android device. Make sure you’re connected to the same network as your DVR, or have set up remote access via P2P or DDNS.
Step 2: Select Your DVR Device
Tap on the DVR you want to manage from the device list. Enter your login credentials if prompted.
Step 3: Enter Live View Mode
Once connected, you’ll see the live camera feeds. By default, the app may show a split-screen view (e.g., 4 cameras). To stop the matrix, tap the screen to reveal the control bar.
Step 4: Change to Single-Channel View
Look for a layout icon (usually looks like a grid or split screen). Tap it and select 1-screen or Single View. This will disable the matrix and show one camera at a time.
Step 5: Navigate Between Cameras
Use the channel selector or swipe left/right to switch between cameras. The matrix is now stopped, and you have full control over individual feeds.
Tip: You can also pinch to zoom in on a single camera for better detail. This is especially useful when reviewing footage on a small screen.
Customizing Display Settings for Better Control
Once you’ve stopped the video matrix, you might want to fine-tune your display settings for a better experience. Here are some advanced options to consider:
Set Default View Mode
To avoid manually changing the view every time, set your DVR to default to single-channel mode. In the Display settings, look for Default View or Startup Mode and select Single Channel.
Enable Auto-Switching
Some Dahua DVRs allow you to configure auto-switching between cameras. For example, the system can cycle through each camera every 10 seconds. This is useful for monitoring without the clutter of a matrix.
Adjust Screen Resolution and Refresh Rate
In the Display menu, check the Output Resolution and Refresh Rate. Set them to match your monitor’s native specs (e.g., 1920×1080 at 60Hz) for the sharpest image quality.
Use Privacy Zones and Motion Detection Overlays
Even in single-channel mode, you can enhance usability by enabling motion detection boxes or privacy zones. These help focus attention on important areas without needing a multi-camera view.
Troubleshooting Common Issues
Sometimes, stopping the video matrix doesn’t work as expected. Here are common problems and how to fix them:
Issue 1: Matrix Mode Keeps Reverting
If your DVR keeps switching back to the matrix view, it may be due to a scheduled task or auto-layout setting. Go to Schedule or Auto Switch in the menu and disable any rules that force multi-screen display.
Issue 2: No Option to Change View Layout
If you don’t see the Screen Split option, check your user permissions. Only administrators can modify display settings. Log in with an admin account or contact your system administrator.
Issue 3: Display Settings Not Saving
This could be a firmware bug. Visit the Dahua support website, download the latest firmware for your DVR model, and perform an update. Always back up your configuration before updating.
Issue 4: Black Screen After Changing View
If the screen goes black after disabling the matrix, the selected channel may be offline or misconfigured. Use the channel selector to switch to an active camera. Also, check cable connections and camera power.
Issue 5: Remote Access Not Working
If you can’t access the web interface, verify the DVR’s IP address, subnet mask, and gateway. Ensure port forwarding is set up correctly if accessing from outside the local network.
Best Practices for Managing Dahua DVR Display Output
To get the most out of your Dahua DVR and avoid confusion, follow these best practices:
- Label your cameras: Use descriptive names (e.g., “Front Door,” “Parking Lot”) so you know which feed you’re viewing in single-channel mode.
- Create user profiles: Set up different access levels. For example, security staff can use single-channel view, while managers prefer the matrix for overview.
- Regularly update firmware: Dahua frequently releases updates that improve stability and add new features. Check for updates every few months.
- Use a dedicated monitor: If possible, connect a monitor directly to the DVR for local management. This avoids network delays and ensures reliable access.
- Document your settings: Keep a record of your display configuration, especially if multiple people manage the system. This prevents accidental changes.
Conclusion: Take Control of Your Dahua DVR Display
Stopping the video matrix in your Dahua DVR is a simple yet powerful way to improve visibility, reduce system load, and gain better control over your surveillance feeds. Whether you’re using the local interface, web browser, or mobile app, the process is straightforward once you know where to look.
By switching to single-channel view, you can focus on critical details, troubleshoot issues faster, and present clear footage when needed. And with the tips and troubleshooting advice in this guide, you’ll be able to manage your DVR like a pro—no matter your experience level.
Remember, the video matrix is a helpful tool, but it’s not always necessary. Knowing how to stop video matrix in Dahua DVR gives you the flexibility to adapt your system to any situation. So go ahead, customize your display settings, and enjoy a clearer, more efficient surveillance experience.
