How to Tap into Reverse Light for Backup Camera
Installing a backup camera can dramatically improve your safety and confidence when reversing—especially in larger vehicles or tight spaces. But one of the most common questions people have is: How do I power the camera so it turns on automatically when I shift into reverse? The answer is simple: tap into the reverse light circuit.
This guide will walk you through the entire process of tapping into your vehicle’s reverse light wire to power your backup camera. Whether you’re a DIY enthusiast or a first-time installer, you’ll learn how to do it safely, correctly, and without damaging your car’s electrical system. We’ll cover everything from tools and safety tips to step-by-step wiring, troubleshooting, and best practices.
By the end of this guide, you’ll have a fully functional backup camera that activates the moment you shift into reverse—no extra switches, no guessing, just seamless visibility when you need it most.
Why Tap into the Reverse Light?

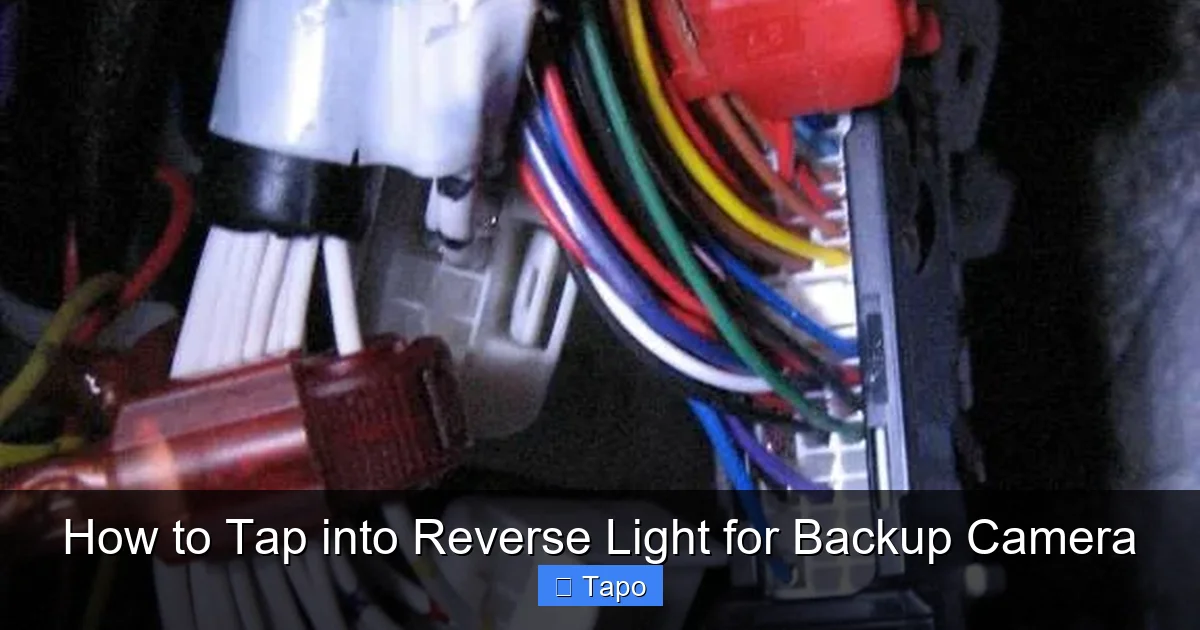

Visual guide about How to Tap into Reverse Light for Backup Camera
Image source: lightow.com
Before we dive into the how-to, let’s talk about why tapping into the reverse light is the best method for powering a backup camera.
When you shift your vehicle into reverse, the transmission sends a signal that activates the reverse lights on the rear of your car. This same signal can be used to trigger your backup camera. By connecting your camera’s power wire to the reverse light circuit, the camera turns on only when you’re in reverse—just like the lights.
This method is:
- Automatic: No need to remember to turn the camera on—it works with your gear shift.
- Reliable: The reverse light circuit is designed to handle brief, high-visibility use, making it ideal for a camera.
- Simple: You don’t need a separate power switch or complex wiring setup.
- Safe: It only powers the camera when needed, reducing the risk of battery drain.
In short, tapping into the reverse light is the most efficient and user-friendly way to integrate a backup camera into your vehicle.
Tools and Materials You’ll Need

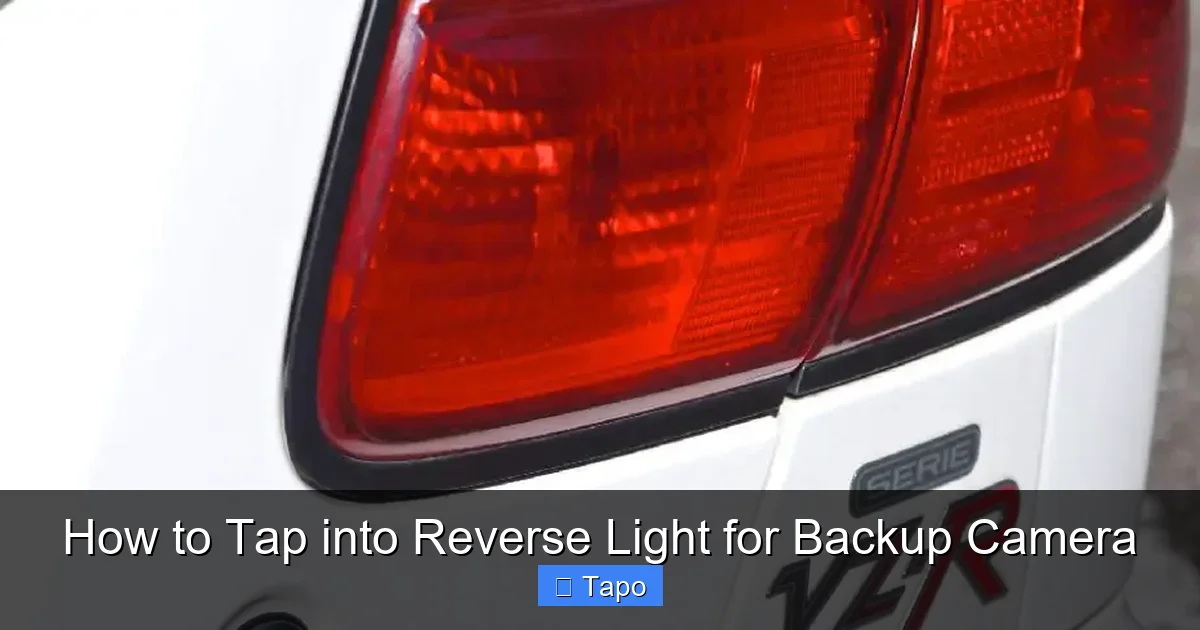

Visual guide about How to Tap into Reverse Light for Backup Camera
Image source: reverse-cameras.com
Before you begin, gather all the necessary tools and materials. Having everything ready will make the installation smoother and prevent frustrating mid-project trips to the hardware store.
Essential Tools
- Wire strippers: For cleanly removing insulation from wires.
- Multimeter: To test voltage and confirm the correct wire.
- Crimping tool: For secure connections with butt connectors or T-taps.
- Electrical tape: For insulating connections (though heat shrink is better).
- Heat shrink tubing and heat gun (or lighter): For professional, waterproof seals.
- Zip ties: To secure and organize wires.
- Screwdrivers and panel removal tools: For accessing interior trim and light housings.
- Drill and drill bits (if mounting camera): For installing the camera housing.
Materials
- Backup camera kit: Includes camera, monitor, and wiring harness.
- Wire connectors: T-tap, Posi-Tap, or solder/heat shrink for joining wires.
- Fuse tap (optional): If you’re also powering the monitor from the fuse box.
- 12V relay (optional): For high-power systems or added protection.
- Wire loom or conduit: To protect wires from abrasion.
Safety Gear
- Gloves: Protect your hands from sharp edges and electrical components.
- Safety glasses: Especially when drilling or working near lights.
- Work light: To illuminate dark areas under the vehicle or inside panels.
Having the right tools not only makes the job easier but also ensures a safer, more professional result.
Step 1: Disconnect the Battery
Safety first! Before touching any wires, disconnect the negative terminal of your car battery. This prevents accidental shorts, sparks, or damage to your vehicle’s electronics.
Why This Matters
Even though you’re working with low-voltage 12V systems, a short circuit can fry your camera, blow a fuse, or worse—cause a fire. Disconnecting the battery eliminates this risk.
How to Do It
- Open the hood and locate the battery.
- Use a wrench to loosen the nut on the negative (black) terminal.
- Remove the cable and secure it away from the terminal so it can’t accidentally reconnect.
- Wait 5–10 minutes to allow any residual charge to dissipate.
Once the battery is disconnected, you’re ready to start working safely.
Step 2: Locate the Reverse Light Wire
The next step is finding the wire that powers your reverse lights. This wire carries 12V only when the vehicle is in reverse—perfect for triggering your camera.
Where to Look
Reverse lights are typically located in the rear taillight assembly. On most vehicles, there are two reverse lights (one on each side), but you only need to tap into one.
Accessing the Light Housing
- Open the trunk or tailgate.
- Remove the interior trim panel covering the taillight assembly. This usually involves unscrewing a few screws or popping out plastic clips.
- Once the panel is off, you’ll see the back of the taillight housing with several wires connected to the bulb socket.
Identifying the Correct Wire
Reverse light wires are often white or gray, but color codes vary by make and model. Don’t rely solely on color—use a multimeter to confirm.
Testing with a Multimeter
- Set your multimeter to DC voltage (usually marked as “V⎓”).
- Reconnect the battery temporarily (just for testing).
- Have a helper shift the vehicle into reverse while you probe the wires.
- Touch the black probe to a ground (like the car chassis) and the red probe to each wire in the socket.
- The wire that shows 12V when in reverse (and 0V in other gears) is your target.
- Disconnect the battery again before proceeding.
Pro Tip: Label the wire with a piece of tape so you don’t lose track of it.
Step 3: Choose Your Wiring Method
Now that you’ve found the reverse light wire, it’s time to connect your camera’s power wire. You have several options, each with pros and cons.
Option 1: T-Tap Connectors
T-tap connectors are quick and easy to use. They pierce the insulation and clamp onto the wire without cutting it.
- Pros: Fast, no stripping, reusable.
- Cons: Can loosen over time, not waterproof, may damage wire if reused.
Option 2: Solder and Heat Shrink
This is the most reliable method. Strip a small section of the reverse light wire, twist it with the camera power wire, solder the connection, and cover with heat shrink tubing.
- Pros: Strong, waterproof, permanent.
- Cons: Requires skill and tools, not reversible.
Option 3: Posi-Tap Connectors
Posi-Tap connectors are high-quality, screw-based taps that provide a secure, vibration-resistant connection.
- Pros: Durable, weather-resistant, no soldering.
- Cons: Slightly more expensive, requires proper installation.
Recommendation: For most DIYers, Posi-Tap or soldering with heat shrink offers the best balance of reliability and ease.
Step 4: Make the Connection
Let’s walk through the connection process using the Posi-Tap method (our top recommendation).
Step-by-Step: Using a Posi-Tap Connector
- Strip about 1/2 inch of insulation from the camera’s power wire.
- Open the Posi-Tap connector by unscrewing the cap.
- Insert the stripped end of the camera wire into the connector and tighten the screw.
- Place the reverse light wire into the slot on the other side of the Posi-Tap.
- Screw the cap down tightly to pierce the insulation and make contact.
- Gently tug on both wires to ensure a secure connection.
- Wrap the connector with electrical tape or cover with heat shrink for extra protection.
Alternative: Soldering Method
- Cut the reverse light wire and strip both ends.
- Twist the camera power wire with one end of the cut wire.
- Solder the connection until it’s shiny and solid.
- Slide heat shrink tubing over the joint and apply heat to seal.
- Connect the other end of the reverse light wire to complete the circuit.
Important: Never leave exposed copper. Always insulate your connections.

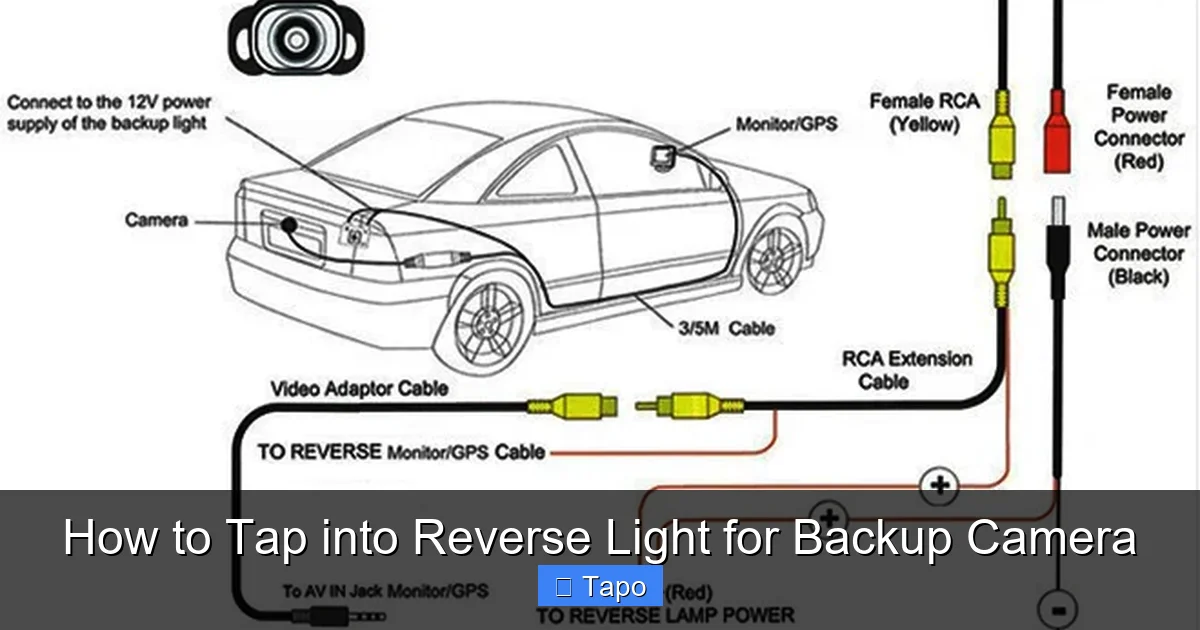

Step 5: Route the Camera Wire
Now that the power is connected, you need to run the camera’s video and power cable from the rear of the vehicle to the front (where the monitor will be).
Planning the Route
The goal is to run the wire safely and discreetly. Avoid areas with:
- Moving parts (like suspension or steering components)
- Sharp metal edges
- High heat (near exhaust)
- Areas prone to water intrusion
Common Routing Paths
- Through the firewall: Look for existing grommets where factory wires pass through. Enlarge one slightly if needed.
- Along the interior trim: Remove door sill plates and rear panels to hide the wire.
- Under the carpet: On some vehicles, you can lift the carpet to run wires.
- Use existing harnesses: Bundle your wire with factory wiring using zip ties.
Securing the Wire
Use zip ties every 12–18 inches to keep the wire taut and prevent sagging. Avoid over-tightening, which can damage the wire.
Pro Tip: Use wire loom or split conduit to protect the cable from abrasion, especially where it passes through metal.
Step 6: Connect the Monitor
Your backup camera kit likely includes a monitor that displays the camera feed. This monitor needs power and a video input.
Powering the Monitor
You have two options:
- Constant 12V (from fuse box): So the monitor is always on (useful if you want to use it for other purposes).
- Switched 12V (from ignition): So the monitor turns on with the car.
Most people prefer switched power so the monitor doesn’t drain the battery when the car is off.
Connecting the Video Signal
Run the video cable from the camera to the monitor. Plug it into the designated input (usually labeled “CAM” or “VIDEO IN”).
Mounting the Monitor
Common locations include:
- Dashboard (using a suction cup or adhesive mount)
- Windshield (with a bracket)
- Rearview mirror (replacement mirror with built-in screen)
Ensure the monitor doesn’t obstruct your view while driving.
Step 7: Test the System
Before reassembling everything, it’s crucial to test the setup.
Reconnect the Battery
Reattach the negative terminal and tighten it securely.
Power On and Test
- Turn on the ignition (you don’t need to start the engine).
- Shift into reverse.
- Check if the monitor displays the camera feed.
- Verify that the image is clear, stable, and activates immediately.
- Shift out of reverse and confirm the camera turns off.
If everything works, great! If not, move to the troubleshooting section below.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix the most common ones.
Camera Doesn’t Turn On in Reverse
- Check the connection: Ensure the Posi-Tap or solder joint is secure.
- Test voltage again: Use the multimeter to confirm 12V is present when in reverse.
- Inspect the fuse: The reverse light circuit may have a blown fuse. Check your owner’s manual for the correct fuse location.
Fuzzy or No Image
- Check video cable connections: Ensure both ends are fully plugged in.
- Look for interference: Keep video cables away from power wires to avoid static.
- Test the camera separately: Connect it directly to a 12V source to rule out a defective unit.
Monitor Doesn’t Power On
- Verify power source: Use the multimeter to check if the monitor is receiving 12V.
- Check ground connection: A poor ground can prevent the monitor from working.
- Test with another device: Plug in a known-working 12V accessory to confirm the power source.
Camera Turns On in Other Gears
This means you tapped into the wrong wire—one that’s always hot. Recheck your multimeter readings and tap into the correct reverse-only wire.
Optional: Use a Relay for Extra Protection
If your camera or monitor draws more than 5–10 amps, consider using a 12V relay. A relay acts as a switch controlled by the reverse light circuit, protecting your vehicle’s wiring from overload.
How a Relay Works
The relay uses a small current from the reverse light to close a circuit that delivers full power to the camera. This isolates the high-current load from the delicate reverse light wire.
When to Use One
- You’re powering multiple cameras or accessories.
- Your camera has built-in heaters or high-brightness LEDs.
- You want to future-proof your system.
Relays are inexpensive and easy to install—worth considering for peace of mind.
Final Tips for a Clean Installation
A great backup camera install isn’t just functional—it looks professional too.
- Hide all wires: Use trim panels, conduits, and loom to keep everything out of sight.
- Label connections: If you ever need to troubleshoot, labeled wires save time.
- Use quality connectors: Cheap taps fail over time. Invest in Posi-Tap or solder joints.
- Test in different conditions: Try reversing at night, in rain, or with headlights on to ensure consistent performance.
- Secure the camera: Make sure it’s mounted tightly and won’t vibrate or shift.
Conclusion
Tapping into the reverse light for your backup camera is a smart, reliable, and straightforward way to add safety and convenience to your vehicle. By following this guide, you’ve learned how to:
- Locate and test the correct wire
- Make a secure, insulated connection
- Route wires safely and neatly
- Test and troubleshoot the system
With the right tools and a bit of patience, you can complete this project in a few hours—and enjoy the benefits every time you reverse. Not only will you avoid fender benders, but you’ll also gain confidence in tight parking spots, driveways, and busy streets.
Remember: safety and precision are key. Take your time, double-check connections, and don’t skip the multimeter test. A well-installed backup camera is more than a gadget—it’s a valuable safety upgrade that protects you, your passengers, and others on the road.
Now go ahead, shift into reverse, and see the difference for yourself!
