How to Turn on Zosi Camera System

This guide walks you through how to turn on Zosi camera system with clear, beginner-friendly instructions. You’ll learn power setup, DVR connection, and quick troubleshooting to get your security system running fast.

Key Takeaways

• Proper power connection is essential: Always use the correct power adapter and ensure outlets are functional to avoid startup issues.
• Check DVR and camera links: Confirm all cables are securely connected between cameras, DVR, and monitor before powering on.
• Use the right monitor: A compatible display with correct input settings is necessary to view the Zosi system feed.
• Initial setup requires patience: The first boot may take a few minutes—don’t panic if the screen stays black briefly.
• Firmware updates improve performance: After turning on, check for updates to ensure optimal functionality and security.
• Troubleshooting is simple: Most issues stem from loose cables or incorrect power sources—double-check connections first.
• Remote access needs network setup: To view cameras remotely, connect the DVR to your router and configure network settings.

Quick Answers to Common Questions

Tip/Question?

Can I turn on the Zosi camera system without a monitor?

Yes, but you won’t see the live feed or access the menu. A monitor is required for initial setup. After that, you can use the mobile app for remote viewing.

Tip/Question?

How long does it take for the DVR to boot up?

Usually 30–60 seconds. If it takes longer, check power connections or restart the unit.

Tip/Question?

Do all cameras need separate power adapters?

It depends on your model. Some use combo BNC cables that carry both video and power. Others require individual adapters.

Tip/Question?

What if my camera shows a black screen?

First, check the power and cable connections. Then test the camera on another DVR port. If it still doesn’t work, the camera or cable may be faulty.

Tip/Question?

Can I use my TV as a monitor for the DVR?

Yes, as long as it has HDMI or VGA input. Switch to the correct source using your TV remote.

How to Turn on Zosi Camera System: A Complete Step-by-Step Guide

So, you’ve just unboxed your Zosi camera system—congratulations! Whether you’re securing your home, office, or small business, Zosi offers reliable, high-definition surveillance that’s easy to install and manage. But before you can start monitoring your property, you need to know how to turn on Zosi camera system correctly.

This comprehensive guide will walk you through every step—from unboxing to live viewing—so you can get your Zosi security system up and running with confidence. We’ll cover power connections, DVR setup, monitor pairing, initial configuration, and even troubleshooting common issues. No technical jargon, no confusion—just clear, simple instructions you can follow in under 30 minutes.

By the end of this guide, you’ll not only know how to turn on your Zosi camera system, but also how to ensure it runs smoothly for years to come.

What You’ll Need Before Starting

Before flipping any switches, make sure you have all the necessary components and tools ready. Rushing this step can lead to frustration or damage to your equipment.

Here’s a quick checklist:

• Zosi DVR (Digital Video Recorder): The brain of your system. It processes and records footage from your cameras.

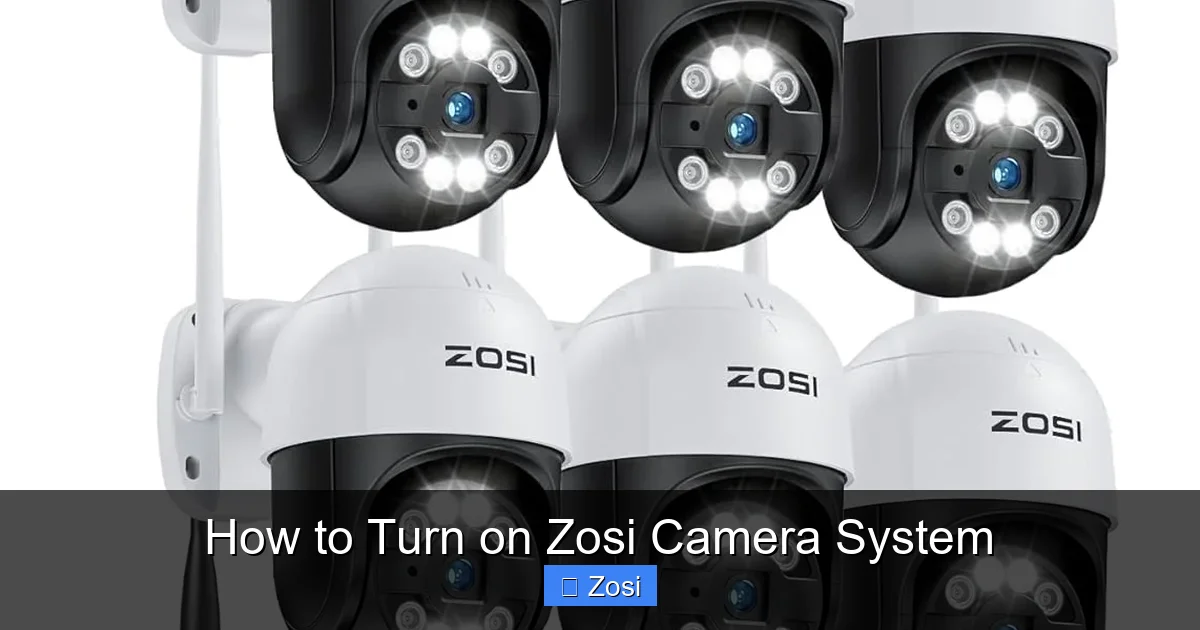

• Zosi Security Cameras: Usually 4, 8, or 16 depending on your kit. These are weatherproof and designed for indoor/outdoor use.
• Power Adapters: Each camera comes with its own power adapter. The DVR also has one.
• BNC Cables: These connect the cameras to the DVR. Some kits include pre-attached cables.
• HDMI or VGA Cable: To connect the DVR to your monitor or TV.
• Monitor or TV: Any display with HDMI or VGA input will work.
• Ethernet Cable (optional): For connecting the DVR to your router if you want remote viewing.
• Screwdriver and Drill (optional): For mounting cameras if not already installed.

Having everything ready saves time and prevents mid-setup interruptions.

Step 1: Unbox and Inspect Your Zosi Camera System

Start by carefully unpacking your Zosi kit. Lay out all components on a clean, flat surface. Check the user manual included in the box—it’s your best friend during setup.

Inspect each item for damage during shipping. Look for cracked camera housings, frayed cables, or missing parts. If anything looks off, contact Zosi customer support immediately.

Most Zosi kits include:

• 1 DVR unit
• 4–16 cameras (depending on model)
• Power adapters for each camera
• BNC cables (some with power combo connectors)
• HDMI/VGA cable
• Mouse (for DVR navigation)
• Mounting brackets and screws
• Quick start guide

Once you’ve confirmed everything is present and undamaged, you’re ready to begin.

Step 2: Install the Cameras (If Not Already Done)

If your cameras aren’t already mounted, now’s the time to install them. Choose strategic locations—entry points, driveways, backyards, or high-traffic areas.

Mounting the Cameras

Use the included mounting brackets and screws. Drill pilot holes if needed, especially for brick or concrete surfaces. Make sure the camera angle covers the desired area without obstructions.

Tip: Avoid pointing cameras directly at bright lights or the sun, as this can cause glare or wash out the image.

Run the Cables

Route the BNC cables from each camera to the DVR location. If your kit uses combo cables (video + power in one), this is easier. Otherwise, you’ll need to run separate power cables.

Use cable clips or conduit to protect wires from weather and tampering. Keep cables away from sharp edges or heat sources.

Connect Cameras to DVR

At the DVR, locate the BNC video inputs on the back. They’re usually labeled CH1, CH2, etc. Plug each camera’s BNC cable into the corresponding port.

If using separate power cables, connect each camera’s power adapter to a nearby outlet. Some DVRs have built-in power ports—check your model.

Step 3: Connect the DVR to a Monitor

To see what your cameras are capturing, you need a display.

Choose the Right Cable

Most Zosi DVRs support both HDMI and VGA outputs. HDMI delivers better picture quality, so use it if your monitor or TV has an HDMI port.

Plug one end of the HDMI or VGA cable into the DVR’s output port and the other into your monitor.

Power On the Monitor

Turn on your TV or monitor and switch to the correct input source. For HDMI, press the “Input” or “Source” button on your remote until you see the DVR screen.

If nothing appears, double-check the cable connection and input selection.

Step 4: Power Up the System

Now comes the moment of truth—turning on your Zosi camera system.

Connect the DVR Power Adapter

Plug the DVR’s power adapter into a wall outlet. Then connect the other end to the DVR’s power input (usually labeled “DC 12V”).

Avoid using power strips with surge protectors unless necessary—some can interfere with startup.

Power On the DVR

Press the power button on the front or back of the DVR. A light should turn on, and you may hear a fan or beep.

Wait 30–60 seconds. The DVR needs time to boot up. Don’t panic if the screen stays black at first—this is normal.

Power On the Cameras

If your cameras have separate power adapters, plug them in now. Each camera should light up (some have IR LEDs that glow red in the dark).

If using a combo cable with power over BNC, the DVR may power the cameras automatically once it’s on.

Step 5: Initial Setup and Configuration

Once the DVR boots up, you’ll see the main menu or live view screen.

Set the Date and Time

Accurate timestamps are crucial for security footage. Go to:

Menu > System > General > Date & Time

Set the correct date, time, and time zone. Enable daylight saving if applicable.

Configure Recording Settings

Decide how you want your system to record:

• Continuous Recording: Records 24/7. Uses more storage.
• Motion Detection: Only records when movement is detected. Saves space.
• Scheduled Recording: Records during specific hours (e.g., nighttime only).

Go to Menu > Storage > Record Schedule to customize.

Set Up Motion Alerts (Optional)

If your model supports it, enable motion detection alerts. You can set sensitivity levels and choose which cameras trigger alerts.

This helps reduce false alarms from trees or animals.

Format the Hard Drive (If New)

If this is a new system, the DVR may prompt you to format the internal hard drive. This prepares it for recording.

Go to Menu > Storage > HDD Management > Format

Warning: Formatting erases all data. Only do this on a new system.

Step 6: Test the System

After setup, test everything to ensure it’s working.

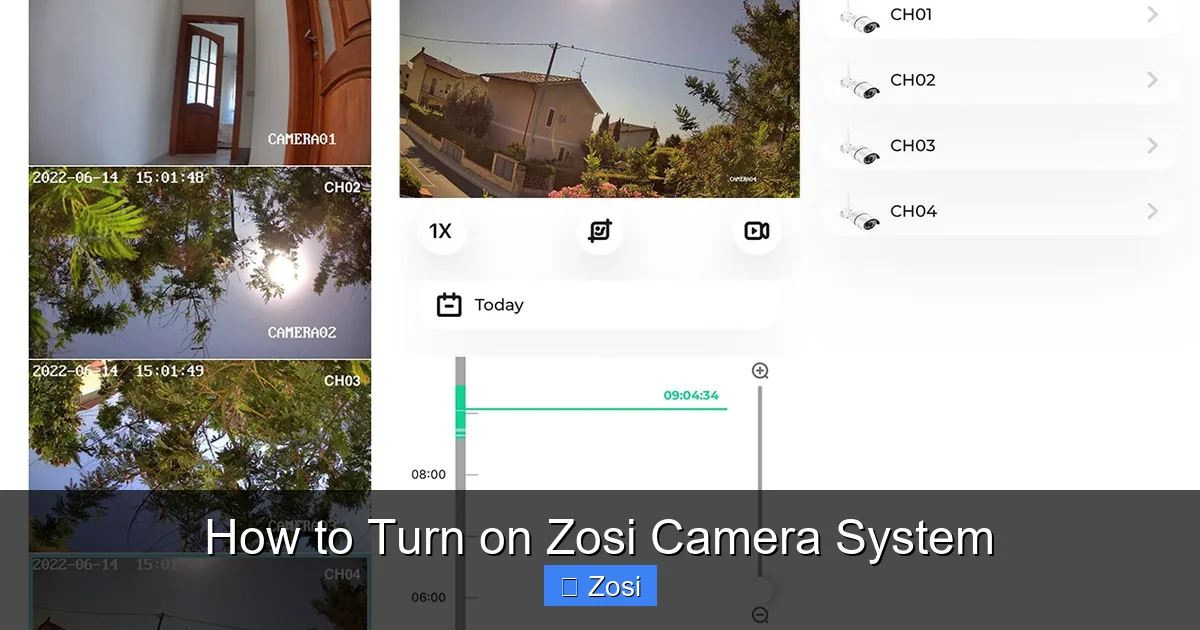

Check Live View

Look at the monitor. You should see live feeds from all connected cameras. If a camera is missing, check its cable and power.

Test Recording

Walk in front of a camera to trigger motion detection. Wait a few minutes, then play back the recording.

Go to Menu > Playback and select a camera and time.

Adjust Camera Angles

If the view is too narrow or off-target, slightly adjust the camera position. Even small tweaks can improve coverage.

Step 7: Enable Remote Viewing (Optional)

Want to check your cameras from your phone or laptop? You’ll need to connect the DVR to your home network.

Connect to Router

Use an Ethernet cable to connect the DVR’s LAN port to your router.

Configure Network Settings

Go to Menu > Network > TCP/IP

Set the DVR to obtain an IP address automatically (DHCP), or assign a static IP if preferred.

Download the Zosi App

Search for “Zosi Smart” or “Zosi Pro” in the App Store (iOS) or Google Play (Android).

Create an account and follow the app’s setup wizard to add your DVR.

You’ll need the DVR’s serial number (found on the label or in the menu under Info > Device Info).

Test Remote Access

Open the app and log in. You should see live camera feeds from anywhere with internet.

Troubleshooting Common Issues

Even with careful setup, problems can happen. Here’s how to fix the most common ones.

No Video on Monitor

• Check HDMI/VGA cable connections.
• Ensure the monitor is on the correct input.
• Try a different cable or monitor.
• Restart the DVR.

Camera Not Showing Up

• Verify the BNC cable is securely plugged in.
• Check if the camera has power (look for LED lights).
• Test the camera on another DVR port.
• Replace the BNC cable if damaged.

DVR Won’t Turn On

• Confirm the power adapter is plugged in and working.
• Try a different outlet.
• Check for blown fuses in the adapter.
• Contact Zosi support if the DVR still doesn’t power on.

Poor Video Quality

• Clean the camera lens with a soft cloth.
• Ensure the camera isn’t pointed at a bright light source.
• Check cable length—long runs can weaken the signal.
• Upgrade to HD cameras if using older models.

Motion Detection Not Working

• Go to Menu > Alarm > Motion Detection and ensure it’s enabled.
• Adjust sensitivity settings.
• Make sure the camera isn’t blocked by foliage or debris.

Maintenance Tips for Long-Term Use

To keep your Zosi system running smoothly:

• Clean cameras monthly: Wipe lenses with a microfiber cloth to prevent dust buildup.
• Check cables regularly: Look for fraying, corrosion, or loose connections.
• Update firmware: Visit Zosi’s website to download the latest DVR firmware.
• Monitor hard drive health: Use the DVR’s storage menu to check for errors.
• Backup important footage: Save critical recordings to a USB drive or cloud service.

Conclusion

Turning on your Zosi camera system doesn’t have to be complicated. With the right preparation and step-by-step guidance, you can have a fully functional security setup in under an hour.

From connecting power and cables to configuring recording settings and enabling remote access, this guide covers everything you need to know. Remember: how to turn on Zosi camera system starts with patience and attention to detail.

If you follow these instructions, your Zosi system will provide reliable, high-quality surveillance for your home or business. And if you run into issues, the troubleshooting tips above will help you resolve them quickly.

Now that your system is up and running, enjoy peace of mind knowing your property is protected 24/7.
