Foscam VMS (Video Management System) lets you monitor and manage multiple Foscam cameras from one central interface. This guide walks you through installation, setup, live viewing, recording, and remote access—making it easy to keep your home or business secure.
Key Takeaways
- Foscam VMS centralizes camera control: Manage all your Foscam cameras from a single dashboard for easier monitoring and recording.
- Easy installation on Windows and Mac: Download and install the software in minutes using the official Foscam website.
- Add cameras via IP address or UID: Connect your cameras using their unique identifiers for seamless integration.
- Enable motion detection and alerts: Set up smart alerts to receive notifications when activity is detected.
- Record and playback footage locally: Save video clips to your computer and review them anytime.
- Access remotely from anywhere: Use the Foscam Cloud or mobile app to view live feeds on the go.
- Troubleshoot common issues quickly: Resolve connection, playback, and login problems with simple fixes.
What Is Foscam VMS and Why Should You Use It?
Foscam VMS (Video Management System) is a powerful desktop software designed to help you manage multiple Foscam security cameras from one easy-to-use interface. Whether you’re monitoring your home, office, or small business, Foscam VMS gives you centralized control over live viewing, recording, playback, and camera settings.
Unlike using individual camera apps or web interfaces, Foscam VMS lets you see all your cameras on a single screen. You can switch between views, record footage, receive alerts, and even export video clips—all without logging into each camera separately. This makes it ideal for users with two or more Foscam cameras who want a streamlined, professional-grade surveillance experience.
In this guide, you’ll learn how to download, install, and configure Foscam VMS on your computer. We’ll cover adding cameras, setting up recording schedules, enabling motion detection, accessing footage remotely, and troubleshooting common issues. By the end, you’ll be able to use Foscam VMS like a pro—keeping your property secure with confidence.
Step 1: Download and Install Foscam VMS

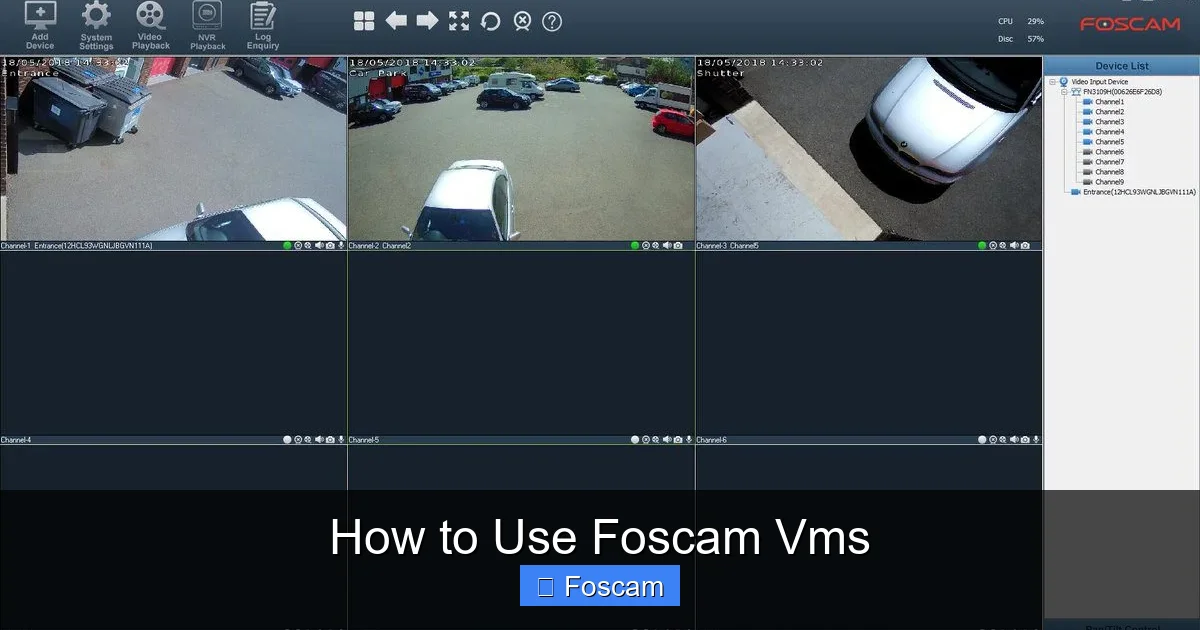

Visual guide about How to Use Foscam Vms
Image source: foscam.hu
Before you can start using Foscam VMS, you need to download and install the software on your computer. The good news? It’s quick, free, and works on both Windows and Mac.
Check System Requirements
Make sure your computer meets the basic requirements:
– Windows 7, 8, 10, or 11 (64-bit recommended)
– macOS 10.12 or later
– At least 4GB RAM (8GB preferred for multiple cameras)
– 500MB free disk space
– Stable internet connection
Download the Software
Go to the official Foscam website at www.foscam.com and navigate to the “Support” or “Downloads” section. Look for “Foscam VMS” and select the version compatible with your operating system.
Avoid third-party websites to prevent malware or outdated versions. Always download directly from Foscam to ensure security and compatibility.
Install Foscam VMS
Once the download is complete:
1. Double-click the installer file (e.g., FoscamVMS_Setup.exe for Windows).
2. Follow the on-screen prompts.
3. Accept the license agreement.
4. Choose the installation folder (default is fine for most users).
5. Click “Install” and wait for the process to finish.
On Mac, drag the Foscam VMS app into your Applications folder.
After installation, launch the software. You’ll see a clean, modern interface with options to add cameras, view live feeds, and access settings.
Step 2: Add Your Foscam Cameras to VMS
Now that Foscam VMS is installed, it’s time to connect your cameras. You can add cameras using either their IP address or UID (Unique Identifier). The UID method is simpler and recommended for most users.
Find Your Camera’s UID
Each Foscam camera has a unique UID printed on a label on the device or in the packaging. It usually looks like “FC-XXXX-XXXX-XXXX”. You can also find it in the camera’s web interface or mobile app under “Device Info.”
Add a Camera Using UID
1. Open Foscam VMS.
2. Click the “+” or “Add Device” button.
3. Select “Add by UID.”
4. Enter the UID of your camera.
5. Enter the camera’s username and password (default is often “admin” with no password, but change this for security).
6. Click “Add.”
The software will search for the camera on your network. If successful, the camera will appear in your device list.
Add a Camera Using IP Address (Advanced)
If you prefer using the IP address:
1. Make sure the camera is connected to the same network as your computer.
2. Find the camera’s IP address (check your router’s connected devices list or use the Foscam app).
3. In VMS, click “Add Device” and choose “Add by IP.”
4. Enter the IP address, port (usually 88 or 80), username, and password.
5. Click “Add.”
Tip: Assign a static IP to your camera in your router settings to avoid connection issues if the IP changes.
Test the Connection
Once added, click on the camera in the device list. You should see a live video feed. If not, double-check the UID, IP, username, and password. Ensure the camera is powered and connected to Wi-Fi or Ethernet.
Step 3: Configure Camera Settings in VMS
After adding your cameras, customize their settings for optimal performance. Foscam VMS lets you adjust video quality, motion detection, recording schedules, and more—all from one place.
Adjust Video Quality and Resolution
1. Right-click on a camera in the device list.
2. Select “Device Settings” or “Camera Settings.”
3. Go to the “Video” tab.
4. Choose your preferred resolution (e.g., 1080p, 720p).
5. Adjust bitrate and frame rate (higher values = better quality but larger file sizes).
6. Click “Save.”
Tip: Use 720p for stable streaming over Wi-Fi. Reserve 1080p for wired connections or local viewing.
Enable Motion Detection
Motion detection is one of the most useful features. It triggers alerts and recordings when movement is detected.
1. In the camera settings, go to the “Alarm” or “Motion Detection” tab.
2. Check “Enable Motion Detection.”
3. Adjust sensitivity (start with medium).
4. Set detection zones (optional)—draw areas where motion should trigger alerts.
5. Choose actions: record video, send email, or play a sound.
Example: Set high sensitivity in a hallway but lower it in a tree-filled yard to avoid false alarms from wind.
Set Up Recording Schedules
You can record continuously or only during specific times.
1. Go to the “Recording” tab in camera settings.
2. Choose “Schedule Recording.”
3. Select days and time ranges (e.g., weekdays 9 AM–5 PM).
4. Choose recording mode: motion-triggered or continuous.
5. Click “Save.”
Tip: Use motion-triggered recording to save storage space. Enable continuous recording for high-security areas.
Configure Audio Settings
If your camera has a microphone or speaker:
1. Go to the “Audio” tab.
2. Enable “Two-Way Audio” to talk through the camera.
3. Adjust microphone sensitivity and speaker volume.
Use this feature to greet visitors or warn intruders remotely.
Step 4: View Live Feeds and Use the Interface
Foscam VMS offers a clean, intuitive interface for monitoring your cameras in real time.
Navigate the Main Dashboard
The main screen shows a grid of camera thumbnails. You can:
– Click a thumbnail to view full-screen.
– Right-click for quick settings.
– Use the toolbar to switch between 1, 4, 9, or 16 camera views.
Tip: Use the 4-view layout to monitor multiple areas at once.
Control Camera Movement (PTZ)
If your camera supports Pan-Tilt-Zoom (PTZ):
1. Click the camera feed.
2. Use the on-screen arrows to pan left/right or tilt up/down.
3. Use the zoom slider to get a closer look.
Some models also support preset positions—save frequently viewed angles (e.g., front door, backyard) for quick access.
Use the Timeline for Playback
To review recorded footage:
1. Click the “Playback” tab.
2. Select a camera and date.
3. Use the timeline at the bottom to scrub through recordings.
4. Click the play button to watch.
Color-coded bars show when motion was detected or when recording was active.
Take Screenshots and Export Video
Need to save evidence or share footage?
1. While viewing live or playback, click the camera icon to take a screenshot.
2. Click the download icon to export a video clip.
3. Choose format (MP4 recommended) and save location.
Tip: Export clips immediately after an incident for best quality.
Step 5: Set Up Remote Access and Mobile Viewing
One of the biggest advantages of Foscam VMS is remote access. You can view your cameras from anywhere using the Foscam Cloud or mobile app.
Enable Foscam Cloud (Recommended)
Foscam Cloud lets you access your cameras securely without complex network setup.
1. In VMS, go to “Tools” > “Cloud Settings.”
2. Sign in with your Foscam account (create one if needed).
3. Enable “Cloud Service” for each camera.
4. Note the Cloud ID for remote access.
Now you can log in to the Foscam app or website from any device and view your cameras.
Use the Foscam Mobile App
Download the “Foscam” app (iOS or Android).
1. Open the app and log in with your Foscam account.
2. Your cameras should appear automatically if Cloud is enabled.
3. Tap a camera to view live feed, receive alerts, or control PTZ.
Tip: Enable push notifications in the app to get instant alerts on your phone.
Access via Web Browser (Alternative)
If you prefer not to use the app:
1. Go to my.foscam.com.
2. Log in with your Foscam account.
3. View and manage your cameras online.
Note: Web access may have limited features compared to the desktop VMS or mobile app.
Step 6: Troubleshooting Common Issues
Even with the best setup, you might run into problems. Here’s how to fix the most common Foscam VMS issues.
Camera Not Connecting
– Double-check UID or IP address.
– Ensure the camera is powered and online.
– Restart the camera and router.
– Update camera firmware via the Foscam app.
No Video Feed
– Verify username and password.
– Check network bandwidth—too many cameras can overload Wi-Fi.
– Lower video resolution in settings.
– Disable firewall temporarily to test.
Motion Alerts Not Working
– Confirm motion detection is enabled in VMS.
– Adjust sensitivity and detection zones.
– Ensure the camera has a clear view (no obstructions).
– Check that email or push notifications are configured.
Playback Not Loading
– Make sure recordings were saved (check storage space).
– Try a different date or camera.
– Reinstall VMS or update to the latest version.
High CPU or Lag
– Reduce the number of cameras on screen.
– Lower video resolution and frame rate.
– Close other programs using CPU.
– Upgrade your computer if needed.
Best Practices for Using Foscam VMS
To get the most out of your system, follow these tips:
- Use strong passwords: Change default login credentials on all cameras to prevent unauthorized access.
- Update firmware regularly: Check for updates monthly to fix bugs and improve security.
- Back up recordings: Copy important clips to an external drive or cloud storage.
- Label your cameras: Rename devices in VMS (e.g., “Front Door,” “Garage”) for easy identification.
- Test alerts weekly: Trigger motion detection to ensure notifications are working.
- Secure your network: Use WPA3 encryption on your Wi-Fi and enable a firewall.
Conclusion
Foscam VMS is a powerful, user-friendly tool for managing your Foscam security cameras. With this guide, you’ve learned how to install the software, add cameras, configure settings, view live feeds, record footage, and access your system remotely. Whether you’re protecting your home or monitoring a business, Foscam VMS gives you the control and peace of mind you need.
By following best practices and troubleshooting tips, you can ensure reliable performance and long-term security. Remember to keep your software and firmware updated, use strong passwords, and test your system regularly.
With Foscam VMS, you’re not just watching your property—you’re in full control.
