How to Use Poe Switch for IP Cameras A Complete Guide

Using a PoE switch for IP cameras simplifies installation by delivering both power and data over a single Ethernet cable, eliminating the need for separate power adapters and reducing clutter. Simply connect your IP cameras to the PoE switch, link the switch to your router or NVR, and configure via the switch’s management interface—ensuring seamless, reliable surveillance with plug-and-play efficiency.

Key Takeaways

• Choose the right PoE switch: Match port count and power budget to your camera needs.
• Verify PoE compatibility: Ensure cameras support 802.3af/at standards for seamless power delivery.
• Plan cable runs carefully: Use Cat5e or higher for optimal data and power transmission.
• Enable VLANs for security: Segment camera traffic to reduce network congestion and risks.
• Monitor switch health: Check power usage and port status to avoid outages.
• Expand smartly: Use PoE extenders or injectors for long-distance installations beyond 100m.

Understanding the Basics of PoE Switches and IP Cameras

Power over Ethernet (PoE) technology has revolutionized the way we deploy and manage IP camera systems, offering a streamlined, efficient, and cost-effective solution for both residential and commercial surveillance. At its core, PoE allows electrical power and data to be transmitted over a single Ethernet cable, eliminating the need for separate power sources near each camera. This innovation is particularly valuable for IP (Internet Protocol) cameras, which rely on network connectivity for video transmission, remote access, and advanced features like motion detection and analytics.

The integration of PoE switches into IP camera setups simplifies installation, reduces cabling clutter, and enhances system reliability. Whether you’re setting up a small home security system with four cameras or a large-scale enterprise deployment across multiple buildings, a PoE switch can centralize power and data management. In this guide, we’ll explore how to use a PoE switch for IP cameras, covering everything from selecting the right equipment to troubleshooting common issues. By the end, you’ll have the knowledge to design a robust, scalable surveillance network that meets your specific needs.

What Is a PoE Switch?

A Power over Ethernet switch is a network switch that delivers both data and electrical power to connected devices—such as IP cameras, VoIP phones, and wireless access points—via standard Ethernet cables (typically Cat5e, Cat6, or higher). Unlike regular switches, PoE switches comply with IEEE 802.3af, 802.3at (PoE+), or 802.3bt (PoE++) standards, ensuring safe and regulated power delivery. For IP cameras, this means no need for power outlets near each camera location, which is especially beneficial in hard-to-reach areas like rooftops, ceilings, or outdoor perimeters.

PoE switches come in managed, unmanaged, and smart variants. Unmanaged switches are plug-and-play, ideal for small setups, while managed switches offer advanced features like VLANs, QoS, and remote monitoring—perfect for larger installations requiring granular control. The choice depends on your system size, budget, and future scalability plans.

Why Use a PoE Switch for IP Cameras?

Using a PoE switch for IP cameras offers numerous advantages:

• Simplified Installation: One cable handles both power and data, reducing labor and material costs.
• Flexibility: Cameras can be placed anywhere within the cable’s reach (up to 100 meters), without proximity to power outlets.
• Reliability: Centralized power via the switch allows for UPS backup, ensuring cameras stay online during outages.
• Scalability: Adding new cameras is as easy as connecting them to an available PoE port.
• Safety: PoE standards include safeguards against overvoltage, overcurrent, and short circuits.

For example, a retail store owner can install eight IP cameras around the premises using a single 8-port PoE switch, connecting them to a Network Video Recorder (NVR) for centralized recording. No electrician is needed—just run Ethernet cables from the switch to each camera location.

Choosing the Right PoE Switch for Your IP Cameras

Selecting the appropriate PoE switch is critical to ensure optimal performance, avoid power shortages, and accommodate future expansion. Several factors must be considered, including power budget, port count, PoE standard compatibility, and additional features.

1. Assess Your Power Requirements

Each IP camera consumes a specific amount of power, typically measured in watts (W). Most standard IP cameras use 3–12W, while high-performance models (e.g., PTZ, 4K, or infrared) may require 15–30W. The PoE switch’s total power budget (sum of power across all ports) must exceed the combined power draw of all connected devices. For example:

• Six 10W cameras = 60W total
• One 25W PTZ camera + five 10W cameras = 75W total

Choose a switch with a power budget 20–30% higher than your calculated need to allow for peak usage and future additions. For instance, a 100W PoE switch would suit the 75W scenario above.

2. Match PoE Standards to Camera Requirements

IP cameras are designed for specific PoE standards:

• 802.3af (PoE): Delivers up to 15.4W per port (12.95W usable). Suitable for basic HD cameras.
• 802.3at (PoE+): Delivers up to 30W per port (25.5W usable). Ideal for PTZ, 4K, or cameras with heaters.
• 802.3bt (PoE++): Delivers up to 60W (Type 3) or 100W (Type 4) per port. Used for high-power devices like multi-sensor cameras.

Always check your camera’s specifications. A PoE+ camera (e.g., Hikvision DS-2DE7230I-AE) will not function properly on an 802.3af switch, as it requires 24W. Conversely, using PoE++ for low-power cameras is safe but may be overkill.

3. Port Count and Future Scalability

Select a switch with enough ports for your current and future needs. For example:

• Small setup (1–4 cameras): 8-port switch with 2–4 PoE ports.
• Medium setup (5–12 cameras): 16-port switch with 8–12 PoE ports.
• Large setup (13+ cameras): 24-port or 48-port managed switch.

Tip: Use non-PoE ports for connecting the NVR, router, or other devices to avoid wasting PoE ports.

4. Managed vs. Unmanaged Switches

Unmanaged switches are affordable and easy to use but lack customization. Best for small, static systems.

Managed switches offer advanced features:

• Port prioritization (QoS): Ensures video streams don’t lag during network congestion.
• VLANs: Isolate camera traffic for security and performance.
• Remote monitoring: Track power usage, port status, and alerts via web interface.

Example: A hospital using 30 IP cameras across multiple floors might use a managed switch to prioritize camera traffic on a dedicated VLAN, ensuring uninterrupted surveillance during peak network usage.

Step-by-Step Guide: Setting Up a PoE Switch for IP Cameras

Now that you’ve selected the right PoE switch, let’s walk through the installation process. This guide assumes a typical setup with IP cameras, an NVR, and a router.

1. Plan Your Network Layout

Before connecting anything, map out your network:

• Identify camera locations and their distance from the switch (max 100 meters).
• Decide where the PoE switch, NVR, and router will be placed (ideally in a central, ventilated location).

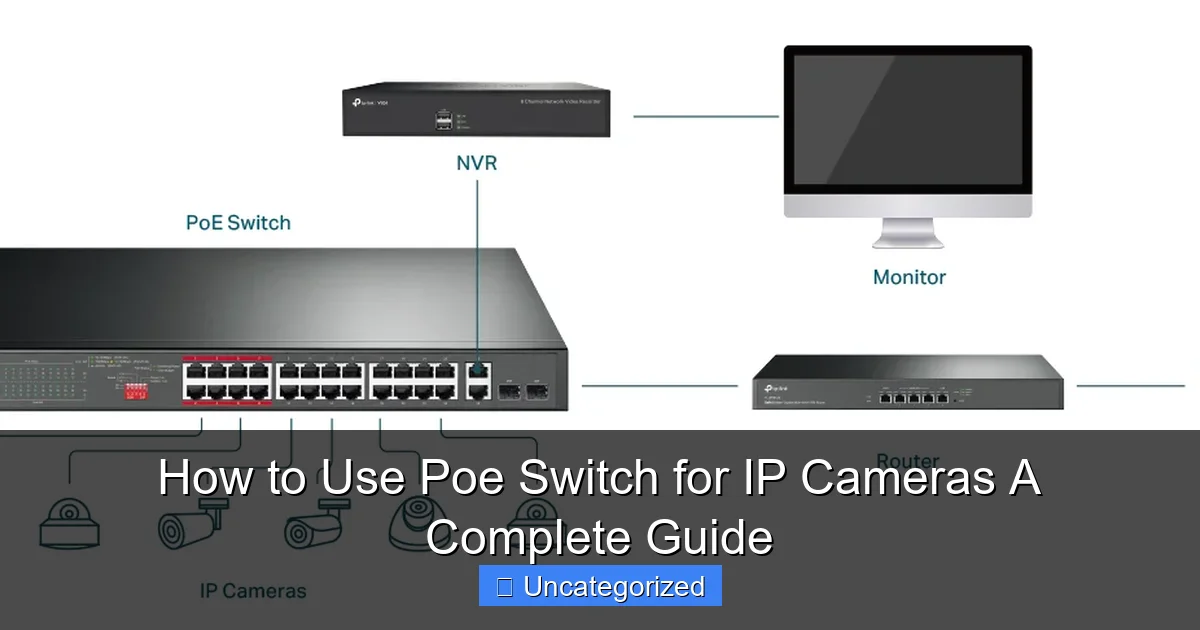

• Use a network diagram to visualize connections.

Tip: For long distances (e.g., 150 meters), use fiber optic extenders or PoE extenders to maintain signal integrity.

2. Install the PoE Switch and NVR

Mount the PoE switch and NVR in a secure, accessible location (e.g., a server rack or lockable cabinet). Ensure adequate ventilation to prevent overheating. Connect the NVR to a power outlet and the PoE switch via an Ethernet cable (use a non-PoE port on the switch).

3. Run Ethernet Cables to Camera Locations

Use high-quality Cat6 cables for optimal performance and future-proofing. Secure cables with conduits or cable ties to protect them from environmental damage (e.g., weather, rodents). Terminate cables with RJ45 connectors or use pre-terminated cables.

Example: For a warehouse, run cables along ceiling beams to outdoor cameras, ensuring they’re waterproofed with conduit.

4. Connect Cameras to the PoE Switch

Plug the Ethernet cables into the PoE ports on the switch. The switch will automatically detect and power the cameras. Wait 1–2 minutes for the cameras to boot up. Most IP cameras will show a status LED (e.g., solid green = powered and connected).

Tip: Label each cable and port to simplify troubleshooting later.

5. Connect the Switch to the Router

Use an Ethernet cable to connect one of the non-PoE ports on the switch to your router. This allows cameras to communicate with the NVR and enables remote access via a smartphone app or web browser.

6. Configure the NVR and Cameras

Power on the NVR and follow the setup wizard:

• Assign an IP address range (e.g., 192.168.1.x) for the cameras.
• Enable DHCP on the switch or router, or set static IPs for each camera.
• Log in to the NVR’s interface (via monitor or web browser) and add cameras by IP address or auto-discovery.
• Configure recording schedules, motion detection, and storage settings.

Example: In a Dahua NVR, use the “IP Search” tool to detect all cameras on the network and add them with one click.

Troubleshooting Common PoE Switch Issues

Even with careful planning, issues can arise. Here’s how to diagnose and resolve common problems.

1. Camera Not Powering On

• Check the cable: Ensure it’s securely connected and undamaged. Test with a cable tester.
• Verify PoE compatibility: Confirm the camera’s power requirement matches the switch’s output.
• Test with another port: Rule out a faulty PoE port on the switch.
• Inspect the switch’s power budget: If multiple cameras are offline, the switch may be overloaded.

Tip: Use a PoE tester (e.g., NetAlly LinkRunner) to measure actual power delivery at the cable end.

2. Intermittent Connectivity or Video Lag

• Check cable length: Replace cables over 100 meters with higher-quality or fiber.
• Reduce network congestion: On a managed switch, enable QoS to prioritize camera traffic.
• Inspect for interference: Avoid running Ethernet cables parallel to power lines.

3. Switch Overheating

• Improve ventilation: Install fans or move the switch to a cooler location.
• Reduce load: If the switch is near its power budget, add a second switch or upgrade.

4. IP Address Conflicts

• Use DHCP reservations: Assign fixed IP addresses to each camera via the router or switch.
• Scan the network: Tools like Advanced IP Scanner can identify conflicts.

Advanced Tips for Optimizing PoE Camera Systems

To get the most out of your PoE switch and IP cameras, consider these advanced strategies.

1. Use VLANs for Security and Performance

On a managed switch, create a dedicated VLAN for cameras to isolate them from other network traffic. This:

• Prevents bandwidth-hogging devices (e.g., streaming boxes) from affecting video quality.
• Enhances security by limiting access to camera feeds.

Example: Set up VLAN 10 for cameras, VLAN 20 for office PCs, and VLAN 30 for guest Wi-Fi.

2. Enable PoE Scheduling

Some managed switches allow you to schedule when PoE ports are active. For example, power outdoor cameras only at night to save energy.

3. Monitor Power Usage

Use the switch’s web interface to track real-time power consumption. Set alerts for when usage nears the budget limit.

4. Implement Redundancy

For critical systems, use a UPS (Uninterruptible Power Supply) to keep the PoE switch running during power outages. Some high-end switches support dual power inputs for added redundancy.

5. Future-Proof with Higher Standards

If you plan to add 4K or AI-powered cameras, invest in PoE+ or PoE++ switches now, even if your current cameras don’t require them.

PoE Switch Power Budget Comparison Table

Switch Model	PoE Standard	Total Power Budget (W)	Max Power per Port (W)	Best Use Case
Netgear GS308LP	802.3af	60	15.4	Small home systems (4–6 HD cameras)
TP-Link TL-SG1016PE	802.3at (PoE+)	120	30	Medium offices (8–12 cameras, including PTZ)
Ubiquiti USW-Pro-24-PoE	802.3bt (PoE++)	400	60	Large enterprises (20+ 4K or multi-sensor cameras)
Hikvision DS-3E0105P-E	802.3af/at	150	30	Retail stores with mixed camera types

Conclusion

Using a PoE switch for IP cameras is a game-changer for modern surveillance systems, offering unmatched simplicity, reliability, and scalability. By understanding the fundamentals of PoE standards, carefully selecting the right switch, and following a systematic setup process, you can build a robust network that meets your security needs today and grows with you tomorrow. Whether you’re a homeowner protecting your property or an IT professional managing a city-wide camera network, the principles remain the same: plan meticulously, prioritize compatibility, and leverage advanced features like VLANs and QoS for optimal performance.

Remember, the key to a successful deployment lies in the details—from calculating power budgets to troubleshooting connectivity issues. With this guide as your roadmap, you’re equipped to harness the full potential of PoE technology. So, grab your Ethernet cables, power up your switch, and start building a smarter, more efficient surveillance system. The future of security is here, and it’s powered by PoE.

Frequently Asked Questions

How does a PoE switch work with IP cameras?

A PoE (Power over Ethernet) switch delivers both data and electrical power to IP cameras through a single Ethernet cable, eliminating the need for separate power adapters. This simplifies installation and reduces clutter, especially in hard-to-reach locations. Ensure your cameras are PoE-compatible (802.3af/at) to avoid compatibility issues.

What type of PoE switch do I need for IP cameras?

Choose a PoE switch with enough ports for your cameras and sufficient power budget (measured in watts) to support all connected devices. For example, 802.3af (15.4W per port) suits basic cameras, while 802.3at (30W per port) is better for PTZ or high-resolution models. Check your camera specs to match requirements.

Can I connect non-PoE devices to a PoE switch?

Yes, most PoE switches are backward-compatible and automatically detect whether a connected device requires power. Non-PoE devices (like laptops) will only receive data, while PoE devices (like IP cameras) will draw power as needed. Always verify switch specifications to ensure safety.

How do I set up a PoE switch for IP cameras?

Connect the PoE switch to your router/PoE injector, then link each camera to a PoE port using Cat5e/Cat6 cables. Power on the switch—cameras should boot automatically. Use the manufacturer’s software or web interface to configure IP addresses and camera settings.

What’s the maximum distance for PoE IP camera connections?

Ethernet cables (Cat5e/Cat6) support PoE up to 100 meters (328 feet) without signal degradation. Beyond this, use a midspan PoE extender or additional PoE switch to boost power and data. Avoid daisy-chaining switches to prevent voltage drops.

How do I troubleshoot PoE switch issues with IP cameras?

If cameras aren’t powering on, verify the switch’s power budget, cable integrity, and camera compatibility. Check for port activity lights and test with shorter cables. Reboot the switch or update firmware if problems persist—consult the switch manual for error codes.
