How to Use Wire Tap Connectors Backup Camera

Installing a backup camera with wire tap connectors is a smart, DIY-friendly way to enhance vehicle safety. This guide walks you through every step—from choosing the right tools to testing your setup—ensuring a clean, reliable connection without damaging your car’s wiring.

Key Takeaways

• Wire tap connectors simplify splicing: They let you tap into existing wires without cutting or stripping, making installation faster and safer.
• Choose the right connector type: Use T-tap or scotchlok-style connectors designed for automotive use to ensure durability and conductivity.
• Always disconnect the battery: Prevent short circuits or electrical damage by turning off power before starting.
• Test connections before finalizing: Use a multimeter or test light to confirm power and ground before securing wires.
• Route cables carefully: Keep wires away from moving parts, heat sources, and sharp edges to avoid damage.
• Use heat shrink tubing for protection: Seal connections with heat shrink to prevent corrosion and moisture damage.
• Follow polarity and color codes: Match red to power, black to ground, and yellow to reverse signal to avoid malfunctions.

How to Use Wire Tap Connectors for Backup Camera Installation

Adding a backup camera to your vehicle is one of the easiest and most effective upgrades you can make for safety and convenience. Whether you’re a weekend DIYer or a first-time installer, using wire tap connectors is a smart, non-invasive way to connect your camera without cutting into factory wiring. This guide will walk you through the entire process—from planning your setup to testing the final connection—so you can install your backup camera with confidence.

In this comprehensive how-to, you’ll learn what wire tap connectors are, why they’re ideal for backup camera installations, and how to use them safely and effectively. We’ll cover everything from selecting the right tools and materials to troubleshooting common issues. By the end, you’ll have a fully functional backup camera system that integrates seamlessly with your vehicle’s electrical system—no professional help required.

What Are Wire Tap Connectors?

Wire tap connectors are small, insulated devices that allow you to tap into an existing electrical wire without cutting or stripping it. They’re commonly used in automotive, home, and industrial wiring projects where splicing is needed but permanent modification is not desired. These connectors “pierce” the insulation of a wire to make contact with the conductor inside, creating a secure electrical connection.

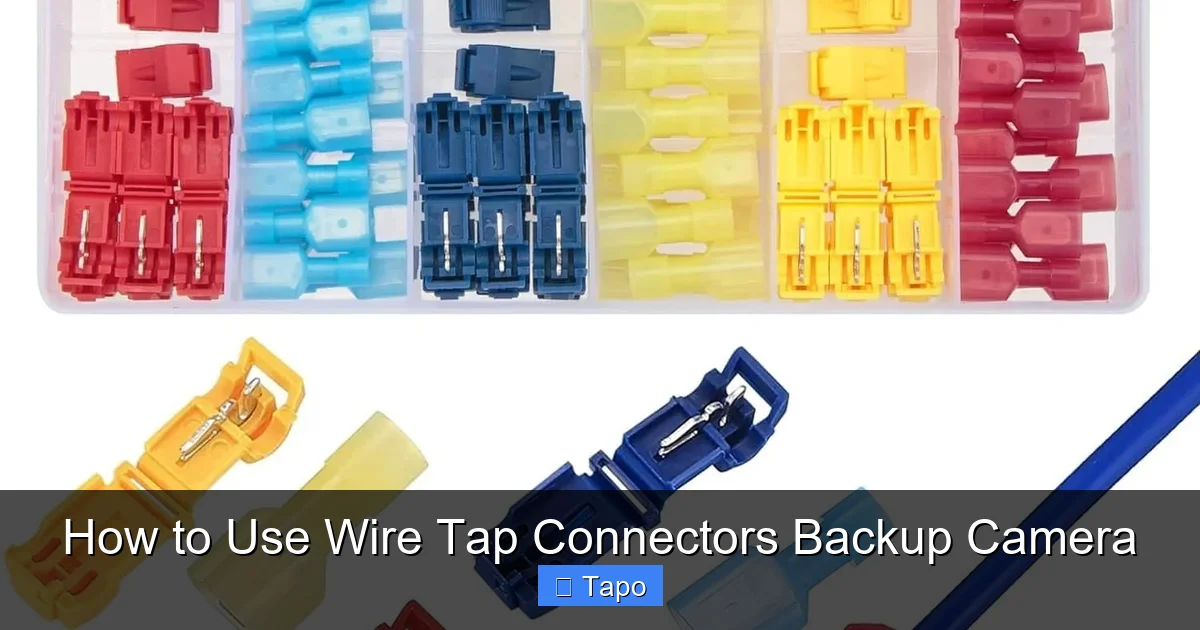

There are several types of wire tap connectors, but the most popular for automotive use include:

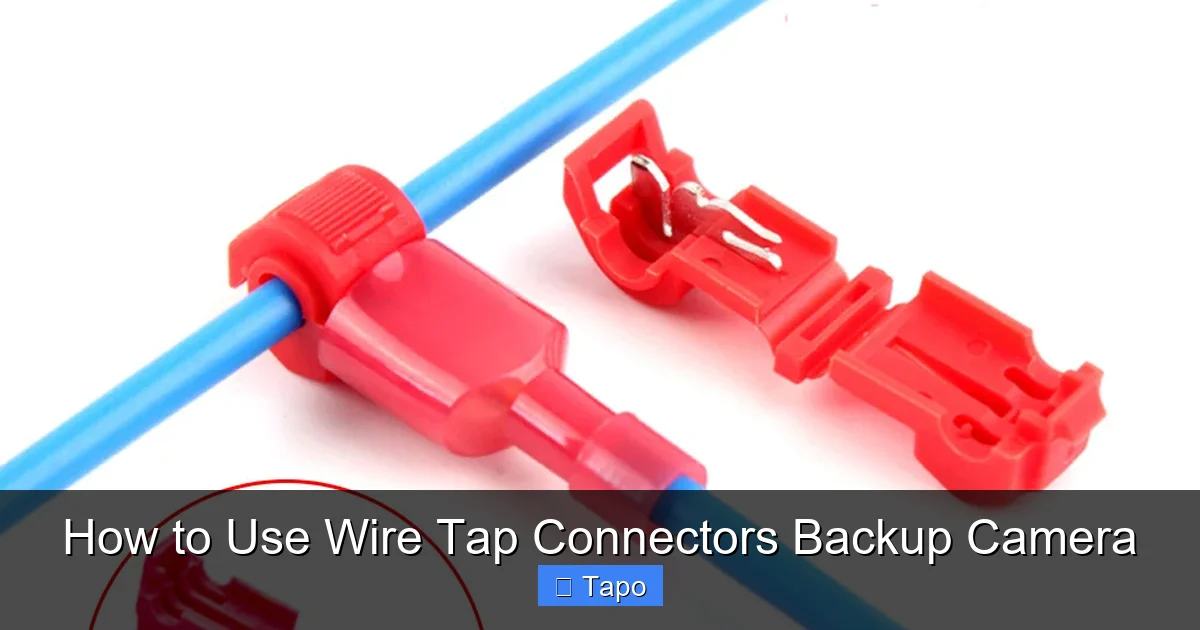

• T-tap connectors: These have a “T” shape and allow you to connect a new wire to an existing one. They’re easy to install and reusable.
• Scotchlok (or “butt”) connectors: These clamp onto the wire and use a metal blade to pierce the insulation. They’re compact and reliable.

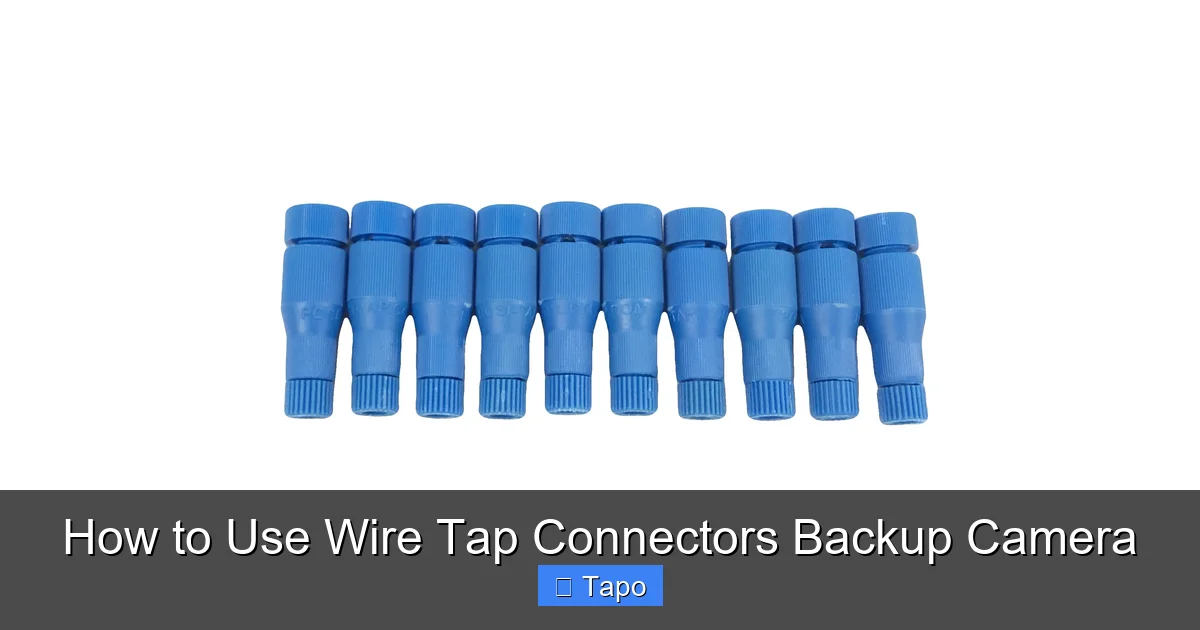

• Posi-Tap connectors: A premium option with a screw-down mechanism for a more secure connection.

For backup camera installations, T-tap or Scotchlok-style connectors are usually the best choice because they’re quick to install, don’t require soldering, and maintain the integrity of the original wire.

Why Use Wire Tap Connectors for Backup Cameras?

Using wire tap connectors for your backup camera offers several advantages over traditional splicing methods:

• No cutting or stripping: You don’t need to cut the original wire, which reduces the risk of damaging the vehicle’s wiring harness.
• Faster installation: Tapping into a wire takes seconds compared to cutting, stripping, twisting, and soldering.
• Reversible: Most wire tap connectors can be removed, allowing you to restore the original wiring if needed.
• Clean and professional look: No messy solder joints or exposed wires—just a neat, insulated connection.
• Cost-effective: Wire tap connectors are inexpensive and widely available at auto parts stores or online.

This method is especially useful when connecting your backup camera to the reverse light circuit, which powers the camera only when the vehicle is in reverse. By tapping into the reverse light wire, you ensure the camera turns on automatically—no extra switches or manual controls needed.

Tools and Materials You’ll Need

Before you begin, gather all the necessary tools and materials. Having everything ready will make the installation smoother and safer.

Essential Tools

• Wire tap connectors (T-tap or Scotchlok style)
• Wire strippers (for the new camera wires)
• Crimping tool (if your connectors require crimping)
• Multimeter or test light
• Electrical tape or heat shrink tubing
• Zip ties or wire loom (for cable management)
• Screwdrivers (Phillips and flathead)
• Drill and drill bits (if mounting the camera requires drilling)
• Socket wrench or ratchet set (for accessing panels)

Materials

• Backup camera kit (includes camera, monitor, and wiring)
• Wire tap connectors (at least 3–4, depending on connections)
• Heat shrink tubing (assorted sizes)
• Electrical tape
• Fuse tap (optional, for powering the monitor)
• Butt connectors (if extending wires)

Safety Gear

• Work gloves
• Safety glasses
• Knee pads (if working under the vehicle)

Step-by-Step Installation Guide

Now that you’re prepared, let’s walk through the installation process step by step. We’ll focus on using wire tap connectors to connect the backup camera to the reverse light circuit, which is the most common and reliable method.

Step 1: Disconnect the Battery

Safety first! Before touching any electrical components, disconnect the negative terminal of your vehicle’s battery. This prevents accidental short circuits, sparks, or damage to the vehicle’s electronics.

1. Open the hood and locate the battery.
2. Use a wrench to loosen the nut on the negative (black) terminal.
3. Lift the cable off the terminal and secure it away from the battery.

Tip: Wait 10–15 minutes after disconnecting the battery to ensure all residual power is drained from the system.

Step 2: Locate the Reverse Light Wire

The reverse light wire is the key to automatic camera activation. When you shift into reverse, this wire carries 12V power, which you’ll tap into to power the camera.

1. Open the trunk or tailgate and remove the interior panel covering the reverse lights.
2. Locate the wiring harness connected to the reverse light bulb.
3. Identify the wire that carries power when the vehicle is in reverse. This is usually the wire that lights up when you turn the ignition to “on” and shift into reverse.

Tip: Use a test light or multimeter to confirm which wire is hot in reverse. Touch the probe to each wire while someone shifts the vehicle into reverse. The wire that lights up the test light is your target.

Step 3: Prepare the Backup Camera Wires

Most backup camera kits come with a wiring harness that includes power, ground, and video signal wires. You’ll need to prepare the power and ground wires for connection.

1. Strip about 1/2 inch of insulation from the end of the camera’s power (usually red) and ground (usually black) wires.
2. If your camera uses a separate video cable, route it separately to avoid interference.

Note: Some cameras have a single connector that splits into multiple wires. Make sure you identify each wire correctly using the manufacturer’s diagram.

Step 4: Tap into the Reverse Light Wire

This is where the wire tap connector comes into play. You’ll use it to connect the camera’s power wire to the reverse light circuit.

1. Choose a clean, accessible section of the reverse light wire—preferably near the light assembly.
2. Open the wire tap connector. Most T-tap connectors have a hinged cover or a sliding mechanism.
3. Insert the reverse light wire into the main channel of the connector.
4. Insert the stripped end of the camera’s power wire into the side port of the connector.
5. Close the connector firmly. You should hear a click or feel it lock into place.

Tip: Make sure the connector is fully closed and the wires are seated properly. A loose connection can cause intermittent power or complete failure.

Step 5: Connect the Ground Wire

The ground wire completes the electrical circuit. It should be connected to a solid metal part of the vehicle’s chassis.

1. Locate a nearby grounding point—such as a bolt or screw on the vehicle’s frame.
2. Remove the bolt, place the ring terminal of the ground wire under it, and tighten securely.
3. If your camera doesn’t have a ring terminal, strip the ground wire and use a wire tap connector to tap into an existing ground wire (e.g., from the reverse light harness).

Warning: Never rely on paint or rusty metal for grounding. Sand the area lightly if needed to ensure a clean metal-to-metal connection.

Step 6: Route the Camera and Monitor Wires

Now that the electrical connections are made, it’s time to route the wires from the camera to the monitor.

1. Run the camera’s wiring harness from the rear of the vehicle to the front, following existing wire paths or using wire loom for protection.
2. Use zip ties to secure the wires along the way, keeping them away from moving parts, heat sources, and sharp edges.
3. If drilling is required to mount the camera, use a drill bit slightly smaller than the camera’s mounting hole and apply sealant to prevent water intrusion.
4. Route the video cable (if separate) carefully to avoid interference with power wires.

Tip: In trucks or SUVs, you may need to run wires through the firewall. Use existing grommets or create a new one with a rubber grommet to protect the wires.

Step 7: Connect the Monitor

The monitor needs power and a video signal. Most monitors can be powered via the cigarette lighter or by tapping into a constant 12V source.

1. If using the cigarette lighter, plug in the monitor’s power adapter.
2. If hardwiring, use a fuse tap to connect to a fuse slot in the fuse box (e.g., radio or accessory fuse).
3. Connect the video input cable from the camera to the monitor’s input port.
4. Mount the monitor on the dashboard or windshield using the included bracket.

Note: Some monitors have a trigger wire that must be connected to the reverse light circuit to activate only when in reverse. If so, use another wire tap connector to tap into the same reverse light wire.

Step 8: Test the System

Before reassembling everything, test the backup camera to ensure it works correctly.

1. Reconnect the battery.
2. Turn on the ignition (do not start the engine).
3. Shift into reverse.
4. Check if the monitor displays the camera feed.
5. Verify that the camera turns off when you shift out of reverse.

If the camera doesn’t work, check the following:

• Is the reverse light working? If not, the issue may be with the vehicle’s wiring.
• Are the wire tap connections secure? Reopen and reseat if necessary.
• Is the ground connection solid? Test with a multimeter.
• Is the monitor receiving power? Check the fuse and connections.

Step 9: Secure and Protect Connections

Once everything is working, protect your connections from moisture, vibration, and wear.

1. Wrap each wire tap connection with electrical tape or cover with heat shrink tubing.
2. Use a heat gun to shrink the tubing for a waterproof seal.
3. Bundle loose wires with zip ties and tuck them behind panels.
4. Reinstall any removed interior panels.

Pro Tip: For extra durability, use adhesive-lined heat shrink tubing, which provides both insulation and moisture resistance.

Troubleshooting Common Issues

Even with careful installation, problems can arise. Here’s how to fix the most common issues:

Camera Doesn’t Turn On in Reverse

• Check if the reverse light is working. If not, the issue is with the vehicle, not the camera.
• Verify the wire tap connection is secure and making contact.
• Use a multimeter to test for 12V at the camera’s power wire when in reverse.

Fuzzy or No Video Signal

• Ensure the video cable is fully connected at both ends.
• Check for damaged or kinked cables.
• Keep video cables away from power wires to avoid interference.

Monitor Doesn’t Power On

• Test the fuse in the monitor’s power circuit.
• Check the cigarette lighter or fuse tap connection.
• Ensure the monitor is set to the correct input source.

Intermittent Connection

• Re-seat all wire tap connectors.
• Inspect for loose ground connections.
• Replace any damaged connectors.

Safety Tips and Best Practices

To ensure a safe and long-lasting installation, follow these guidelines:

• Always disconnect the battery before working on electrical systems.
• Use connectors rated for automotive use—they’re designed to withstand vibration and temperature changes.
• Never overload a circuit—backup cameras draw minimal power, but avoid tapping into sensitive wires.
• Label your wires during installation to avoid confusion later.
• Test before finalizing—don’t reassemble panels until you’ve confirmed everything works.
• Use proper cable management—loose wires can get caught in doors or moving parts.

Conclusion

Using wire tap connectors to install a backup camera is a smart, efficient, and beginner-friendly approach. It allows you to integrate modern safety technology into your vehicle without the risk of damaging factory wiring. By following this guide, you’ve learned how to safely tap into the reverse light circuit, route cables neatly, and test your system for reliable performance.

Remember, the key to success is preparation, patience, and attention to detail. With the right tools and a careful approach, you can complete this project in under two hours and enjoy the added safety and convenience of a backup camera every time you drive.

Whether you’re reversing out of a tight parking spot or backing up a trailer, your new camera will give you peace of mind and help prevent accidents. So grab your tools, follow the steps, and drive safer today.
