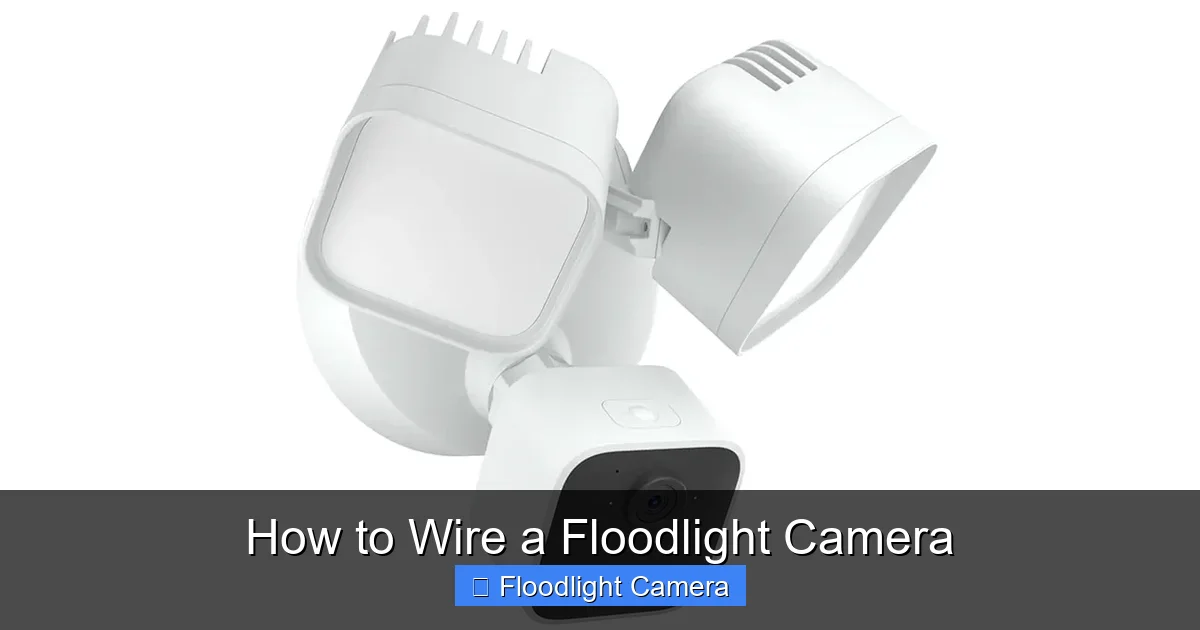

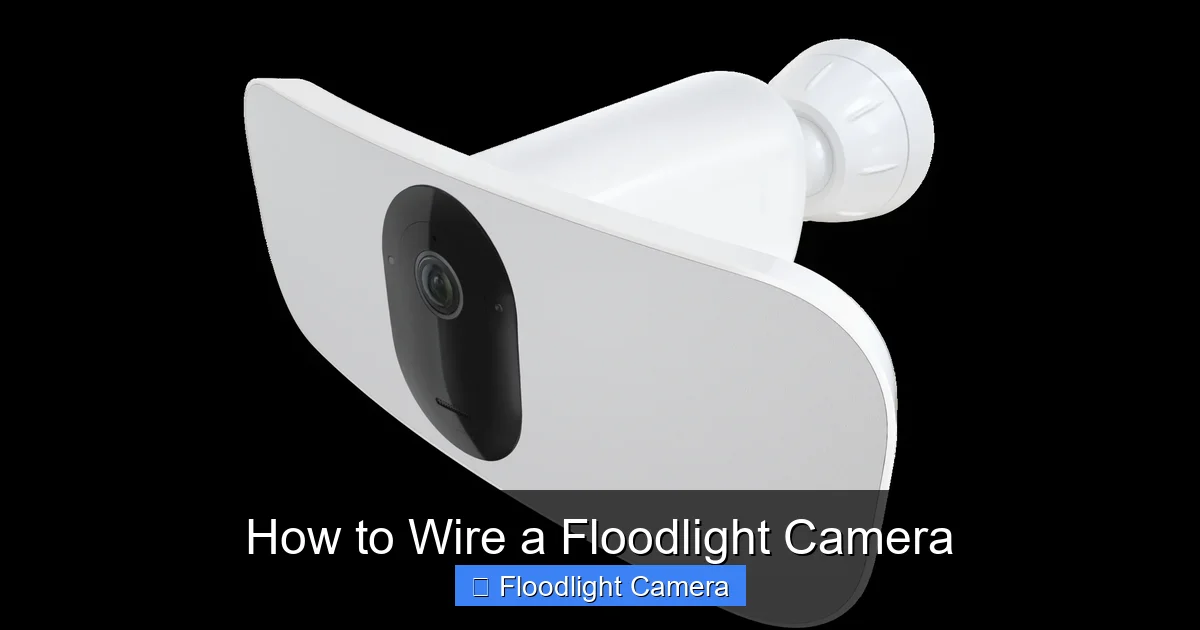

How to Wire a Floodlight Camera

Wiring a floodlight camera may seem daunting, but with the right tools and guidance, it’s a manageable DIY project. This guide walks you through every step—from turning off power to testing your device—ensuring a safe and successful installation.

Key Takeaways

• Turn off power at the breaker: Always shut off electricity at the main panel before starting any electrical work to prevent shocks or accidents.
• Use the right tools: A voltage tester, wire strippers, screwdrivers, and a drill are essential for a smooth installation.
• Match wire colors correctly: Connect black (hot), white (neutral), and green/bare (ground) wires to their matching counterparts.
• Secure connections with wire nuts: Tight, insulated connections prevent loose wires and potential fire hazards.
• Test before final mounting: Power up the system temporarily to confirm the camera and lights work before sealing everything.
• Follow local codes: Check with your municipality for permit requirements or licensed electrician rules.
• Maintain accessibility: Install the unit where you can easily reach it for future maintenance or Wi-Fi updates.

Introduction: Why Install a Floodlight Camera?

Adding a floodlight camera to your home isn’t just about boosting curb appeal—it’s a smart move for safety, security, and peace of mind. These devices combine bright LED lighting with high-definition video surveillance, motion detection, and two-way audio. Whether you’re deterring intruders, monitoring package deliveries, or simply keeping an eye on your driveway at night, a wired floodlight camera offers reliable, always-on protection.

Unlike battery-powered models, wired floodlight cameras don’t require frequent charging or battery replacements. They draw power directly from your home’s electrical system, ensuring continuous operation. While the idea of wiring one might sound intimidating, this guide will walk you through the entire process in clear, easy-to-follow steps. By the end, you’ll have a professionally installed floodlight camera that enhances both your home’s security and functionality.

In this guide, you’ll learn how to safely wire a floodlight camera, including preparing your workspace, connecting wires, mounting the unit, and troubleshooting common issues. We’ll also cover essential safety tips, tool recommendations, and best practices to ensure your installation is both effective and code-compliant.

What You’ll Need Before You Begin

Before touching any wires or climbing a ladder, gather all the necessary tools and materials. Having everything ready beforehand saves time and reduces the risk of mistakes.

Essential Tools

• Voltage tester: Confirms the power is off before you start.
• Wire strippers: Removes insulation from wires without damaging the copper.
• Screwdrivers (Phillips and flathead): For removing old fixtures and securing new ones.
• Drill and drill bits: Needed if you’re mounting into brick, concrete, or hard surfaces.
• Ladder: A stable, non-conductive ladder is crucial for safety.
• Electrical tape: Adds extra insulation to wire connections.
• Wire nuts: Securely connect wires together.
• Pliers: Help twist wires together before capping them.

Materials and Equipment

• Wired floodlight camera (popular brands include Ring, Arlo, and Eufy)
• Mounting screws and anchors (usually included with the camera)
• Electrical junction box (if not already present)
• Wire connectors (if not included)
• Weatherproof sealant (optional, for extra protection against moisture)

Safety Gear

• Safety glasses
• Rubber-soled shoes
• Insulated gloves (optional but recommended)

Pro Tip: Read the manufacturer’s installation manual before starting. Each model may have slight variations in wiring or mounting requirements.

Step 1: Turn Off the Power

Never skip this step. Working on live electrical wires is extremely dangerous and can result in severe injury or death. Even if you’re experienced, always treat every wire as if it’s live until proven otherwise.

Locate Your Electrical Panel

Find your home’s main breaker box, usually located in the garage, basement, or utility closet. Look for the circuit that controls the existing outdoor light or outlet near where you’ll install the floodlight camera.

Turn Off the Correct Breaker

Switch off the breaker labeled for your outdoor lighting. If labels are unclear, turn off the main breaker to cut power to the entire house. This is the safest option if you’re unsure.

Test for Power

Use a non-contact voltage tester to double-check that the wires are dead. Touch the tester to the black (hot) wire and the metal electrical box. If the tester doesn’t beep or light up, the power is off. If it does, turn off additional breakers until the power is confirmed off.

Important: Place a piece of tape over the breaker switch with a note like “Do Not Turn On – Working on Floodlight.” This prevents someone else from accidentally restoring power while you’re working.

Step 2: Remove the Existing Light Fixture

Most floodlight cameras replace an existing outdoor light. If you don’t have one, you’ll need to install a junction box first (see next section).

Unscrew the Old Fixture

Use a screwdriver to remove the mounting screws holding the old light in place. Gently pull the fixture away from the wall to expose the wires inside the electrical box.

Disconnect the Wires

Unscrew the wire nuts connecting the fixture’s wires to the house wiring. Carefully separate the black, white, and ground wires. Note how they were connected—this will help when installing the new camera.

Inspect the Electrical Box

Make sure the junction box is secure, dry, and in good condition. If it’s cracked, rusted, or loose, replace it with a new outdoor-rated electrical box. The box must be rated for wet or damp locations, depending on your climate.

Tip: Take a photo of the wiring setup before disconnecting anything. This serves as a reference if you get confused later.

Step 3: Prepare the Wires

Now that the old fixture is removed, it’s time to prepare the house wiring and the floodlight camera’s wires for connection.

Strip the Wire Ends

Use wire strippers to remove about ½ inch of insulation from the ends of the black, white, and ground wires coming from the wall. Do the same for the wires on the floodlight camera. This exposes fresh copper for a solid connection.

Check Wire Length

Ensure there’s enough wire length to work with—ideally 6–8 inches. If the wires are too short, you may need to extend them using wire connectors and additional wire (same gauge, usually 14 or 12 AWG).

Twist Stranded Wires (if applicable)

If your wires are stranded (multiple thin copper strands), gently twist them clockwise with pliers to keep them neat and prevent fraying.

Note: Some floodlight cameras come with quick-connect terminals instead of loose wires. In that case, follow the manufacturer’s instructions for splicing or using wire connectors.

Step 4: Connect the Wires

This is the core of the installation. Proper wiring ensures your floodlight camera receives power and operates safely.

Match Wire Colors

Connect the wires by color:

• Black to black: The hot wire (carries electricity from the breaker).
• White to white: The neutral wire (completes the circuit).
• Green or bare copper to green/bare: The ground wire (safety path for electricity).

Twist and Cap with Wire Nuts

Hold the matching wires together, twist them clockwise with pliers, and screw on a wire nut. Give each connection a gentle tug to ensure it’s secure. Loose connections can cause sparks, overheating, or device failure.

Secure Ground Wire to the Box

If your electrical box has a grounding screw, attach the ground wire (from both the house and the camera) to it using a ring terminal or by wrapping it around the screw. This provides an extra layer of safety.

Wrap with Electrical Tape

For added insulation, wrap each wire nut and connection with electrical tape. This prevents moisture intrusion and keeps the nuts from loosening over time.

Pro Tip: Use wire nuts rated for the number and gauge of wires you’re connecting. Most outdoor connections use red or yellow wire nuts for 2–3 wires.

Step 5: Mount the Floodlight Camera

With the wires connected, it’s time to secure the camera to the wall or ceiling.

Position the Mounting Bracket

Hold the camera’s mounting bracket against the wall, aligning it with the electrical box. Use a level to ensure it’s straight. Mark the screw holes with a pencil.

Drill Pilot Holes (if needed)

If mounting into wood, you can often screw directly. For brick, concrete, or stucco, drill pilot holes using a masonry bit. Insert wall anchors for extra hold.

Attach the Bracket

Secure the bracket with screws. Make sure it’s tight and doesn’t wobble. A loose mount can cause the camera to shift or fall.

Attach the Camera

Slide or screw the floodlight camera onto the bracket according to the manufacturer’s instructions. Some models snap into place; others require screws.

Tuck Wires Neatly

Push the connected wires back into the electrical box, ensuring they’re not pinched or strained. The camera should sit flush against the wall without pulling on the wires.

Tip: Adjust the camera angle before tightening all screws. Most models allow you to tilt and swivel for optimal coverage.

Step 6: Restore Power and Test

You’re almost done! Now it’s time to see if everything works.

Turn the Breaker Back On

Go to the electrical panel and flip the breaker back on. Wait a few seconds for the system to stabilize.

Test the Lights and Camera

Walk outside and check if the floodlights turn on. If they have motion activation, wave your hand to trigger them. Next, open the camera’s app on your phone and verify the video feed is live.

Check Audio and Alerts

Test two-way audio by speaking through the app. Also, confirm that motion alerts are working by walking in front of the camera.

Adjust Settings

Use the app to customize motion zones, sensitivity, light duration, and notification preferences. This ensures the camera only alerts you when needed.

Note: If the camera doesn’t power on, turn the breaker off immediately and double-check all wire connections.

Step 7: Secure and Weatherproof

To protect your investment and ensure long-term reliability, add a few finishing touches.

Apply Weatherproof Sealant

Run a bead of silicone caulk around the edges of the camera where it meets the wall. This prevents water from seeping into the electrical box. Avoid covering vents or sensors.

Secure Loose Wires

Use cable clips or zip ties to neatly organize any excess wire inside the box. This reduces strain and keeps things tidy.

Label the Breaker (Optional)

Update your breaker panel label to include “Floodlight Camera” for future reference.

Troubleshooting Common Issues

Even with careful installation, problems can arise. Here’s how to fix the most common ones.

Camera Won’t Power On

• Double-check that the breaker is on.
• Use a voltage tester to confirm power is reaching the wires.
• Inspect wire connections for looseness or incorrect pairing.
• Ensure the camera is compatible with your voltage (most are 120V).

Flickering Lights or Intermittent Power

• This often indicates a loose wire connection. Turn off power and re-tighten all wire nuts.
• Check for corrosion or damaged wires.
• Ensure the electrical box is grounded properly.

Poor Wi-Fi Signal

• Floodlight cameras rely on Wi-Fi for video streaming. If the signal is weak, consider installing a Wi-Fi extender.
• Mount the camera within range of your router—ideally within 100 feet and with minimal obstructions.
• Use the app’s signal strength indicator to find the best location.

False Motion Alerts

• Adjust motion zones to exclude areas like trees or busy streets.
• Lower sensitivity settings if the camera triggers too often.
• Clean the lens and sensor to prevent dirt or spiderwebs from causing false alarms.

Water Inside the Camera

• This suggests a seal failure. Turn off power and inspect the mounting area.
• Reapply weatherproof sealant and ensure the camera is angled slightly downward to shed water.
• If damage is severe, contact the manufacturer for warranty support.

Safety and Code Compliance

Electrical work must meet local building codes to ensure safety and pass inspections.

Check Local Regulations

Some areas require permits for outdoor electrical installations. Contact your city or county building department to verify requirements.

Use GFCI Protection

Outdoor circuits should be protected by a Ground Fault Circuit Interrupter (GFCI). This shuts off power if it detects a fault, preventing electrocution. If your circuit isn’t GFCI-protected, consider installing a GFCI breaker or outlet.

Hire a Licensed Electrician if Unsure

If you’re uncomfortable working with electricity, don’t hesitate to call a professional. It’s better to pay for expert help than risk injury or fire.

Maintenance Tips for Long-Term Performance

Keep your floodlight camera in top shape with regular upkeep.

Clean the Lens Monthly

Use a soft, dry cloth to wipe away dust, dirt, and fingerprints. For stubborn grime, lightly dampen the cloth with water—never spray liquid directly on the camera.

Check for Obstructions

Trim back tree branches or shrubs that block the camera’s view or trigger false motion alerts.

Update Firmware

Manufacturers often release updates to improve performance and security. Enable automatic updates in the app or check manually every few months.

Inspect Wiring Annually

Turn off power and examine the wires for signs of wear, corrosion, or animal damage. Re-tighten connections if needed.

Conclusion: Enjoy Your Enhanced Home Security

Wiring a floodlight camera is a rewarding DIY project that boosts your home’s safety and functionality. By following this guide, you’ve learned how to safely turn off power, connect wires, mount the unit, and troubleshoot issues. With proper installation and maintenance, your floodlight camera will provide years of reliable service.

Remember, safety comes first—always treat electrical work with respect. If at any point you feel unsure, consult a licensed electrician. Now that your camera is up and running, you can rest easy knowing your home is protected day and night.
