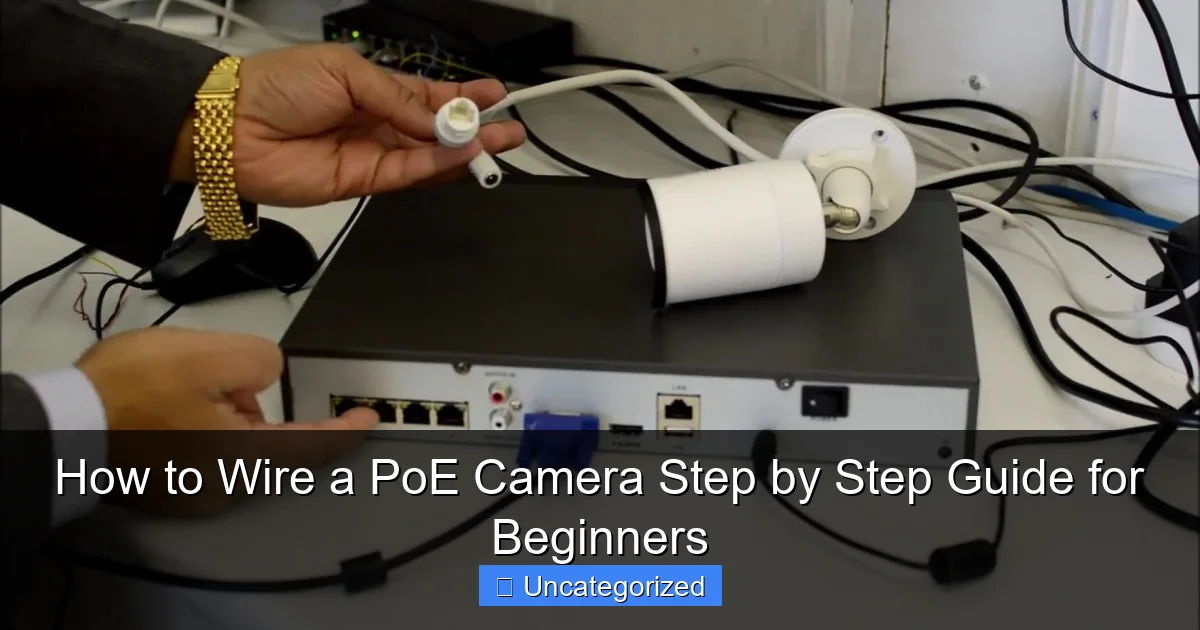

How to Wire a PoE Camera Step by Step Guide for Beginners

Wiring a PoE camera is simple and efficient—just one Ethernet cable delivers both power and data, eliminating the need for separate power sources. Start by connecting the camera to a PoE switch or injector using a Cat5e/Cat6 cable, then ensure proper network configuration for seamless setup, making it ideal for DIY beginners and scalable security systems.

Key Takeaways

• Plan your layout: Map camera locations and cable paths before starting installation.
• Use Cat5e/Cat6 cables: Ensure reliable power and data with quality Ethernet cables.
• Connect to a PoE switch: Power and data transmit via a single cable connection.
• Secure connections tightly: Prevent signal loss with properly crimped and tested cables.
• Test before finalizing: Verify camera feed and power delivery early to avoid rework.
• Weatherproof outdoor runs: Use conduit or outdoor-rated cables for exterior installations.

Why Wiring a PoE Camera is Easier Than You Think

Imagine having a security camera that doesn’t require a separate power outlet, doesn’t need an electrician to install, and can be set up by almost anyone with basic DIY skills. This is the magic of Power over Ethernet (PoE) cameras. Whether you’re a homeowner looking to enhance your property’s security or a small business owner aiming to monitor your premises, PoE cameras offer a streamlined, cost-effective, and reliable solution. Gone are the days of tangled wires, extension cords, and the frustration of finding power sources near your camera locations. With PoE, you can power and transmit video data over a single Ethernet cable—making installation simpler, neater, and more scalable.

But how exactly do you wire a PoE camera? If you’re a beginner, the process might seem intimidating at first, especially when dealing with cables, switches, and network configurations. The good news? It’s far more straightforward than it appears. This step-by-step guide breaks down the entire process into manageable, beginner-friendly stages. From understanding the basics of PoE to running cables, connecting devices, and troubleshooting common issues, we’ll walk you through everything you need to know. By the end, you’ll not only know how to wire a PoE camera, but you’ll also feel confident doing it yourself—saving time, money, and avoiding the need for professional help.

Understanding PoE Technology and Its Advantages

What Is Power over Ethernet (PoE)?

Power over Ethernet (PoE) is a technology that allows electrical power and data to be transmitted simultaneously over a standard Ethernet cable (typically Cat5e or Cat6). Instead of using separate power cables and data cables, PoE combines both into one, reducing clutter and simplifying installation. The technology is standardized under IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++), with each version supporting increasing power levels—up to 15.4W, 30W, and 90W respectively.

For most PoE security cameras, the 802.3af standard (PoE) is sufficient, providing up to 15.4W of power—more than enough for standard HD or 4K cameras with IR night vision and motion detection. High-end models with PTZ (pan-tilt-zoom), heaters, or floodlights may require PoE+ or PoE++, but for beginners, standard PoE is usually adequate.

Key Benefits of Using PoE for Security Cameras

• Simplified Wiring: One cable does it all—power and data. No need to run power outlets to remote areas.
• Cost-Effective: Reduces the need for electricians, extra outlets, and power adapters.
• Reliability: PoE systems are less prone to power surges and outages when connected to UPS (uninterruptible power supply).
• Scalability: Easily add more cameras by plugging into a PoE switch or injector.
• Flexibility: Cameras can be installed up to 100 meters (328 feet) from the power source—ideal for large properties.

For example, if you want to install a camera on a second-story eave, you don’t need to drill through walls to reach an outlet. Just run a Cat6 cable from your network switch, and you’re good to go.

Common PoE Components You’ll Use

To wire a PoE camera, you’ll interact with several key components:

• PoE Camera: The device itself, which receives power and data via Ethernet.
• Ethernet Cable (Cat5e/Cat6): The physical medium for power and data. Use Cat6 for better performance and future-proofing.
• PoE Switch: A network switch with built-in PoE ports. Powers multiple cameras simultaneously.
• PoE Injector (Alternative): A device that adds power to a non-PoE switch. Useful if you don’t have a PoE switch.
• Network Video Recorder (NVR): Stores and manages video footage from your cameras.
• Patch Panel or Router (Optional): For centralized network management.

Understanding these components ensures you choose the right gear and avoid compatibility issues.

Planning Your PoE Camera Setup

Assess Your Surveillance Needs

Before buying equipment or running cables, take time to plan your camera layout. Ask yourself:

• Which areas need monitoring? (e.g., front door, backyard, garage, parking lot)
• How many cameras do you need?
• What resolution do you want? (1080p, 2K, 4K)
• Do you need night vision, motion detection, or two-way audio?
• Will cameras be indoor, outdoor, or both?

For instance, a typical suburban home might need 4–6 cameras: two front-facing, one rear, one garage, and one side yard. A small retail store may require 2–3 indoor cameras and one outdoor unit for the entrance.

Map Out Camera Locations and Cable Runs

Sketch a rough floor plan or property map. Mark:

• Where each camera will go
• The shortest, safest path for Ethernet cables (avoiding sharp bends or interference)
• Where your PoE switch or NVR will be installed (ideally near your router and power source)
• Any obstacles (walls, ceilings, trees, etc.) that may require conduit or fishing cables

Tip: Use a stud finder to locate wall studs when drilling through interior walls. For exterior runs, use weatherproof conduit or bury cables at least 18 inches deep (check local codes).

Calculate Cable Lengths and Power Requirements

Measure the distance from each camera location to your central switch/NVR. Remember: Ethernet cables have a maximum effective length of 100 meters (328 feet). Exceeding this can cause signal degradation or power loss.

Also, check your camera’s power draw (usually listed in watts or volts). Most PoE cameras use 5–12W. Multiply this by the number of cameras to ensure your PoE switch can handle the total load. For example:

• 6 cameras × 8W each = 48W total
• An 8-port PoE+ switch (60W total power budget) would be sufficient.

If you’re using a PoE injector, ensure it matches your camera’s power needs (e.g., 802.3af for standard cameras).

Choose the Right Equipment

Based on your plan, select:

• PoE cameras (indoor/outdoor rated, resolution, lens type)
• PoE switch (number of ports, power budget, managed vs. unmanaged)
• Ethernet cables (Cat6 recommended, pre-terminated or bulk with crimping tool)
• NVR (if using IP cameras with local storage)
• Mounting hardware (brackets, screws, weatherproof enclosures)

Pro Tip: Buy a PoE switch with a few extra ports for future expansion. An 8-port switch is ideal for 5–6 cameras.

Tools and Materials You’ll Need

Essential Tools for Wiring a PoE Camera

Before you begin, gather these tools to ensure a smooth installation:

• Ethernet Cable (Cat6): 100m spool or pre-made cables of required lengths
• Cable Crimper: For terminating RJ45 connectors on bulk cable
• RJ45 Connectors (Modular Plugs): For custom cable lengths
• Cable Tester: To verify continuity and proper wiring (crucial for troubleshooting)
• Drill and Drill Bits: For drilling holes through walls, soffits, or ceilings
• Fish Tape or Glow Rod: For pulling cables through walls or conduit
• Stud Finder: To locate studs and avoid electrical wires
• Measuring Tape: For precise cable length calculations
• Wire Strippers: To strip cable jacket without damaging internal wires
• Zip Ties or Cable Clips: For securing cables neatly
• Weatherproof Conduit (for outdoor runs): PVC or metal conduit to protect cables
• PoE Switch and NVR: Pre-configured or ready for setup

Note: If you’re using pre-terminated cables, you can skip the crimper and RJ45 connectors—but always have extras on hand.

Optional but Helpful Tools

• Network Cable Toner: Helps trace cables in walls or ceilings
• Ladder: For accessing rooflines, eaves, or high walls
• Flashlight or Work Light: For dark spaces
• Label Maker: To tag cables (e.g., “Front Door Cam”) for easy identification

Having the right tools prevents frustration and ensures a professional-grade installation. For example, a cable tester can save hours of troubleshooting by confirming your cables are properly wired before connecting cameras.

Choosing Quality vs. Cost

While it’s tempting to buy the cheapest cables or switch, investing in quality components pays off. Cheap Cat5e cables may not support gigabit speeds or full PoE power over long distances. Similarly, low-quality PoE switches may overheat or fail under load. Stick with reputable brands like Ubiquiti, Netgear, Hikvision, or Axis for reliable performance.

Example: A $50 8-port PoE+ switch from a trusted brand is better than a $30 no-name switch that may fail after a few months.

Step-by-Step Wiring Process

Step 1: Install the PoE Switch and NVR

Begin by setting up your central equipment:

1. Plug the PoE switch into a power outlet near your router and NVR.
2. Connect the switch to your router using an Ethernet cable (for internet access).
3. Power on the switch and NVR. Most NVRs connect to your monitor or TV via HDMI or VGA.
4. Follow the NVR’s setup wizard to configure network settings (IP address, subnet mask, etc.).

Tip: Use a UPS (uninterruptible power supply) to protect your system from power surges and outages.

Step 2: Run Ethernet Cables to Camera Locations

This is the most labor-intensive part. Here’s how to do it safely and efficiently:

1. Drill holes at entry points (e.g., soffit, wall, ceiling) using a 1/2” drill bit.
2. Feed one end of the Ethernet cable from the switch location toward the camera.
3. Use a fish tape to pull the cable through walls or conduit. For outdoor runs, use weatherproof conduit.
4. Leave 12–18 inches of slack at both ends for connections.
5. Secure cables with zip ties or clips every 3–4 feet to prevent sagging.

Example: For an outdoor camera on a gable end, drill a hole through the soffit, feed the cable down, and run it along the roofline to the switch in the basement.

Step 3: Terminate and Test Cables

If using bulk cable:

1. Strip the cable jacket about 1 inch.
2. Untwist and arrange wires in T568B order (standard for most PoE devices):
   • Orange-White, Orange, Green-White, Blue, Blue-White, Green, Brown-White, Brown
3. Trim wires evenly and insert into the RJ45 connector.
4. Crimp the connector with a crimper.
5. Test the cable with a cable tester to ensure all 8 pins are connected properly.

Warning: Miswired cables can damage your PoE switch or camera. Always test before connecting!

Step 4: Mount and Connect the Cameras

1. Mount the camera using the included bracket and screws. Ensure it’s level and angled correctly.
2. Connect the Ethernet cable to the camera’s RJ45 port.
3. Plug the other end into the PoE switch.
4. Power on the switch. The camera should power up automatically within 30–60 seconds.

Tip: Some cameras have an LED that lights up when receiving PoE power—use this as a quick indicator.

Step 5: Configure Cameras on the NVR or App

1. On your NVR, navigate to the camera setup menu.
2. The NVR should auto-detect new PoE cameras on the network.
3. Assign a name, adjust resolution, and set recording schedules.
4. For cloud-based systems (e.g., Reolink, Arlo), use the manufacturer’s app to add cameras.

Example: In a Hikvision NVR, go to “Camera Management” > “Add” > select the new camera > “OK.”

Step 6: Test and Adjust

• Check live video feed on the NVR or app.
• Verify motion detection, night vision, and audio (if applicable).
• Adjust camera angle or settings as needed.

Troubleshooting Common Issues and Pro Tips

Cameras Not Powering On

• Check cable connection: Ensure both ends are securely plugged in.
• Verify PoE compatibility: Use a PoE switch or injector that matches your camera’s standard.
• Test with a cable tester: A broken wire or miswired pin can prevent power delivery.
• Try a different port: A faulty switch port may not deliver power.

Pro Tip: Use a PoE tester (under $20) to check voltage at the camera end—ideal is 44–57V DC.

Video Feed Not Appearing on NVR

• Ensure the camera and NVR are on the same network.
• Check IP address conflicts (assign static IPs if needed).
• Restart the NVR and switch.
• Update camera and NVR firmware.

Slow or Intermittent Connection

• Replace Cat5e with Cat6 for longer runs (>50m).
• Ensure cables are not near electrical wiring (causes interference).
• Use shielded (STP) cables in high-interference areas.

Weatherproofing Outdoor Cables

• Use silicone sealant around cable entry points.
• Install a drip loop (U-shape in cable) to prevent water from running into the camera.
• Use outdoor-rated Ethernet cables or conduit.

Data Table: PoE Camera Wiring Checklist

Task	Tools Needed	Time Estimate	Notes
Plan layout	Sketch, measuring tape	30–60 min	Mark cable paths and camera spots
Install switch/NVR	Power outlet, Ethernet cable	15–30 min	Use UPS for protection
Run cables	Drill, fish tape, conduit	2–5 hours	Leave slack at both ends
Terminate cables	Crimper, RJ45, tester	10 min per cable	Always test before connecting
Mount and connect cameras	Screws, ladder, Ethernet	15 min per camera	Check PoE LED
Configure NVR/app	NVR, smartphone	30 min	Update firmware first

Conclusion: Empower Your Security with Confidence

Wiring a PoE camera doesn’t have to be a daunting task reserved for professionals. With the right tools, a solid plan, and this step-by-step guide, even a complete beginner can install a robust, reliable security system in a weekend. The beauty of PoE lies in its simplicity—one cable, two functions—which eliminates the complexity of separate power and data lines. Whether you’re protecting your home, business, or rental property, PoE cameras offer unmatched flexibility, scalability, and performance.

By following the steps outlined here—understanding PoE technology, planning your layout, gathering tools, running cables, connecting devices, and troubleshooting issues—you’re not just installing cameras; you’re building a smarter, more secure environment. And the best part? Once you’ve wired your first PoE camera, adding more is as simple as plugging in another cable. Future expansions, firmware updates, and remote monitoring via smartphone apps make PoE systems future-proof and user-friendly.

Remember, the key to success is preparation. Take time to plan, double-check your connections, and test everything before finalizing your setup. A little patience now saves hours of frustration later. So grab your tools, sketch your layout, and start wiring with confidence. Your property’s security is worth the effort—and with PoE, it’s never been easier.

Frequently Asked Questions

What is a PoE camera and how does it work?

A PoE (Power over Ethernet) camera receives both power and data through a single Ethernet cable, eliminating the need for separate power wiring. It connects to a PoE switch or injector, which delivers power safely over the Cat5e/Cat6 cable while transmitting video data to your network.

How to wire a PoE camera without a PoE switch?

You can use a PoE injector to power your camera. Connect the injector between your router and the camera—the injector adds power to the Ethernet cable, allowing non-PoE switches to support PoE cameras.

Can I use regular Ethernet cables for wiring a PoE camera?

Yes, but for best results, use Cat5e or Cat6 cables, as they handle power and data transmission more efficiently. Avoid long runs (over 300 feet) to prevent voltage drop and signal degradation.

How to wire a PoE camera for outdoor installations?

Use weatherproof Ethernet cables and outdoor-rated PoE cameras. Seal all connections with waterproof tape or junction boxes to protect against moisture, and run cables through conduit if exposed to direct sunlight or harsh weather.

Do I need special tools to wire a PoE camera?

Basic tools like a crimper, wire stripper, and RJ45 connectors are needed for DIY cable termination. A PoE tester can also help verify power delivery and connection integrity after setup.

How to troubleshoot PoE camera wiring issues?

Check cable continuity, ensure the PoE source (switch/injector) is working, and verify the camera’s LED status. If the camera doesn’t power on, test with a shorter cable or different PoE port to isolate the problem.
