Wiring a PoE camera system is simple and efficient when you use a PoE switch or injector to deliver both power and data over a single Ethernet cable. Ensure each camera is within 100 meters of the switch and use Cat5e or higher cabling for reliable, high-speed connectivity. Proper planning and secure connections guarantee 24/7 surveillance with minimal downtime.

How to Wire a Poe Camera System for Reliable Security Coverage

Key Takeaways

• Plan camera placement first: Map coverage areas to avoid blind spots and optimize cable runs.
• Use Cat6 cables: They ensure stable power and data transmission for high-resolution PoE cameras.
• Keep runs under 100m: Stay within Ethernet distance limits to prevent signal degradation.
• Label all cables: Simplify troubleshooting and future upgrades with clear, consistent labeling.
• Test connections early: Verify each camera powers on and streams before finalizing installation.
• Secure cables properly: Use conduit or clips to protect wiring from damage and weather.

Why This Matters / Understanding the Problem

Imagine coming home after a long trip only to find your front door ajar, and your old analog security cameras failed to record a single clear image. Frustrating, right? Many homeowners and small businesses still rely on outdated systems that are hard to maintain, offer poor video quality, and require multiple cables for power and data. That’s where how to wire a Poe camera system for reliable security coverage becomes essential.

Power over Ethernet (PoE) cameras solve these problems by sending both power and data over a single Ethernet cable. This simplifies installation, reduces clutter, and improves reliability. Whether you’re securing your home, a retail store, or a remote office, a properly wired PoE camera system delivers consistent, high-definition video without constant maintenance.

But here’s the catch: wiring a PoE system isn’t just about plugging in a few cables. Poor planning, incorrect cable types, or overloading your switch can lead to dropped feeds, flickering video, or even damaged equipment. This guide walks you through how to wire a Poe camera system for reliable security coverage—from choosing the right gear to avoiding common pitfalls—so you get a system that works every time.

What You Need

Before you start drilling holes or running wires, gather the right tools and materials. A well-prepared setup saves time, reduces mistakes, and ensures long-term performance.

• PoE cameras (indoor/outdoor models depending on coverage needs)
• PoE switch or PoE injector (8-port or 16-port, depending on camera count)
• Cat5e, Cat6, or Cat6a Ethernet cables (Cat6 recommended for future-proofing)
• Network Video Recorder (NVR) (if recording locally)
• Ethernet cable tester (to verify connections)
• Cable staples, conduit, or raceways (for outdoor or exposed runs)
• Drill, fish tape, screwdrivers, and ladder (for routing cables)
• PoE-compatible router or switch (if integrating with existing network)
• Label maker or masking tape (to mark cables)
• Network cable crimper and RJ45 connectors (if making custom-length cables)

Pro Tip: Always buy cameras and NVRs from the same brand (e.g., Reolink, Amcrest, Lorex) to avoid compatibility issues. Mixing brands often leads to software glitches or lost features.

Step-by-Step Guide to How to Wire a Poe Camera System for Reliable Security Coverage

Step 1: Plan Your Camera Locations

Start by mapping out where you want cameras. Think like a thief: cover entry points (doors, windows), blind spots, driveways, and high-traffic areas. Use a site survey—walk the property with a notebook or take photos with your phone to mark ideal spots.

For outdoor cameras, avoid direct sunlight (glare) and ensure they’re protected from rain and snow. Aim for a 7–10 ft. mounting height to prevent tampering but still capture faces clearly. For example, a camera over a garage door should be angled slightly downward to see license plates and faces.

Also, consider cable length. PoE cables can run up to 328 feet (100 meters) without signal loss. If your camera is farther, you’ll need a PoE extender or a local PoE switch at the far end. Planning now avoids costly cable runs later.

Warning: Don’t place cameras too close to bright lights (e.g., street lamps). This can cause backlight issues and wash out video.

Step 2: Choose the Right PoE Equipment

Not all PoE systems are created equal. The key is matching your PoE standard with your camera requirements. Most modern cameras use IEEE 802.3af (PoE) or 802.3at (PoE+), which deliver 15.4W and 30W per port, respectively.

Check your camera specs. A basic 1080p camera uses ~5–8W, while a 4K model with IR night vision and pan-tilt-zoom (PTZ) can use 12–25W. If you have 6 cameras, including two 4K PTZ models, you’ll need a PoE+ switch with at least 60W total power budget.

For example, a 16-port PoE+ switch with 250W total power can handle up to 12 standard cameras and 2 high-power PTZs. Always buy a switch with 20% more power capacity than you need to handle surges and future upgrades.

Also, decide whether to use a standalone PoE switch (best for dedicated systems) or a PoE NVR (simplifies setup if all cameras connect directly to it). A standalone switch offers more flexibility, especially if you plan to add smart home devices later.

Step 3: Run the Ethernet Cables

This is where most DIYers make mistakes. Running cables isn’t just about pulling wire—it’s about doing it cleanly, safely, and without signal loss.

Start at the central point (NVR or switch location). Use fish tape to pull cables through walls, ceilings, or conduit. For outdoor runs, use outdoor-rated Cat6 cable (UV-resistant, waterproof jacket). Never use indoor cable outside—it degrades in sunlight and moisture.

When routing through walls, drill holes slightly larger than the cable and seal them with silicone to prevent drafts and pests. For exposed runs (e.g., along a fence), use conduit or raceway to protect cables and maintain a professional look.

Label each cable at both ends. For example, “Front Door,” “Back Patio,” or “Garage.” This saves hours when connecting to the switch later. Use a label maker or masking tape with a permanent marker.

Pro Tip: Leave a 3–5 ft. loop of cable at each end. This gives you slack for adjustments and makes future troubleshooting easier.

Step 4: Terminate Cables (If Needed)

If you’re using pre-made patch cables, skip this step. But if you’re making custom-length cables, proper termination is critical for signal integrity.

Strip the cable jacket carefully, exposing the 8 inner wires. Untwist and arrange them in the T568B standard (most common):

• Orange-White
• Orange
• Green-White
• Blue
• Blue-White
• Green
• Brown-White
• Brown

Insert the wires into an RJ45 connector, ensuring they go all the way to the end. Crimp firmly with a cable crimper. Test each cable with an Ethernet tester to confirm all 8 pins are connected correctly.

Never skip testing. A single miswired pin can cause intermittent connections or complete failure—especially in long runs.

Step 5: Mount and Power the Cameras

With cables in place, it’s time to install the cameras. Use the included mounting brackets and screws. For masonry or stucco walls, use anchors and a drill with a masonry bit.

Secure the camera to the bracket and connect the Ethernet cable. Most cameras have a rubber gasket to seal the port—ensure it’s properly seated to prevent water ingress. For outdoor cameras, use silicone sealant around the base if needed.

Once connected, the camera should power on automatically via PoE. Wait 1–2 minutes for it to boot up. You’ll usually see an LED indicator (solid green = power, blinking = network activity).

Don’t worry if the camera doesn’t appear on the NVR yet—we’ll configure that next.

Step 6: Connect to the NVR and Network

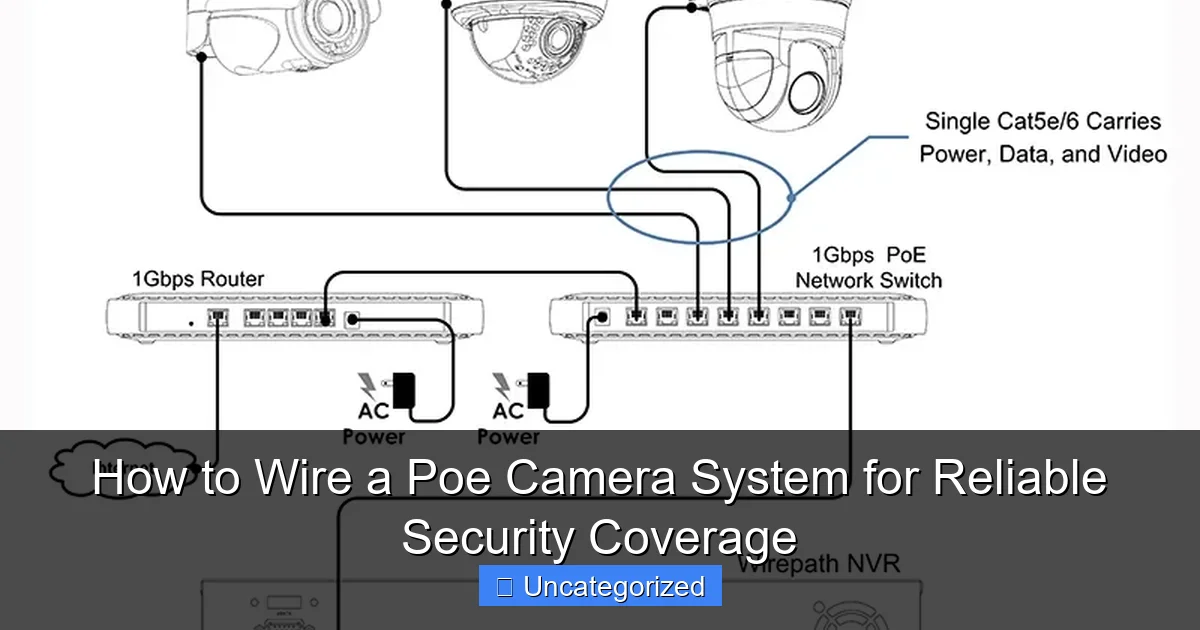

Now, connect all camera cables to the PoE switch or NVR. Plug the switch into power and connect it to your router using a standard Ethernet cable (if using a separate NVR).

Power on the NVR. Most NVRs automatically detect PoE cameras on the same network. Wait for the discovery process (usually 1–3 minutes). You should see camera feeds appear on the monitor.

If cameras aren’t detected:

• Check cable connections (use tester to verify continuity)
• Ensure the switch is PoE-enabled (some switches require PoE mode to be manually activated)
• Power cycle the switch and NVR
• Verify IP address conflicts (use the NVR’s network settings to assign static IPs if needed)

For remote access, connect the NVR to your home Wi-Fi or router. Download the manufacturer’s app (e.g., Reolink, Amcrest View) and follow setup instructions to view cameras on your phone or tablet.

Step 7: Configure Settings for Optimal Performance

With everything connected, fine-tune the system for reliability. Access the NVR’s web interface or app and adjust:

• Video quality: Set to 1080p or 4K, but balance with bandwidth (higher resolution = more storage and network usage)
• Motion detection: Adjust sensitivity and zones (e.g., ignore tree branches but alert on driveways)
• Recording mode: Choose continuous, motion-based, or scheduled recording
• Night vision: Test IR mode in darkness—ensure no overexposure from nearby lights
• Storage: Format the NVR’s hard drive and set retention period (e.g., 30 days)

Enable email or push notifications for motion alerts. Test by walking in front of a camera—you should get a notification within 10 seconds.

Warning: Avoid placing cameras near Wi-Fi routers or microwaves. These can interfere with PoE signals, causing lag or dropped feeds.

Step 8: Secure the System and Test Reliability

Security isn’t just about hardware—it’s also about protecting your data. Change the default admin password on the NVR and router. Use a strong, unique password (e.g., “Nvr$ecure2024!”).

Enable two-factor authentication (2FA) if your NVR supports it. Update firmware regularly to patch vulnerabilities.

Test the system for 24–48 hours. Check:

• Are all cameras streaming smoothly?
• Are motion alerts triggering correctly?
• Is night vision working without glare?
• Can you view feeds remotely without lag?

If any camera fails, troubleshoot the cable (test with another cable) or check for power issues (swap PoE ports).

Pro Tips & Common Mistakes to Avoid

Pro Tip #1: Use a PoE power meter to check voltage at the camera end. Low voltage (below 44V) causes flickering or reboots—especially on long cable runs.

Pro Tip #2: For large properties, install a PoE midspan injector halfway to boost power. This prevents voltage drop over 200+ ft. runs.

Pro Tip #3: Label your NVR’s ports to match camera locations. This makes troubleshooting a breeze when a camera goes offline.

Common Mistake #1: Using Cat5e for 4K cameras. While it works, Cat6 handles higher bandwidth better and reduces interference. Always use Cat6 for future-proofing.

Common Mistake #2: Overloading the PoE switch. A 48W switch can’t power six 10W cameras. Always check the total power budget and leave room for expansion.

Common Mistake #3: Ignoring grounding. Outdoor cameras should be grounded to prevent damage from lightning surges. Use a grounding block or surge protector.

Common Mistake #4: Skipping firmware updates. Manufacturers release updates to fix bugs and improve performance. Check for updates monthly.

FAQs About How to Wire a Poe Camera System for Reliable Security Coverage

Q1: Can I use regular Ethernet cables for PoE?

Yes, but use Cat5e or higher. PoE works on standard Ethernet cables, but Cat6 or Cat6a is better for long runs and high-resolution cameras. Avoid cheap, unshielded cables—they cause interference.

Q2: How many PoE cameras can I connect to one switch?

It depends on the switch’s port count and power budget. A 16-port PoE+ switch with 250W can handle 10–12 standard cameras. Always leave 20% power headroom for surges and future upgrades.

Q3: Do I need an NVR if I have a PoE switch?

Only if you want local recording. An NVR stores video on a hard drive and offers features like motion detection and remote viewing. You can also use a cloud-based system (e.g., Reolink Cloud), but local NVRs are faster and more reliable.

Q4: Can I mix PoE and non-PoE devices on the same switch?

Yes, but use a PoE switch (not a PoE injector). The switch delivers power only to PoE devices. Non-PoE devices (e.g., laptops) connect normally via standard Ethernet.

Q5: What if my camera is over 328 feet from the switch?

Use a PoE extender (e.g., 200 ft. extension) or install a secondary PoE switch at the far end. You can also use fiber-optic cables with media converters for runs over 1,000 ft.

Q6: How do I prevent PoE cables from getting damaged outdoors?

Use outdoor-rated Cat6 cable in conduit or raceway. Avoid stapling cables tightly—this can crush the insulation. For underground runs, use direct-burial cable or conduit with waterproof sealant.

Q7: Can I power PoE cameras with a battery or solar?

Not directly. PoE requires a constant 48V power source. Use a solar-powered PoE switch or a PoE midspan injector connected to a solar battery system. Some off-grid setups use DC-to-PoE converters.

Final Thoughts

Wiring a PoE camera system might seem daunting, but with the right plan and tools, it’s a straightforward process. The key to how to wire a Poe camera system for reliable security coverage is preparation—choosing the right gear, running cables carefully, and testing every step.

Remember: a reliable system isn’t just about seeing what’s happening—it’s about never missing a moment. Whether you’re protecting your family, your business, or your property, a well-wired PoE setup gives you peace of mind 24/7.

Start small. Install 2–3 cameras first, test thoroughly, then expand. Keep your cables labeled, firmware updated, and settings optimized. In a few hours, you’ll have a security system that’s not just functional—but truly reliable.

Now grab your drill, fire up that NVR, and take control of your safety. Your future self will thank you.
