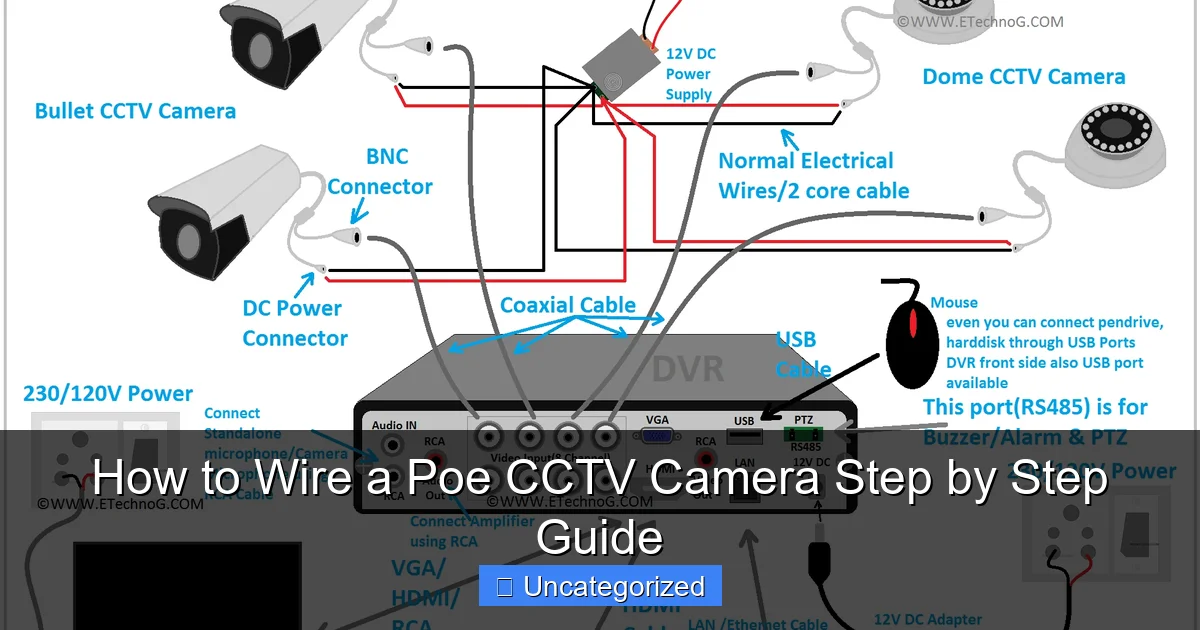

How to Wire a Poe CCTV Camera Step by Step Guide

Key Takeaways

• Plan your layout: Map camera locations and cable routes before starting.
• Use Cat5e/Cat6 cables: Ensure reliable power and data transmission.
• Connect to a PoE switch: Simplify setup with a single cable for power and data.
• Test connections early: Verify camera feed and power before finalizing installation.
• Secure cables properly: Use clips or conduits to prevent damage and tripping.
• Label all cables: Save time troubleshooting by identifying each connection clearly.

Why This Matters / Understanding the Problem

Imagine this: you’ve bought a high-tech PoE (Power over Ethernet) CCTV camera to protect your home or business, but now you’re staring at a tangle of cables, wondering where to begin. The good news? How to wire a PoE CCTV camera step by step guide isn’t just about plugging things in—it’s about doing it safely, efficiently, and in a way that ensures your security system works flawlessly for years.

PoE technology simplifies surveillance setups by sending both power and data through a single Ethernet cable. But without proper wiring, you risk camera failure, network slowdowns, or even electrical hazards. This guide walks you through every detail—from planning to testing—so your PoE CCTV system is secure, reliable, and future-proof.

Whether you’re securing a small shop, a backyard, or a multi-story home, mastering how to wire a PoE CCTV camera step by step guide gives you control, saves money, and avoids the hassle of rewiring later.

What You Need

Before you start, gather the right tools and materials. A proper setup ensures safety, reduces errors, and makes troubleshooting easier. Here’s your checklist:

• PoE CCTV camera(s) – Choose IP cameras rated for outdoor use if needed (IP66 or higher).
• PoE switch or PoE injector – A managed switch (802.3af/at/bt) is ideal for multiple cameras; an injector works for one.
• Ethernet cables (Cat5e or Cat6) – Use shielded (STP) cables for outdoor runs to reduce interference.
• Cable clips, conduit, and weatherproof boxes – Protect outdoor cables from weather and pests.
• Network video recorder (NVR) – Stores footage and manages camera feeds.
• Network cable tester – Verifies connections before powering up.
• Drill, screws, wall anchors, and ladder – For mounting cameras securely.
• Measuring tape and marker – To plan camera placement and cable routes.
• PoE power meter (optional) – Helps check voltage levels at long distances.

Pro tip: Always buy cables 10–15% longer than your estimated run to account for routing and slack.

Step-by-Step Guide to How to Wire a PoE CCTV Camera Step by Step Guide

Step 1: Plan Your Camera Locations and Cable Routes

Start by sketching your property and marking ideal camera spots. Good coverage means:

• Entry/exit points (doors, gates).
• Blind spots (backyards, alleys).
• Areas with valuable assets (parking lots, storage).

Use your measuring tape to estimate cable lengths from each camera to the NVR or PoE switch. Remember: Ethernet cables have a maximum effective range of 100 meters (328 feet) without a signal booster. Beyond that, use a midspan PoE extender or fiber converter.

Tip: Avoid running cables near high-voltage wires, transformers, or large metal structures. These can cause interference and reduce video quality.

This planning phase is critical for the how to wire a PoE CCTV camera step by step guide—it prevents costly mistakes later.

Step 2: Mount the Cameras (Indoor or Outdoor)

Secure each camera using the included mounting bracket. For outdoor setups:

• Use weatherproof enclosures or mounts.
• Angle the camera downward slightly to avoid direct rain on the lens.
• Ensure the field of view covers the area without obstructions (trees, lights).

Drill pilot holes, insert wall anchors, and screw the bracket tightly. For brick or concrete, use masonry bits and anchors. For wood, standard screws work fine.

Warning: Never drill near electrical outlets or plumbing lines. Use a stud finder or wall scanner if unsure.

Once mounted, leave the camera unplugged for now. This prevents damage during wiring.

Step 3: Run the Ethernet Cables from Cameras to the Network Hub

Now, route the Cat6 cables from each camera to the central location (NVR/switch). Here’s how:

• Indoors: Use baseboard channels, attic runs, or under carpets (avoid high-traffic areas).
• Outdoors: Bury cables in conduit (minimum 6 inches deep) or use wall-mounted PVC pipes. Never leave cables exposed—UV rays and animals can damage them.
• Through walls: Use fish tape to pull cables through hollow walls. For solid walls, drill small holes and seal them with silicone.

Label each cable at both ends with tape or tags (e.g., “Front Door,” “Backyard”) to avoid confusion.

For the how to wire a PoE CCTV camera step by step guide, proper cable management ensures a clean, professional finish.

Step 4: Terminate the Cables (If Using Keystone Jacks or Patch Panels)

If your setup uses a patch panel or wall jacks, you’ll need to terminate the cables. Follow the T568B wiring standard (most common):

1. Strip 1.5 inches of the cable jacket.
2. Untwist and arrange wires: Orange-white, Orange, Green-white, Blue, Blue-white, Green, Brown-white, Brown.
3. Trim ends evenly and insert into the jack or patch panel.
4. Use a crimping tool to secure the connection.

For direct runs to the NVR or switch, you can skip termination and use pre-terminated cables or crimp an RJ45 connector directly.

Pro tip: Use a cable tester immediately after termination. A single reversed wire can cause connection failure.

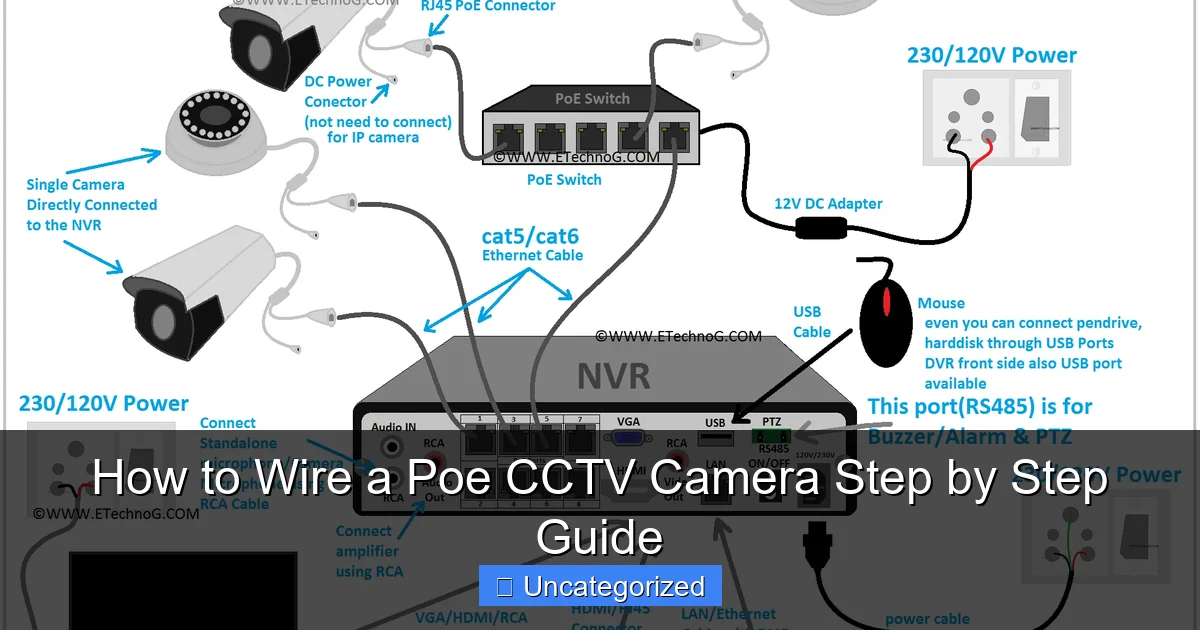

Step 5: Connect Cables to the PoE Switch or Injector

Now, plug the other end of each Ethernet cable into the PoE switch. Here’s what to check:

• Ensure the switch supports PoE (look for 802.3af/at/bt labeling).
• Connect the switch to your NVR via a standard Ethernet cable.
• Plug the switch into a surge-protected power outlet.

If you’re using a PoE injector (for one camera), connect the injector between the camera and the NVR. The injector has two ports: one for the camera (PoE output) and one for the NVR (data-only).

Power on the switch or injector. Wait 30–60 seconds for the system to boot.

Step 6: Connect and Power On the NVR

Plug the NVR into the same network (via the PoE switch) and connect it to a power outlet. Most NVRs have a built-in PoE switch, so you can plug cameras directly into them—no extra switch needed.

Connect the NVR to a monitor using an HDMI or VGA cable. This lets you see the setup interface.

Power on the NVR. It will automatically detect and connect to PoE cameras on the network.

Note: If cameras don’t appear, check cable connections and PoE status lights on the switch.

Step 7: Configure Cameras and NVR Settings

Once cameras are detected, follow these steps in the NVR interface:

• Assign names to each camera (e.g., “Garage,” “Front Door”).
• Set recording mode: Continuous, motion-triggered, or scheduled.
• Adjust motion detection zones to avoid false alerts (e.g., trees swaying).
• Enable remote access by setting up port forwarding or using the manufacturer’s app (e.g., Hik-Connect, Dahua DMSS).

Test each camera by viewing live feeds. Adjust angles if needed.

For the how to wire a PoE CCTV camera step by step guide, configuration is where your system becomes truly functional.

Step 8: Test the System and Troubleshoot

Before finalizing, test everything:

• Check all camera feeds for clarity and coverage.
• Verify motion detection works (walk in front of cameras).
• Ensure night vision activates in low light.
• Test remote viewing via smartphone or tablet.

Common issues and fixes:

• No video: Check PoE status lights, cable continuity, and NVR settings.
• Blurry image: Clean the lens and adjust focus.
• Flickering: Use shielded cables and avoid power-line interference.

Use a PoE power meter to check voltage at the camera end. Ideal voltage is 44–57V (802.3af) or 50–57V (802.3at).

Pro Tips & Common Mistakes to Avoid

Even experienced installers make these errors. Learn from them:

• Using non-PoE switches: Regular switches won’t power PoE cameras. Always verify PoE compatibility.
• Ignoring cable length limits: A 150-foot cable might work, but signal loss can cause lag. Use a PoE extender for runs over 300 feet.
• Skipping cable testing: A $20 tester saves hours of troubleshooting. Test every cable before mounting.
• Overloading the PoE switch: Check the switch’s total power budget. A 15W camera on a 100W switch can handle 6 cameras max (6 x 15W = 90W).
• Poor weatherproofing: Use silicone sealant around outdoor connections. Even “weatherproof” cameras need extra protection.
• No backup power: Add a UPS (uninterruptible power supply) to keep cameras running during outages.

Pro tip: Label everything—cables, switches, NVR inputs. Future you (or a technician) will thank you.

When following a how to wire a PoE CCTV camera step by step guide, attention to detail separates a good install from a great one.

FAQs About How to Wire a PoE CCTV Camera Step by Step Guide

1. Can I use regular Ethernet cables for PoE?

Yes, but Cat5e or Cat6 is best. Cat5 works for short runs (under 50 feet), but thicker cables (Cat6) handle power and data better over long distances. Always use shielded (STP) cables outdoors.

2. How far can a PoE camera be from the switch?

Up to 100 meters (328 feet) for reliable data and power. Beyond that, use a PoE extender or switch with midspan power. For very long runs (500+ feet), consider fiber converters.

3. Can I power a PoE camera from a router?

Only if the router has built-in PoE ports. Most home routers don’t. Use a dedicated PoE switch or injector instead.

4. What if my camera doesn’t power on?

Check these: Is the cable connected to a PoE port? Is the switch powered? Use a PoE tester. If voltage is low, try a shorter cable or upgrade to Cat6.

5. Do I need internet for PoE cameras?

Not for local recording. The NVR stores footage on its hard drive. But internet is required for remote viewing, cloud storage, and firmware updates.

6. Can I mix PoE and non-PoE devices on the same switch?

Yes! PoE switches only send power to PoE devices. Non-PoE devices (like laptops) use the data connection safely.

7. How do I hide cables for a cleaner look?

Use raceways, baseboard molding, or paintable conduit. For walls, run cables inside with fish tape. Outdoors, bury in PVC or use wall-mounted cable clips.

Final Thoughts

Wiring a PoE CCTV camera system might seem daunting, but with this how to wire a PoE CCTV camera step by step guide, you’ve got all the tools to do it right the first time. From planning camera spots to testing the final feed, every step matters.

Remember: quality cables, proper labeling, and weatherproofing are just as important as the cameras themselves. Don’t rush—take your time, test each connection, and double-check power levels.

Once your system is live, review footage monthly and clean lenses seasonally. A well-wired PoE setup can last 5–10 years with minimal maintenance.

Now that you know how to wire a PoE CCTV camera step by step guide, you’re not just installing a camera—you’re building peace of mind. Grab your tools, follow the steps, and secure your space with confidence.

“`
