Installing a Ring Floodlight Camera is easier than you think—if you follow the right steps. This guide walks you through wiring, mounting, and connecting your camera safely and efficiently.
Key Takeaways
- Turn off power at the breaker before starting any electrical work to prevent shocks or damage.
- Use a voltage tester to confirm wires are not live before touching them.
- Match wire colors correctly: black (hot), white (neutral), and green or bare (ground).
- Secure connections with wire nuts and electrical tape for safety and reliability.
- Mount the camera at least 7–10 feet high for optimal coverage and reduced tampering risk.
- Test the camera and lights after installation to ensure everything works before finishing up.
- Use the Ring app to complete setup, adjust motion zones, and customize alerts.
How to Wire a Ring Floodlight Camera: A Complete Step-by-Step Guide
Installing a Ring Floodlight Camera is one of the smartest upgrades you can make to your home security. It combines bright LED floodlights with a high-definition security camera, motion detection, two-way audio, and real-time alerts—all powered by your home’s existing electrical wiring. While it might sound intimidating if you’re not familiar with electrical work, wiring a Ring Floodlight Camera is totally doable with the right tools, preparation, and safety precautions.
In this guide, you’ll learn exactly how to wire a Ring Floodlight Camera safely and correctly. We’ll walk you through every step—from turning off the power to testing your new system—so you can enjoy peace of mind knowing your property is protected. Whether you’re replacing an old floodlight or installing a new one, this guide has you covered.
By the end of this article, you’ll be able to confidently install your Ring Floodlight Camera, connect it to your Wi-Fi, and customize its settings using the Ring app. Let’s get started!
What You’ll Need Before You Begin

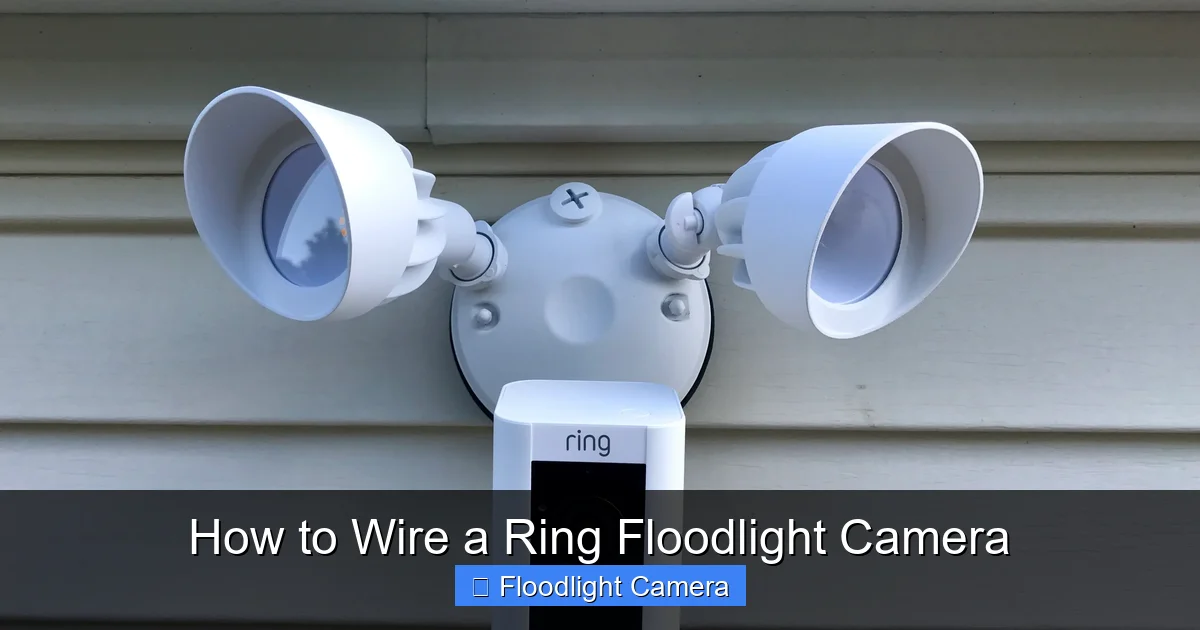

Visual guide about How to Wire a Ring Floodlight Camera
Image source: i2.wp.com
Before you touch a single wire, make sure you have all the necessary tools and materials. Having everything ready will save time and reduce frustration.
Tools Required
- Voltage tester (non-contact type recommended)
- Screwdrivers (Phillips and flathead)
- Wire strippers
- Electrical tape
- Ladder (stable and tall enough to reach the mounting location)
- Drill (if mounting to a new location)
- Safety goggles and gloves
Materials Included with the Ring Floodlight Camera
- Ring Floodlight Camera unit
- Mounting bracket
- Screws and anchors
- Wire nuts (usually 3–4)
- Junction box adapter (if needed)
Optional but Helpful Items
- Electrical fish tape (for running wires through walls)
- Caulk or silicone sealant (to weatherproof the installation)
- Smartphone or tablet with the Ring app installed
- Wi-Fi network with strong signal at the installation site
Safety First: Turn Off the Power
Never skip this step. Electricity is dangerous, and even a small mistake can cause injury or damage your home’s wiring.
1. Go to your home’s main electrical panel (breaker box).
2. Locate the circuit that powers the existing floodlight or the outlet you’ll be using.
3. Flip the breaker to the “OFF” position.
4. Use a voltage tester to double-check that the wires are not live. Touch the tester to the black (hot) wire—if it doesn’t beep or light up, you’re safe to proceed.
Pro Tip: Label the breaker after turning it off so others don’t accidentally turn it back on while you’re working.
Step 1: Remove the Old Fixture (If Applicable)
If you’re replacing an existing floodlight, you’ll need to remove it first. This gives you access to the wiring and mounting bracket.
Turn Off Power and Confirm It’s Off
We can’t stress this enough—always verify the power is off using a voltage tester before touching any wires.
Remove the Old Light
1. Use a screwdriver to remove the screws holding the old fixture to the wall or ceiling.
2. Gently pull the fixture away from the wall to expose the wires.
3. Unscrew the wire nuts connecting the fixture wires to the house wires.
4. Carefully separate the wires and set the old fixture aside.
Inspect the Electrical Box
Make sure the electrical box is secure and in good condition. If it’s loose, damaged, or too small, you may need to replace it with a stronger one that can support the weight of the Ring Floodlight Camera.
Note: The Ring Floodlight Camera weighs about 3.5 pounds, so the box must be rated for at least 10–15 pounds for safety.
Step 2: Prepare the Wiring
Now that the old fixture is gone, it’s time to prepare the wires for your new Ring Floodlight Camera.
Identify the Wires
You should see three wires coming from the wall:
- Black wire: Hot (carries electricity from the breaker)
- White wire: Neutral (completes the circuit)
- Green or bare copper wire: Ground (safety wire that prevents shocks)
If your home has older wiring, you might only see black and white wires. In that case, the ground may be connected to the metal electrical box itself.
Strip the Wire Ends (If Needed)
If the wire ends are frayed, too short, or not stripped, use wire strippers to remove about ½ inch of insulation from each wire. This ensures a clean, solid connection.
Check Wire Length
The wires should extend at least 6 inches from the electrical box. If they’re too short, you may need to splice in additional wire using wire nuts and electrical tape.
Step 3: Assemble the Ring Floodlight Camera
Before mounting, it’s best to assemble the camera and test the connections.
Attach the Mounting Bracket
1. Take the mounting bracket that came with your Ring Floodlight Camera.
2. Align it with the electrical box and mark the screw holes.
3. If you’re installing in a new location, drill pilot holes and use wall anchors for extra support.
4. Secure the bracket to the wall or ceiling using the provided screws.
Connect the Wires
Now it’s time to connect the camera’s wires to your home’s wiring.
1. Match the wires by color:
– Black to black (hot to hot)
– White to white (neutral to neutral)
– Green or bare to ground (ground to ground)
2. Twist the matching wires together clockwise.
3. Screw a wire nut over each connection. Give each wire a gentle tug to make sure it’s secure.
4. Wrap each wire nut with electrical tape for added protection.
Pro Tip: If your camera has a green ground wire and your house has a bare copper ground, twist them together and secure with a wire nut. If your house has a green ground wire, connect green to green.
Tuck Wires into the Electrical Box
Carefully push the connected wires back into the electrical box. Don’t force them—this can damage the connections.
Step 4: Mount the Camera
With the wiring complete, it’s time to attach the camera to the mounting bracket.
Align and Secure the Camera
1. Hold the Ring Floodlight Camera up to the bracket.
2. Slide it into place so the mounting screws align with the slots on the camera.
3. Tighten the screws to secure the camera. Don’t overtighten—this can crack the housing.
Adjust the Angle
The camera and floodlights are adjustable. Tilt and swivel them to cover the desired area—like your driveway, front door, or backyard.
Recommended Height: Install the camera 7–10 feet above the ground. This gives a wide field of view and makes it harder for someone to tamper with it.
Step 5: Restore Power and Test
Now that everything is connected and mounted, it’s time to turn the power back on and test the system.
Turn the Breaker Back On
Go to your electrical panel and flip the breaker to the “ON” position.
Check the Lights and Camera
1. The floodlights should turn on briefly when power is restored.
2. Wait a few seconds—the camera will boot up and begin connecting to your Wi-Fi.
3. Look for the status light on the camera:
– Solid blue: Camera is connecting to Wi-Fi.
– Blinking blue: Camera is in setup mode.
– Solid white: Camera is online and working.
If the lights don’t turn on or the camera doesn’t power up, turn the breaker off immediately and double-check your wiring.
Step 6: Set Up the Ring App
The final step is connecting your camera to the Ring app so you can view live footage, receive alerts, and customize settings.
Download the Ring App
If you haven’t already, download the free Ring app from the App Store (iOS) or Google Play (Android).
Create or Log In to Your Account
Open the app and sign in with your Ring account. If you don’t have one, create a new account using your email and phone number.
Add Your Device
1. Tap the “+” icon in the top right corner.
2. Select “Add a Device” and choose “Security Cameras.”
3. Follow the on-screen instructions to scan the QR code on the back of your camera.
4. The app will guide you through connecting to your Wi-Fi network. Make sure your phone is on the same 2.4 GHz network (Ring cameras don’t support 5 GHz).
5. Wait for the camera to connect. This may take a few minutes.
Customize Settings
Once connected, you can:
- Adjust motion zones to focus on specific areas (like your front walkway).
- Set motion sensitivity to reduce false alerts from trees or passing cars.
- Enable two-way audio to speak through the camera.
- Schedule when the floodlights turn on (e.g., only at night).
- Set up alerts to notify you when motion is detected.
Troubleshooting Common Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.
Camera Won’t Power On
- Double-check that the breaker is on.
- Use a voltage tester to confirm power is reaching the wires.
- Verify all wire connections are tight and secure.
- Ensure the ground wire is properly connected.
Wi-Fi Connection Fails
- Make sure you’re using a 2.4 GHz Wi-Fi network (not 5 GHz).
- Move your router closer or use a Wi-Fi extender if the signal is weak.
- Restart your router and try the setup again.
- Reset the camera by holding the setup button for 20 seconds.
Floodlights Don’t Turn On
- Check the light settings in the Ring app—make sure they’re not turned off.
- Verify the motion sensitivity is set high enough.
- Ensure the lights aren’t blocked by dirt, snow, or overgrown plants.
Video Quality Is Poor
- Clean the camera lens with a soft, dry cloth.
- Check your internet speed—Ring recommends at least 2 Mbps upload speed.
- Reposition the camera to avoid glare from the sun or bright lights.
False Motion Alerts
- Adjust motion zones to exclude areas with moving trees or passing cars.
- Lower the motion sensitivity in the app.
- Install the camera under an eave or roof overhang to reduce wind interference.
Safety and Maintenance Tips
To keep your Ring Floodlight Camera working reliably for years, follow these best practices.
Regular Cleaning
Wipe the camera lens and floodlights every few months with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
Check Connections Annually
Over time, vibrations and weather can loosen wire connections. Once a year, turn off the power and inspect the wiring to ensure everything is secure.
Weatherproofing
If your camera is exposed to rain or snow, apply a small bead of silicone sealant around the edges of the mounting bracket to prevent water from seeping into the electrical box.
Update Firmware
Ring regularly releases firmware updates to improve performance and security. Keep your app updated and allow automatic updates when prompted.
Conclusion
Wiring a Ring Floodlight Camera might seem like a big project, but with the right preparation and attention to safety, it’s a manageable DIY task that pays off in enhanced home security. By following this guide, you’ve learned how to safely turn off power, connect wires, mount the camera, and set it up using the Ring app.
Remember: always prioritize safety by turning off the breaker and using a voltage tester. Take your time with each step, and don’t hesitate to call a licensed electrician if you’re unsure about any part of the process.
Once installed, your Ring Floodlight Camera will provide bright illumination, clear video footage, and real-time alerts—giving you peace of mind whether you’re at home or away. With customizable settings and smart features, it’s a powerful tool for protecting your property and loved ones.
Now that you know how to wire a Ring Floodlight Camera, you’re ready to take control of your home security. Stay safe, stay connected, and enjoy the added protection your new camera brings!
