This guide walks you through how to wire a Blink floodlight camera safely and correctly. You’ll learn the tools needed, wiring steps, and how to test your setup for reliable outdoor security.
Key Takeaways
- Turn off power at the breaker before starting any electrical work to prevent shocks or damage.
- Use a voltage tester to confirm wires are not live before touching them.
- Match wire colors correctly: black (hot), white (neutral), and green or bare (ground).
- Secure connections with wire nuts and electrical tape to prevent loose wires.
- Mount the camera and floodlights at a height of 8–10 feet for optimal coverage.
- Test the system after installation using the Blink app to ensure video and lights work.
- Follow local electrical codes and consult a licensed electrician if unsure.
How to Wire Blink Floodlight Camera: A Complete Step-by-Step Guide
Are you ready to boost your home security with a Blink floodlight camera? These smart devices combine bright LED floodlights with high-definition video monitoring, giving you peace of mind day and night. But before you can enjoy motion-activated alerts and live streaming, you need to know how to wire a Blink floodlight camera properly.
Don’t worry—this guide is designed for homeowners, DIYers, and tech-savvy individuals who want a clear, safe, and reliable installation. Whether you’re replacing an old floodlight or installing a new one, we’ll walk you through every step, from turning off the power to testing your system.
By the end of this guide, you’ll have a fully functional Blink floodlight camera wired into your home’s electrical system. We’ll cover tools, safety tips, wiring details, mounting, app setup, and troubleshooting. Let’s get started!
What You’ll Need Before You Begin

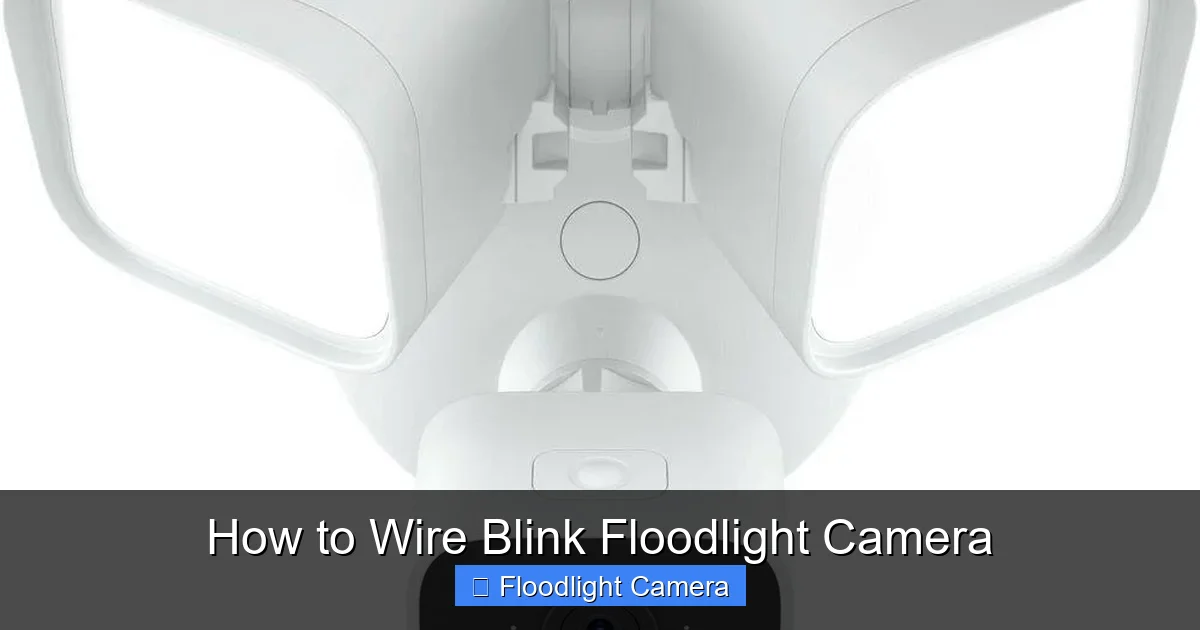

Visual guide about How to Wire Blink Floodlight Camera
Image source: assets.rebelmouse.io
Before touching any wires, gather all the tools and materials. Having everything ready saves time and reduces mistakes.
Tools Required
- Screwdrivers (Phillips and flathead)
- Voltage tester (non-contact type recommended)
- Wire strippers
- Electrical tape
- Wire nuts (usually included with the camera)
- Ladder (stable and tall enough for your installation height)
- Drill and drill bits (if mounting on a new location)
- Pencil or marker for marking drill points
Materials Included with Blink Floodlight Camera
- Blink floodlight camera unit
- Mounting bracket
- Screws and anchors
- Wire nuts
- Instruction manual
Optional but Helpful
- Electrical conduit (if running new wires)
- Weatherproof junction box (for outdoor protection)
- Smartphone with Blink app installed
- Wi-Fi network with strong signal at installation site
Safety First: Preparing for Installation
Electrical work can be dangerous if not done correctly. Always prioritize safety.
Turn Off the Power
Go to your home’s electrical panel (breaker box) and locate the circuit that powers the existing floodlight or the area where you’ll install the new one. Flip the corresponding breaker to the “OFF” position. This cuts power to the wires and prevents electric shock.
Test the Wires
Even after turning off the breaker, use a non-contact voltage tester to double-check that the wires are not live. Touch the tester near the wires in the electrical box. If it beeps or lights up, the power is still on—double-check the breaker.
Wear Protective Gear
Wear rubber-soled shoes and avoid working in wet conditions. If you’re not confident working with electricity, consider hiring a licensed electrician.
Step 1: Remove the Old Floodlight (If Applicable)
If you’re replacing an existing floodlight, start by removing it.
Unscrew the Fixture
Use a screwdriver to remove the screws holding the old floodlight to the wall or ceiling. Gently pull the fixture away from the wall to expose the wiring.
Disconnect the Wires
You’ll typically see three wires: black (hot), white (neutral), and green or bare copper (ground). Loosen the wire nuts and separate the wires. Note how they were connected so you can replicate the setup.
Remove the Mounting Bracket
Unscrew and remove the old mounting bracket. Clean the area if needed.
Step 2: Prepare the New Blink Floodlight Camera
Now it’s time to get your Blink camera ready for installation.
Unbox and Inspect
Open the Blink floodlight camera box and check that all parts are included. Look for any damage during shipping.
Attach the Mounting Bracket
Most Blink models come with a mounting bracket that attaches to the wall. Hold the bracket against the wall where you want to install the camera. Use a pencil to mark the screw holes.
Drill Pilot Holes
Use a drill to create pilot holes at the marked spots. This makes it easier to screw in the mounting bracket and prevents wood or siding from splitting.
Secure the Bracket
Align the bracket with the holes and screw it into place using the provided screws and wall anchors (if needed). Make sure it’s level and tightly secured.
Step 3: Connect the Wires
This is the most critical part of the installation. Proper wiring ensures your camera and lights work safely and reliably.
Identify the Wires
In your electrical box, you should see:
- Black wire – Hot (carries electricity from the breaker)
- White wire – Neutral (completes the circuit)
- Green or bare copper wire – Ground (safety path for electricity)
On the Blink floodlight camera, you’ll find corresponding wires:
- Black wire from the camera
- White wire from the camera
- Green or bare wire from the camera
Strip the Wire Ends
Use wire strippers to remove about ½ inch of insulation from the ends of all wires (both house wires and camera wires). This exposes the copper for a solid connection.
Connect the Wires
Match the wires by color:
- Connect the black house wire to the black camera wire
- Connect the white house wire to the white camera wire
- Connect the green or bare house wire to the green or bare camera wire
Twist the matching wires together tightly, then screw on a wire nut. Give each connection a gentle tug to ensure it’s secure. Wrap electrical tape around the wire nuts for extra protection.
Tuck Wires into the Box
Carefully push the connected wires back into the electrical box. Avoid pinching or bending them sharply.
Step 4: Mount the Blink Floodlight Camera
With the wires connected, it’s time to attach the camera.
Align the Camera with the Bracket
Hold the Blink floodlight camera up to the mounting bracket. Most models have a hook or slot system that allows the camera to hang securely.
Secure the Camera
Slide the camera into place on the bracket. Some models require you to tighten a set screw or use a locking mechanism. Follow the instructions in your manual.
Adjust the Angle
Tilt the camera and floodlights to your desired angle. Aim the camera toward the area you want to monitor (e.g., driveway, front door, backyard). The floodlights should cover the same zone.
Step 5: Restore Power and Test
Now that everything is connected and mounted, it’s time to power up.
Turn the Breaker Back On
Return to your electrical panel and flip the breaker back to the “ON” position. The floodlights may turn on briefly—this is normal.
Check the Lights
Walk in front of the camera to trigger the motion sensor. The floodlights should activate. If they don’t, double-check your wiring and breaker.
Download and Set Up the Blink App
If you haven’t already, download the Blink Home Monitor app on your smartphone (available for iOS and Android). Create an account or log in.
Add the Camera to the App
Open the app and follow the on-screen instructions to add a new device. Scan the QR code on the camera or enter the serial number manually. The app will guide you through Wi-Fi setup and syncing.
Test Video and Alerts
Once connected, view the live feed in the app. Walk in front of the camera to test motion detection. You should receive a notification and see a video clip.
Tips for Optimal Performance
To get the most out of your Blink floodlight camera, follow these best practices.
Choose the Right Location
Install the camera 8–10 feet high for the best field of view. Avoid pointing it directly at the sun or bright lights, which can cause glare.
Ensure Strong Wi-Fi Signal
The camera needs a stable internet connection. Use a Wi-Fi extender if the signal is weak at the installation site.
Adjust Motion Sensitivity
In the Blink app, you can adjust motion sensitivity to reduce false alerts from wind, animals, or passing cars.
Clean the Lens Regularly
Dust, dirt, and spiderwebs can block the camera lens. Wipe it gently with a soft, dry cloth every few weeks.
Check Battery Levels
While the floodlights are wired, the camera itself may use batteries for Wi-Fi and processing. Check battery levels in the app and replace them as needed.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here’s how to fix the most common ones.
Floodlights Won’t Turn On
- Check that the breaker is on.
- Use a voltage tester to confirm power at the wires.
- Ensure all wire connections are tight and secure.
- Test with a different light fixture to rule out a faulty circuit.
Camera Not Connecting to Wi-Fi
- Move closer to your router during setup.
- Restart your router and the camera.
- Ensure your Wi-Fi network is 2.4 GHz (Blink doesn’t support 5 GHz).
- Reset the camera and try pairing again.
Motion Alerts Not Working
- Check motion zones in the app—make sure the area is selected.
- Increase motion sensitivity.
- Ensure the camera lens isn’t blocked.
- Verify that the camera is powered and online.
Poor Video Quality
- Clean the camera lens.
- Check Wi-Fi signal strength.
- Update the Blink app and camera firmware.
- Reposition the camera for better lighting.
Flickering Lights
- Loose wire connections can cause flickering. Turn off power and recheck all connections.
- Ensure the voltage matches the camera’s requirements (typically 120V).
- Avoid using dimmer switches with the floodlights.
When to Call a Professional
While many homeowners can install a Blink floodlight camera themselves, some situations require expert help.
- You’re not comfortable working with electricity.
- The wiring in your home is outdated or aluminum (requires special handling).
- You need to run new electrical lines or install a junction box.
- Local building codes require a licensed electrician for outdoor installations.
- You experience repeated electrical issues after installation.
A professional electrician can ensure your installation is safe, up to code, and functioning properly.
Conclusion
Installing a Blink floodlight camera is a smart way to enhance your home’s security. By following this guide on how to wire a Blink floodlight camera, you’ve learned how to safely connect the device, mount it correctly, and set it up with the app. From turning off the power to testing motion alerts, each step ensures a reliable and effective system.
Remember to prioritize safety, double-check your wiring, and test everything before finishing. With proper installation, your Blink floodlight camera will provide bright lighting and clear video monitoring for years to come.
Whether you’re protecting your front porch, backyard, or driveway, this wired setup gives you consistent power and performance. And if you ever run into issues, the troubleshooting tips and FAQs below can help you get back on track.
Now that you’re equipped with the knowledge and confidence, go ahead and install your Blink floodlight camera—your home will be safer and smarter in no time.
