How to Wire Poe Cameras in a Two Story House for Perfect Coverage

Wiring PoE cameras in a two-story house starts with a central network switch near your router to ensure clean, reliable power and data delivery to every camera. Use Cat6 cables run through walls or attic spaces to connect each camera, strategically placing units at entry points, stairwells, and second-floor hallways for seamless, full-home coverage without Wi-Fi dead zones.

Key Takeaways

• Plan camera placement first: Map coverage areas to eliminate blind spots on both floors.
• Use Cat6 cable: Ensures reliable power and data over long distances between floors.
• Install a central PoE switch: Reduces clutter and simplifies power management for all cameras.
• Label all cables: Saves time during troubleshooting and future expansions.
• Test each camera: Verify connectivity and video quality before finalizing installation.
• Secure wiring pathways: Use conduit or raceways to protect cables and maintain aesthetics.
• Consider a UPS backup: Keeps cameras running during power outages for continuous security.

Why Proper Poe Camera Wiring Matters for Two-Story Homes

Imagine this: You’ve invested in a state-of-the-art PoE (Power over Ethernet) security camera system for your two-story home, only to find frustrating dead zones, unreliable connections, or cameras that randomly drop offline. It’s a common issue that stems from improper wiring and planning. Unlike traditional wireless systems, PoE cameras deliver both power and data through a single Ethernet cable, offering unparalleled reliability, crisp video quality, and remote accessibility. However, achieving perfect coverage in a multi-story house requires strategic planning, technical know-how, and attention to detail.

Wiring PoE cameras in a two-story home isn’t just about running cables from point A to point B. It’s about creating a seamless, scalable network that ensures every corner of your property is monitored—from the front porch to the backyard, the garage, and even the second-floor hallway. Whether you’re a DIY enthusiast or hiring a professional, understanding the core principles of PoE camera installation can save you time, money, and headaches. This guide walks you through the entire process, from assessing your home’s layout to troubleshooting common issues, so you can achieve perfect coverage with minimal effort.

1. Planning Your PoE Camera Layout for Optimal Coverage

The foundation of a successful PoE camera system is a well-thought-out layout. A two-story house presents unique challenges, including vertical distance, wall penetration, and potential interference. Without proper planning, you risk blind spots, signal degradation, or over-investment in unnecessary cameras.

Assess Your Home’s Exterior and Interior Layout

Begin by creating a detailed sketch or digital floor plan of your home. Include:

• All entry points (doors, windows, garage)
• High-traffic outdoor areas (driveway, backyard, side yard)
• Blind spots (corners, behind trees, near fences)
• Interior zones requiring monitoring (hallways, stairwells, basement)

For example, a typical 3-bedroom two-story home might need 6–8 cameras: two at the front and back doors, one covering the driveway, one in the backyard, one in the garage, and two on the interior (e.g., first-floor hallway and second-floor landing). Prioritize areas with high foot traffic or valuables.

Determine Camera Types and Features

Not all PoE cameras are created equal. Choose models based on your needs:

• Fixed cameras: Ideal for doorways with a static field of view.
• PTZ (Pan-Tilt-Zoom) cameras: Best for wide outdoor spaces where manual control is needed.
• Varifocal cameras: Offer adjustable zoom for precise coverage (e.g., covering both a porch and a sidewalk).
• Low-light or IR cameras: Essential for nighttime monitoring.

Tip: Use angle of view calculators (available online) to estimate how far each camera can see. A 90° lens covers ~20 feet, while a 120° lens covers ~15 feet with less detail.

Map Out Cable Routes and Network Infrastructure

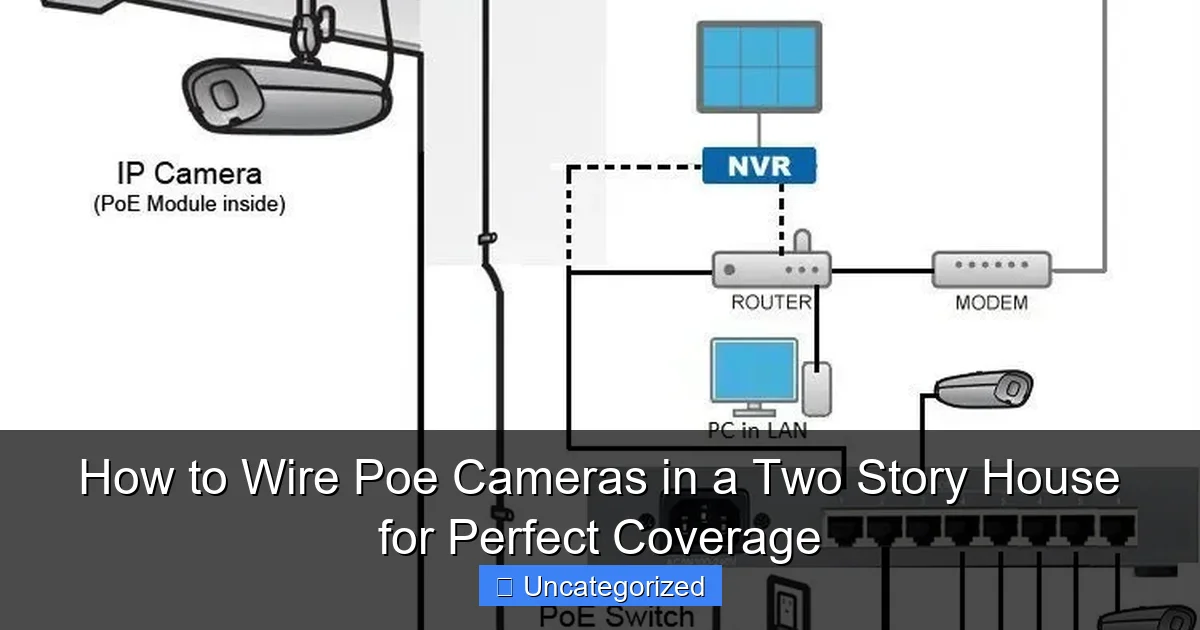

PoE cameras require a clear path from the Network Video Recorder (NVR) or PoE switch to each camera. In a two-story home, consider:

• Running cables through interior walls (less exposed to weather)
• Using attic or basement routes to connect floors
• Avoiding long cable runs (>328 feet) to prevent voltage drop

For example: Run cables from the NVR (basement) up through a closet wall to the first floor, then through the attic to the second floor. This avoids drilling through exterior walls and reduces weather damage risk.

2. Choosing the Right PoE Equipment and Tools

The quality of your equipment directly impacts system performance, longevity, and ease of installation. Investing in the right tools and hardware upfront prevents costly upgrades later.

Selecting a PoE Switch or NVR

PoE cameras draw power from either a PoE switch (if using a separate NVR) or a PoE NVR (all-in-one recorder with built-in power ports). For a two-story home, a PoE NVR is often more convenient.

Key specs to consider:

• PoE standard: IEEE 802.3af (15.4W per port) or 802.3at (30W, “PoE+”) for high-resolution or PTZ cameras.
• Port count: Choose an NVR with 2–4 extra ports for future expansion.
• Bandwidth: Ensure the switch/NVR supports 1 Gbps for 4K cameras.

Example: The Reolink RLK16-800B8 16-channel PoE NVR supports 8 PoE+ ports and 4K recording—ideal for large homes.

Ethernet Cable: Cat 5e vs. Cat 6 vs. Cat 6a

Not all Ethernet cables are equal. For a two-story house, Cat 6 or Cat 6a is recommended due to:

• Higher bandwidth (10 Gbps vs. 1 Gbps for Cat 5e)
• Better resistance to crosstalk and interference
• Future-proofing for 4K/8K cameras

Tip: Use solid-core cables for permanent installations (e.g., walls) and stranded cables for temporary connections (e.g., testing).

Essential Tools and Accessories

Prepare these tools before installation:

• Drill with masonry bits (for exterior walls)
• Fish tape (to route cables through walls)
• Cable tester (to verify connections)
• Label maker (to identify cables)
• Junction boxes (for outdoor camera connections)
• Conduit (to protect exterior cables)

Pro Tip: Buy a PoE injector as a backup in case the NVR fails.

3. Running Ethernet Cables Between Floors

Vertical cable runs are the most challenging part of wiring a two-story home. Poor execution can lead to signal loss, water damage, or fire hazards.

Route Options: Interior vs. Exterior

Interior routes (recommended):

• Run cables through interior walls (e.g., closets, utility rooms)
• Use the attic or basement to cross between floors
• Drill through floor joists (with firestop sealant)

Exterior routes (use only if necessary):

• Run cables through soffits or under eaves
• Use weatherproof conduit and sealants
• Avoid direct exposure to rain or UV light

Example: For a camera above the garage door, run the cable from the attic through a soffit vent, then down the garage wall. Use silicone sealant to prevent leaks.

Step-by-Step Cable Pulling Guide

1. Mark camera locations and drill pilot holes.
2. Use fish tape to pull a pull string from the NVR to each camera location.
3. Tie the Ethernet cable to the pull string and gently feed it through.
4. Leave 6–12 inches of slack at both ends for termination.
5. Label each cable at both ends (e.g., “Front Door,” “Garage”).

Tip: For long runs, pull two cables—one for the camera and one as a spare.

Terminating and Testing Cables

Terminate cables with RJ45 connectors or use pre-terminated cables. Follow the T568B wiring standard:

• Pin 1: Orange-White
• Pin 2: Orange
• Pin 3: Green-White
• Pin 4: Blue
• Pin 5: Blue-White
• Pin 6: Green
• Pin 7: Brown-White
• Pin 8: Brown

Use a network cable tester to verify continuity and detect shorts. If a cable fails, re-terminate or replace it.

4. Installing and Configuring the PoE Network

Once cables are in place, the network setup determines your system’s reliability and performance.

Setting Up the PoE Switch or NVR

Follow these steps:

1. Mount the NVR/switch in a cool, dry location (e.g., basement, closet).
2. Connect the NVR to your router via Ethernet for remote access.
3. Plug in the power supply and turn on the device.
4. Connect cameras to PoE ports (use the labeled cables).

Tip: Power on the NVR before connecting cameras to avoid voltage spikes.

Network Configuration for Two-Story Homes

To prevent network congestion:

• Assign a static IP address to the NVR (e.g., 192.168.1.100).
• Enable QoS (Quality of Service) on your router to prioritize camera traffic.
• Use a separate VLAN for cameras if your router supports it.

Example: On a Netgear router, go to Advanced > QoS Settings and set the NVR’s IP to “Highest Priority.”

Camera Setup and Calibration

After powering on, access the NVR’s interface to:

• Assign names to each camera (e.g., “Front Door,” “Backyard”).
• Adjust resolution, frame rate, and IR settings.
• Set up motion detection zones to reduce false alerts.
• Enable H.265 compression to save storage space.

Pro Tip: Use the camera’s test mode to verify coverage before final mounting.

5. Troubleshooting Common PoE Installation Issues

Even with careful planning, issues can arise. Here’s how to resolve them.

Cameras Not Powering On

Causes:

• Faulty cable or termination
• PoE port failure
• Voltage drop over long runs

Solutions:

• Test the cable with a PoE tester.
• Swap the camera to another PoE port.
• Use a PoE extender for runs > 300 feet.

Video Lag or Poor Quality

Causes:

• Network congestion
• Incorrect resolution settings
• Low-quality cable (e.g., Cat 5e with 4K cameras)

Solutions:

• Upgrade to Cat 6 cable.
• Reduce camera resolution (e.g., 1080p instead of 4K).
• Enable QoS on your router.

Remote Access Failures

Causes:

• Incorrect port forwarding
• Firewall blocking traffic
• ISP restrictions

Solutions:

• Use the NVR’s DDNS (Dynamic DNS) service.
• Forward ports 80 (HTTP) and 443 (HTTPS) on your router.
• Contact your ISP to disable CG-NAT.

6. Advanced Tips for Scalability and Maintenance

A well-designed PoE system should grow with your needs and require minimal upkeep.

Future-Proofing Your Network

To accommodate upgrades:

• Install conduit with pull strings for easy cable replacement.
• Use a PoE NVR with 16+ ports.
• Label all cables and document your network map.

Regular Maintenance Checklist

Perform these tasks quarterly:

• Check camera lenses for dirt or fog.
• Verify cable seals for leaks.
• Update NVR and camera firmware.
• Test motion detection and alerts.

Expanding Coverage

Need more cameras? Consider:

• Adding a PoE extender for long runs.
• Using a mesh PoE switch in the attic or garage.
• Integrating with smart home systems (e.g., Alexa, Google Home).

Data Table: Recommended PoE Camera Configurations for Two-Story Homes

Home Size	Camera Count	Recommended NVR	Cable Type	Max Run Length	Power Budget
1,500–2,500 sq ft	6–8	8-channel PoE+ NVR	Cat 6	328 ft (100 m)	150W
2,500–4,000 sq ft	10–12	16-channel PoE+ NVR	Cat 6a	328 ft (100 m)	250W
4,000+ sq ft	14+	32-channel PoE++ NVR	Cat 6a	328 ft (100 m)	500W

Conclusion

Wiring PoE cameras in a two-story house is a rewarding project that enhances your home’s security, convenience, and peace of mind. By following the steps in this guide—planning your layout, choosing quality equipment, running cables strategically, and troubleshooting issues—you can achieve perfect coverage with minimal downtime. Remember, a well-designed PoE system isn’t just about the cameras; it’s about the network behind them. With proper installation and maintenance, your PoE camera system will deliver crystal-clear footage, remote access, and reliability for years to come.

Whether you’re securing a suburban home or a sprawling estate, the principles remain the same: plan meticulously, use the right tools, and prioritize scalability. So grab your drill, fire up your NVR, and take control of your home’s security—one cable at a time.

Frequently Asked Questions

How do I run PoE cables between floors for my cameras?

To wire PoE cameras in a two story house, drill a small hole through the floor or ceiling between stories and use a fish tape to pull the Ethernet cables through. Always seal the hole afterward to maintain fire safety and insulation.

Can I use the same PoE switch for cameras on both floors?

Yes, a single PoE switch (preferably 8+ ports) can power cameras on both floors if the total power draw doesn’t exceed the switch’s budget. Use a central closet or basement to house the switch for easier cable management.

What’s the best way to ensure perfect coverage with PoE cameras in a two story house?

Plan camera placement to cover entry points, stairwells, and blind spots, using a mix of wide-angle and zoom models. Run cables through interior walls or attic spaces to avoid outdoor weather damage.

Do I need a PoE extender for long cable runs?

If your cable run exceeds 100 meters (328 ft), a PoE extender or midspan injector can boost power and data signals. For most two story houses, standard Cat6 cables will work without extenders.

How can I hide PoE camera wires for a clean look?

Route cables inside walls, baseboards, or crown molding, and use cable clips or raceways for exposed areas. Paintable cable covers help blend wires with your home’s interior.

Is it safe to DIY PoE camera wiring in a two story house?

Yes, but follow local electrical codes and avoid high-voltage lines. If running cables through insulation or tight spaces, consider hiring a low-voltage technician for tricky sections.
