Wiring a PoE EZVIZ camera is a simple, one-cable process that delivers both power and data over a single Ethernet connection. Just connect the camera to a PoE switch or injector using Cat5e/Cat6 cable, ensuring your network supports PoE standards for seamless setup. No extra power outlets or messy wiring—ideal for clean, reliable security installations.

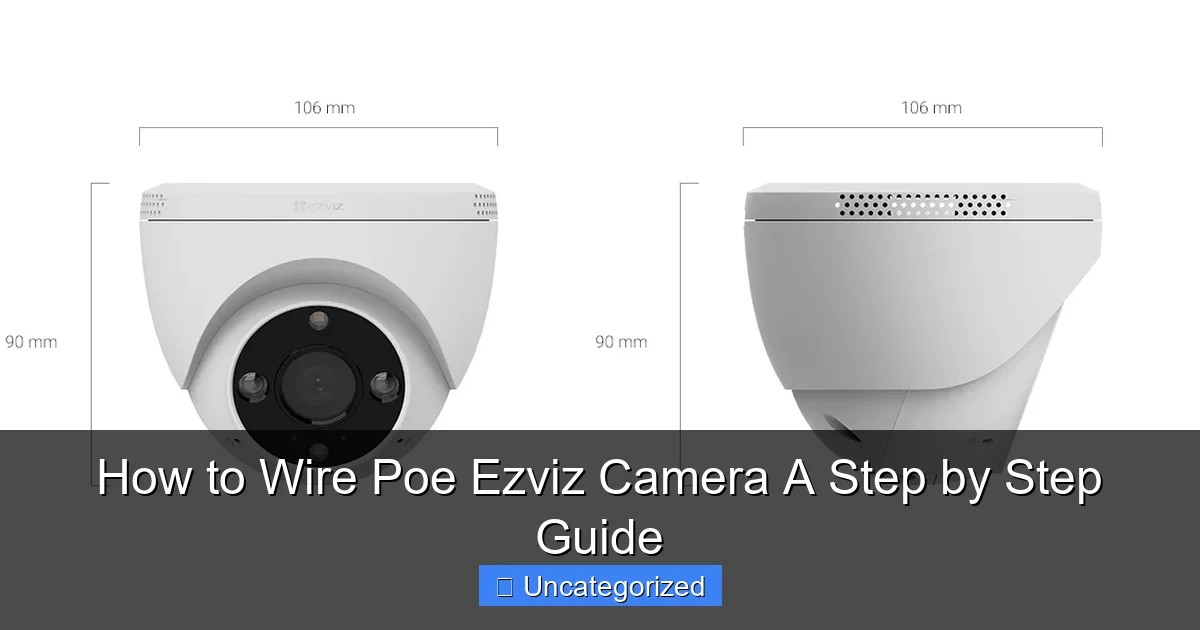

How to Wire Poe Ezviz Camera A Step by Step Guide

Setting up a security camera can feel like solving a puzzle—especially when it involves wiring. If you’re trying to figure out how to wire Poe Ezviz camera a step by step guide, you’re not alone. Many homeowners and small business owners want reliable surveillance without hiring a pro.

Power over Ethernet (PoE) cameras, like those from Ezviz, simplify setup by using a single cable for both power and video. But without the right tools and know-how, even a simple installation can go sideways—think flickering feeds, dead cameras, or tangled cables behind your wall.

The good news? You don’t need an electrician. With this how to wire Poe Ezviz camera a step by step guide, you’ll learn how to run PoE cables, connect your camera, and get crystal-clear footage—safely and efficiently. Whether you’re mounting one camera or a full system, this guide walks you through every detail.

Key Takeaways

• Use Cat5e/Cat6 cables: Ensure reliable power and data transmission for your EZVIZ PoE camera.
• Verify PoE switch compatibility: Match the camera’s voltage requirements to avoid damage.
• Keep cable runs under 100m: Prevent signal loss by adhering to Ethernet distance limits.
• Secure connections properly: Use waterproof sleeves for outdoor installations to protect wiring.
• Test before finalizing: Confirm camera feed and power stability prior to permanent mounting.
• Label cables clearly: Simplify troubleshooting by identifying PoE lines in complex setups.

Why This Matters / Understanding the Problem

Traditional security cameras need two separate connections: one for power (like a wall adapter) and another for video (like coaxial or HDMI). That means more cords, more outlets, and more clutter. PoE cameras, including popular Ezviz models like the C6W, C3X, and C8PF, solve this with a single Cat5e or Cat6 Ethernet cable.

But here’s the catch: PoE requires specific gear and correct wiring. Plug a non-PoE camera into a PoE switch? You could fry it. Use the wrong cable type? You might get weak signal or no power at all. And if you don’t test connections properly, you’ll waste hours troubleshooting.

That’s why a clear how to wire Poe Ezviz camera a step by step guide is essential. It helps you avoid costly mistakes, ensures stable performance, and gives you peace of mind knowing your system is built to last. Plus, PoE systems are easier to expand later—just add more cameras to your switch.

Real-life example: Sarah, a homeowner in Austin, tried to install her Ezviz C6W using a regular Ethernet cable and a USB power adapter. The camera powered on but kept disconnecting. After following a proper PoE setup guide, she realized she needed a PoE injector and the right cable. Once corrected, her camera stayed online 24/7.

Bottom line: PoE is smart tech, but only if wired correctly. This guide makes sure you get it right the first time.

What You Need

Before you start, gather all the tools and materials. Skipping this step is the #1 reason installations fail. Here’s your checklist:

• Ezviz PoE camera (e.g., C6W, C8PF, C3X)
• Cat5e or Cat6 Ethernet cable (preferably outdoor-rated if mounting outside)
• PoE switch or PoE injector (802.3af or 802.3at standard)
• Network Video Recorder (NVR) or router with PoE support (if using standalone mode)
• Drill with hole saw bit (for wall or ceiling mounting)
• Cable clips or conduit (to secure and hide wires)
• Measuring tape and level (for accurate camera placement)
• Ethernet crimper and RJ45 connectors (if making custom cable lengths)
• Network tester (optional but helpful)
• Smartphone or tablet with Ezviz app (for setup and monitoring)

Pro Tip: Buy a pre-terminated Ethernet cable if you’re not comfortable crimping your own. It saves time and reduces wiring errors. Look for “solid-core” cables for long runs (over 50 feet) and “stranded” for short, flexible connections.

Why these matter: PoE switches deliver power safely through the Ethernet cable. A standard router won’t work unless it has built-in PoE ports. And outdoor-rated cables have waterproof insulation—critical if your camera is exposed to rain or snow.

For a how to wire Poe Ezviz camera a step by step guide, having the right gear from the start means fewer headaches later.

Step-by-Step Guide to How to Wire Poe Ezviz Camera A Step by Step Guide

This section breaks down the entire process into clear, doable steps. Whether you’re mounting one camera or a full system, follow along carefully.

Step 1: Plan Your Camera Location

Start with a site survey. Walk around your property and identify key areas: front door, back gate, driveway, garage, or side alley. Use your measuring tape to estimate cable run distances.

Ask yourself:

• Is the spot within 300 feet of your PoE source? (PoE max distance is 328 ft / 100 m)
• Will the camera have a clear view without obstructions?
• Is it protected from direct rain or snow? (Use a weatherproof housing if needed)
• Can you route the cable discreetly? (Avoid visible wires)

Use painter’s tape to mark the exact spot. Then, use a level to ensure it’s straight. A crooked camera looks unprofessional and may miss critical angles.

Warning: Never install a camera pointing into a neighbor’s yard or private area. It could lead to legal issues. Focus on your property lines.

This planning phase is crucial for a successful how to wire Poe Ezviz camera a step by step guide—it prevents costly rework later.

Step 2: Mount the Camera Bracket

Most Ezviz cameras come with a mounting bracket. Hold it against the wall or ceiling at your marked spot. Use the level to check alignment.

Drill pilot holes using a 3/16-inch bit (match the size of the included screws). Then, secure the bracket with screws. For brick or stucco, use wall anchors.

Pro tip: Drill a 1-inch hole behind the bracket for the Ethernet cable. Use a hole saw bit for clean, professional results. Angle it slightly downward so water can’t pool.

Once mounted, leave the bracket in place—don’t attach the camera yet. You’ll need room to run the cable.

Pro Tip: If mounting outdoors, apply silicone sealant around the hole after running the cable. It keeps moisture out and prevents short circuits.

Step 3: Run the Ethernet Cable

Now, route your Cat5e or Cat6 cable from the camera location to your PoE source (switch, injector, or router).

For indoor runs:

• Use baseboard tracks or ceiling crown molding to hide the cable.
• Secure with adhesive clips every 16–24 inches.
• Avoid sharp bends (keep radius > 1 inch).

For outdoor runs:

• Use a weatherproof conduit (PVC or metal).
• Run along eaves, gutters, or under decking.
• Use outdoor-rated cable (look for “CMX” or “UV-resistant” label).

Feed one end of the cable through the hole and leave 6–8 inches hanging at the camera side. At the other end (near your PoE source), leave enough slack to reach the switch.

Warning: Never run PoE cables parallel to high-voltage electrical wires. Cross them at 90-degree angles if necessary to avoid interference.

This step is the backbone of your how to wire Poe Ezviz camera a step by step guide—take your time to get it right.

Step 4: Terminate the Cable (If Needed)

If you’re using pre-made cables, skip to Step 5. But if you’re cutting and crimping your own, here’s how:

1. Strip 1 inch of insulation from the end.
2. Untwist and arrange wires in T568B order (most common):
   • White/Orange
   • Orange
   • White/Green
   • Blue
   • White/Blue
   • Green
   • White/Brown
   • Brown
3. Trim wires to even length (about 0.5 inch).
4. Insert into RJ45 connector, ensuring wires reach the end.
5. Crimp with a professional crimper.

Test the cable with a network tester. It should show all 8 pins connected.

Pro Tip: Label each end of the cable (e.g., “Front Door” or “Camera 1”) to avoid confusion later.

Step 5: Connect to PoE Source

There are two ways to power your Ezviz camera via PoE:

• PoE Switch: Plug the camera’s cable into a PoE-enabled port (usually labeled “PoE” or has a lightning bolt icon).
• PoE Injector: Connect one end to your router/switch, the other to the camera’s cable.

For injectors: Plug the injector into a wall outlet. Use the “Data + Power” port to connect to the camera. The “Data” port connects to your router.

Power on the switch or injector. Wait 1–2 minutes. The camera’s status light should blink (usually red or green).

Warning: Double-check polarity. PoE uses specific wire pairs (pins 1,2 and 3,6). Wrong termination can damage equipment.

This step is vital for your how to wire Poe Ezviz camera a step by step guide—it’s where power and data meet.

Step 6: Attach the Camera

Now, connect the Ethernet cable to the camera. Most Ezviz models have a waterproof gland—tighten it snugly to keep moisture out.

Slide the camera into the mounting bracket. Secure with the included screw or locking mechanism. Adjust the angle so it covers your desired area.

Use your smartphone to open the Ezviz app. Scan the QR code on the camera (usually on the back or in the manual). The app will guide you through Wi-Fi setup (if hybrid mode) or direct NVR connection.

For NVR systems: Plug the camera into the NVR’s PoE port. The camera should appear on-screen within 30 seconds.

Pro Tip: Use a ladder with a spotter if mounting high. Safety first!

Step 7: Test and Troubleshoot

Open the Ezviz app or NVR monitor. Check for:

• Live video feed (no frozen or pixelated image)
• Stable connection (no “disconnected” alerts)
• Night vision (test in low light)
• Motion detection (wave your hand in front)

If the camera isn’t working:

• Verify PoE source is powered on.
• Test the cable with a network tester.
• Check for loose connections or crimped wires.
• Restart the PoE switch or injector.

Still issues? Try a different PoE port or cable. Ezviz support is also available via chat or phone.

Testing ensures your how to wire Poe Ezviz camera a step by step guide delivers real results.

Step 8: Secure and Hide the Cable

Once everything works, tidy up:

• Use cable clips to secure loose runs.
• Bundle excess cable with zip ties (don’t over-tighten).
• Seal outdoor holes with silicone.
• Paint clips or conduit to match your wall color.

A clean installation looks professional and deters tampering.

Pro Tips & Common Mistakes to Avoid

Even experienced DIYers make these errors. Here’s how to avoid them:

• Mistake: Using non-PoE switches.

  Standard switches won’t power your camera. Always check for “802.3af” or “802.3at” on the switch label.

• Mistake: Ignoring cable quality.

  Cheap cables have thin insulation. Invest in solid-core Cat6 for runs over 50 feet.
• Mistake: Poor weatherproofing.

  Outdoor cables need drip loops (a small U-shape) to prevent water from running into the camera.

• Mistake: Overloading PoE switches.

  Check the switch’s total power budget (e.g., 60W). A single Ezviz camera uses ~7–10W. A 4-port switch can usually handle 4 cameras.

• Mistake: Skipping firmware updates.

  Ezviz releases updates for security and performance. Update via the app or NVR menu.

Pro Tip: Label your PoE switch ports. Write “Camera 1 – Front Door” on a sticker. It saves time during maintenance.

For a foolproof how to wire Poe Ezviz camera a step by step guide, attention to detail wins every time.

FAQs About How to Wire Poe Ezviz Camera A Step by Step Guide

Here are the most common questions—answered clearly.

Q1: Can I use a regular router instead of a PoE switch?

Only if your router has built-in PoE ports (rare). Otherwise, use a PoE injector. Plug it between your router and the camera.

Q2: What if my camera is more than 100 meters away?

PoE max distance is 328 feet. For longer runs, use a PoE extender or fiber converter. Or, install a secondary PoE switch at the midpoint.

Q3: Do I need a separate power outlet?

No. PoE delivers power through the Ethernet cable. But you’ll need an outlet for the PoE switch or injector (usually near your router or NVR).

Q4: Can I mix PoE and non-PoE cameras?

Yes. Use a PoE switch with non-PoE ports. Connect PoE cameras to PoE ports and regular cameras to standard ports (with their own power adapters).

Q5: Why is my camera disconnecting?

Check for: loose cables, faulty PoE source, network congestion, or power overload. Test with a network tester and restart devices.

Q6: Is outdoor wiring different?

Yes. Use outdoor-rated cables, conduit, and weatherproof connectors. Add drip loops and seal all holes.

Q7: Can I run multiple cameras from one PoE switch?

Yes! Most 8-port PoE switches can handle 8 Ezviz cameras. Just ensure the total power draw is within the switch’s budget.

Final Thoughts

You’ve just learned how to wire Poe Ezviz camera a step by step guide—from planning to testing. This method saves time, reduces clutter, and gives you a professional-grade security system.

Remember: PoE is only as good as your wiring. Use quality cables, secure connections, and test everything before finalizing.

Start small. Install one camera first. Once it’s working, expand to others. And always keep the Ezviz app handy for remote access and alerts.

Now, go protect your home or business. With this guide, you’ve got the power—literally and figuratively—to build a reliable, long-lasting PoE system.

Need help? Visit Ezviz’s support site or call 1-800-EZVIZ-US. Your safety is worth the effort.
