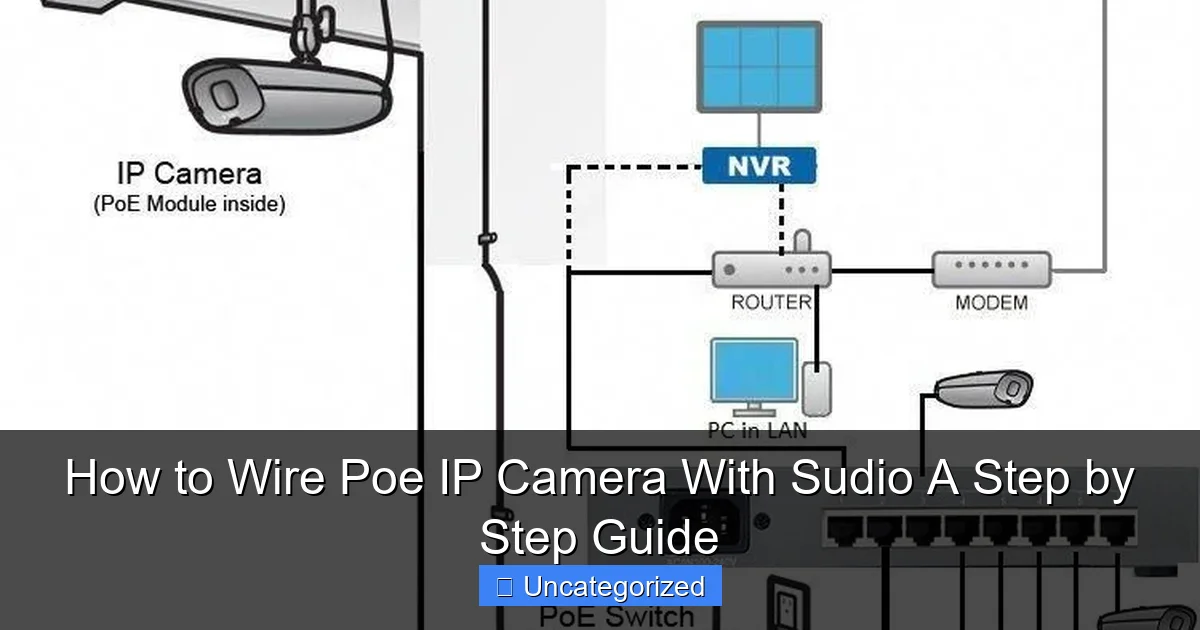

How to Wire Poe IP Camera With Sudio A Step by Step Guide

Wiring a PoE IP camera with a Sudio switch is a seamless, single-cable solution that delivers both power and data—eliminating the need for separate power adapters. Simply connect the camera to the Sudio PoE switch using a Cat5e or Cat6 Ethernet cable, then link the switch to your network for instant, plug-and-play setup. This efficient method reduces clutter and ensures reliable performance for professional-grade surveillance.

Key Takeaways

• Use a PoE switch: Ensures power and data over one cable.
• Check cable length: Stay under 100m for reliable performance.
• Verify camera compatibility: Confirm 802.3af/at PoE standards match.
• Secure connections: Use weatherproof enclosures for outdoor wiring.
• Test before finalizing: Power on and check feed early.
• Label cables clearly: Simplifies troubleshooting and future maintenance.

Understanding PoE IP Cameras and Sudio Integration

What Are PoE IP Cameras?

Power over Ethernet (PoE) IP cameras represent a revolutionary leap in surveillance technology, combining both power delivery and data transmission through a single Ethernet cable. Unlike traditional analog cameras, PoE IP cameras connect directly to a network, offering high-resolution video, remote access, and advanced features like motion detection, night vision, and two-way audio. These cameras are ideal for homes, offices, and large-scale commercial installations because they eliminate the need for separate power cables, reducing clutter and installation complexity. With PoE, a single Cat5e or Cat6 cable delivers both power and data, simplifying the setup process and enabling flexible camera placement.

The term “IP” stands for Internet Protocol, meaning these cameras transmit video over a network using standard networking protocols. This allows users to view live feeds from anywhere via smartphones, tablets, or computers. When paired with a Sudio—a smart network device designed to enhance connectivity, optimize bandwidth, and manage multiple IP cameras—users gain a robust, scalable surveillance system. Sudio devices are particularly effective in environments with multiple PoE cameras, as they provide centralized management, intelligent power distribution, and seamless integration with existing network infrastructure.

Why Use Sudio with PoE IP Cameras?

Sudio devices act as a bridge between your PoE cameras and your network, offering several advantages. First, they support PoE+ and PoE++ standards, delivering up to 60W or 100W per port, which is essential for high-performance cameras with pan-tilt-zoom (PTZ) motors, heaters, or IR illuminators. Second, Sudio units often come with built-in network switches and power management, enabling users to connect multiple cameras without overloading the main network. Third, Sudio firmware includes advanced features like VLAN tagging, Quality of Service (QoS) settings, and real-time monitoring, ensuring smooth video streaming even during peak network usage.

For example, a small business with eight PoE IP cameras can use a Sudio 16-port PoE switch to power and manage all devices from a single rack-mounted unit. This eliminates the need for individual power adapters, reduces cable clutter, and allows for remote reboots and firmware updates. Additionally, Sudio’s compatibility with major camera brands (e.g., Hikvision, Dahua, Axis, Reolink) ensures a plug-and-play experience, minimizing setup time and technical hurdles.

Planning Your PoE IP Camera Installation

Assessing Your Surveillance Needs

Before purchasing equipment, conduct a thorough site survey to determine your surveillance goals. Ask yourself: What areas need coverage? Do you require indoor, outdoor, or both types of cameras? Are there blind spots or low-light zones? For instance, a retail store may need indoor dome cameras at entry points and outdoor bullet cameras for parking lot coverage. A homeowner might prioritize front/back doors, garage, and backyard. Mapping these zones helps determine the number of cameras, their placement, and the required PoE switch capacity.

• Indoor Cameras: Typically require 15–30W (PoE or PoE+).
• Outdoor Cameras: Often need PoE+ (30W) or PoE++ (60W+) due to heaters and IR LEDs.
• PTZ Cameras: Consume up to 60W during movement; PoE++ recommended.

Calculating Power and Bandwidth Requirements

Each PoE IP camera consumes a specific amount of power, and exceeding your Sudio switch’s total power budget can lead to instability or shutdowns. To calculate:

• Check the camera’s datasheet for maximum power draw (e.g., 25W per camera).
• Multiply by the number of cameras (e.g., 8 × 25W = 200W total).
• Ensure your Sudio switch supports this load (e.g., a 24-port Sudio with 370W total PoE budget).

Bandwidth is equally critical. A 4K camera streaming at 15 FPS may use 8–10 Mbps, while a 1080p camera uses 2–4 Mbps. For a 10-camera system, you’ll need at least 100 Mbps (preferably 1 Gbps) uplink to your router/NVR. Sudio switches with 1 Gbps ports prevent bottlenecks.

Choosing the Right Cabling and Tools

Use Cat6 or Cat6a Ethernet cables for future-proofing, especially if cameras are beyond 100 meters (the maximum distance for PoE without extenders). For runs under 100m, Cat5e is sufficient. Avoid daisy-chaining switches, as this degrades signal quality. Essential tools include:

• Ethernet cable tester (to verify connectivity).
• RJ45 crimping tool and connectors.
• Drill and wall anchors (for mounting cameras).
• Cable clips and conduit (for outdoor runs).

Pro Tip: Label each cable at both ends to simplify troubleshooting.

Selecting the Right Equipment

PoE IP Cameras: Key Features to Consider

When choosing PoE IP cameras, prioritize:

• Resolution: 4K (8MP) for detail, 1080p (2MP) for general use.
• Lens Type: Fixed (wide-angle) or varifocal (adjustable zoom).
• Night Vision: IR LEDs (up to 30m range) or color night vision.
• Weather Resistance: IP66/IP67 rating for outdoor use.
• Smart Features: AI-based motion detection, facial recognition, or license plate reading.

For example, a Hikvision DS-2CD2347G2-LSU/SL offers 4K resolution, 30m IR, and AcuSense AI, making it ideal for parking lots. Pair it with a Sudio switch for seamless integration.

Sudio PoE Switches: Models and Specifications

Sudio offers a range of PoE switches tailored to different needs:

Model	Ports	Total PoE Budget	PoE Standard	Best For
Sudio 8-Port	8 PoE+	120W	IEEE 802.3at	Small homes/offices (4–8 cameras)
Sudio 16-Port	16 PoE+	240W	IEEE 802.3at/af	Medium businesses (8–16 cameras)
Sudio 24-Port	24 PoE++	370W	IEEE 802.3bt	Large enterprises (16–24 cameras, PTZ)

Tip: Choose a switch with 20% extra PoE budget to accommodate future expansions.

Additional Accessories

Don’t overlook:

• Network Video Recorder (NVR): For storing and managing footage (e.g., Synology NVR).
• Patch Panels: For organizing cables in server rooms.
• Surge Protectors: Essential for outdoor installations to prevent lightning damage.
• PoE Injectors: Backup for non-PoE switches (though Sudio eliminates this need).

Step-by-Step Wiring Process

Preparing the Sudio Switch and Network

1. Mount the Sudio switch in a ventilated, dry area (e.g., a rack or wall mount).
2. Connect the switch to your router using a Cat6 cable (uplink port).
3. Power on the Sudio switch and verify LED indicators (power, network activity).
4. Access the Sudio web interface (via default IP, e.g., 192.168.1.1) to configure VLANs, QoS, or PoE scheduling. For example, set a VLAN for cameras to isolate traffic and improve security.

Running Ethernet Cables to Camera Locations

1. Plan cable routes: Use existing conduits or drill holes (avoid electrical wiring).
2. Pull cables: Leave 1–2 feet of slack at both ends.
3. Terminate cables: Crimp RJ45 connectors or use keystone jacks. Test each cable with a tester.
Example: For a backyard camera, run a Cat6 cable through a PVC conduit buried 6 inches underground. Use gel-filled waterproof connectors for outdoor terminations.

Mounting and Connecting the Cameras

1. Secure cameras using included brackets (indoor) or weatherproof housings (outdoor).
2. Connect Ethernet cables to camera ports. PoE cameras power on automatically.
3. Verify camera status: Check Sudio’s PoE dashboard for power draw and link speed.
Pro Tip: Use a PoE tester to confirm voltage (typically 48V) before connecting cameras. This prevents damage from faulty cables.

Configuring Cameras and Sudio Settings

1. Access camera web interface (via browser or Sudio’s discovery tool).
2. Set IP addresses: Use DHCP (auto) or static IPs for easier management.
3. Adjust video settings: Frame rate, resolution, motion zones.
4. Enable ONVIF: Ensures compatibility with NVRs.
5. Configure Sudio QoS: Prioritize camera traffic to prevent lag during streaming.
Example: On a Sudio 16-port switch, set QoS to “High” for all camera ports to guarantee 80% bandwidth allocation.

Troubleshooting and Optimization

Common Wiring Issues and Fixes

• Camera not powering on: Check cable continuity, PoE budget, and Sudio port status. Replace damaged cables.
• Intermittent video feed: Test cable length (stay under 100m) and avoid interference (e.g., near power lines).
• Slow network speed: Upgrade to Cat6a or reduce the number of cameras per switch.
• Overheating Sudio switch: Ensure adequate ventilation and avoid stacking devices.

Optimizing Video Quality and Bandwidth

To reduce bandwidth without sacrificing quality:

• Adjust bitrate: Lower for non-critical areas (e.g., 2 Mbps for 1080p).
• Enable H.265 encoding: Cuts bandwidth by 50% vs. H.264.
• Use motion-activated recording: Saves storage and bandwidth.
• Schedule recordings: Only during business hours (e.g., 9 AM–6 PM).

Tip: Monitor Sudio’s traffic dashboard to identify bandwidth hogs and adjust settings accordingly.

Security Best Practices

Protect your system from cyber threats:

• Change default passwords: Use complex, unique credentials.
• Enable encryption: Use HTTPS and TLS for remote access.
• Update firmware: Regularly check Sudio and camera firmware for patches.
• Isolate camera traffic: Use VLANs to prevent lateral movement in case of a breach.

Maintaining Your PoE Surveillance System

Routine Checks and Updates

Schedule monthly inspections:

• Verify camera angles and clean lenses (use microfiber cloth).
• Check Sudio’s PoE dashboard for anomalies (e.g., sudden power drops).
• Update camera and Sudio firmware to the latest versions.
• Review NVR storage (replace hard drives every 3–5 years).

Pro Tip: Create a maintenance log to track issues and resolutions.

Scaling Your System

To add more cameras:

• Ensure Sudio’s PoE budget and switch ports are available.
• Upgrade to a higher-capacity Sudio switch if needed.
• Use PoE extenders for cameras beyond 100m.
• Consider cloud storage for offsite backups.

For example, a growing business might start with 8 cameras and a Sudio 8-port switch, then expand to 20 cameras by upgrading to a Sudio 24-port switch and adding a secondary NVR.

Long-Term Cost Savings

PoE systems reduce long-term costs by:

• Eliminating separate power supplies.
• Lowering energy use (PoE is 80–90% efficient).
• Reducing maintenance (fewer cables = fewer points of failure).
• Supporting remote management, cutting technician visits.

Conclusion

Wiring PoE IP cameras with a Sudio switch is a straightforward process that combines power, data, and intelligence into a single, scalable solution. By carefully planning your layout, selecting the right equipment, and following best practices for installation and maintenance, you can build a reliable surveillance system that meets your security needs for years to come. Whether you’re securing a home, office, or industrial site, the synergy between PoE cameras and Sudio technology ensures high performance, energy efficiency, and ease of management.

Remember, the key to success lies in preparation. Assess your power and bandwidth needs, invest in quality cabling, and leverage Sudio’s advanced features—like VLANs, QoS, and real-time monitoring—to optimize performance. With this step-by-step guide, you’re equipped to tackle any PoE installation with confidence. As technology evolves, your Sudio-powered system will adapt, ensuring your surveillance network remains future-proof and cost-effective. Now, go ahead—wire your cameras, monitor your spaces, and enjoy peace of mind with a system that works as hard as you do.

Frequently Asked Questions

How do I wire a PoE IP camera with Sudio for the first time?

To wire a PoE IP camera with Sudio, connect the camera to a PoE switch or injector using an Ethernet cable. Ensure the Sudio NVR (Network Video Recorder) is linked to the same network for seamless configuration via the Sudio software.

Can I use a regular Ethernet cable to wire a PoE IP camera with Sudio?

Yes, a standard Cat5e or Cat6 Ethernet cable works for wiring a PoE IP camera with Sudio, as long as the PoE source (switch/injector) is compatible. These cables carry both data and power, simplifying installation.

Why won’t my Sudio PoE IP camera power on after wiring?

Check the PoE switch/injector’s output and confirm the Ethernet cable is securely connected. Verify the camera’s compatibility with Sudio’s PoE standards (e.g., 802.3af/at) to rule out power delivery issues.

Do I need a PoE switch to wire a Sudio IP camera, or can I use a regular router?

A PoE switch is required to power the camera; a regular router won’t deliver power. If your router lacks PoE, use a midspan PoE injector between the router and Sudio IP camera to enable both power and data.

How do I troubleshoot connectivity issues after wiring my Sudio PoE camera?

Ensure the camera’s IP address is in the same subnet as the Sudio NVR or software. Use Sudio’s device search tool to detect the camera and verify network settings like DHCP or static IP.

What’s the maximum distance for wiring a PoE IP camera with Sudio?

The max distance for reliable PoE wiring with Sudio is 100 meters (328 feet) using Cat6 cable. Beyond this, voltage drop may cause power or data issues—consider a PoE extender for longer runs.
