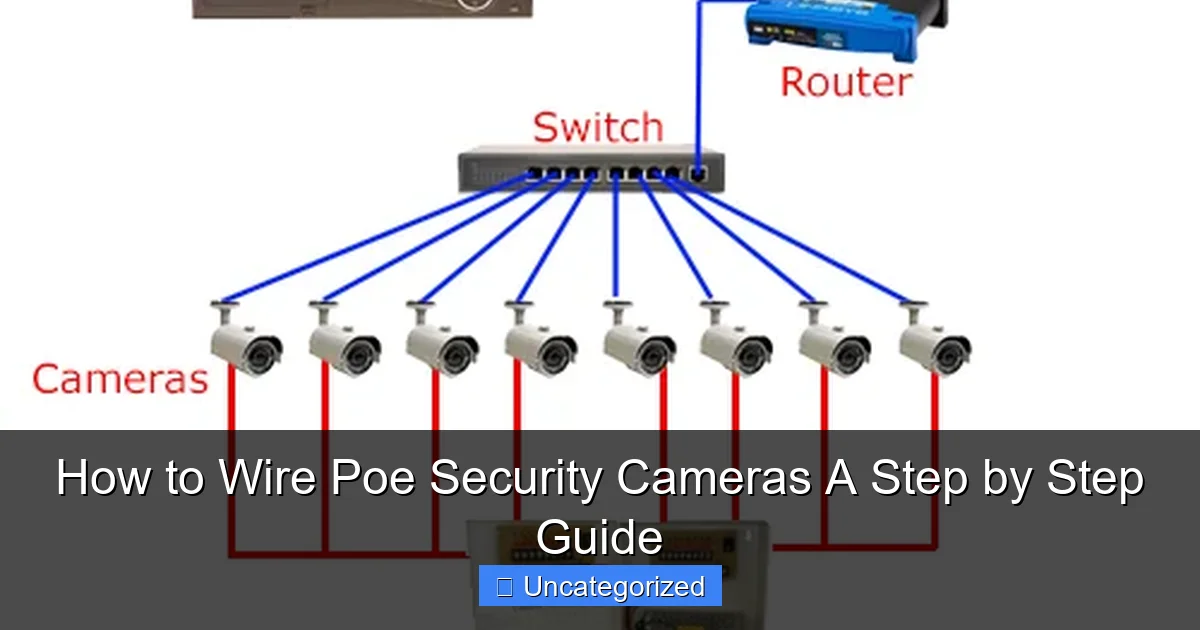

How to Wire Poe Security Cameras A Step by Step Guide

Wiring PoE security cameras is a simple, efficient way to power and connect your surveillance system using a single Ethernet cable. This guide walks you through every step—from planning camera placement and running cable to connecting via a PoE switch or injector—ensuring a clean, reliable installation. With the right tools and proper setup, you’ll achieve seamless, high-definition monitoring without the clutter of extra power cords.

Key Takeaways

• Plan your layout first: Map camera locations and cable paths to avoid rework.
• Use Cat6 cables: Ensure reliable power and data over long distances.
• Connect to a PoE switch: Simplifies wiring and centralizes power management.
• Test connections early: Verify each camera before final mounting to save time.
• Secure cables properly: Use clips or conduits to protect against damage.
• Label all cables: Prevent confusion during troubleshooting or future upgrades.

Understanding PoE Security Cameras: The Foundation of Modern Surveillance

In today’s world, where safety and security are paramount concerns for homes and businesses alike, PoE (Power over Ethernet) security cameras have emerged as the gold standard for reliable, scalable, and efficient surveillance systems. Unlike traditional analog cameras or Wi-Fi-based IP cameras, PoE technology simplifies installation by delivering both power and data through a single Ethernet cable. This innovation eliminates the need for separate power outlets near each camera, reduces clutter, and enhances system reliability. Whether you’re monitoring a small retail store, a sprawling warehouse, or your suburban home, PoE cameras offer unparalleled flexibility and performance.

But what exactly makes PoE cameras so special? At their core, these devices leverage IEEE 802.3af/at/bt standards to transmit power and high-speed data simultaneously over standard Cat5e, Cat6, or even Cat6a cables. This dual-purpose functionality not only streamlines setup but also ensures consistent power delivery—critical for cameras operating in remote locations without nearby electrical sources. Moreover, PoE systems integrate seamlessly with modern network infrastructure, enabling centralized management, remote access via smartphones, and compatibility with NVRs (Network Video Recorders) for advanced video analytics. However, the benefits of PoE come with a caveat: proper wiring is essential to avoid performance issues, signal degradation, or outright failure. That’s why mastering the art of wiring PoE security cameras is crucial for anyone serious about building a robust surveillance network.

Choosing the Right Equipment for Your PoE Camera System

Before diving into the wiring process, selecting the appropriate components is vital to ensure compatibility, efficiency, and longevity. A typical PoE security camera system consists of several key elements, each playing a distinct role in the overall setup. Choosing wisely here can save you time, money, and headaches down the line.

1. PoE Cameras: Types and Features

PoE cameras come in various form factors and capabilities:

• Indoor vs. Outdoor Models: Outdoor cameras feature weather-resistant housings (often rated IP66/IP67) and may include heaters or fans to handle temperature extremes. Indoor models prioritize aesthetics and discreet placement.
• Fixed vs. PTZ (Pan-Tilt-Zoom): Fixed cameras provide static views, while PTZ models allow remote control of direction and zoom—ideal for large areas like parking lots.
• Resolution and Lens Options: Common resolutions range from 1080p (2MP) to 4K (8MP+). Wide-angle lenses (e.g., 2.8mm) capture broad scenes, while telephoto lenses (e.g., 12mm) focus on distant objects.
• Special Features: Look for night vision (IR LEDs), motion detection, two-way audio, and AI-powered analytics (e.g., person/vehicle detection).

Tip: Always verify that your chosen camera supports the same PoE standard (802.3af/at/bt) as your switch or injector.

2. Network Switches and PoE Injectors

The backbone of your PoE system is the network switch. You have two options:

• PoE Switch: Built-in power delivery. Choose managed switches for advanced features like VLANs, QoS, and port monitoring. Unmanaged switches are simpler and cheaper but offer fewer controls.
• PoE Injector (Midspan): Adds PoE capability to non-PoE switches. Useful for retrofitting existing networks or powering a single camera.

Power Budget: Calculate total power consumption (in watts) across all cameras. For example, four 12W cameras require at least a 50W switch. High-power models (e.g., PTZs) may need 802.3bt switches (up to 60W per port).

3. Ethernet Cables: Quality Matters

Not all cables are created equal. Here’s what to know:

• Cat5e: Suitable for short runs (up to 100m) with 802.3af/at cameras.
• Cat6/Cat6a: Recommended for 802.3bt (high-power) cameras and longer distances. Offers better shielding against interference.
• Shielded vs. Unshielded: Shielded cables (STP/FTP) reduce electromagnetic interference (EMI), especially in industrial environments.

Pro Tip: Use solid-core cables for fixed installations (e.g., wall-mounted) and stranded cables for patch cords (flexibility).

4. NVR and Storage Solutions

Your cameras feed into an NVR, which records, stores, and manages video. Consider:

• PoE NVR: Integrates a PoE switch, simplifying wiring (one cable per camera).
• Storage Capacity: Estimate storage needs using this formula: Total GB = (Camera Count × Bitrate × Hours/Day × Days) ÷ 8. For example, four 4MP cameras at 6 Mbps recording 24/7 for 30 days require ~1.3 TB.
• RAID Configurations: For mission-critical systems, RAID 5 or 6 provides redundancy against drive failures.

Planning Your Camera Layout and Cable Runs

A well-planned layout is the cornerstone of a successful PoE camera installation. Poor planning leads to blind spots, excessive cable lengths, and unnecessary complexity. Follow these steps to design an optimal surveillance network.

1. Conduct a Site Survey

Begin by mapping your property or facility. Identify:

• Critical Areas: Entry/exit points, driveways, loading docks, server rooms.
• Blind Spots: Corners, alleys, low-light zones.
• Environmental Factors: Weather exposure, obstructions (trees, signage), lighting conditions.

Example: A retail store might place one camera at the front entrance (wide-angle), another at the cash register (high-resolution), and a third in the stockroom (with IR for night coverage).

2. Determine Camera Placement and Viewing Angles

Use the 30-30 rule for optimal coverage:

• Cameras should be mounted 30 feet from the target area to balance detail and field of view.
• Mount at 30 degrees above the horizon to minimize glare and reflections.

Field of View (FOV) Calculation: A 2.8mm lens on a 4MP camera typically provides a 90° horizontal FOV—enough to cover a standard doorway. For longer distances, use a 6mm lens (45° FOV) to focus on license plates.

3. Map Cable Runs and Calculate Distances

Measure distances from each camera location to the NVR/switch. Remember:

• Maximum Cable Length: 100 meters (328 feet) for Cat5e/6. Beyond this, signal loss and power drop-off occur.
• Path Optimization: Route cables along walls, ceilings, or conduits to avoid tripping hazards and damage. Use existing cable trays where possible.
• Future-Proofing: Leave 10-15% extra cable length for adjustments and future upgrades.

Tip: For runs exceeding 100m, install a PoE extender (repeater) or use fiber optic cables with media converters.

4. Consider Power and Data Requirements

Verify that your switch can handle the combined power draw. Use this quick reference:

PoE Standard	Max Power per Port	Typical Use Cases
802.3af (PoE)	15.4W	Standard fixed cameras, doorbells
802.3at (PoE+)	30W	PTZ cameras, dual-sensor models
802.3bt (PoE++ Type 3/4)	60W/100W	High-power PTZs, thermal cameras

Also, ensure your NVR has enough ports and storage for all cameras. A 16-channel NVR can support up to 16 cameras, but storage limits may require higher-capacity drives.

Step-by-Step Wiring Process for PoE Cameras

Now that you’ve selected equipment and planned your layout, it’s time to wire the system. This section breaks down the process into clear, actionable steps.

1. Gather Tools and Safety Gear

Prepare the following:

• Ethernet cable (Cat6 recommended)
• Cable cutters/strippers
• RJ45 crimping tool
• Network tester (to verify connections)
• Drill, screws, anchors (for mounting)
• Ladder, gloves, safety glasses
• Fish tape (for threading cables through walls/ceilings)

Safety First: Turn off power to any areas where you’ll be drilling near electrical wiring. Use a stud finder to avoid hitting pipes or wires.

2. Install the NVR and Switch

Mount the NVR and switch in a secure, climate-controlled location (e.g., a utility closet or server room). Ensure:

• Proper ventilation (avoid enclosed cabinets without airflow).
• Access to power outlets (use surge protectors).
• Proximity to cable entry points (minimizes cable runs).

Connect the NVR to your router via Ethernet for remote access. Power on the NVR and switch to verify operation.

3. Run and Terminate Ethernet Cables

For Pre-Terminated Cables:

1. Unroll cable from camera location to NVR/switch, securing with clips or conduit.
2. Leave 6-12 inches of slack at both ends.
3. Plug one end into the camera and the other into the switch/NVR.

For DIY Termination (Field-Terminated):

1. Strip 1 inch of jacket from the cable end.
2. Untwist and arrange wires in T568B order (white-orange, orange, white-green, blue, white-blue, green, white-brown, brown).
3. Trim evenly and insert into an RJ45 plug.
4. Crimp firmly with a crimping tool.
5. Test the connection with a network tester.

Pro Tip: Label each cable at both ends (e.g., “Front Door,” “Garage”) to simplify troubleshooting.

4. Mount and Power the Cameras

Follow the camera manufacturer’s mounting instructions:

1. Drill holes and install anchors (for masonry/brick).
2. Attach the mounting bracket.
3. Connect the Ethernet cable to the camera.
4. Secure the camera to the bracket.
5. Adjust the viewing angle (use the camera’s live feed for precision).

Once mounted, the camera should power on automatically via PoE. If not, check:

• Cable continuity (with a tester).
• Switch power budget (overloaded ports won’t deliver power).
• Camera compatibility (some models require specific PoE modes).

5. Configure the NVR and Cameras

Access the NVR’s interface (via monitor or web browser) to:

• Add cameras (auto-discovery usually detects them).
• Set recording schedules (e.g., continuous, motion-triggered).
• Adjust video settings (resolution, frame rate, compression).
• Enable remote access (via app or web portal).

Example: For a 24/7 recording setup, set the frame rate to 15 FPS and enable H.265 compression to reduce storage needs.

Troubleshooting Common PoE Wiring Issues

Even with meticulous planning, problems can arise. Here’s how to diagnose and fix the most common PoE wiring challenges.

1. Camera Not Powering On

Possible Causes:

• Faulty Cable: Test with a network tester or replace the cable.
• Switch Overload: Check the switch’s power budget. Disconnect non-essential devices.
• Incompatible PoE Mode: Some cameras require “PoE+” mode. Enable it in the switch settings.
• Damaged RJ45 Port: Inspect for bent pins or debris. Clean with compressed air.

Quick Fix: Use a PoE tester to verify power delivery at the camera end.

2. Intermittent Connection or Video Freezes

Possible Causes:

• Long Cable Runs: Replace with higher-grade cable (Cat6a) or install a PoE extender.
• EMI Interference: Keep cables away from power lines, motors, or fluorescent lights. Use shielded cables if necessary.
• Faulty Crimps: Re-terminate the RJ45 connector or use pre-terminated cables.

3. Poor Video Quality (Pixelation, Lag)

Possible Causes:

• Bandwidth Limitations: Reduce camera resolution or frame rate. Prioritize critical cameras with QoS settings.
• Network Congestion: Use VLANs to isolate camera traffic from other devices.
• Incorrect Cable Type: Upgrade to Cat6 for 4K cameras or high-bitrate streams.

4. NVR Not Detecting Cameras

Possible Causes:

• IP Address Conflict: Ensure cameras have unique IP addresses. Use DHCP or set static IPs.
• Firewall Blocking: Allow camera traffic through your router’s firewall.
• Wrong Subnet: Verify that cameras and NVR are on the same subnet.

Pro Tip: Use a network scanner (e.g., Advanced IP Scanner) to identify connected devices.

Advanced Tips for Optimizing Your PoE Surveillance System

Once your system is up and running, these advanced strategies can enhance performance, security, and scalability.

1. Use Managed Switches for Granular Control

Managed switches offer features like:

• VLANs: Segment camera traffic from other network devices to improve security and reduce congestion.
• QoS (Quality of Service): Prioritize video streams to prevent lag during high-bandwidth activities.
• Port Mirroring: Monitor traffic for diagnostics or security analysis.

2. Implement Redundancy for Critical Systems

For 24/7 surveillance:

• UPS (Uninterruptible Power Supply): Keeps cameras online during power outages.
• Dual Switches: Use a secondary switch as a failover in case the primary fails.
• Cloud Backup: Sync critical footage to a cloud service (e.g., AWS, Azure).

3. Secure Your Network

PoE cameras are vulnerable to hacking. Mitigate risks by:

• Changing Default Credentials: Set strong, unique passwords.
• Enabling Encryption: Use HTTPS, SSL/TLS for remote access.
• Regular Firmware Updates: Patch vulnerabilities promptly.

4. Future-Proof with Scalable Infrastructure

Design for growth:

• Extra Switch Ports: Leave 20-30% capacity for future cameras.
• Fiber Backbone: For large installations, use fiber between buildings with PoE extenders.
• AI Integration: Choose cameras with edge-based analytics (e.g., facial recognition) to reduce NVR load.

Mastering the wiring of PoE security cameras transforms a complex technical task into a streamlined, professional-grade surveillance solution. By carefully selecting equipment, planning your layout, following a systematic wiring process, and addressing common pitfalls, you can build a system that delivers crystal-clear video, reliable performance, and long-term scalability. Whether you’re a homeowner seeking peace of mind or a business owner protecting assets, a well-wired PoE network is an investment in safety and security. Remember: the key to success lies in attention to detail, quality components, and proactive maintenance. With this guide in hand, you’re now equipped to tackle any PoE installation—confidently and efficiently.

Frequently Asked Questions

How do I wire PoE security cameras to my network?

To wire PoE security cameras, connect the camera to a PoE switch or injector using an Ethernet cable (Cat 5e or higher). The switch or injector will deliver both data and power over the same cable, eliminating the need for separate power sources.

What type of Ethernet cable is needed for PoE security cameras?

Use Cat 5e, Cat 6, or higher-rated Ethernet cables for wiring PoE security cameras. These cables support both power delivery and high-speed data transmission, ensuring reliable camera performance.

Can I use existing Ethernet cables for PoE camera wiring?

Yes, if your existing Ethernet cables are Cat 5e or higher and in good condition, they can support PoE camera wiring. Ensure the cables aren’t damaged and meet the required standards for power and data.

How far can I run an Ethernet cable for PoE security cameras?

The maximum recommended distance for PoE security camera wiring is 100 meters (328 feet). Beyond this, voltage drop may occur, affecting power delivery and camera performance.

Do I need a PoE switch or injector for my security cameras?

Yes, a PoE switch or injector is essential for powering and connecting PoE cameras. A switch is ideal for multiple cameras, while an injector works for single-camera setups without a PoE-enabled router.

Can I mix PoE and non-PoE devices on the same network?

Absolutely! PoE switches automatically detect PoE-compatible devices and deliver power only to them. Non-PoE devices (like computers or phones) will connect normally without receiving power.
