Wiring a Ring Floodlight Camera is easier than you think with the right tools and guidance. This guide walks you through every step—from turning off power to testing your camera—so you can enhance your home security safely and effectively.
Key Takeaways
- Turn off power at the breaker before starting any electrical work to prevent shocks or damage.
- Use a voltage tester to confirm wires are not live before touching them.
- Match wire colors correctly—black (hot), white (neutral), and green or bare (ground)—for safe connections.
- Secure all connections with wire nuts and electrical tape to prevent loose wires and short circuits.
- Mount the camera level and facing the right direction for optimal motion detection and video quality.
- Test the system immediately after installation to ensure the camera, lights, and app connection work properly.
- Consult an electrician if unsure—safety comes first when dealing with household wiring.
How to Wire Ring Floodlight Camera: A Complete Step-by-Step Guide
Installing a Ring Floodlight Camera is one of the smartest upgrades you can make to your home security system. Not only does it provide bright, motion-activated lighting, but it also delivers high-definition video surveillance right to your smartphone. Whether you’re replacing an old floodlight or installing a new one, wiring the Ring Floodlight Camera correctly is essential for safety and performance.
In this comprehensive guide, you’ll learn exactly how to wire your Ring Floodlight Camera—safely and efficiently. We’ll walk you through everything from gathering the right tools to testing your setup. By the end, you’ll have a fully functional outdoor security system that keeps your home protected day and night. No prior electrical experience? No problem. We’ll keep things simple, clear, and jargon-free.
What You’ll Need Before You Begin
Before touching any wires, make sure you have the right tools and materials. Having everything ready will save time and reduce frustration during installation.
Essential Tools
- Screwdrivers: Both flathead and Phillips head for removing covers and securing screws.
- Wire strippers: To safely remove insulation from electrical wires.
- Voltage tester: A non-contact tester is best to check if power is off.
- Electrical tape: For extra insulation on wire connections.
- Wire nuts: Usually included with the Ring kit, but have extras just in case.
- Ladder: A stable ladder to safely reach your mounting location.
- Drill and drill bits: Only if you’re mounting to brick, concrete, or another hard surface.
- Level: To ensure the camera is mounted straight.
Included in the Ring Floodlight Camera Box
- Ring Floodlight Camera unit
- Mounting bracket and screws
- Wire nuts
- Junction box adapter (if needed)
- Installation guide and safety instructions
Optional but Helpful
- Electrical conduit (for exposed wiring)
- Cable clips or staples
- Smartphone with Ring app installed
- Assistant to help hold the camera during mounting
Step 1: Turn Off the Power
Safety is the most important part of any electrical project. Never skip this step.
Locate Your Circuit Breaker
Go to your home’s main electrical panel (usually in the garage, basement, or utility closet). Find the breaker that controls the outdoor light or outlet where you’ll install the Ring Floodlight Camera. It may be labeled “Outdoor Lights,” “Porch,” or something similar. If you’re unsure, turn off the main breaker to be extra safe.
Switch Off the Breaker
Flip the breaker to the “OFF” position. Use a flashlight if the panel is in a dark area. Once off, test the existing light switch to make sure the power is truly cut. The light should not turn on.
Double-Check with a Voltage Tester
Even if the breaker is off, always use a non-contact voltage tester to confirm. Touch the tester to the wires inside the electrical box. If it beeps or lights up, power is still on—do not proceed. Recheck the breaker or consult an electrician.
Step 2: Remove the Old Fixture (If Applicable)
If you’re replacing an existing floodlight, you’ll need to remove it first.
Unscrew the Mounting Bracket
Use a screwdriver to remove the screws holding the old light fixture to the wall or junction box. Gently pull the fixture away from the wall to expose the wires.
Disconnect the Wires
You’ll typically see three wires: black (hot), white (neutral), and green or bare copper (ground). Unscrew the wire nuts connecting these wires to the fixture. Separate the wires carefully and set the old light aside.
Inspect the Electrical Box
Make sure the junction box is secure and in good condition. If it’s loose, rusted, or damaged, you may need to replace it before installing the Ring camera. A stable box ensures your new fixture stays firmly in place.
Step 3: Prepare the Ring Floodlight Camera
Now it’s time to get your Ring camera ready for installation.
Unbox and Inspect
Open the Ring Floodlight Camera box and check that all parts are included. Look for any visible damage. If something is missing or broken, contact Ring support before proceeding.
Attach the Mounting Bracket
The Ring camera comes with a mounting bracket. Align it with the back of the camera and secure it using the provided screws. Make sure it’s tight and level—this bracket will hold the entire unit to your wall.
Prepare the Wires
The camera has three wires: black, white, and green. Strip about ½ inch of insulation from each wire using wire strippers. This exposes the copper so you can make solid connections.

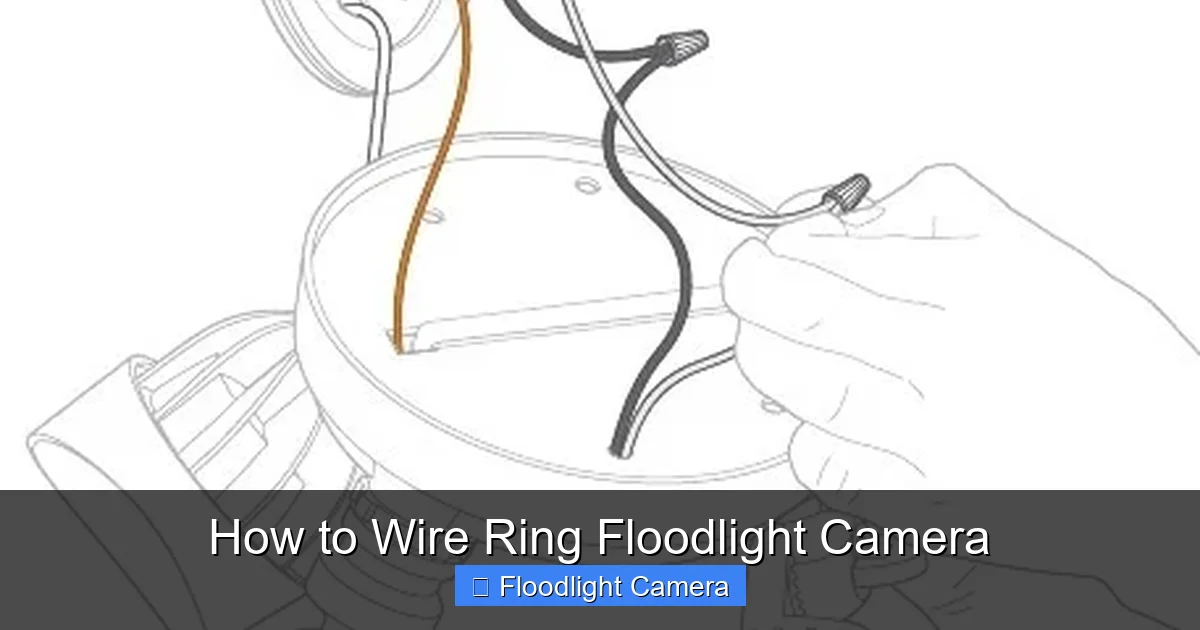

Step 4: Connect the Wires
This is the core of the installation. Proper wiring ensures your camera and lights work safely and reliably.
Match the Wire Colors
Connect the wires from the camera to the corresponding wires in your wall:
- Black to black: This is the “hot” wire that carries power.
- White to white: This is the “neutral” wire that completes the circuit.
- Green or bare to green or bare: This is the “ground” wire for safety.
Twist and Secure with Wire Nuts
Hold the matching wires together and twist them clockwise with pliers. Then, screw a wire nut over the connection. Give each wire a gentle tug to ensure it’s secure. Loose connections can cause sparks or malfunctions.
Wrap with Electrical Tape
For added safety, wrap each wire nut and connection with electrical tape. This prevents moisture from getting in and keeps the wires from loosening over time.
Tuck Wires into the Junction Box
Carefully fold the connected wires and push them back into the electrical box. Don’t force them—gentle bending is fine, but avoid sharp kinks that could damage the wires.
Step 5: Mount the Camera to the Wall
With the wires connected, it’s time to secure the camera in place.
Align the Mounting Bracket
Hold the camera up to the wall, aligning the mounting bracket with the screw holes in the junction box or wall. Use a level to make sure it’s straight. A crooked camera can affect motion detection and video quality.
Secure with Screws
Use the provided screws to attach the bracket to the wall or junction box. If mounting to wood, the screws should go in easily. For brick or concrete, you may need to drill pilot holes and use wall anchors.
Adjust the Camera Angle
Once mounted, adjust the camera and floodlights to face the desired area. The camera should cover your driveway, yard, or entryway. Tighten the adjustment knobs to lock the position.
Step 6: Restore Power and Test the System
You’re almost done! Now it’s time to turn the power back on and see if everything works.
Turn the Breaker Back On
Return to the electrical panel and flip the breaker to the “ON” position. Listen for any unusual sounds from the camera or lights.
Check the Lights
The floodlights should turn on immediately or when motion is detected, depending on your settings. If they don’t, double-check your wiring and breaker.
Test the Camera
Open the Ring app on your smartphone. The camera should appear as “online.” Tap to view the live feed. Walk in front of the camera to test motion detection. You should receive a notification and see the lights activate.
Adjust Settings in the App
Use the Ring app to customize motion zones, sensitivity, light duration, and notification preferences. This ensures your camera works exactly how you want it to.
Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common issues.
Camera Won’t Turn On
- Check the breaker: Make sure power is restored.
- Test the wires: Use a voltage tester to confirm power is reaching the camera.
- Inspect connections: Loose or reversed wires can prevent operation.
Floodlights Don’t Work
- Verify wiring: Ensure black, white, and ground wires are correctly connected.
- Check bulb settings: In the Ring app, make sure the lights are enabled and set to “Auto” or “On.”
- Test with motion: Walk in front of the camera to trigger the lights.
Poor Video Quality or Connection
- Check Wi-Fi signal: The camera needs a strong 2.4 GHz Wi-Fi connection. Move your router or use a Wi-Fi extender if needed.
- Update the app: Make sure the Ring app and camera firmware are up to date.
- Reposition the camera: Avoid pointing it directly at the sun or bright lights, which can cause glare.
False Motion Alerts
- Adjust motion zones: Use the app to limit detection to specific areas.
- Lower sensitivity: Reduce motion sensitivity if leaves, pets, or shadows trigger alerts.
- Clean the lens: Dust or dirt on the camera lens can affect detection.
Safety Tips and Best Practices
Working with electricity can be dangerous. Follow these tips to stay safe and ensure a long-lasting installation.
Always Turn Off Power
Never assume the power is off. Always verify with a voltage tester.
Use the Right Tools
Cheap or damaged tools can slip and cause injury. Invest in quality screwdrivers, wire strippers, and testers.
Don’t Overload the Circuit
The Ring Floodlight Camera uses standard household voltage (120V), but avoid connecting too many devices to the same circuit.
Weatherproof the Installation
Ensure all connections are sealed and the camera is mounted under an eave or covered area if possible. This protects against rain and snow.
Schedule Regular Checks
Every few months, inspect the camera, wires, and mounting for signs of wear, loose screws, or corrosion.
When to Call a Professional
While many homeowners can install the Ring Floodlight Camera themselves, some situations call for expert help.
- You’re not comfortable working with electricity.
- The existing wiring is old, frayed, or doesn’t match standard colors.
- You don’t have an existing junction box or outdoor electrical box.
- The circuit breaker panel is hard to access or confusing.
- You’re installing on a high wall or hard-to-reach area.
A licensed electrician can ensure the job is done safely and up to code. It’s better to spend a little extra than risk injury or damage.
Conclusion
Wiring a Ring Floodlight Camera might seem intimidating at first, but with the right preparation and careful steps, it’s a manageable DIY project. By turning off the power, connecting the wires correctly, and testing the system, you’ll have a powerful security tool that enhances your home’s safety and convenience.
Remember, safety comes first. Always double-check your work, use the proper tools, and don’t hesitate to call a professional if you’re unsure. Once installed, your Ring Floodlight Camera will provide peace of mind with bright lights, clear video, and real-time alerts—all from the palm of your hand.
Now that you know how to wire Ring Floodlight Camera, you’re ready to take the next step in smart home security. Stay safe, stay connected, and enjoy the added protection your new camera brings.
