How to Wire Zosi Cameras

This guide walks you through how to wire Zosi cameras safely and correctly, whether you’re setting up a new system or expanding an existing one. You’ll learn about power options, cable types, DVR connections, and troubleshooting tips to ensure reliable performance.

Key Takeaways

• Choose the right power source: Most Zosi cameras use 12V DC power adapters or PoE (Power over Ethernet) for simplified wiring.
• Use high-quality coaxial or Ethernet cables: RG59 coaxial cables work with analog systems, while Cat5e/Cat6 is ideal for IP cameras.
• Connect cameras to the DVR/NVR properly: Match video inputs and ensure secure BNC or RJ45 connections.
• Plan your cable routing: Keep cables away from power lines and sharp edges to avoid interference and damage.
• Test each camera before finalizing installation: Verify video feed and power before securing cables permanently.
• Use weatherproof connectors for outdoor setups: Protect connections from moisture and extreme temperatures.
• Label all cables: Makes future maintenance and troubleshooting much easier.

Quick Answers to Common Questions

Should I use PoE or individual power adapters?

PoE is cleaner and more efficient for IP cameras, reducing cable clutter. Individual adapters are simpler for small analog setups but can look messy.

Can I run power and video cables together?

Avoid running power and video cables in the same conduit. Keep them at least 6 inches apart to prevent interference.

How far can I run a coaxial cable?

RG59 coaxial cables can run up to 300 feet without signal loss. For longer distances, use a signal booster or switch to IP cameras.

Do I need a professional to wire Zosi cameras?

No—Zosi systems are designed for DIY installation. With basic tools and this guide, most homeowners can complete the job.

What if my camera doesn’t power on?

Check the power adapter, wiring connections, and voltage. Use a multimeter to test output at the camera.

How to Wire Zosi Cameras: A Complete Step-by-Step Guide

Setting up a home or business security system can feel overwhelming—especially when it comes to wiring. But if you’re using Zosi cameras, you’re in luck. Zosi offers reliable, affordable surveillance solutions that are designed for DIY installation. Whether you’re installing a 4-camera kit or expanding to 16 channels, knowing how to wire Zosi cameras correctly is the key to a smooth, long-lasting system.

In this guide, we’ll walk you through every step of wiring your Zosi cameras—from choosing the right cables to connecting them to your DVR or NVR. We’ll cover power options, video transmission, cable routing, and troubleshooting. By the end, you’ll have a fully functional security system that keeps your property safe 24/7.

No prior experience? No problem. We’ll keep things simple, clear, and jargon-free. Let’s get started.

Understanding Your Zosi Camera System

Before you start wiring, it’s important to understand what type of Zosi system you have. Zosi offers two main types: analog (HD-TVI) and IP (network) cameras. Each has different wiring requirements.

Analog (HD-TVI) Cameras

These cameras use coaxial cables (like RG59) to transmit video and require separate power cables. They connect directly to a DVR (Digital Video Recorder). Most entry-level Zosi kits use this technology. It’s reliable, cost-effective, and easy to install.

IP (Network) Cameras

IP cameras send video over Ethernet cables (Cat5e or Cat6) and often use PoE (Power over Ethernet), which delivers both power and data through a single cable. These connect to an NVR (Network Video Recorder). IP systems offer higher resolution and more advanced features.

Knowing your system type will help you choose the right cables and power method. Check your camera model or kit packaging to confirm.

Gathering Your Tools and Materials

Before you begin, make sure you have everything you need. Here’s a checklist:

• Zosi camera system (cameras, DVR/NVR, power adapters)
• Coaxial cables (RG59) for analog systems or Ethernet cables (Cat5e/Cat6) for IP systems

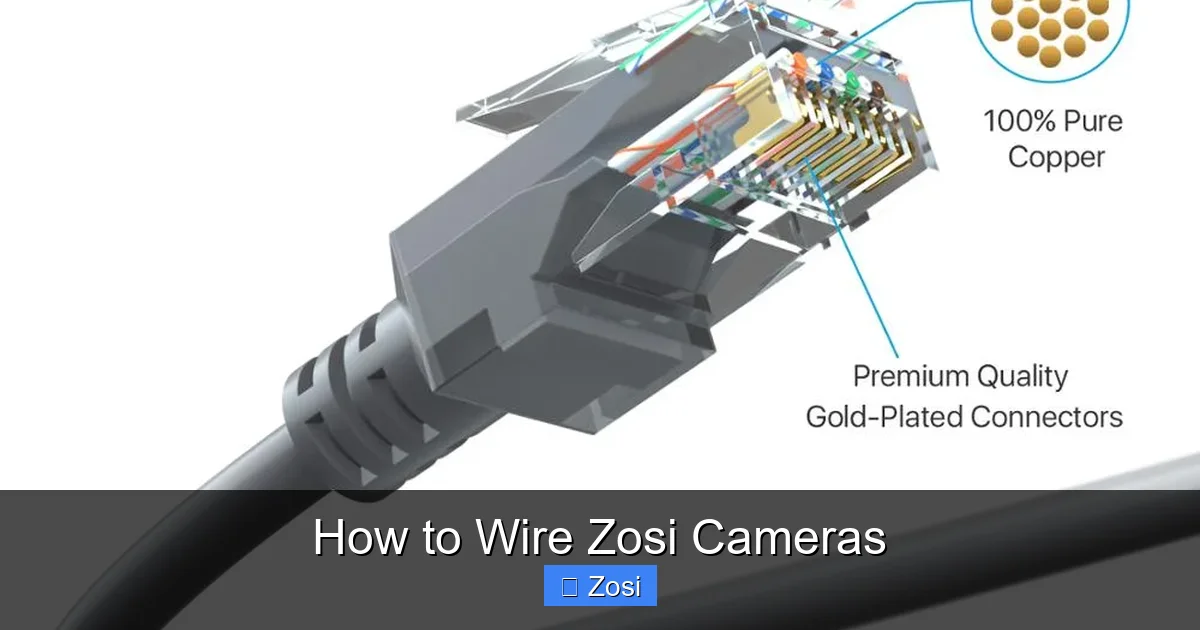

• BNC connectors (for coaxial cables) or RJ45 connectors (for Ethernet)
• Crimping tool (for BNC or RJ45 connectors)
• Drill and drill bits (for mounting and routing)
• Cable clips or conduit (to secure and protect cables)
• Power drill and screws (for camera mounts)
• Voltage tester (to check power sources)
• Label maker or tape (to label cables)
• Ladder (for ceiling or high wall mounting)

Having the right tools saves time and prevents frustration. If you’re missing anything, most items are available at hardware or electronics stores.

Step 1: Plan Your Camera Layout

Good planning prevents poor performance. Before drilling or running cables, map out where each camera will go.

Identify Key Areas

Think about entry points, driveways, backyards, garages, and blind spots. Aim for overlapping coverage so no area is left unmonitored.

Check Power and Network Access

Make sure each camera location is within reach of a power source or PoE switch. For IP cameras, ensure your router or NVR can support the number of devices.

Measure Cable Lengths

Use a measuring tape to determine how much cable you’ll need. Add 10–15% extra for slack and routing around corners.

Sketch a Diagram

Draw a simple layout of your property with camera locations, DVR/NVR placement, and cable paths. This helps visualize the setup and avoids mistakes.

Step 2: Mount the Cameras

Once you’ve planned your layout, it’s time to mount the cameras.

Choose Mounting Height

Install cameras 8–10 feet high for optimal coverage. This height reduces tampering risk and provides a wide field of view.

Use the Mounting Template

Most Zosi cameras come with a mounting template. Tape it to the wall, mark the screw holes, and drill pilot holes.

Secure the Camera

Attach the camera bracket with screws. Make sure it’s tight and level. Then, snap or screw the camera into the bracket.

Adjust the Angle

Tilt and pan the camera to cover the desired area. Tighten the adjustment screws once you’re satisfied.

Tip: For outdoor cameras, ensure the mounting surface is sturdy and protected from direct rain if possible.

Step 3: Run the Cables

This is the most time-consuming part, but it’s crucial for a clean, safe installation.

Choose the Right Cable Path

Run cables along walls, under eaves, or through conduit. Avoid running them across walkways or where they can be tripped over.

Use Conduit for Protection

For outdoor or exposed runs, use PVC or flexible conduit to protect cables from weather, pests, and physical damage.

Drill Holes Carefully

When drilling through walls or soffits, use a drill bit slightly larger than the cable diameter. Seal holes with silicone caulk to prevent water intrusion.

Bundle and Secure Cables

Use zip ties or cable clips to keep wires neat. Don’t over-tighten, as this can damage the cables.

Label Each Cable

At both ends, label cables with the camera number (e.g., “Cam 1,” “Cam 2”). This makes troubleshooting much easier later.

Step 4: Connect Power to the Cameras

Power is essential—without it, your cameras won’t work. Zosi cameras typically use 12V DC power.

Option 1: Individual Power Adapters

Each camera can be powered by a separate 12V DC adapter plugged into a nearby outlet. This is simple but can create a messy setup with multiple cords.

Option 2: Centralized Power Supply

Use a multi-channel power supply box that powers all cameras from one location. This is cleaner and more efficient. Connect the power box to a single outlet and run 18/2 power wires to each camera.

Option 3: PoE (Power over Ethernet)

If you have IP cameras, use a PoE switch or injector. This sends power and data over a single Ethernet cable, reducing clutter.

Wiring the Power

For analog cameras with separate power:

• Strip the ends of the 18/2 power wire.
• Connect the positive (usually red) wire to the camera’s positive terminal.
• Connect the negative (usually black) wire to the negative terminal.
• Secure with wire nuts or crimp connectors.

For PoE:

• Plug the Ethernet cable into the camera’s RJ45 port.
• Connect the other end to the PoE switch or injector.
• The switch handles both power and data.

Always double-check polarity. Reversing positive and negative can damage the camera.

Step 5: Connect Video Cables to the DVR/NVR

Now it’s time to link your cameras to the recorder.

For Analog (HD-TVI) Systems

• Take the coaxial cable from the camera.
• Attach a BNC connector to the end using a crimping tool.
• Plug the BNC connector into the corresponding video input on the DVR (usually labeled “CH1,” “CH2,” etc.).
• Repeat for each camera.

For IP (Network) Systems

• Plug the Ethernet cable into the camera’s RJ45 port.
• Run the cable back to the NVR.
• Insert the RJ45 connector into an available LAN port on the NVR.
• The NVR will automatically detect the camera.

Tip: Use a network cable tester to verify Ethernet connections before finalizing.

Step 6: Power On and Test the System

Once everything is connected, it’s time to test.

Turn On the DVR/NVR

Plug in the recorder and monitor. The system should boot up within a minute.

Check the Video Feed

Each camera should appear on the screen. If a camera is missing, check:

• Is the camera powered on?
• Is the video cable securely connected?
• Is the correct input selected on the DVR/NVR?

Adjust Camera Angles

Fine-tune the direction and zoom (if applicable) for the best view.

Test Night Vision

Turn off the lights or wait for dusk to ensure infrared LEDs are working.

Verify Recording

Trigger motion detection or manually record to confirm the system saves footage.

Troubleshooting Common Wiring Issues

Even with careful planning, problems can happen. Here’s how to fix the most common issues.

No Video Signal

• Check power: Use a multimeter to verify 12V at the camera.
• Inspect cables: Look for cuts, kinks, or loose connectors.
• Test with a known-working camera: Swap cameras to isolate the issue.

Fuzzy or Distorted Image

• Ensure cables are not near power lines or motors.
• Replace low-quality or damaged cables.
• Check BNC or RJ45 connections for tightness.

Camera Not Detected (IP Systems)

• Verify IP address settings on the NVR.
• Restart the camera and NVR.
• Check for network conflicts or firewall issues.

Power Issues

• Use a voltage tester to confirm power at the camera.
• Replace faulty adapters or power supplies.
• Ensure total power draw doesn’t exceed the supply’s capacity.

Intermittent Signal

• Secure all cable connections.
• Use surge protectors to guard against power spikes.
• Check for loose screws in camera mounts.

Tips for a Clean and Professional Installation

A well-wired system looks good and lasts longer.

Hide Cables When Possible

Run wires inside walls, under baseboards, or through attic spaces. Use paintable cable covers for exposed areas.

Use Weatherproof Enclosures

For outdoor connections, use waterproof junction boxes or silicone sealant to protect terminals.

Keep Cables Organized

Bundle cables with Velcro straps and label them clearly. This makes future upgrades or repairs easier.

Document Your Setup

Take photos of your wiring layout and save them with your system manual. Include cable lengths and camera locations.

Schedule Regular Maintenance

Every 6–12 months, check connections, clean camera lenses, and test system performance.

Conclusion

Wiring Zosi cameras doesn’t have to be complicated. With the right tools, a solid plan, and careful execution, you can install a reliable security system in just a few hours. Whether you’re using analog HD-TVI cameras with coaxial cables or modern IP cameras with PoE, the key is attention to detail.
