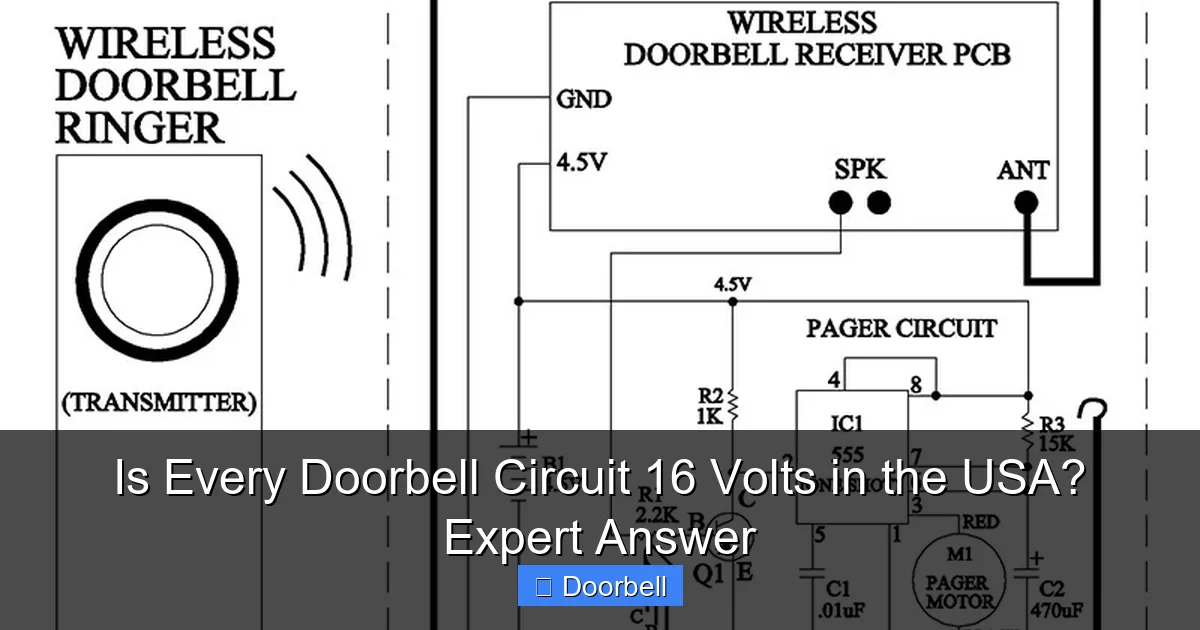

Featured image for this comprehensive guide about are doorbell circuits always 16 volts in usa
Image source: i1.wp.com
<p>The classic “ding-dong” of a doorbell is a sound almost universally recognized in American homes. It’s a simple, yet essential, piece of home technology. But have you ever stopped to consider what powers that chime? For many homeowners, the answer immediately jumps to <strong>16 volts doorbell</strong>. It’s a commonly held belief, almost an unwritten rule, that <strong>doorbell circuits in the USA</strong> always operate at this specific low voltage.</p>
<p>While 16 volts AC (Alternating Current) is indeed a prevalent standard for many traditional doorbell systems, especially those installed in homes over the past few decades, the truth is far more nuanced. The electrical landscape of residential doorbells is more diverse than you might think, encompassing a range of voltages designed to suit different chime types, installation eras, and increasingly, the demands of modern smart home devices. So, is every <strong>doorbell circuit 16 volts in the USA</strong>? Let’s dive in and uncover the expert answer.</p>
<h2>The Myth of the Universal 16-Volt Doorbell Circuit in the USA</h2>
<p>No, it’s not always 16 volts. While 16V AC is undoubtedly the most common <strong>doorbell circuit voltage in USA</strong> homes, especially for mechanical chimes, it’s far from the only voltage you’ll encounter. The reason 16V became so popular stems from its suitability for powering traditional electromechanical chimes, offering enough power for a robust “ding-dong” without requiring complex wiring or posing significant safety risks.</p>
<p>Every doorbell system relies on a <strong>doorbell transformer</strong> to step down your home’s standard 120V AC household current to a much safer, lower voltage. This transformer is the heart of your <strong>low voltage doorbell</strong> system, determining the exact voltage supplied to your chime and pushbutton. So, while 16V is a <strong>doorbell voltage standard</strong> for many, it’s crucial not to assume it’s universal for every setup.</p>
<h2>Beyond 16 Volts: Exploring Other Common Doorbell Voltages</h2>
<p>When you look beyond the widespread 16-volt standard, you’ll find a surprising variety of voltages powering doorbells across American homes. These variations are often tied to the age of the installation, the type of chime used, or the specific requirements of newer technologies.</p>
<p>Here are some other common doorbell circuit voltages you might encounter:</p>
<ul>
<li><strong>8-10 Volts AC:</strong> Often found in very old homes or with older, simpler mechanical chimes that don’t require as much power. A 16V transformer might damage these older chimes.</li>
<li><strong>12 Volts AC:</strong> Less common but still present, particularly with some older electronic chimes or specialty systems.</li>
<li><strong>24 Volts AC:</strong> Increasingly popular, especially with modern electronic chimes and, most notably, <strong>smart doorbell voltage</strong> requirements. Many smart doorbells need this higher voltage (and often higher VA, or volt-amperes) to operate reliably, maintain Wi-Fi connectivity, and charge their internal batteries effectively.</li>
</ul>
<p>The <strong>doorbell transformer</strong> is always the component dictating the output voltage. Understanding these different voltages is key to troubleshooting an existing system or installing a new one.</p>
<h2>Why Do Doorbell Circuits Have Different Voltages?</h2>
<p>The range of <strong>doorbell circuit voltage USA</strong> systems employ isn’t arbitrary. Several factors influence the specific voltage chosen for a doorbell circuit:</p>
<h3>Age of the Home and Doorbell System</h3>
<p>Older homes, especially those built before the 1970s, might feature systems designed around 8V or 10V transformers. As doorbell technology advanced and chimes became more robust, 16V became the dominant standard. This evolution reflects the general increase in power demands over time.</p>
<h3>Type of Chime</h3>
<p>Different chime mechanisms have different power needs. Simple mechanical “ding-dong” chimes might operate perfectly fine on 8V or 16V. More complex electronic chimes, particularly those with multiple melodies or lighted pushbuttons, often require 16V or even 24V for optimal performance. Using an incorrect voltage can result in a weak chime, constant buzzing, or no sound at all.</p>
<h3>The Rise of Smart Doorbells</h3>
<p>Perhaps the biggest driver for varied and often higher voltages today is the proliferation of <strong>smart doorbell voltage</strong> requirements. Devices like Ring, Nest Hello, Arlo, and others are essentially mini-computers at your front door. They contain cameras, microphones, speakers, Wi-Fi radios, and often internal batteries. These components demand a consistent and sufficient power supply, typically requiring between 16V and 24V AC, and often a higher Volt-Ampere (VA) rating (e.g., 30 VA or 40 VA) than traditional systems.</p>
<h2>How to Safely Determine Your Doorbell Circuit’s Voltage</h2>
<p>Before doing any work or purchasing a new doorbell, knowing your current <strong>doorbell circuit voltage</strong> is paramount. Here’s how to find it:</p>
<h3>Locating Your Doorbell Transformer</h3>
<p>The <strong>doorbell transformer</strong> is usually found in inconspicuous places. Common locations include:</p>
<ul>
<li>Near your main electrical panel.</li>
<li>In the attic, often near the front door.</li>
<li>In the basement, typically mounted to a joist or near the ceiling.</li>
<li>Inside a closet or utility room, sometimes attached to a junction box.</li>
</ul>
<p>It’s typically a small, rectangular metal box with two low-voltage wires (the <strong>doorbell wiring</strong>) leading out.</p>
<h3>Checking the Transformer Label</h3>
<p>Once you find the transformer, look for a label. This label will clearly state the input voltage (usually 120V AC) and, crucially, the output voltage (e.g., “16V AC, 10 VA” or “24V AC, 40 VA”). This is the easiest and safest way to determine your current voltage.</p>
<h3>Using a Multimeter (For the Technically Inclined)</h3>
<p>If the label is unreadable or missing, you can use a multimeter. <strong>Always exercise caution when working with electricity, even low voltage.</strong></p>
<ol>
<li>Set your multimeter to measure AC voltage (VAC) at a range suitable for low voltage (e.g., 0-50V AC).</li>
<li>Locate the two low-voltage wires coming from the transformer. These are usually connected to screw terminals.</li>
<li>Carefully touch one probe of the multimeter to each screw terminal (or bare wire ends).</li>
<li>The reading on your multimeter will indicate the exact <strong>doorbell circuit voltage</strong>.</li>
</ol>
<h2>The Impact of Voltage on Traditional and Smart Doorbells</h2>
<p>The correct voltage isn’t just a technical specification; it directly affects the performance and lifespan of your doorbell system.</p>
<h3>Traditional Doorbells</h3>
<ul>
<li><strong>Under-voltage:</strong> If your chime requires 16V but only receives 8V, you might get a weak, muffled “ding” instead of a clear “ding-dong,” or no sound at all. The plunger might not have enough power to strike the tone bars effectively.</li>
<li><strong>Over-voltage:</strong> Supplying too much voltage (e.g., 24V to an 8V chime) can cause the chime to buzz continuously, overheat, or even burn out the coil.</li>
</ul>
<h3>Smart Doorbells</h3>
<p>This is where voltage becomes absolutely critical. <strong>Smart doorbell voltage</strong> requirements are stringent because these devices are complex electronics. Most smart doorbells require a minimum of 16V AC, with many performing best at 24V AC, and a minimum VA rating (typically 30VA).</p>
<ul>
<li><strong>Under-voltage or insufficient VA:</strong> This is the most common issue. Your smart doorbell might:</li>
<ul>
<li>Not power on at all.</li>
<li>Constantly go offline.</li>
<li>Struggle to maintain Wi-Fi connectivity.</li>
<li>Fail to charge its internal battery (if applicable).</li>
<li>Display a “power inadequate” warning in its app.</li>
<li>Produce distorted or delayed video/audio.</li>
</ul>
<li><strong>Over-voltage:</strong> While less common with smart doorbells (as they often have internal regulators), excessive voltage can still potentially damage internal components.</li>
</ul>
<h2>Upgrading Your Doorbell Transformer: When and How</h2>
<p>If your current <strong>doorbell transformer</strong> doesn’t meet the needs of your new smart doorbell or your existing chime isn’t performing correctly, a <strong>doorbell transformer replacement</strong> might be necessary.</p>
<h3>When to Upgrade</h3>
<ul>
<li>Installing a new <strong>smart doorbell</strong> that requires a higher voltage or VA than your current setup provides.</li>
<li>Your existing chime is buzzing, making a weak sound, or not working consistently.</li>
<li>Your current transformer is old, visibly damaged, or consistently overheating.</li>
<li>You have an older <strong>low voltage doorbell</strong> system (e.g., 8V or 10V) and want to upgrade to a more modern chime.</li>
</ul>
<h3>How to Upgrade (Basic Steps)</h3>
<p><strong>Safety first: Always turn off the power to your doorbell circuit at the main electrical breaker before starting any work.</strong></p>
<ol>
<li><strong>Identify the Breaker:</strong> Locate the breaker controlling your doorbell circuit. It might be labeled “doorbell,” “chime,” or simply a general lighting circuit.</li>
<li><strong>Disconnect Old Transformer:</strong> Carefully disconnect the 120V input wires and the low-voltage <strong>doorbell wiring</strong> from the old transformer.</li>
<li><strong>Install New Transformer:</strong> Mount the new transformer securely. Connect the 120V input wires (typically black and white) to the corresponding terminals on the new transformer, following local electrical codes. Then, connect your existing low-voltage doorbell wires to the appropriate output terminals (e.g., “16V” and “COM” or “24V” and “COM”).</li>
<li><strong>Test:</strong> Restore power at the breaker and test your doorbell. Ensure your chime works correctly and, if applicable, your smart doorbell powers on and connects.</li>
</ol>
<p>If you’re uncomfortable with electrical work, it’s always best to consult a qualified electrician for a <strong>doorbell transformer replacement</strong> to ensure safety and compliance.</p>
<h2>Conclusion</h2>
<p>So, to definitively answer the question: <strong>Is every doorbell circuit 16 volts in the USA</strong>? No, it is not. While 16V AC remains a widely used standard, especially for traditional systems, a variety of voltages exist, from older 8V setups to modern 24V circuits demanded by today’s sophisticated <strong>smart doorbell voltage</strong> requirements. Knowing your specific <strong>doorbell circuit voltage USA</strong> is crucial for troubleshooting issues, selecting compatible new chimes, or ensuring your smart home devices operate flawlessly.</p>
<p>Before you purchase a new doorbell or try to fix a faulty one, take the time to locate and inspect your <strong>doorbell transformer</strong>. This simple check can save you time, frustration, and ensure your doorbell continues to deliver that satisfying “ding-dong” for years to come. When in doubt about electrical work, always prioritize safety and consider professional assistance.</p>
Frequently Asked Questions
Is every doorbell circuit in the USA always 16 volts?
No, not every doorbell circuit in the USA is exclusively 16 volts AC. While 16 volts is a very common standard, especially for many modern doorbells and chime units, other voltages are also widely used.
What are the most common doorbell circuit voltages found in US homes?
Besides 16 volts AC, you’ll frequently find 8 volts AC and 24 volts AC systems. Older homes, for instance, often utilized 8-volt transformers, while some advanced or smart doorbell systems may require or prefer 24 volts for optimal operation.
Why do doorbell circuits in the USA have different voltage requirements?
The required voltage primarily depends on the specific doorbell chime unit and transformer installed in your home. Different chimes, particularly older mechanical ones versus newer electronic or smart units, are designed to operate optimally at varying AC voltages.
How can I determine the voltage of my existing doorbell circuit?
The simplest and safest way is to check the label on your doorbell transformer, which is often found near your main electrical panel, furnace, or in a utility closet. Alternatively, you can use a multimeter to test the voltage directly at the wires connected to your doorbell chime.
What happens if I connect a new doorbell to a circuit with the wrong voltage?
Connecting a new doorbell to an incompatible circuit voltage can lead to various problems. If the voltage is too low (e.g., a 16-volt doorbell on an 8-volt circuit), the chime may not ring properly or at all; if the voltage is too high, it could potentially damage the doorbell unit or the transformer.
Do smart doorbells typically require a 16-volt circuit, or do they vary?
Many popular smart doorbells are designed to work within a range, often requiring 16-volt to 24-volt AC circuits for optimal performance and battery charging. However, it’s crucial to always check the specific voltage requirements in the manufacturer’s documentation for your particular smart doorbell model, as some may have different needs.
