The Future of Home Security: Why a Multi Tap Doorbell Transformer is a Game-Changer
Imagine a world where your doorbell doesn’t just announce visitors but acts as a smart security hub—integrating video, audio, motion detection, and even remote access. That future is here, but it hinges on one critical component: your multi tap doorbell transformer. While often overlooked, this unassuming device is the backbone of any modern doorbell system, especially as we transition from simple mechanical chimes to advanced smart doorbells like Ring, Nest, and Arlo. Without the right power supply, even the most sophisticated doorbell will underperform, fail, or damage your home’s electrical system. If your doorbell is dim, inconsistent, or constantly rebooting, the culprit might not be the device itself but the transformer powering it.
The evolution of doorbell technology has outpaced many homeowners’ understanding of their electrical needs. Traditional doorbells operated on 8-16 volts, but today’s smart doorbells demand more—often 16-24 volts and up to 30VA (volt-amperes) of power. A multi tap transformer solves this problem by offering multiple voltage settings, allowing you to match the exact requirements of your doorbell, chime, and any additional accessories like secondary cameras or lighting. Whether you’re upgrading an old system or installing a new one, understanding how to leverage a multi tap transformer can save you time, money, and frustration. In this guide, we’ll explore everything you need to know about these essential devices, from how they work to how to install and maintain them for maximum security and reliability.
What Is a Multi Tap Doorbell Transformer and How Does It Work?
Understanding the Basics: Voltage, Amperage, and VA
A multi tap doorbell transformer is a specialized low-voltage power supply designed to convert your home’s standard 120-volt AC power into the lower voltage (typically 8-24V) required by doorbells and chimes. Unlike a single-voltage transformer, a multi tap version features multiple output terminals, each delivering a different voltage. This allows you to fine-tune the power output to match the exact needs of your doorbell system. For example, a common multi tap transformer might offer 8V, 12V, 16V, 20V, and 24V taps, with a corresponding VA (volt-ampere) rating—usually between 10VA and 40VA.

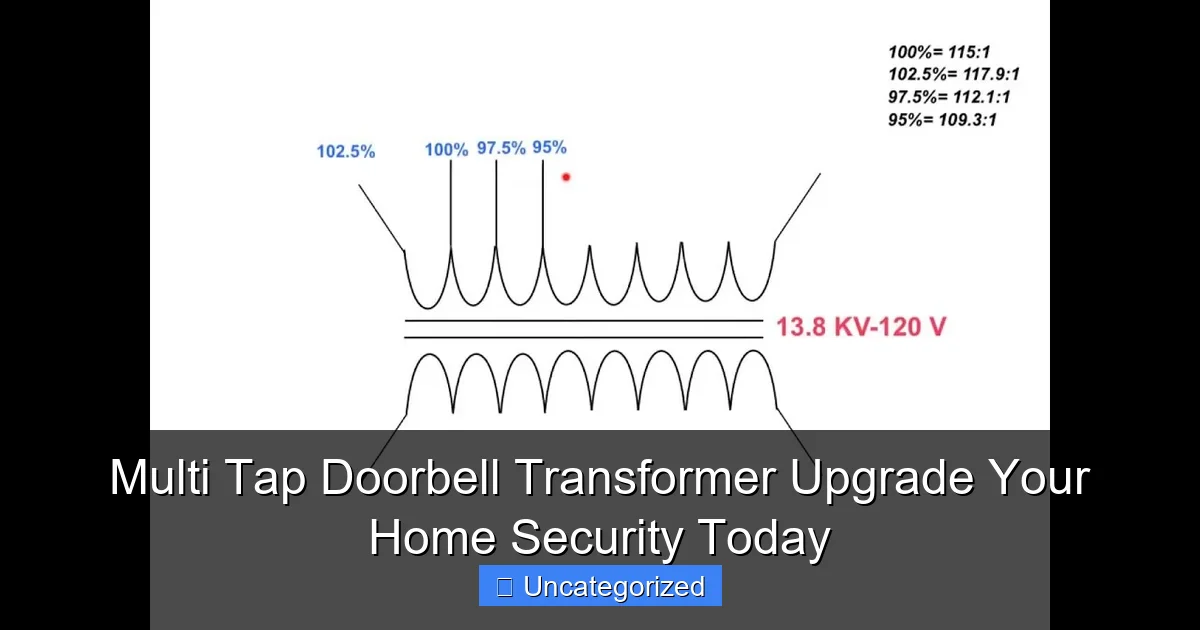

Visual guide about multi tap doorbell transformer
Image source: i.ytimg.com
The VA rating represents the transformer’s power capacity, calculated as voltage × amperage. A 24V, 20VA transformer can deliver up to 20 watts of power (24V × 0.83A). Modern smart doorbells often require higher VA ratings (20-30VA) to support features like high-resolution video, night vision, and Wi-Fi connectivity. If your transformer is underpowered, you’ll experience issues like flickering lights, poor video quality, or doorbell failure. Conversely, too much power can overload delicate electronics. A multi tap transformer eliminates this guesswork by letting you select the optimal voltage and power level.
How Multi Tap Transformers Differ from Standard Models
- Flexibility: Multi tap transformers offer 3-5 voltage options, while standard models provide only one fixed output (e.g., 16V). This flexibility is crucial for retrofitting older systems or accommodating new smart doorbells.
- Compatibility: Many smart doorbells (e.g., Ring Pro, Nest Hello) explicitly recommend 16-24V, 10-30VA power. A multi tap transformer lets you meet these specs without replacing the entire unit.
- Future-Proofing: As you add accessories (e.g., secondary chimes, motion sensors), you can adjust the voltage to avoid overloading the system.
- Efficiency: Running a doorbell at its ideal voltage reduces energy waste and extends device lifespan.
Example: A homeowner upgrading from a mechanical chime (8V, 5VA) to a Ring Pro (24V, 20VA) can use the 24V tap on a multi tap transformer instead of buying a new single-voltage model.
Key Components and Safety Features
High-quality multi tap transformers include safety features like:
- Thermal overload protection: Automatically shuts off if the transformer overheats.
- Short-circuit protection: Prevents damage from wiring errors.
- Encapsulated coils: Protects against moisture and dust, ideal for basement or outdoor installations.
Always look for UL or ETL certification to ensure compliance with safety standards.
Why You Need a Multi Tap Transformer for Modern Smart Doorbells
The Power Demands of Smart Technology
Smart doorbells are more than just door announcers—they’re full-fledged security devices. Features like 1080p video, two-way audio, motion zones, and cloud storage require significantly more power than traditional doorbells. For instance:
- Ring Pro: Requires 16-24V, 20VA
- Nest Hello: Needs 16-24V, 10-20VA
- Arlo Essential: Operates at 24V, 20VA
A standard 16V, 10VA transformer can’t handle these demands, leading to:
- Frequent “low power” alerts
- Delayed motion detection
- Video lag or dropped frames
- Shortened battery life (for battery-powered models)
A multi tap transformer ensures your doorbell gets the right power at the right voltage, unlocking all its features without compromise.
Case Study: The Cost of Underpowering
Consider a homeowner who installed a Ring Pro with their existing 16V, 10VA transformer. Within weeks, the doorbell:
- Missed 30% of motion events
- Required nightly charging (despite being hardwired)
- Displayed “poor Wi-Fi signal” due to voltage drop
After switching to a 24V, 20VA multi tap transformer (using the 24V tap), the issues vanished. The doorbell now:
- Detected motion within 1 second
- Ran 24/7 without charging
- Maintained a stable Wi-Fi connection
This highlights the hidden cost of skimping on power supply: reduced security and reliability.
Beyond Doorbells: Multi Tap Transformers for Whole-Home Security
Multi tap transformers aren’t just for doorbells. They can power:
- Secondary chimes: Add a chime in the basement or backyard (use 16V tap).
- Outdoor lighting: Power low-voltage landscape lights (use 12V tap).
- Intercom systems: Integrate with door entry systems (use 20V tap).
This versatility makes them a central hub for home security and convenience.
How to Choose the Right Multi Tap Doorbell Transformer
Step 1: Check Your Doorbell’s Power Requirements
Before buying, consult your doorbell’s manual or specifications. Look for:
- Voltage range: e.g., “16-24V AC”
- VA rating: e.g., “20VA minimum”
- Amperage (if listed): e.g., “0.5A”
Pro Tip: If your doorbell is battery-powered, check if it supports hardwiring. Many (e.g., Ring Video Doorbell 3) do, but require a transformer with at least 16V, 10VA to charge the battery while operating.
Step 2: Match Transformer Specifications
Use this checklist:
- Voltage taps: Ensure the transformer has a tap at or above your doorbell’s minimum voltage. For a 16V minimum, choose a transformer with 16V, 20V, or 24V taps.
- VA rating: The transformer’s total VA should exceed your doorbell’s requirement. For a 20VA doorbell, pick a 20VA or 30VA model.
- Number of taps: 3-5 taps offer flexibility. More taps (e.g., 5) allow future upgrades.
- Certifications: UL/ETL listed for safety.
- Enclosure: Choose an outdoor-rated model if installing outside.
Example: For a Nest Hello (16-24V, 20VA), a 24V, 30VA multi tap transformer with 5 taps (8V, 12V, 16V, 20V, 24V) is ideal.
Step 3: Consider Installation Location
- Basement/Utility Room: Most common. Ensure the transformer is within 50 feet of the doorbell (to minimize voltage drop).
- Garage: Use a weatherproof enclosure if humidity is high.
- Outdoor: Select a transformer with an IP65 rating for dust/water resistance.
Warning: Never install a transformer in a bathroom or near flammable materials.
Step-by-Step Installation Guide
Tools and Materials Needed
- Multi tap doorbell transformer
- Voltage tester
- Wire strippers
- Electrical tape
- Wire nuts (usually included)
- Mounting screws
- Low-voltage wire (18-22 gauge, if extending)
Installation Process
- Turn off power: Shut off the circuit breaker for the existing doorbell circuit. Verify with a voltage tester.
- Locate the old transformer: Often found in the basement, attic, or near the doorbell chime. It may be mounted on a junction box or electrical panel.
- Disconnect wires: Remove the 120V input wires (usually black and white) and low-voltage output wires (red and white) from the old transformer.
- Mount the new transformer: Secure it to the junction box or wall using screws. Ensure it’s upright to allow heat dissipation.
- Connect 120V wires: Attach the black (hot) and white (neutral) wires to the corresponding terminals. Use wire nuts and tape.
- Select the voltage tap: Based on your doorbell’s requirements, connect the red output wire to the appropriate tap (e.g., 24V). Connect the white wire to the common (C) terminal.
- Run low-voltage wires: If extending, use 18-22 gauge stranded wire. Keep runs under 50 feet.
- Test the system: Turn the power back on. Press the doorbell button—it should chime. Check for proper voltage at the doorbell terminals (use a multimeter).
Pro Tip: Label the voltage taps (e.g., “24V for Ring Pro”) for future reference.
Troubleshooting Common Issues
- No power: Check circuit breaker, wire connections, and voltage at the transformer output.
- Flickering or dim chime: Voltage drop due to long wire runs. Shorten the run or use thicker wire (16 gauge).
- Overheating: Ensure the transformer isn’t enclosed in a tight space. Add ventilation if needed.
Maintenance, Safety, and Long-Term Benefits
Routine Maintenance Tips
- Inspect annually: Check for loose wires, corrosion, or overheating (warm to the touch is normal; hot is not).
- Clean terminals: Use electrical contact cleaner to prevent oxidation.
- Test voltage: Use a multimeter to ensure output matches the selected tap (e.g., 24V ± 5%).
- Update wiring: Replace damaged or frayed low-voltage wires immediately.
Safety Best Practices
Even though doorbell transformers are low-voltage, safety is critical:
- Always cut power before working on 120V connections.
- Use insulated tools to prevent short circuits.
- Ground the transformer if it has a ground wire (green/bare).
- Follow local codes: Some areas require permits for electrical work.
Warning: Never connect a doorbell transformer to a 240V circuit—it will destroy the device.
Long-Term Benefits of a Multi Tap Transformer
- Enhanced security: Reliable power means no missed alerts or video gaps.
- Cost savings: Avoid frequent doorbell replacements due to power issues.
- Energy efficiency: Modern transformers waste less power in standby mode.
- Peace of mind: A stable system reduces troubleshooting time.
Data Table: Transformer Comparison
| Model | Voltage Taps | VA Rating | Best For | Price Range |
|---|---|---|---|---|
| Honeywell AT410A | 8V, 12V, 16V | 20VA | Mechanical chimes + basic smart doorbells | $20-$30 |
| Transformer 30VA 5-Tap | 8V, 12V, 16V, 20V, 24V | 30VA | Smart doorbells (Ring, Nest, Arlo) | $30-$45 |
| Bosch BTDT-24 | 12V, 16V, 24V | 40VA | High-power systems + accessories | $50-$70 |
Conclusion: Elevate Your Home Security with Confidence
Upgrading to a multi tap doorbell transformer isn’t just a technical fix—it’s a strategic investment in your home’s security and functionality. By providing the exact power your smart doorbell needs, you ensure reliable performance, unlock advanced features, and future-proof your system for new devices. Whether you’re battling flickering chimes, inconsistent motion detection, or the frustration of a doorbell that “never works right,” the solution often lies in the transformer. This guide has armed you with the knowledge to choose the right model, install it safely, and maintain it for years of trouble-free operation.
Remember, your doorbell is the first line of defense against intruders, package thieves, and unwanted visitors. Don’t let an underpowered transformer compromise its effectiveness. Take action today: check your doorbell’s specs, select a multi tap transformer with the right voltage and VA rating, and install it with confidence. The result? A smarter, safer, and more responsive home that protects what matters most. As technology evolves, your multi tap transformer will adapt—ensuring your security system stays ahead of the curve, one chime at a time.
Frequently Asked Questions
What is a multi tap doorbell transformer and how does it work?
A multi tap doorbell transformer is a device that steps down household voltage (120V) to a safer, lower voltage (16-24V) required by doorbells and smart chimes. It features multiple voltage taps, allowing compatibility with various doorbell brands and configurations for flexible home security setups.
Can I install a multi tap doorbell transformer myself?
Yes, basic electrical knowledge is sufficient for installation. Always turn off power at the circuit breaker first and follow the manufacturer’s wiring diagram. For complex setups or if unsure, consult a licensed electrician to ensure safety.
Why should I upgrade to a multi tap doorbell transformer?
Upgrading to a multi tap doorbell transformer improves reliability and supports advanced features like video doorbells and Wi-Fi chimes. Its adjustable voltage taps ensure optimal performance for both traditional and smart doorbell systems.
What’s the difference between a single-tap and a multi tap doorbell transformer?
A single-tap transformer provides one fixed voltage output, while a multi tap model offers multiple voltage settings (e.g., 16V, 18V, 24V). This flexibility ensures compatibility with diverse doorbell models and prevents under/over-powering issues.
How do I choose the right multi tap doorbell transformer for my system?
Check your doorbell’s voltage requirements and select a transformer with matching taps (e.g., 16V for Ring, 24V for Nest). Ensure the VA (volt-ampere) rating meets or exceeds your doorbell’s power draw for stable performance.
Are multi tap transformers compatible with smart doorbells?
Yes, most smart doorbells (e.g., Ring, Arlo, Nest) are compatible with multi tap doorbell transformers. The adjustable voltage taps let you fine-tune power delivery to prevent malfunctions and extend device lifespan.
