NVR 4108 Dahua Installation and Setup Guide

In an increasingly security-conscious world, having a reliable surveillance system is no longer a luxury but a necessity for many homeowners and small businesses. If you’ve chosen the NVR 4108 Dahua, you’ve selected a powerful, 8-channel PoE network video recorder capable of delivering high-definition monitoring. But getting it up and running can seem daunting. Don’t worry, you’re in the right place!

This comprehensive guide will walk you through every step of the Dahua NVR 4108 installation and setup, from unboxing to advanced configurations. We’ll demystify the process, providing actionable tips and insights to ensure your security system is robust, efficient, and tailored to your needs. Get ready to transform your peace of mind with your new Dahua NVR system.

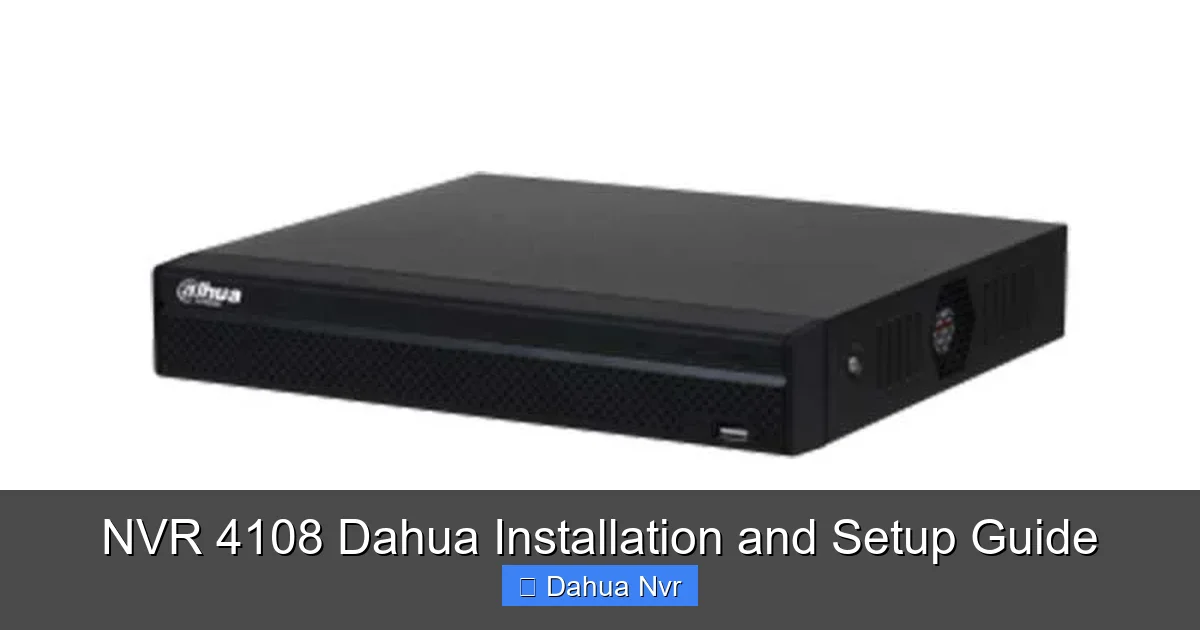

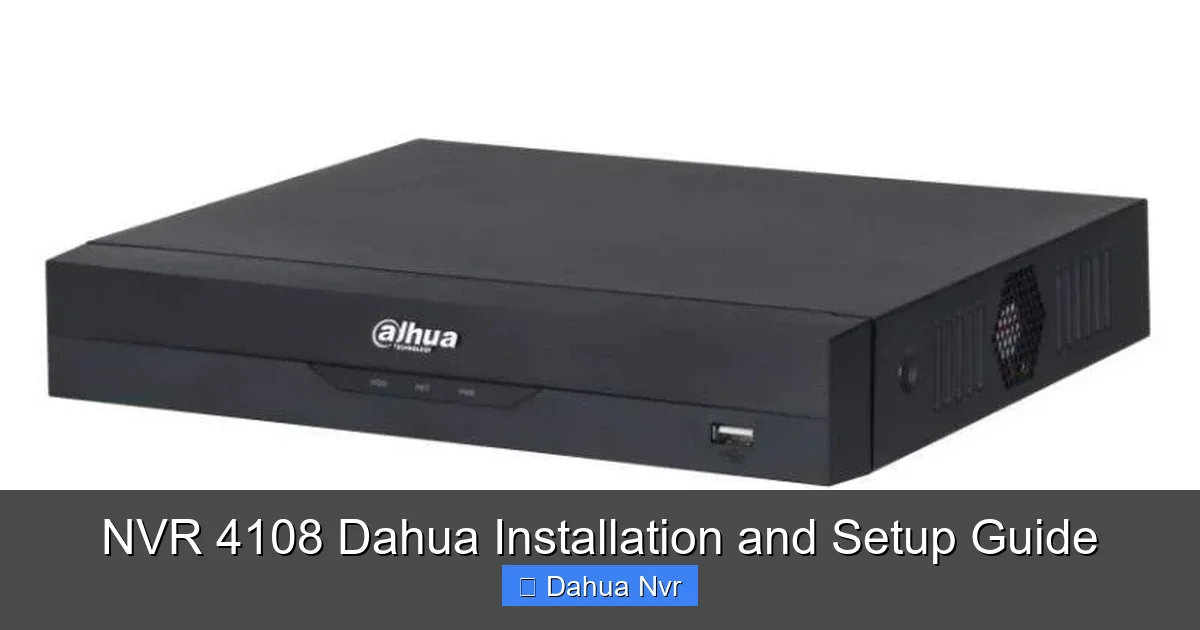

Unboxing and Understanding Your Dahua NVR 4108

Before diving into the setup, it’s crucial to familiarize yourself with the heart of your new surveillance system: the Dahua NVR 4108. This specific model is a highly popular choice for its balance of performance, features, and affordability. When you unbox it, you’ll find the NVR unit itself, a power adapter, a USB mouse, an Ethernet cable, and a bag of screws for hard drive installation.

The NVR 4108 Dahua boasts several key features:

• 8-Channel PoE Support: This means it can power and transmit data for up to eight IP cameras directly through a single Ethernet cable per camera, simplifying wiring significantly. This Power over Ethernet (PoE) capability is a massive time-saver for DIY installations.
• 4K Resolution Support: It can record and display footage in stunning 4K (Ultra HD), providing incredible detail if paired with compatible 4K cameras.
• H.265+/H.264+ Compression: These advanced video compression technologies drastically reduce file sizes, allowing you to store more footage on your hard drive without compromising video quality. This is crucial for maximizing your storage capacity; for instance, H.265+ can reduce bandwidth and storage by up to 70-80% compared to older H.264.
• Remote Access: Via Dahua’s DMSS mobile app or SmartPSS software for PCs, you can view live feeds and playback recordings from anywhere in the world.

Understanding these capabilities will help you make the most of your Dahua NVR system.

Hardware Installation: From HDD to Cameras

The physical installation is the first major step. Taking your time here will ensure a smooth setup process down the line.

Installing the Hard Drive (HDD)

Your NVR doesn’t come with a hard drive installed, so this is your first task. Without an HDD, you can view live footage but cannot record. We recommend a surveillance-grade hard drive (e.g., Western Digital Purple or Seagate SkyHawk) for optimal performance and longevity.

1. Unscrew the NVR Cover: Carefully remove the screws on the back and sides of the NVR chassis to slide off the top cover.
2. Mount the HDD: Gently place your hard drive into the designated bay inside the NVR. Align the screw holes on the HDD with those on the NVR chassis.
3. Secure the HDD: Use the provided screws to firmly secure the hard drive in place.
4. Connect Cables: Attach the SATA data cable (thinner, usually red) and the SATA power cable (wider, usually black) from the NVR’s motherboard to the corresponding ports on the hard drive.
5. Replace the Cover: Slide the NVR cover back on and secure it with the screws.

Connecting Your Cameras and Peripherals

With the HDD in place, it’s time to connect everything else to your NVR 4108 Dahua.

• Connect IP Cameras: Plug your PoE IP cameras into any of the NVR’s PoE ports using Ethernet cables. The NVR will power them automatically.
• Connect to Monitor: Use an HDMI or VGA cable to connect your NVR to a monitor or TV.
• Connect USB Mouse: Plug the provided USB mouse into any USB port on the NVR for navigation.
• Connect to Network: Use another Ethernet cable to connect the NVR’s WAN/LAN port to your router or network switch. This is essential for remote access and ensuring cameras can communicate.
• Power On: Finally, connect the power adapter to the NVR and plug it into a power outlet. The NVR should boot up, and you’ll see the Dahua logo on your monitor.

Initial Software Setup and Network Configuration

Once your Dahua NVR powers on, you’ll be guided through an initial setup wizard on your connected monitor.

First Boot Wizard

1. Language Selection: Choose your preferred language.
2. Password Setup: Create a strong password for the ‘admin’ user. This is crucial for security – do not use default passwords.
3. Unlock Pattern: Set up an unlock pattern for quick access, similar to a smartphone.
4. Time Zone and Date/Time: Configure these settings accurately. This is vital for timestamping recordings.
5. Network Configuration:
   • DHCP (Recommended for Most Users): If your router supports DHCP, the NVR will automatically obtain an IP address. Check the “DHCP” box.
   • Static IP (Advanced Users): If you need a fixed IP, manually enter the IP Address, Subnet Mask, Gateway, and DNS Server.

   Make sure the “Enable P2P” option is checked for easier remote access setup later.

6. Disk Initialization: The NVR will prompt you to initialize the newly installed hard drive. This will format the drive and erase any existing data. Click “Initialize” to proceed.

Adding and Configuring Cameras

For cameras connected directly to the NVR’s PoE ports, the Dahua NVR 4108 usually auto-detects and adds them. You can verify this by going to “Camera” > “Register” on the NVR interface. If cameras aren’t automatically added, you can manually add them:

• Click “Device Search” to find cameras on your network.
• Select the cameras you want to add and click “Add”.
• Ensure the cameras have been initialized and their passwords are set if prompted.

Once cameras are added, you can adjust settings like video quality, encoding, and motion detection for each camera.

Optimizing Your Surveillance: Advanced Features and Remote Access

Your Dahua NVR 4108 is now recording, but let’s unlock its full potential with advanced features.

Setting Up Remote Access

Remote access is one of the most powerful features of your Dahua NVR system. It allows you to view your cameras from anywhere using your smartphone or computer.

1. P2P (Quick Setup):
   • On the NVR, navigate to “Main Menu” > “Network” > “P2P”. Ensure it’s enabled and the status shows “Online”.
   • Download the “DMSS” app (Dahua Mobile Surveillance System) on your smartphone (iOS/Android).
   • Open DMSS, tap the ‘+’ icon, select “SN/Scan”, and scan the QR code displayed on the NVR’s P2P screen.
   • Follow the prompts to add your device, name it, and enter the NVR’s login password.
2. DDNS (Advanced, for Static IPs or specific network setups): If P2P isn’t suitable, you can configure DDNS (Dynamic Domain Name System) services on your NVR and router for direct access. This requires more technical know-how and router port forwarding.

Motion Detection and Recording Schedules

Optimizing your recording settings can save disk space and make reviewing footage much easier.

• Recording Schedules: Go to “Main Menu” > “Storage” > “Schedule”. You can set continuous recording (24/7), motion-detection recording, alarm recording, or a combination. Motion detection recording is highly recommended to conserve storage.
• Motion Detection Configuration: For each camera, go to “Main Menu” > “Alarm” > “Video Detect” > “Motion Detect”.
  • Enable motion detection.
  • Draw a detection zone over the areas you want monitored.
  • Adjust sensitivity and threshold levels to minimize false alarms.
  • Configure ‘Record Channel’ to ensure the NVR records when motion is detected.
• Email/Push Notifications: Set up email alerts or push notifications to your DMSS app when motion is detected or an alarm is triggered.

Firmware Updates

Regularly check for and install firmware updates for your NVR 4108 Dahua. Updates often include security patches, bug fixes, and new features. You can usually download firmware from the Dahua official website and update via USB or the NVR’s network interface.

Troubleshooting Common NVR 4108 Issues

Even with the best preparation, you might encounter minor hiccups. Here are some quick fixes for common problems:

• No Picture on Monitor:
  • Check HDMI/VGA cable connections.
  • Ensure the monitor is set to the correct input source.
  • Try a different cable or monitor.
• Cameras Not Showing Up (No Signal):
  • Verify all Ethernet cables are securely connected.
  • Ensure cameras are receiving power (you should see indicator lights on most IP cameras).
  • Check the NVR’s camera registration menu to see if the cameras are detected but just not added. Try adding them manually.
  • Reset the camera (if it has a reset button).
• Hard Drive Not Detected/Recording:
  • Ensure SATA data and power cables are correctly connected inside the NVR.
  • Check “Main Menu” > “Storage” > “Disk Manage” to see if the drive is listed and initialized. If not, try initializing it.
  • The drive might be faulty; try a different surveillance-grade HDD if available.
• Remote Access Not Working:
  • Check the NVR’s network settings; ensure “P2P” is enabled and “Online”.
  • Verify your NVR is connected to the internet.
  • Ensure your smartphone has internet access.
  • Double-check the device password entered in the DMSS app.
  • For DDNS, confirm port forwarding is correctly configured on your router.

Your NVR 4108 Dahua is a powerful tool for safeguarding your property. By following this detailed installation and setup guide, you’ve not only set up a robust surveillance system but also gained the knowledge to manage and optimize it effectively. Enjoy the enhanced security and peace of mind that comes with a well-configured Dahua NVR system. Stay vigilant!

Frequently Asked Questions

What are the initial steps to set up my Dahua NVR 4108 right out of the box?

To begin, connect the power adapter, an Ethernet cable to your network, a monitor via HDMI or VGA, and the included mouse to your Dahua NVR 4108. Once powered on, the system should boot up and guide you through a setup wizard to configure basic settings like language, time, and network.

How do I install a hard drive into my NVR 4108 Dahua for video storage?

First, power down and unplug your NVR. Carefully open the NVR’s casing, then mount the hard drive using the provided screws and connect the SATA data and power cables. After reassembling and powering on, navigate to the “Storage” menu in the NVR interface to format the new HDD for recording.

How can I connect and add IP cameras to my Dahua NVR 4108?

If you have PoE cameras, simply connect them directly to the NVR’s integrated PoE ports; they should be automatically detected. For non-PoE or external network cameras, ensure they are on the same network as the NVR, then use the “Camera” or “Device Search” menu to add them manually by their IP address.

Is it possible to access my NVR 4108 Dahua remotely using a mobile app?

Yes, remote access is a key feature. Configure network settings like P2P (Easy4ip/DMSS) or port forwarding on your router, then download the Dahua DMSS app to your smartphone. You can then add your NVR 4108 by scanning its serial number or inputting its IP address to view live feeds and recordings.

What should I do if I forget the password for my Dahua NVR 4108?

Modern Dahua NVRs require you to create a secure password during the initial setup, as there’s no universal default. If you forget your password, you can typically use the “Forgot Password” option on the login screen which often involves a QR code for mobile app-based reset or contacting Dahua technical support with the device’s serial number for a temporary password.

How do I configure motion detection recording on my NVR 4108 Dahua?

Access the NVR’s main menu and navigate to the “Storage” or “Event” section, then select “Motion Detection.” Here, you can choose the desired camera, define specific detection zones, adjust sensitivity levels, and set up a recording schedule based on these motion events. Remember to save your settings for each camera.
