Should a Doorbell Transformer Feel Hot? Normal or Not?

You press your doorbell, and perhaps it rings, or maybe it doesn’t. Out of curiosity or concern, you reach for your doorbell transformer – that small, often overlooked box tucked away in your basement, garage, or near your electrical panel. To your surprise, it feels warm, or even hot! A common question immediately pops into mind: Is this normal, or is it a sign of an impending electrical disaster?

Rest assured, you’re not alone in this concern. Many homeowners wonder about the temperature of their low voltage transformer. This comprehensive guide will demystify the humble doorbell transformer, explaining its function, what constitutes normal operation, when warmth becomes a red flag, and yes, even tackle the often-asked question: are doorbell transformers polarized?

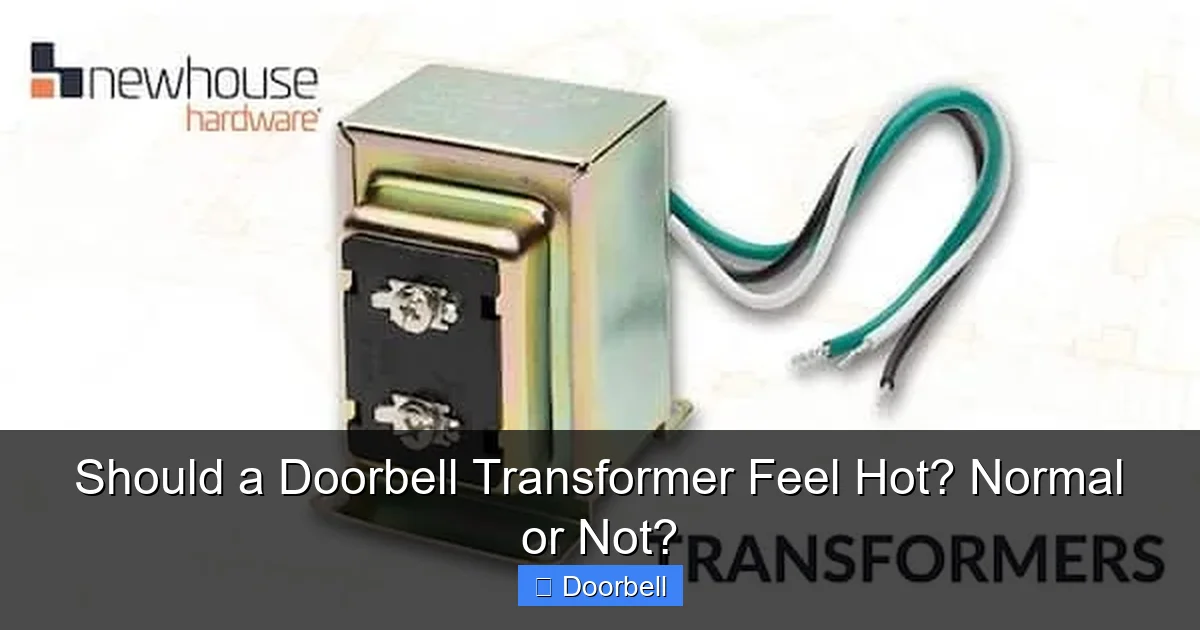

The Basics: What is a Doorbell Transformer and How Does It Work?

At its core, a doorbell transformer is an essential component of your home’s doorbell system. Its primary job is to safely convert your home’s high-voltage alternating current (AC) – typically 120 volts in North America – into the much lower voltage required to power your doorbell chime and push button. Common output voltages are 10V, 16V, or 24V.

• Step-Down Function: It “steps down” the voltage using electromagnetic induction, making it safe for low-voltage circuits.
• Powering Your Chime: This lower voltage is what energizes the solenoids inside your chime, causing it to produce its familiar sound.
• Enabling Smart Devices: Modern smart doorbells often require specific voltage and power (VA) ratings to function correctly, making the transformer even more critical.

Is it Normal for a Doorbell Transformer to be Warm?

In most cases, a doorbell transformer feeling warm to the touch is completely normal. Transformers are not 100% efficient; during the process of converting voltage, some energy is inevitably lost as heat. Think of it like a light bulb that gets warm after being on for a while – it’s just a byproduct of its operation.

• Energy Conversion: The internal coils and core material generate heat due to electrical resistance.
• Typical Operating Temperatures: A normally functioning doorbell transformer can operate comfortably at temperatures ranging from 100°F (38°C) to 120°F (49°C). While this might feel warm to your hand, it’s generally within safe limits for the component.
• Placement Matters: If your transformer is in an enclosed space with poor ventilation, it might feel slightly warmer due to heat accumulation, even if it’s operating correctly.

When a Hot Transformer is a Red Flag: Signs of Trouble

While some warmth is expected, excessive heat indicates a problem. If your doorbell transformer is so hot you can barely touch it, or if you notice any of these accompanying signs, it’s time to investigate:

Warning Signs of an Overheating Doorbell Transformer:

• Extreme Heat: Too hot to touch for more than a second or two.
• Burning Smell: A distinct odor of burning plastic or electrical insulation. This is a critical warning sign!
• Loud Buzzing or Humming: While a faint hum can be normal, a loud, persistent buzzing noise suggests internal issues or an overload.
• Flickering Lights: If your home’s lights briefly dim or flicker when the doorbell is pressed, it could indicate an electrical draw issue related to the transformer or doorbell wiring.
• Doorbell Malfunction: The doorbell stops working, rings intermittently, or sounds weak.

Ignoring these signs could lead to premature transformer failure, potential fire hazards, or damage to your doorbell system.

Are Doorbell Transformers Polarized? Unraveling the Wiring Mystery

This is a common question, and the answer, for the low-voltage side, is generally “no” in the typical sense of positive and negative terminals like DC circuits. However, it’s a bit more nuanced:

• AC (Alternating Current): Doorbell transformers operate on AC power. Unlike DC (Direct Current) where polarity (positive/negative) is crucial for component function, AC constantly reverses direction. Therefore, the two low-voltage output wires from the transformer are generally interchangeable when connecting to the chime unit or doorbell button. It doesn’t matter which wire goes to which terminal for the low-voltage circuit to function.
• High-Voltage Input Side: The 120V input side of the transformer *is* connected to your home’s polarized wiring (line and neutral, sometimes with a ground). Proper connection here is vital for safety, grounding, and adherence to electrical codes. While the transformer itself isn’t “polarized” in its output, ensuring the input wiring is correct is non-negotiable.
• Safety and Grounding: Always ensure your transformer is properly installed and grounded according to local electrical codes. This is paramount for preventing electrical shocks and fire risks.

So, while you don’t need to worry about positive/negative on the low-voltage output, always treat the high-voltage input with respect and ensure correct wiring practices.

Common Causes of Overheating and How to Troubleshoot

Understanding why your doorbell transformer is hot is the first step to resolving the issue. Here are the most frequent culprits:

1. Short Circuit in Wiring: Damaged insulation, loose connections, or a short circuit in the doorbell button or chime can cause the transformer to draw excessive current, leading to overheating.
2. Overloaded System: Trying to power multiple chimes, a power-hungry smart doorbell, or an external device that exceeds the transformer’s VA (Volt-Ampere) rating will cause it to work harder and overheat. Check your doorbell or smart device’s power requirements against your transformer’s output.
3. Failing Transformer: Like any electrical component, transformers have a lifespan. Internal coil degradation or insulation breakdown can lead to increased resistance and heat.
4. Improper Installation or Ventilation: Installing the transformer in a confined, unventilated space can prevent proper heat dissipation, causing it to run hotter than intended.
5. Faulty Doorbell Button or Chime: A stuck doorbell button can create a continuous circuit, constantly drawing power and overheating the transformer. A faulty chime unit can also create an internal short.

Troubleshooting Steps:

• Disconnect Power: ALWAYS turn off the power to your doorbell circuit at the breaker before inspecting or touching any wiring.
• Isolate the Problem: Disconnect the wires leading from the transformer to the chime/button. If the transformer cools down, the problem lies in the doorbell circuit.
• Check for Shorts: Inspect all visible wiring for nicks, pinches, or exposed copper. Check the doorbell button for sticking.
• Test Components: If you have a multimeter, you can test the doorbell button for continuity and the chime for resistance, though this is often best left to a professional.
• Consider an Upgrade: If you have a smart doorbell, ensure your existing transformer meets its voltage and VA requirements. Many older transformers (e.g., 10V, 5VA) are insufficient for modern smart devices.

Transformer Voltage and Power Ratings

To help you understand the common types of doorbell transformers and their capabilities, here’s a quick reference:

Nominal Voltage Output	Typical VA (Volt-Ampere) Rating	Common Application
10-12 Volts AC	5 VA – 10 VA	Older, basic mechanical chimes (often insufficient for smart doorbells)
16 Volts AC	10 VA – 20 VA	Standard electronic chimes, many basic smart doorbells
24 Volts AC	20 VA – 40 VA	Power-hungry smart doorbells, multiple chimes, video doorbells with advanced features

Always verify the specific requirements of your doorbell chime and button, especially for smart devices, to ensure compatibility with your transformer’s rating.

Safety First: Tips for Maintaining Your Doorbell Transformer

Maintaining your doorbell transformer isn’t complicated, but it’s crucial for safety and longevity.

• Regular Inspection: Periodically check the transformer for any visible signs of damage, loose wiring, or unusual odors.
• Ensure Proper Ventilation: If the transformer is in an enclosed space, make sure there’s adequate airflow around it to prevent heat buildup.
• Match Power Requirements: When installing new doorbell components, always ensure they are compatible with your transformer’s voltage and VA ratings.
• Avoid Overloading: Do not attempt to power devices beyond the transformer’s specified capacity.
• Professional Help: If you’re uncomfortable working with electrical wiring or suspect a serious electrical issue, always consult a qualified electrician. They can safely diagnose and repair problems, ensuring your home’s electrical system remains safe.

Conclusion

A warm doorbell transformer is often a normal occurrence, a sign of its tireless work converting high voltage to low. However, extreme heat, unusual noises, burning smells, or erratic doorbell behavior should never be ignored. By understanding how your doorbell transformer works, recognizing the warning signs, and knowing when to troubleshoot or seek professional help, you can ensure your doorbell system operates safely and reliably for years to come.

Don’t let a “hot” transformer leave you in the dark. A little awareness can save you from bigger electrical headaches down the line!

Frequently Asked Questions

Are Doorbell Transformers Polarized?

No, standard doorbell transformers are not polarized. They are designed to provide low-voltage AC (alternating current) power, which means there isn’t a specific positive or negative terminal to worry about for the secondary (low-voltage) side. You can connect the wires from the transformer to your chime and button in either orientation.

Does the Wiring Direction Matter on a Doorbell Transformer’s Low-Voltage Side?

For the low-voltage secondary side of a doorbell transformer, the direction of the wiring does not typically matter. Since it outputs AC current, there’s no fixed positive or negative polarity, allowing you to connect the wires without concern for specific orientation. This makes installation straightforward for most homeowners.

Why Would a Doorbell Transformer Feel Hot, and Is It Normal?

It’s normal for a doorbell transformer to feel slightly warm to the touch, especially when the doorbell is pressed or if it’s continuously providing power. However, if your doorbell transformer feels excessively hot, to the point of being painful to touch, it could indicate a problem. This might be due to an overload, a short circuit in the wiring, or a failing unit.

Can Incorrect Wiring Make a Doorbell Transformer Run Hot?

Yes, while standard doorbell transformers aren’t polarized in the traditional DC sense, incorrect wiring can indeed cause them to overheat. A short circuit on the low-voltage side, or wiring that draws too much current from the transformer (overload), will make the transformer work harder than intended. This increased strain generates excessive heat, which can lead to premature failure or even a fire hazard.

How Do I Properly Connect a New Doorbell Transformer?

Connecting a new doorbell transformer involves wiring the high-voltage (120V) input side to a power source, typically a junction box, and then connecting the low-voltage output side to your doorbell chime and button. Always ensure the power is turned off at the circuit breaker before starting any electrical work. Follow the transformer’s specific wiring diagram, which will not typically specify polarity for the low-voltage connections.

What Voltage Does a Doorbell Transformer Typically Output?

Most standard doorbell transformers output a low AC voltage, commonly 16 volts, but some can be 8V, 10V, or 24V, depending on your doorbell chime and system requirements. This specific low AC voltage is what powers your doorbell chime and button, and is the reason why polarity is not a concern for the secondary wiring connections.
