Using PoE Switch with Dahua NVR Explained

Building a robust and reliable surveillance system often revolves around your Network Video Recorder (NVR). If you’re using a Dahua NVR, you know the power and flexibility it offers. However, when it comes to powering multiple IP cameras, the built-in PoE (Power over Ethernet) ports on your NVR might quickly become a limiting factor. This is where an external PoE switch becomes not just a convenience, but a necessity for scaling and optimizing your security infrastructure.

Imagine effortlessly expanding your camera count without wrestling with individual power adapters for each device. That’s the magic of integrating a PoE switch with your Dahua NVR. It streamlines installation, reduces cable clutter, and provides a centralized power solution, making your surveillance system more efficient and easier to manage. Let’s dive deep into understanding how to leverage this powerful combination to elevate your security setup.

Why a PoE Switch is Essential for Your Dahua NVR System

While many Dahua NVRs come with integrated PoE ports, they typically offer a limited number (e.g., 4, 8, or 16 ports) and a finite total power budget. For smaller setups, this might suffice. But as your security needs grow, or if you plan to install power-hungry cameras like PTZs (Pan-Tilt-Zoom) or those with advanced IR, you’ll quickly hit a wall. This is where an external PoE switch steps in as a game-changer.

• Scalability: Need to add more cameras than your NVR’s built-in ports allow? A separate PoE switch provides additional ports, letting you expand your system without needing a new NVR.
• Power Budget Management: Each PoE switch has a total power budget. By offloading camera power to an external switch, you free up your NVR’s internal power supply and prevent overloads, especially important for high-power cameras.
• Flexible Placement: Run cameras in locations far from the NVR. The PoE switch can be placed closer to camera clusters, reducing long individual cable runs back to the NVR itself. Only one data cable is needed from the switch to the NVR.
• Network Optimization: Isolate camera traffic from other network devices for better performance and security, especially with managed switches.
• System Reliability: Distributing power across multiple devices can enhance overall system stability.

By integrating a dedicated Dahua NVR PoE switch, you’re not just adding ports; you’re building a more resilient, flexible, and powerful surveillance network.

Understanding PoE Standards: The Power Behind Your Cameras

Not all PoE is created equal. To effectively choose and configure your PoE switch for your Dahua NVR, it’s crucial to understand the different PoE standards. These standards dictate how much power can be delivered over Ethernet cables, directly impacting which cameras you can power.

IEEE 802.3af (PoE)

This is the original standard, providing up to 15.4W of power per port (12.95W available to the device after cable loss). It’s suitable for most standard fixed-lens IP cameras, access points, and VoIP phones.

IEEE 802.3at (PoE+)

An enhancement to 802.3af, PoE+ delivers up to 30W per port (25.5W available to the device). This is ideal for more power-intensive devices like high-resolution PTZ cameras, cameras with powerful IR illuminators, or small client terminals.

IEEE 802.3bt (PoE++)

The latest standard, PoE++ comes in two types: Type 3 (up to 60W per port) and Type 4 (up to 100W per port). This is for very demanding devices such as video conferencing systems, thin clients, or high-performance PTZ cameras with heaters and blowers.

When selecting your Dahua NVR PoE switch, always check the power requirements of your Dahua cameras. Most Dahua cameras clearly state their power consumption (e.g., <7W, <15W, <24W) in their specifications. Ensure your chosen PoE switch can meet or exceed these individual camera requirements, and that its total power budget can support all connected cameras simultaneously.

Choosing the Right PoE Switch for Your Dahua NVR

Selecting the perfect PoE switch involves more than just counting ports. Here’s what to consider to ensure seamless integration with your Dahua NVR system:

• Number of Ports: Determine how many cameras you have now and how many you plan to add in the future. Always err on the side of caution and get a few extra ports. Switches typically come in 4, 8, 16, 24, or 48-port configurations.
• Total Power Budget (Wattage): This is perhaps the most critical factor. Sum the maximum power consumption of all your cameras. Your chosen PoE switch’s total power budget must exceed this sum. For example, if you have eight cameras, each consuming 15W, you’ll need a switch with at least 120W total budget (8 x 15W).
• PoE Standard Support: Ensure the switch supports the necessary PoE standard (802.3af, 802.3at, 802.3bt) for your cameras. Many modern switches are “auto-sensing,” meaning they can detect and provide the correct power level to the connected device.
• Managed vs. Unmanaged:
  • Unmanaged Switches: Plug-and-play, simple, and cost-effective. Ideal for basic setups.
  • Managed Switches: Offer advanced features like VLANs (Virtual Local Area Networks), QoS (Quality of Service), link aggregation, and remote monitoring. While more complex and expensive, they are excellent for larger networks, prioritizing video traffic, and enhancing security.
• Uplink Ports: Your switch will need at least one uplink port (often non-PoE Gigabit Ethernet or SFP for fiber) to connect to your NVR or main network router.
• Gigabit vs. Fast Ethernet: While Fast Ethernet (100 Mbps) can handle individual camera streams, Gigabit Ethernet (1000 Mbps) is highly recommended for the uplink port and for switches connecting multiple high-resolution cameras to prevent bottlenecks.

When selecting a PoE switch for a Dahua NVR, remember that the brand of the switch itself doesn’t typically matter as long as it adheres to IEEE PoE standards. However, Dahua also offers its own range of PoE switches that integrate well with their ecosystem.

Connecting Your Dahua NVR and Cameras to a PoE Switch: A Step-by-Step Guide

The integration process is straightforward, but careful attention to detail ensures a smooth setup for your Dahua NVR PoE switch system.

1. Power Down: Always begin by powering off your Dahua NVR and the PoE switch.
2. Connect Cameras to PoE Switch: Use high-quality Ethernet cables (Cat5e or Cat6 are recommended for reliable PoE power and data) to connect each IP camera directly to the PoE ports on your switch.
3. Connect PoE Switch to NVR: Take another Ethernet cable and connect one of the uplink ports (usually a non-PoE port) on your PoE switch to one of the LAN ports on your Dahua NVR. If your NVR has a dedicated “Network” or “WAN” port, use that. If your NVR has built-in PoE ports, ensure you’re connecting to a non-PoE LAN port.
4. Connect NVR to Router/Network (Optional): If your Dahua NVR needs to be accessible remotely or needs internet access for firmware updates, connect another LAN port on your NVR to your main router or network switch.
5. Power Up: First, power on the PoE switch. Wait a moment for it to initialize. Then, power on your Dahua NVR.
6. Discover Cameras: Once the NVR boots up, navigate to its camera management interface. Your NVR should now be able to discover the cameras connected to the external PoE switch. If they don’t appear automatically, you may need to perform a network scan or manually add them using their IP addresses. Ensure the cameras and NVR are on the same network subnet.
7. Configure IP Addresses: Most Dahua cameras are set to DHCP by default, meaning they’ll get an IP address from your network. You might want to assign static IP addresses to your cameras for better stability and easier management within the NVR.

This setup allows the Dahua NVR to receive video data from the cameras through the PoE switch, while the switch handles the power delivery to each camera. Simple, clean, and efficient!

Optimizing Performance and Troubleshooting Common Issues

Even with a well-planned setup, challenges can arise. Here are tips for optimizing your Dahua NVR PoE switch system and troubleshooting common problems:

Performance Optimization

• Cable Quality: Invest in high-quality copper Cat5e or Cat6 cables. Poor quality or overly long cables can lead to power loss and unstable video feeds. Adhere to the 100-meter (328 feet) Ethernet cable length limit for optimal performance without extenders.
• Power Budget Monitoring: If your PoE switch is managed, monitor its power consumption to ensure you’re not nearing its total budget. Overloading can lead to camera disconnections or unreliable operation.
• Firmware Updates: Regularly update the firmware of your Dahua NVR and cameras. Don’t forget to check for updates for your PoE switch as well. Firmware updates often include bug fixes, security patches, and performance enhancements.
• Network Segmentation (Managed Switches): For larger systems, create a separate VLAN for your surveillance cameras. This isolates video traffic, improving security and preventing your surveillance system from bogging down other network activities.

Troubleshooting Common Issues

• No Power to Camera:
  • Check the PoE switch’s power indicator for the specific port.
  • Ensure the camera’s power consumption doesn’t exceed the port’s or the switch’s total budget.
  • Try a different port or cable.
  • Verify the camera is PoE compatible.
• No Video/Offline Camera on NVR:
  • Confirm the camera is receiving power (e.g., check IR LEDs at night).
  • Ping the camera’s IP address from a computer on the same network to check network connectivity.
  • Ensure the camera and NVR are on the same subnet and have correct IP configurations.
  • Check if the NVR’s camera search function is correctly configured.
• Flickering/Unstable Video:
  • Often a sign of insufficient power (weak PoE signal) or poor cable quality/length.
  • Check network bandwidth usage; too many high-resolution streams can saturate the network.
  • Ensure your switch’s uplink port is Gigabit Ethernet.

By following these tips, you can ensure your Dahua NVR with a PoE switch runs smoothly, providing reliable and effective surveillance for years to come.

Conclusion

Integrating a PoE switch with your Dahua NVR is a powerful strategy for building a scalable, efficient, and reliable surveillance system. It solves the common limitations of built-in PoE ports, offering greater flexibility in camera placement, simplified wiring, and robust power management. By understanding PoE standards, choosing the right switch, and meticulously connecting and optimizing your setup, you can ensure your Dahua security cameras operate at their peak performance.

Whether you’re expanding an existing system or planning a new installation, a dedicated Dahua NVR PoE switch solution is an investment that pays dividends in convenience, performance, and peace of mind. Embrace the power of PoE and take your Dahua surveillance to the next level!

Frequently Asked Questions

What is a PoE switch and why would I use one with a Dahua NVR?

A Power over Ethernet (PoE) switch is a network switch that can inject power into the Ethernet cable, allowing a single cable to provide both data and electrical power to devices like IP cameras. You would use a separate PoE switch with your Dahua NVR to expand the number of cameras beyond the NVR’s built-in PoE ports, or to connect cameras located further away where a single NVR’s PoE port might not reach.

Does my Dahua NVR already have a built-in PoE switch?

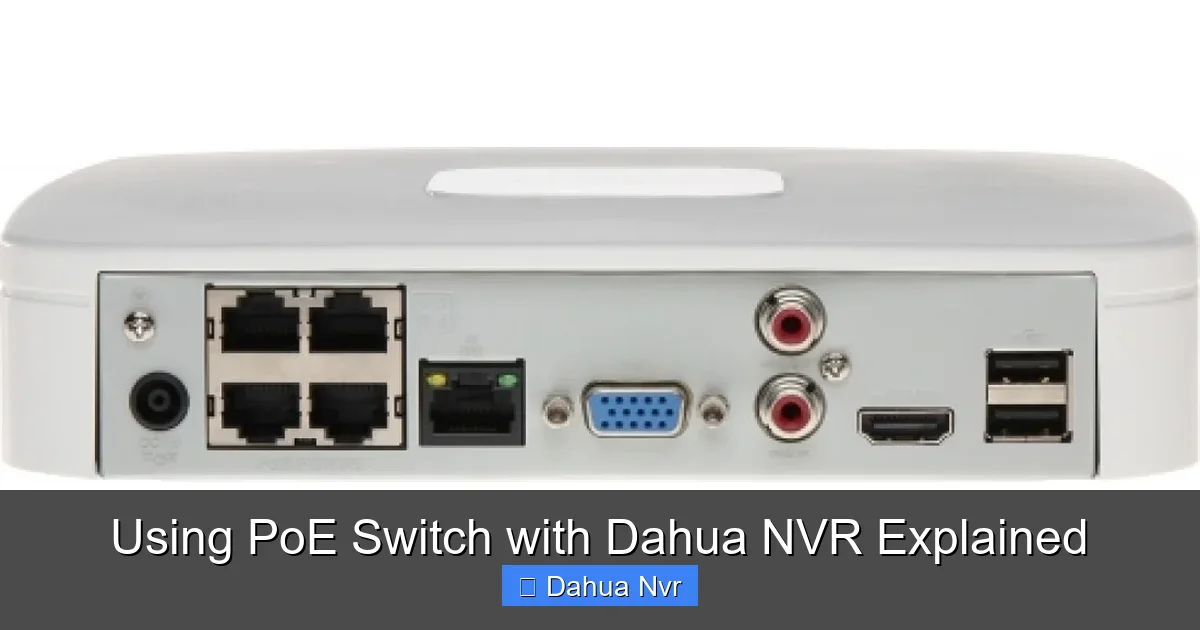

Many Dahua NVR models come with a built-in PoE switch, often indicated by specific “PoE ports” on the back. These internal ports are convenient for connecting a limited number of cameras directly. However, if you need to connect more cameras than the NVR’s built-in ports offer, or if your cameras are geographically dispersed, an external Dahua NVR PoE switch becomes necessary.
