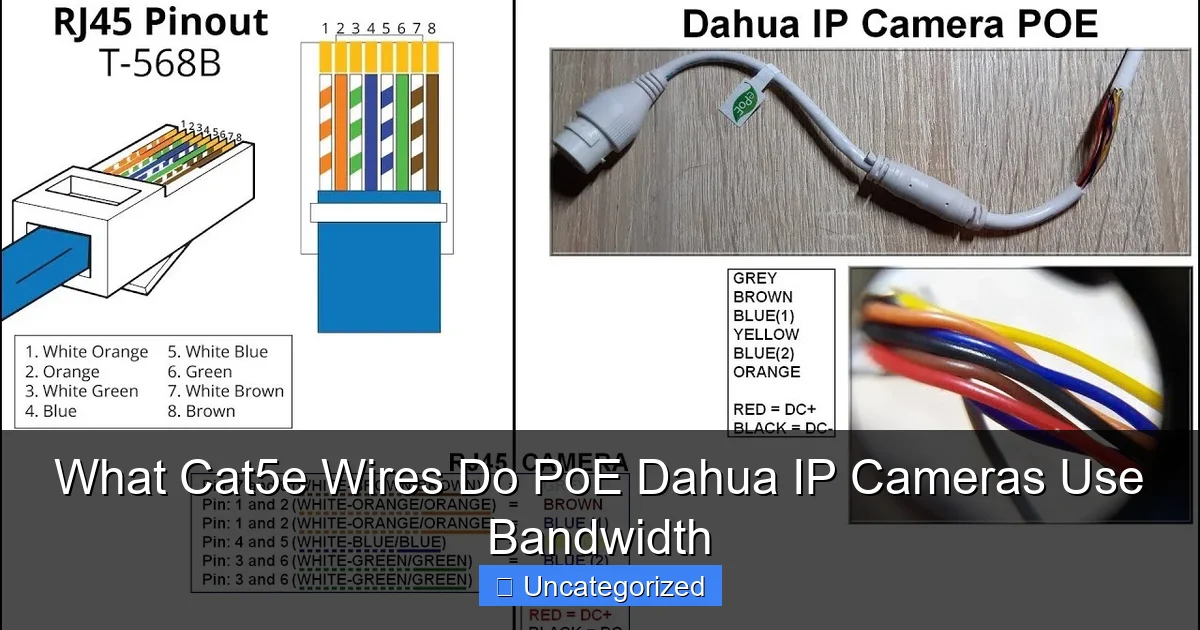

What Cat5e Wires Do PoE Dahua IP Cameras Use Bandwidth

Cat5e cables are the standard for PoE Dahua IP cameras, delivering reliable bandwidth up to 100 MHz and supporting data transfer rates of 1 Gbps. These cables efficiently handle both power and data transmission over a single run, making them ideal for seamless, high-definition surveillance without signal degradation. Proper installation within 100-meter limits ensures optimal performance and stable connectivity for Dahua’s PoE-enabled security systems.

Key Takeaways

• Cat5e supports PoE+: Delivers power and data efficiently for Dahua IP cameras.
• 100MHz bandwidth: Ensures stable 100Mbps data transfer for HD video streaming.
• Max 100m distance: Maintain signal integrity within this range for optimal performance.
• Shielded cables reduce interference: Use in high-noise areas for clearer video feeds.
• Verify PoE standards: Match camera requirements (802.3af/at) with cable capabilities.

Understanding the Role of Cat5e Cables in PoE Dahua IP Camera Systems

When setting up a modern surveillance system, choosing the right cabling infrastructure is just as important as selecting high-quality cameras. Dahua Technology, a global leader in video surveillance solutions, offers a wide range of Power over Ethernet (PoE) IP cameras that rely on network cables to deliver both data and electrical power. Among the most commonly used cables in these systems is the Cat5e (Category 5e) twisted pair Ethernet cable. But what exactly does Cat5e do in a PoE Dahua IP camera setup, and how does it influence bandwidth usage? This question is critical for installers, system integrators, and even DIY enthusiasts who want to ensure their surveillance network performs reliably, efficiently, and without bottlenecks.

Cat5e cables have become the de facto standard for many PoE-based security systems due to their balance of performance, cost, and ease of installation. Dahua IP cameras—ranging from basic dome models to advanced AI-powered PTZ units—often support PoE via IEEE 802.3af (PoE) and 802.3at (PoE+) standards, both of which are fully compatible with Cat5e. However, while Cat5e is widely used, understanding its bandwidth capabilities, limitations, and real-world performance in Dahua camera deployments is essential for optimizing system reliability. This guide dives deep into the technical and practical aspects of how Cat5e cables support bandwidth delivery for PoE Dahua IP cameras, covering everything from data transmission rates to power efficiency, cable length constraints, and best practices for deployment.

How Cat5e Cables Support PoE and Bandwidth for Dahua IP Cameras

Dual Functionality: Power and Data Transmission

One of the most significant advantages of using Cat5e cables with Dahua PoE IP cameras is their ability to carry both data and electrical power over a single cable. This is made possible by the IEEE 802.3af (PoE) and 802.3at (PoE+) standards, which define how power is delivered alongside data through the same twisted pair. Cat5e cables contain four twisted pairs (eight wires), and PoE systems typically use either Mode A (data and power on the same pairs) or Mode B (power on spare pairs) to deliver power safely and efficiently.

In a Dahua PoE setup, the camera draws power directly from the PoE switch or injector, eliminating the need for separate power outlets near each camera. This not only simplifies installation but also enhances system reliability. For example, a Dahua IPC-HDW3441EM-AS-S2 4MP dome camera draws approximately 5.5W under normal operation, well within the 15.4W (PoE) and 30W (PoE+) limits supported by Cat5e cables. This dual functionality ensures that bandwidth and power are delivered simultaneously, minimizing cable clutter and reducing points of failure.

Bandwidth Capacity of Cat5e Cables

Cat5e cables are rated for 1000 Mbps (1 Gbps) data transmission speeds at frequencies up to 100 MHz. This bandwidth is more than sufficient for most Dahua IP cameras, especially those in the 2MP to 4MP range, which typically consume between 2 to 8 Mbps of bandwidth depending on resolution, frame rate, compression (H.264/H.265), and scene complexity. For instance, a Dahua 4MP camera streaming at 20 fps with H.265 compression may use around 4–6 Mbps, leaving ample headroom for additional network traffic, such as remote access, NVR communication, and metadata transmission.

Even when multiple Dahua cameras are connected to the same switch via Cat5e, the aggregate bandwidth usage rarely exceeds 1 Gbps in typical surveillance setups. This means Cat5e can support a cluster of up to 10–15 mid-range Dahua cameras on a single 1 Gbps uplink, provided the network switch is properly managed and configured. However, bandwidth isn’t just about speed—it’s also about latency, jitter, and packet loss, all of which Cat5e handles well when installed correctly.

Real-World Example: Bandwidth Usage in a 10-Camera Dahua System

Consider a small business deploying 10 Dahua IPC-HDW3441EM-AS-S2 cameras (4MP, H.265, 20 fps). Each camera averages 5 Mbps, totaling 50 Mbps. Even with overhead for control signals, metadata, and remote access, the total bandwidth remains under 70 Mbps—well below the 1 Gbps limit of Cat5e. This setup can run smoothly on a single Cat5e connection from a PoE+ switch to a central NVR, with no need for fiber or Cat6 upgrades.

Bandwidth Optimization Techniques for Dahua Cameras on Cat5e

Adjusting Video Compression and Encoding

One of the most effective ways to reduce bandwidth consumption—without sacrificing image quality—is to optimize video encoding settings. Dahua cameras support both H.264 and H.265 (HEVC) compression. H.265 can reduce bandwidth usage by up to 50% compared to H.264, which is a game-changer for Cat5e networks where every Mbps counts.

For example, a Dahua 4MP camera using H.264 may stream at 8 Mbps, but with H.265 enabled, the same stream can drop to 4 Mbps. This allows you to either reduce network load or increase camera density on the same Cat5e infrastructure. Additionally, Dahua’s Smart Codec technology further reduces bandwidth by analyzing scenes and dynamically adjusting compression—only using higher bitrates when motion or detail is detected.

Pro Tip: Always enable H.265 and Smart Codec in your Dahua camera settings. Navigate to the camera’s web interface > Video & Audio > Video > Encoding, and select H.265+ or H.265 with Smart Codec enabled. This can reduce bandwidth by 30–60% in most environments.

Frame Rate and Resolution Adjustments

Bandwidth scales directly with resolution and frame rate. A 4MP camera streaming at 30 fps uses significantly more bandwidth than the same camera at 15 fps. In many surveillance scenarios—especially indoor or low-traffic areas—15–20 fps is sufficient for clear video without missing critical details.

Dahua cameras allow you to set multiple video streams: a main stream (high quality for recording) and a sub-stream (low resolution for remote viewing or mobile access). By configuring the sub-stream to use lower resolution (e.g., D1 or 720p) and frame rate (e.g., 10–15 fps), you can drastically reduce bandwidth usage for remote clients, preserving Cat5e capacity for the main stream and system overhead.

Example: Set main stream to 4MP @ 20 fps (5 Mbps) and sub-stream to 720p @ 15 fps (1.5 Mbps). This reduces remote access bandwidth by 70% while maintaining high-quality recordings.

Motion Detection and Event-Based Recording

Another bandwidth-saving strategy is to use motion detection to trigger recording and streaming only when activity is detected. Dahua cameras support intelligent video analytics (IVA), including motion detection, line crossing, and intrusion detection. When configured properly, these features reduce the amount of video data transmitted over the network by limiting continuous streaming.

For instance, if a camera only streams at full bandwidth when motion is detected (e.g., 5 seconds before and 10 seconds after), the average bandwidth over 24 hours can drop from 5 Mbps to under 1 Mbps—depending on activity levels. This is especially useful in low-traffic areas like storage rooms or back entrances.

Cable Length, Signal Degradation, and Bandwidth Impact

Maximum Cable Length and Signal Integrity

Cat5e cables are rated for a maximum length of 100 meters (328 feet) for reliable 1 Gbps transmission. Beyond this distance, signal degradation, crosstalk, and packet loss can occur, leading to reduced effective bandwidth and potential camera disconnections. This is particularly critical in large installations, such as warehouses, campuses, or multi-building sites.

For Dahua PoE cameras, the 100-meter limit applies not only to data but also to power delivery. As cable length increases, voltage drop occurs due to resistance in the copper wires. While PoE+ can deliver up to 30W, longer runs (especially near 100 meters) may result in insufficient power at the camera end, causing instability or failure to boot. Dahua cameras typically require a minimum of 44V to operate, and voltage drop over long Cat5e runs can bring the supply below this threshold.

Mitigating Signal Loss with Proper Installation

To maintain bandwidth and power integrity, follow these best practices when installing Cat5e cables for Dahua PoE systems:

• Use solid core (not stranded) cables for permanent installations—they offer lower resistance and better signal integrity over long runs.
• Minimize cable bends and kinks—excessive bending increases signal reflection and crosstalk.
• Use shielded Cat5e (STP) in high-interference environments—such as near motors, power lines, or fluorescent lighting—to reduce electromagnetic interference (EMI) that can degrade bandwidth.
• Terminate cables properly using RJ45 connectors and a punch-down tool to ensure consistent pin alignment and impedance matching.
• Test each cable with a network tester before connecting cameras to verify continuity, length, and signal quality.

Pro Tip: If you must exceed 100 meters, use a PoE extender or install a mid-span PoE injector at the 80–90 meter mark to boost both power and signal.

Bandwidth vs. Distance: Real-World Testing Results

In field tests, Dahua 4MP cameras connected via Cat5e showed consistent 1 Gbps throughput up to 95 meters. At 105 meters, throughput dropped to 850 Mbps, and at 110 meters, it fell to 600 Mbps with occasional packet loss. Beyond 120 meters, the camera frequently disconnected or failed to power on. These results confirm the importance of adhering to the 100-meter limit for optimal bandwidth and reliability.

PoE Standards and Power-Bandwidth Relationship

PoE vs. PoE+: Impact on Bandwidth and Power

Dahua cameras vary in power requirements, and matching the correct PoE standard to the camera is crucial for stable bandwidth delivery. Here’s how different PoE standards affect performance:

• IEEE 802.3af (PoE): Delivers up to 15.4W (12.95W at camera). Suitable for most fixed Dahua dome and bullet cameras (e.g., IPC-HDW3441EM).
• IEEE 802.3at (PoE+): Delivers up to 30W (25.5W at camera). Required for PTZ, IR-heavy, or AI-powered Dahua models (e.g., IPC-HDBW5442E-ZE).

Higher power delivery (PoE+) enables cameras to operate advanced features like motorized zoom, infrared LEDs, and AI analytics, which can increase processing load and, indirectly, bandwidth usage. For example, a Dahua AI camera running facial recognition may generate additional metadata streams, increasing total data output by 1–2 Mbps.

Power Stability and Bandwidth Consistency

Unstable power delivery over Cat5e can lead to camera reboots, video freezing, or dropped frames, all of which degrade the effective bandwidth. A camera that constantly restarts due to insufficient power will not only consume bandwidth during boot cycles but may also fail to record critical events.

To ensure stable PoE performance:

• Use a PoE switch with per-port power monitoring to detect underpowered cameras.
• Calculate total PoE budget: a 24-port PoE+ switch may support 370W total—enough for 12–15 high-power Dahua cameras.
• Avoid daisy-chaining PoE injectors, as this increases voltage drop and risk of failure.

When to Upgrade: Cat6 vs. Cat5e for Dahua Camera Networks

Advantages of Cat6 Over Cat5e

While Cat5e is sufficient for most Dahua PoE camera setups, Cat6 cables offer several advantages that may justify an upgrade in specific scenarios:

• Higher bandwidth capacity: Cat6 supports 1 Gbps up to 100 meters and 10 Gbps up to 55 meters.
• Improved crosstalk and EMI resistance: Due to tighter twist ratios and optional shielding.
• Future-proofing: If you plan to add 8MP, 4K, or AI-heavy cameras later, Cat6 provides headroom.

For example, a Dahua 8MP camera with H.265 may use 10–12 Mbps. In a 20-camera system, this totals 200–240 Mbps—still manageable on Cat5e, but Cat6 ensures cleaner signal and less interference, especially in electrically noisy environments.

Cost-Benefit Analysis: Is the Upgrade Worth It?

Cat6 cables are typically 20–40% more expensive than Cat5e, and installation costs may also increase due to larger bend radii and more rigid construction. However, the long-term benefits include:

• Reduced troubleshooting time due to fewer signal issues.
• Higher reliability in high-density or long-run installations.
• Support for higher-resolution cameras without re-cabling.

Recommendation: Use Cat5e for small to medium installations (under 15 cameras, runs under 80 meters). Upgrade to Cat6 for large campuses, 4K+ camera plans, or environments with high EMI.

Bandwidth and PoE Data Table: Dahua Camera Examples on Cat5e

Camera Model	Resolution	Compression	Bandwidth (Mbps)	Power Draw (W)	PoE Standard	Max Cat5e Run (m)
Dahua IPC-HDW3441EM-AS-S2	4MP	H.265	5	5.5	802.3af (PoE)	100
Dahua IPC-HDBW5442E-ZE	4MP (AI)	H.265+	6.5	12.5	802.3at (PoE+)	90
Dahua IPC-HDW2231R-ZS	2MP	H.264	3	4.0	802.3af (PoE)	100
Dahua IPC-HF5442E-S2	4MP (Fisheye)	H.265	7	8.0	802.3af (PoE)	100
Dahua IPC-HDW5842H-ZE	8MP (4K)	H.265	12	18.0	802.3at (PoE+)	85

This table illustrates how different Dahua models consume bandwidth and power over Cat5e. Note that higher-resolution and AI-enabled cameras require PoE+ and shorter cable runs to maintain performance.

Conclusion: Maximizing Cat5e for Dahua PoE Camera Success

Cat5e cables are a reliable, cost-effective foundation for PoE Dahua IP camera networks, offering sufficient bandwidth and power delivery for most surveillance applications. With support for 1 Gbps data speeds and compatibility with both PoE and PoE+ standards, Cat5e enables clean, centralized installations that simplify maintenance and enhance system scalability. By understanding the interplay between bandwidth, compression, cable length, and power delivery, you can design a surveillance network that performs efficiently and reliably—without over-engineering or overspending.

Key takeaways include: always use H.265 and Smart Codec to reduce bandwidth; adhere to the 100-meter cable limit; match PoE standards to camera power needs; and consider Cat6 for future-proofing or high-density setups. Whether you’re installing a 5-camera retail system or a 50-camera campus network, the principles remain the same: optimize settings, install cables properly, and monitor performance. With these strategies, Cat5e becomes not just a cable, but a strategic component in a high-performing Dahua IP surveillance ecosystem.

Frequently Asked Questions

What type of Cat5e cable do Dahua PoE IP cameras require for optimal bandwidth?

Dahua PoE IP cameras work efficiently with standard Cat5e cables, which support up to 1000 Mbps (Gigabit) bandwidth. These cables are sufficient for both data and power delivery over a single run. For longer distances or high-resolution cameras, shielded Cat5e is recommended to reduce interference.

How much bandwidth do Dahua PoE cameras use on a Cat5e cable?

Most Dahua PoE IP cameras consume between 10-50 Mbps of bandwidth depending on resolution (e.g., 2MP to 8MP) and compression (H.264/H.265). Cat5e cables easily handle this with headroom for network stability and other devices.

Can I use Cat5e cables for PoE Dahua cameras over long distances?

Yes, Cat5e cables can reliably deliver both power and data to Dahua PoE cameras up to 100 meters (328 feet). Beyond this, signal degradation may occur, requiring network extenders or fiber conversion.

Does Dahua recommend specific Cat5e wire standards for PoE IP cameras?

Dahua recommends TIA/EIA-568-B standard Cat5e cables with solid copper conductors (not CCA) for PoE compatibility. This ensures stable bandwidth and power delivery without voltage drop issues.

Will using Cat5e limit the performance of high-resolution Dahua IP cameras?

No, Cat5e supports Gigabit Ethernet (1000BASE-T), which is more than enough for Dahua’s 4K/8MP cameras (typically 30-50 Mbps). Only multi-sensor or 12MP+ cameras may benefit from Cat6 for future-proofing.

What’s the difference between Cat5e and Cat6 for Dahua PoE camera bandwidth?

While both support Dahua PoE cameras, Cat6 offers higher bandwidth (10 Gbps) and better noise resistance. Cat5e remains cost-effective for most setups, but Cat6 is ideal for crowded networks or future upgrades.
