What Format Does Foscam Use on Sd Cards

Foscam security cameras typically use FAT32 or exFAT file systems on SD cards, depending on the model and card capacity. Choosing the right format ensures smooth recording, playback, and compatibility. This guide explains everything you need to know about formatting SD cards for Foscam devices.

Key Takeaways

• FAT32 is the default format for most Foscam cameras: It supports SD cards up to 32GB and is widely compatible across older and newer models.
• exFAT is recommended for cards larger than 32GB: This modern format handles large files and high-capacity storage, ideal for continuous HD recording.
• Incorrect formatting can cause recording failures: Always format your SD card using the camera’s built-in tool or a trusted computer method.
• Regular maintenance improves performance: Periodically check and reformat your SD card to prevent corruption and ensure reliable storage.
• Use high-endurance SD cards for 24/7 recording: Standard cards may wear out quickly; choose cards designed for surveillance use.
• Foscam apps allow remote formatting: You can format your SD card directly from the Foscam app without removing it from the camera.
• Always back up footage before formatting: Formatting erases all data, so save important recordings to a computer or cloud storage first.

Understanding SD Card Formats and Why They Matter for Foscam Cameras

When it comes to home security, every detail counts—especially the technology behind storing your footage. If you’re using a Foscam security camera, you’ve likely noticed it supports local storage via a microSD card. But have you ever wondered, “What format does Foscam use on SD cards?” The answer isn’t just a technical footnote—it’s a critical factor in how well your camera performs.

Foscam cameras, like many IP security devices, rely on SD cards to store video recordings locally. Whether you’re capturing motion-triggered clips or running continuous surveillance, the file system format on your SD card determines how efficiently data is written, read, and managed. Using the wrong format can lead to errors, failed recordings, or even complete incompatibility.

So, what’s the right format? The short answer is that Foscam cameras primarily use FAT32 for cards up to 32GB and exFAT for larger capacities. But there’s more to it than just picking a format. Understanding the differences between these file systems, how they interact with your camera model, and best practices for formatting can make a big difference in your system’s reliability.

In this guide, we’ll walk you through everything you need to know about SD card formats for Foscam cameras. From explaining FAT32 and exFAT to offering step-by-step formatting tips, we’ll help you get the most out of your security setup. Whether you’re a first-time user or upgrading your system, this article will ensure your Foscam camera works flawlessly with your SD card.

What File Systems Are Supported by Foscam Cameras?

Foscam cameras support two main file systems for SD cards: FAT32 and exFAT. The one your camera uses depends largely on the capacity of the SD card and the specific model of your Foscam device.

FAT32: The Classic Choice for Smaller Cards

FAT32 (File Allocation Table 32) is the older of the two formats and has been around since the late 1990s. It’s known for its broad compatibility across devices, including cameras, game consoles, and older computers. Most Foscam models are designed to work seamlessly with FAT32, especially when using SD cards of 32GB or less.

One of the main advantages of FAT32 is its reliability. It’s a stable, well-tested format that rarely causes issues with embedded systems like security cameras. However, it has a significant limitation: it cannot handle individual files larger than 4GB. For standard-definition or short HD recordings, this isn’t usually a problem. But if you’re recording long, high-resolution videos, you might hit this ceiling.

Another benefit is that FAT32 is universally recognized. If you ever need to remove the SD card and plug it into a computer, you won’t need special software to read the files. This makes it ideal for users who want easy access to their footage without extra steps.

exFAT: The Modern Solution for High-Capacity Storage

As video quality improves and recording durations increase, the limitations of FAT32 become more apparent. That’s where exFAT (Extended File Allocation Table) comes in. Introduced by Microsoft in 2006, exFAT was designed specifically for flash storage like SD cards and USB drives.

exFAT removes the 4GB file size limit and supports SD cards well beyond 32GB—up to 2TB or more. This makes it perfect for Foscam users who want to record in 1080p or even 4K (on supported models) for extended periods. With exFAT, you can store hours of high-definition footage without worrying about file fragmentation or size restrictions.

Most newer Foscam models, such as the Foscam R4, R5, and FI9900P, support exFAT out of the box. However, older models may not recognize exFAT-formatted cards, so it’s important to check your camera’s specifications before making the switch.

How to Know Which Format Your Foscam Supports

The best way to determine which file system your Foscam camera supports is to consult the user manual or the official Foscam website. You can also check the camera’s settings menu—many models display the current SD card format under the storage or system settings.

If you’re unsure, a safe rule of thumb is:
– Use FAT32 for SD cards 32GB or smaller.
– Use exFAT for SD cards larger than 32GB.

This approach ensures compatibility across most Foscam devices while taking advantage of the benefits each format offers.

Why Formatting Matters: The Risks of Using the Wrong File System

You might think that inserting any SD card into your Foscam camera will work—after all, it’s just storage, right? Unfortunately, that’s not the case. Using an improperly formatted SD card can lead to a range of problems, from minor glitches to complete system failure.

Recording Failures and Corrupted Files

One of the most common issues users face is failed recordings. If your SD card is formatted with a file system your Foscam camera doesn’t support—like NTFS or ext4—the camera simply won’t recognize it. Even if it does recognize the card, using an incompatible format can cause files to become corrupted during write operations.

For example, if you format a 64GB card as FAT32 (which technically supports it with third-party tools), the camera might still reject it because FAT32 wasn’t designed for such large capacities. This can result in choppy playback, missing footage, or the camera refusing to record altogether.

Performance Degradation Over Time

Even if your camera accepts the SD card, using the wrong format can slow down performance. File systems like FAT32 weren’t built for the constant read/write cycles typical of 24/7 surveillance. Over time, this can lead to fragmentation, slower access times, and increased wear on the card.

exFAT, on the other hand, is optimized for flash storage and handles frequent data transfers more efficiently. It reduces fragmentation and supports larger cluster sizes, which means faster write speeds and better overall performance.

Compatibility Issues with Foscam Apps

Another often-overlooked issue is app compatibility. The Foscam app (available for iOS and Android) allows you to view live feeds, playback recordings, and manage settings remotely. However, if your SD card isn’t formatted correctly, the app may not be able to access or display stored footage.

For instance, if you format a card as NTFS and insert it into your Foscam camera, the camera might not mount the storage properly. As a result, the app will show no recordings, even if the camera appears to be functioning normally.

How to Avoid These Problems

The best way to avoid formatting-related issues is to always use the correct file system for your card size and camera model. When in doubt, format the card using the Foscam camera’s built-in formatting tool. This ensures the card is set up exactly as the camera expects.

Additionally, avoid using third-party formatting tools that claim to enable FAT32 on large cards. These tools can create unstable file systems that cause more problems than they solve.

Step-by-Step Guide: How to Format an SD Card for Foscam Cameras

Formatting an SD card for your Foscam camera is a simple process, but it’s important to do it correctly. Here’s a step-by-step guide to help you get it right every time.

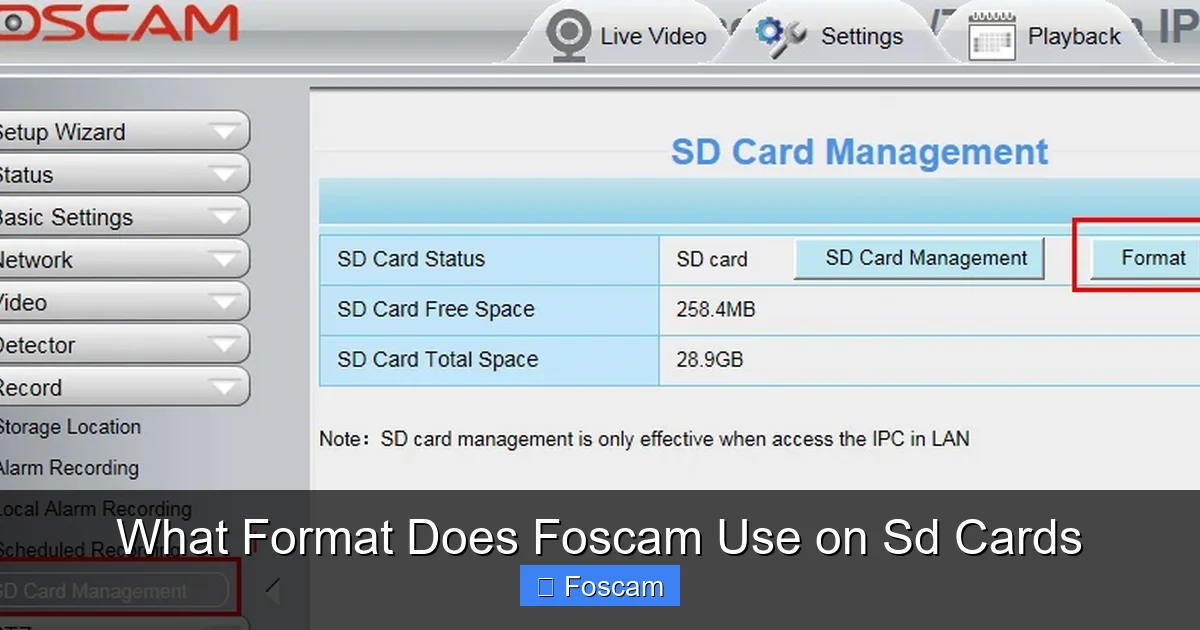

Method 1: Formatting via the Foscam Camera

The easiest and most reliable way to format your SD card is using the camera itself. This ensures the correct file system is applied and that the card is fully compatible.

1. Insert the SD card into the microSD slot on your Foscam camera. Make sure the card is properly seated and the camera recognizes it.
2. Power on the camera and wait for it to fully boot up. You should see a solid LED light indicating normal operation.
3. Access the camera’s web interface by entering its IP address into a web browser on a computer connected to the same network. Alternatively, open the Foscam app on your smartphone.

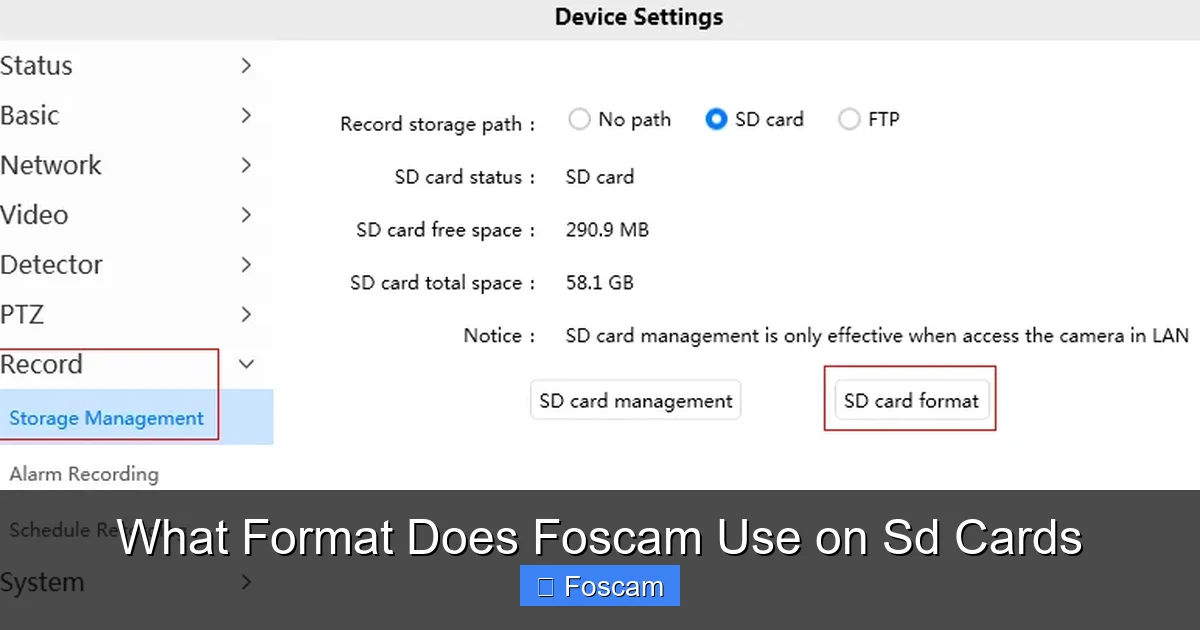

4. Navigate to the storage settings. This is usually found under “Settings” > “Storage” or “SD Card Management.”
5. Select “Format SD Card” and confirm the action. The camera will erase all data and reformat the card using the appropriate file system (FAT32 or exFAT).
6. Wait for the process to complete. This may take a few minutes, depending on the card size. Do not remove the card or power off the camera during formatting.

Once formatting is complete, your camera will be ready to record. You can verify the format by checking the storage information in the settings menu.

Method 2: Formatting on a Computer

If you prefer to format the card on your computer, follow these steps:

1. Insert the SD card into your computer using a card reader. Make sure the computer recognizes the drive.
2. Open the formatting tool:
   • On Windows: Open “This PC,” right-click the SD card drive, and select “Format.”
   • On Mac: Open “Disk Utility,” select the SD card, and click “Erase.”
3. Choose the correct file system:
   • For cards 32GB or smaller: Select FAT32.
   • For cards larger than 32GB: Select exFAT.
4. Set the allocation unit size to “Default” or “32KB” for optimal performance.
5. Uncheck “Quick Format” if you want a thorough format (recommended for new cards).
6. Click “Start” or “Erase” and wait for the process to finish.

After formatting, safely eject the card and insert it into your Foscam camera. The camera should recognize it immediately.

Tips for Successful Formatting

– Always back up important footage before formatting.
– Use a high-quality card reader to avoid connection issues.
– Avoid formatting the card while it’s still in the camera if you’re using a computer.
– If the camera doesn’t recognize the card after formatting, try reformatting it using the camera’s built-in tool.

Choosing the Right SD Card for Your Foscam Camera

Not all SD cards are created equal—especially when it comes to security cameras. Choosing the right card can mean the difference between reliable 24/7 recording and constant frustration.

Capacity: How Much Storage Do You Need?

Foscam cameras support SD cards ranging from 8GB to 256GB, depending on the model. Here’s a quick guide to help you choose:

• 8GB–16GB: Suitable for short recordings or motion-triggered clips. Ideal for users who review footage frequently and don’t need long retention.
• 32GB–64GB: A good balance for most home users. Can store several days of HD footage, depending on recording settings.
• 128GB–256GB: Best for continuous recording or high-resolution video. Allows for weeks of storage before overwriting begins.

Keep in mind that higher capacity cards require exFAT formatting, so ensure your camera supports it.

Speed Class: Why It Matters

SD cards come with speed ratings that indicate how fast they can write data. For security cameras, a minimum of Class 10 or UHS Speed Class 1 (U1) is recommended. These cards can handle the constant stream of video data without dropping frames.

For 1080p or 4K recording, consider U3 or V30-rated cards, which offer even faster write speeds and better performance under heavy load.

Endurance: Surveillance-Grade Cards

Standard SD cards are designed for occasional use, like taking photos or storing music. Security cameras, however, write data continuously, which can wear out regular cards quickly.

That’s why it’s best to use high-endurance or surveillance-grade SD cards. Brands like SanDisk, Samsung, and Kingston offer cards specifically designed for 24/7 recording. These cards are built to withstand constant write cycles and last significantly longer than consumer-grade options.

Brand Reliability

Stick to reputable brands when buying SD cards. Counterfeit or low-quality cards may appear to work initially but can fail unexpectedly, leading to lost footage. Look for cards with good warranties and positive user reviews.

Maintaining Your SD Card for Long-Term Performance

Even with the right format and high-quality card, SD cards require maintenance to perform optimally over time.

Regular Formatting

It’s a good idea to reformat your SD card every few months. This clears out fragmented data, resets the file system, and helps prevent corruption. Use the camera’s built-in formatting tool for best results.

Monitoring Card Health

Some Foscam models display SD card health in the settings menu. If available, check this regularly. Signs of a failing card include slow write speeds, frequent errors, or the camera refusing to record.

Avoiding Physical Damage

Handle SD cards carefully. Avoid bending, dropping, or exposing them to extreme temperatures. Always eject the card safely from the camera or computer to prevent data loss.

Backing Up Important Footage

Since SD cards can fail without warning, always back up critical recordings to a computer, external drive, or cloud storage. This ensures you never lose important evidence or memories.

Troubleshooting Common SD Card Issues with Foscam

Even with proper formatting, you may encounter issues. Here are some common problems and how to fix them.

Camera Doesn’t Recognize the SD Card

– Ensure the card is properly inserted.
– Try reformatting the card using the camera’s tool.
– Test the card in another device to rule out hardware failure.

Recordings Are Choppy or Incomplete

– Check the card’s speed class—upgrade to a faster card if needed.
– Reduce recording resolution or frame rate in the camera settings.
– Reformat the card to clear fragmentation.

SD Card Shows as Full But Has Free Space

This is often a file system error. Reformat the card and ensure it’s using the correct format (FAT32 or exFAT).

Camera Frequently Disconnects from the App

– Ensure the card isn’t causing performance issues.
– Update the camera’s firmware to the latest version.
– Try a different SD card to isolate the problem.

Conclusion

Understanding what format Foscam uses on SD cards is essential for reliable security recording. Most Foscam cameras support FAT32 for cards up to 32GB and exFAT for larger capacities. Choosing the right format ensures compatibility, prevents errors, and maximizes performance.

By following the steps in this guide—selecting the correct file system, formatting properly, and maintaining your SD card—you can enjoy seamless recording and peace of mind. Remember to use high-endurance cards, back up your footage, and reformat regularly to keep your system running smoothly.

Whether you’re setting up a new Foscam camera or troubleshooting an existing one, the key is preparation and knowledge. With the right SD card and format, your Foscam will deliver dependable surveillance for years to come.

Frequently Asked Questions

What format does Foscam use on SD cards?

Foscam cameras use FAT32 for SD cards up to 32GB and exFAT for cards larger than 32GB. The correct format depends on your camera model and card capacity.

Can I use a 64GB SD card with my Foscam camera?

Yes, but it must be formatted as exFAT. Most newer Foscam models support exFAT, but check your camera’s specifications to confirm compatibility.

Why won’t my Foscam camera record to the SD card?

This could be due to incorrect formatting, a corrupted card, or an incompatible file system. Try reformatting the card using the camera’s built-in tool.

How often should I format my SD card in a Foscam camera?

It’s recommended to reformat the card every 2–3 months to maintain performance and prevent file corruption.

Can I format the SD card on my computer instead of the camera?

Yes, but always use FAT32 for cards 32GB or smaller and exFAT for larger cards. After formatting, insert the card into the camera to ensure compatibility.

What happens if I use the wrong file system on my Foscam SD card?

The camera may not recognize the card, fail to record, or produce corrupted files. Always use the correct format to avoid这些问题.
