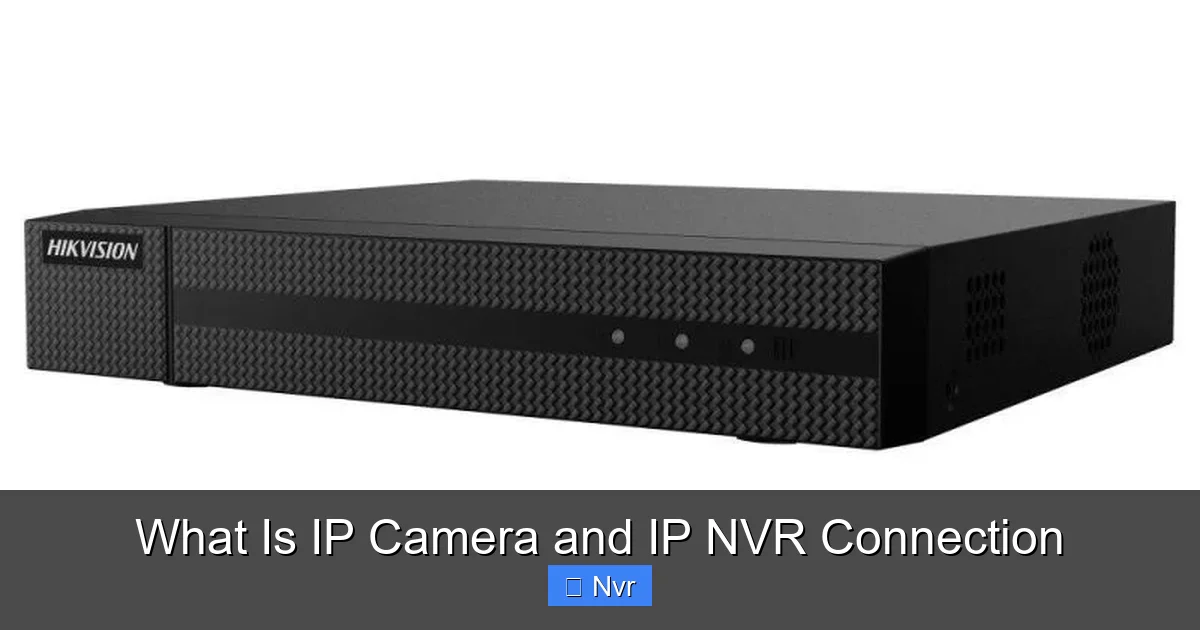

Featured image for this comprehensive guide about what is incoming bandwidth in nvr
Image source: itvolks.ro
When setting up a modern surveillance system, terms like IP camera, NVR, and bandwidth are thrown around frequently. But what do they all mean, especially when it comes to the often-overlooked yet critical concept of incoming bandwidth in NVR? You might think more cameras simply mean more monitoring, but without sufficient bandwidth, your high-resolution footage could turn into a frustrating slideshow of lag and dropped frames.
Understanding how your IP cameras connect to your NVR and the data flow involved is paramount to a robust, reliable security system. This isn’t just technical jargon; it’s the lifeblood of your surveillance, determining everything from video quality to the number of cameras your system can truly support. Let’s unravel the mystery of incoming bandwidth in NVR and empower you to build a bulletproof security setup.
📋 Table of Contents
Understanding IP Camera and NVR Connections
Before diving deep into bandwidth, let’s establish the foundational elements of your digital surveillance system: the IP camera and the Network Video Recorder (NVR).
What is an IP Camera?
An IP camera (Internet Protocol camera) is a type of digital video camera that receives control data and sends image data via an IP network. Unlike older analog cameras, IP cameras are essentially mini-computers with their own IP address, capable of compressing and streaming video digitally over a network connection, typically an Ethernet cable. This means they offer higher resolutions, more advanced features (like analytics), and greater flexibility in placement.
| NVR Type / Capacity | Max Incoming Bandwidth (Mbps) | Approx. Max 4MP Cameras (Est. @ 6Mbps/cam H.265) | Typical Use Case |
|---|---|---|---|
| Entry-Level / Home | 40 Mbps | 6-7 Cameras | Small home, basic surveillance (e.g., 4-8 channels) |
| Mid-Range / Small Business | 100 Mbps | 16-17 Cameras | Medium-sized office, retail store (e.g., 8-16 channels) |
| High-Performance / Enterprise | 240 Mbps | 40 Cameras | Large commercial building, warehouse, extensive camera network (e.g., 32+ channels) |
| Ultra-High / Industrial | 320 Mbps+ | 50+ Cameras | Industrial sites, smart cities, mission-critical surveillance |
What is an NVR?
An NVR, or Network Video Recorder, is a specialized computer system that records video in a digital format to a disk drive or other mass storage device. It works with IP cameras, receiving the digital video streams over a network (LAN or WAN) and then managing, storing, and allowing playback of that footage. Most NVRs also provide Power over Ethernet (PoE) ports, allowing a single Ethernet cable to provide both power and data connectivity to the cameras, simplifying installation.
The Connection: How IP Cameras Talk to NVRs
The connection between an IP camera and an NVR is entirely network-based. Cameras stream their video data packets to the NVR, which acts as a central hub. This data flow requires a certain capacity, much like a road needs enough lanes to handle traffic. This capacity is what we refer to as bandwidth.
What Exactly Is Incoming Bandwidth in NVR?
Now, let’s pinpoint the core concept: incoming bandwidth in NVR. Simply put, it’s the total amount of digital data that your NVR can receive simultaneously from all connected IP cameras without performance degradation. Think of your NVR as a digital highway interchange. The incoming bandwidth is the maximum number of cars (data packets) per second that can enter this interchange from various feeder roads (your IP cameras) without causing a massive traffic jam.

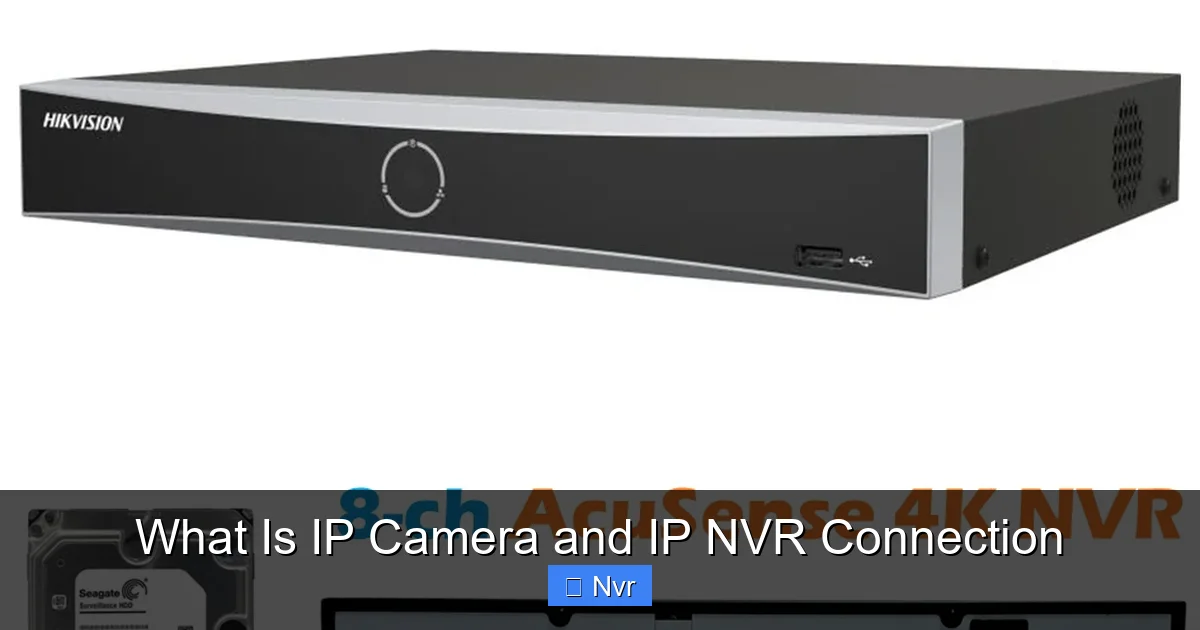

Learn more about what is incoming bandwidth in nvr – What Is IP Camera and IP NVR Connection
Image source: down-ph.img.susercontent.com
Every IP camera, when actively streaming video, consumes a certain amount of bandwidth. This consumption depends heavily on factors like resolution (e.g., 1080p, 4K), frame rate (frames per second), and the video compression codec being used (e.g., H.264, H.265). The NVR has a specified maximum incoming bandwidth capacity, usually measured in Megabits per second (Mbps). If the combined data streams from all your cameras exceed this limit, your system will struggle.
Why Incoming Bandwidth Matters for Your Security System
An insufficient incoming bandwidth in NVR can severely compromise the effectiveness of your entire surveillance setup. It’s not just a technical specification; it’s a direct determinant of your NVR performance and security system reliability.

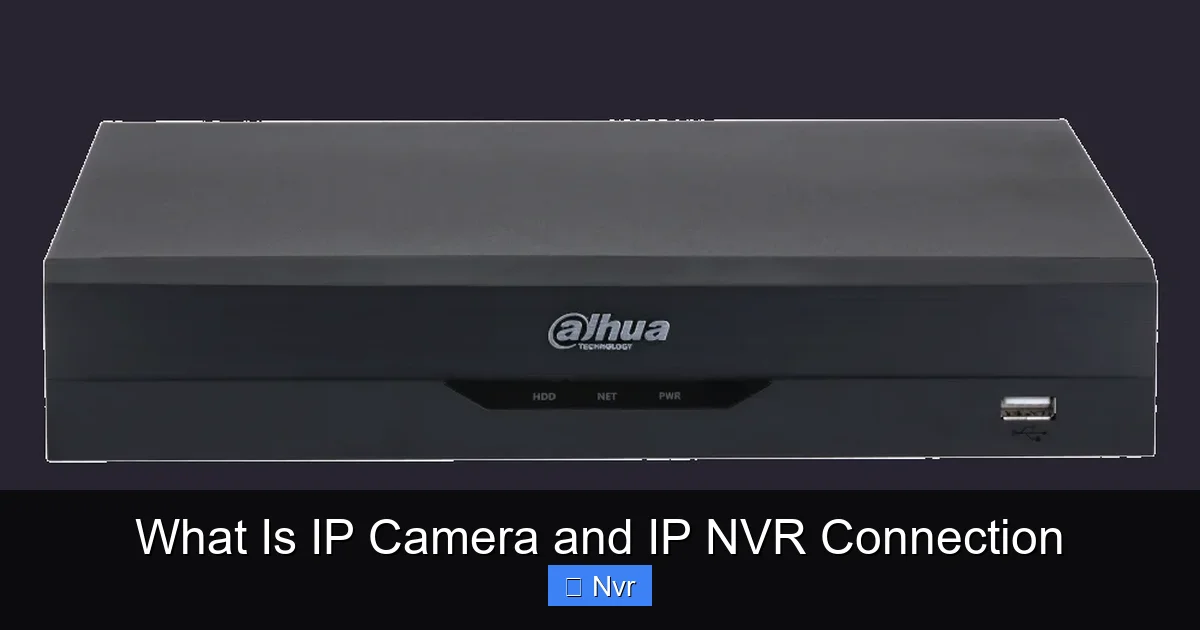

Learn more about what is incoming bandwidth in nvr – What Is IP Camera and IP NVR Connection
Image source: s3-eu-west-1.amazonaws.com
- Video Quality and Integrity: Exceeding bandwidth limits can lead to dropped frames, pixelation, or even complete loss of video footage. Your high-resolution cameras become pointless if the NVR can’t process all the data.
- Simultaneous Live Viewing: If you’re trying to view multiple camera feeds simultaneously, inadequate bandwidth will result in lag, choppy video, or feeds simply failing to load, hindering real-time monitoring.
- Recording Reliability: The primary purpose of an NVR is to record. If the incoming bandwidth is saturated, the NVR might not be able to record all channels reliably or at their specified quality, leading to gaps in your surveillance history.
- System Stability: An NVR constantly struggling with too much data can become unstable, leading to crashes, reboots, or overall sluggishness, impacting the longevity and performance of the device itself.
Calculating Your NVR’s Incoming Bandwidth Needs
To ensure optimal NVR performance, you need to calculate your system’s total bandwidth requirement and ensure your NVR can handle it.
First, estimate the bandwidth consumed by each individual camera. This often requires consulting the camera’s specifications or performing a simple test. Key factors include:
- Resolution: Higher resolutions (e.g., 4K/8MP) consume significantly more bandwidth than lower ones (e.g., 1080p).
- Frame Rate (FPS): More frames per second mean smoother video but also more data.
- Compression Codec: H.265 (HEVC) is far more efficient than H.264, often halving the bandwidth required for the same video quality.
- Scene Activity: Cameras in busy areas with constant motion will transmit more data than cameras in static environments.
A general rule of thumb for average scenarios (with H.264, assuming moderate activity) might look like this:
- 1080p (2MP) @ 20-30fps: 2-4 Mbps per camera
- 4MP @ 20-30fps: 4-8 Mbps per camera
- 4K (8MP) @ 20-30fps: 8-15 Mbps per camera
If using H.265, you can typically reduce these estimates by 30-50%.
Formula: To get your total required incoming bandwidth, simply multiply the average bandwidth per camera by the total number of cameras.
Example:
You have 8 x 4MP cameras, each consuming roughly 6 Mbps (using H.264).
Total required bandwidth = 8 cameras * 6 Mbps/camera = 48 Mbps.
In this scenario, you would need an NVR with an incoming bandwidth capacity of at least 48 Mbps, ideally with some headroom.
Optimizing Incoming Bandwidth for Seamless Surveillance
Proper bandwidth management is crucial for a high-performing surveillance system. Here are actionable tips to optimize your incoming bandwidth in NVR:
Choose the Right NVR from the Start
Invest in an NVR with sufficient incoming bandwidth capacity for your current and future camera needs. Don’t just consider the number of channels; the bandwidth specification is equally vital. A 16-channel NVR with only 80 Mbps incoming bandwidth might struggle with 8 x 4K cameras (which could consume 64-120 Mbps).
Leverage Efficient Compression Codecs (H.265/HEVC)
If your cameras and NVR support it, always use H.265 (High Efficiency Video Coding). It significantly reduces file sizes and bandwidth requirements compared to H.264 while maintaining similar or better video quality. This alone can free up substantial incoming bandwidth.
Strategically Manage Camera Settings
While you want the best quality, assess if every camera needs to stream at maximum resolution and frame rate 24/7.
- Resolution: Critical areas might need 4K, but less crucial spots (e.g., a quiet hallway) might be fine with 1080p or 4MP.
- Frame Rate: For general surveillance, 15-20 FPS is often sufficient. Higher frame rates (25-30 FPS) are mostly beneficial for capturing fast-moving objects.
- Bitrate: Some cameras allow you to set a fixed bitrate. Lowering this can save bandwidth, but too low will degrade quality.
Enhance Your Network Infrastructure
A robust network is foundational. Use high-quality Ethernet cables (Cat5e or Cat6), and consider a dedicated network switch for your cameras, especially for larger installations. This prevents congestion from other network traffic and ensures smooth data flow to the NVR.
Keep Firmware Updated
Regularly update the firmware on both your cameras and NVR. Manufacturers often release updates that improve compression efficiency, optimize network performance, and fix bugs, indirectly helping with bandwidth management.
Common Pitfalls and Troubleshooting Tips
If you’re experiencing issues with your surveillance system, such as choppy video, recordings failing, or cameras going offline, insufficient incoming bandwidth in NVR is a common culprit.
Symptoms of Insufficient Bandwidth:
- Laggy or stuttering live view feeds.
- Dropped frames or pixelated recordings.
- Cameras intermittently disconnecting or failing to record.
- NVR freezing or becoming unresponsive.
- Error messages about network or recording issues.
Troubleshooting Steps:
- Check NVR Specifications: Verify your NVR’s maximum incoming bandwidth capacity against your calculated needs.
- Review Camera Settings: Temporarily reduce the resolution or frame rate on one or two cameras (starting with the highest resolution ones) and observe if performance improves.
- Utilize NVR Bandwidth Monitors: Many NVRs have built-in tools to show the real-time bandwidth consumption of each camera and the total incoming load. Use these to identify bandwidth-hungry cameras.
- Inspect Network Infrastructure: Ensure all network cables are properly connected and undamaged. If using a separate switch, confirm it’s gigabit capable and not overloaded.
- Isolate the Problem: Disconnect some cameras temporarily to see if the system stabilizes. This can help pinpoint if a specific camera is misbehaving or if the overall load is too high.
Understanding and managing your incoming bandwidth in NVR is not just for tech enthusiasts; it’s essential for anyone relying on a modern surveillance system. It directly impacts the quality, reliability, and overall effectiveness of your security. By properly calculating your needs, choosing the right equipment, and optimizing your settings, you can ensure your IP cameras and NVR work in perfect harmony, providing you with seamless, high-quality surveillance when you need it most. Don’t let your security system fall victim to a digital traffic jam; master your bandwidth and achieve true peace of mind.
Frequently Asked Questions
What exactly is incoming bandwidth in an NVR?
This refers to the total amount of data an NVR (Network Video Recorder) can receive simultaneously from all connected IP cameras. It’s essentially the maximum data throughput capacity the NVR can handle for video streams coming in from your surveillance devices.
Why is the NVR’s incoming bandwidth capacity so important?
The incoming bandwidth capacity is crucial because it dictates how many IP cameras, and at what resolution and quality, your NVR can effectively record without issues. If the total data rate from your cameras exceeds this limit, you will experience dropped frames, recording errors, or system instability.
How do I calculate the required incoming bandwidth for my IP camera system?
To calculate the required incoming bandwidth, sum the individual bitrates of all IP cameras you plan to connect to the NVR. Each camera’s bitrate (often measured in Mbps) can usually be found in its specifications or settings, or estimated based on resolution and compression.
What happens if my NVR’s incoming bandwidth is exceeded?
If the total incoming data from your cameras surpasses the NVR’s capacity, you may encounter several problems. Common issues include choppy video playback, missed recordings, dropped frames, or even the NVR becoming unresponsive because it cannot process all the incoming video data fast enough.
Does camera resolution and compression affect the incoming bandwidth needed?
Yes, absolutely. Higher camera resolutions (e.g., 4K vs. 1080p) and lower compression settings (resulting in higher quality H.264/H.265 streams) will demand significantly more incoming bandwidth. Each camera’s individual bitrate directly contributes to the total load, so more demanding camera settings will quickly consume the NVR’s available capacity.
Is incoming bandwidth the same as my internet download speed?
No, incoming bandwidth in the context of an NVR refers specifically to the internal network capacity for receiving data from local IP cameras on your local network. While your internet download speed is important for remote viewing, it’s distinct from the NVR’s capacity to record local camera feeds internally.
